Tests DU: Intake Air Temperature 2 (IAT2)

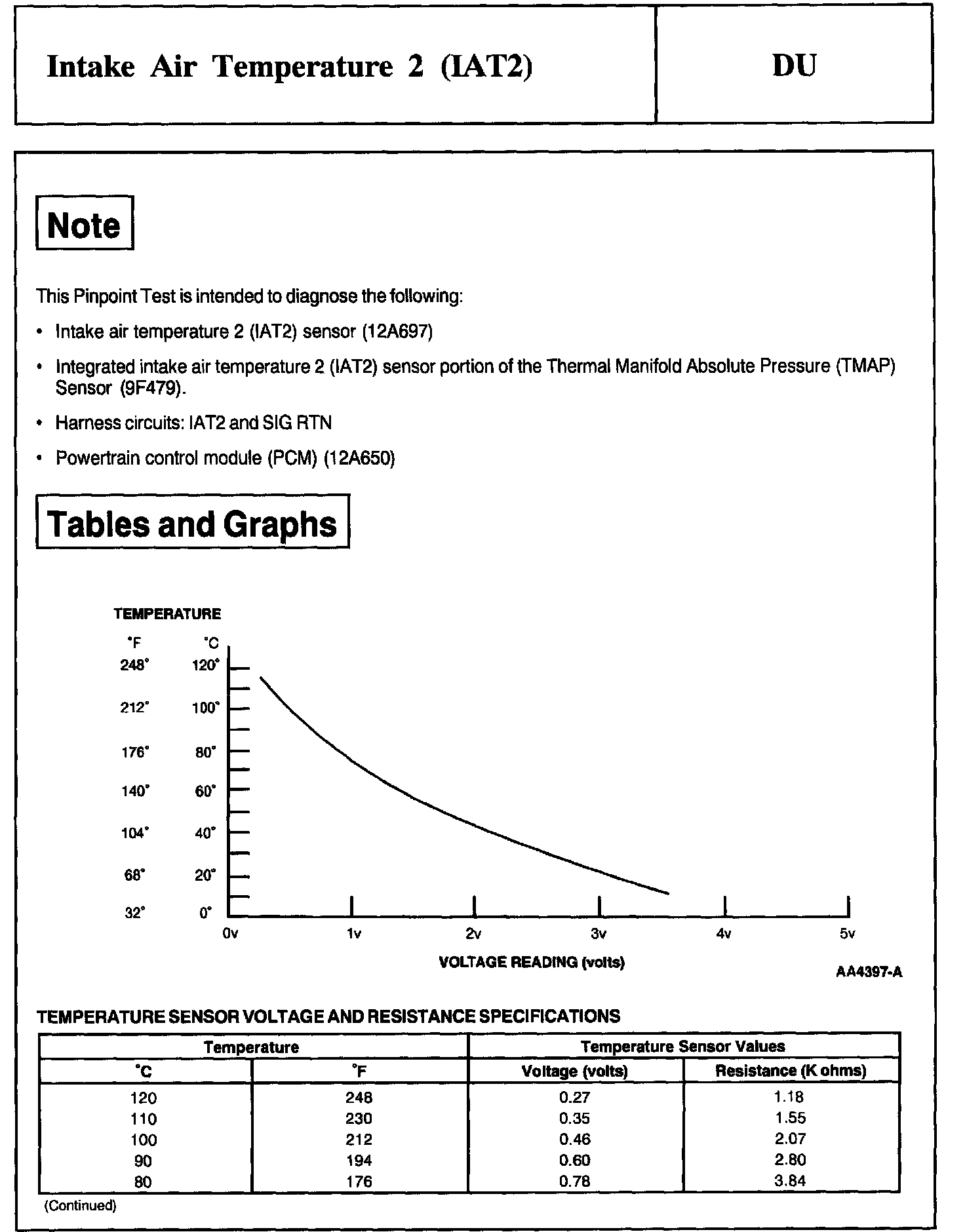

Note, Tables and Graphs:

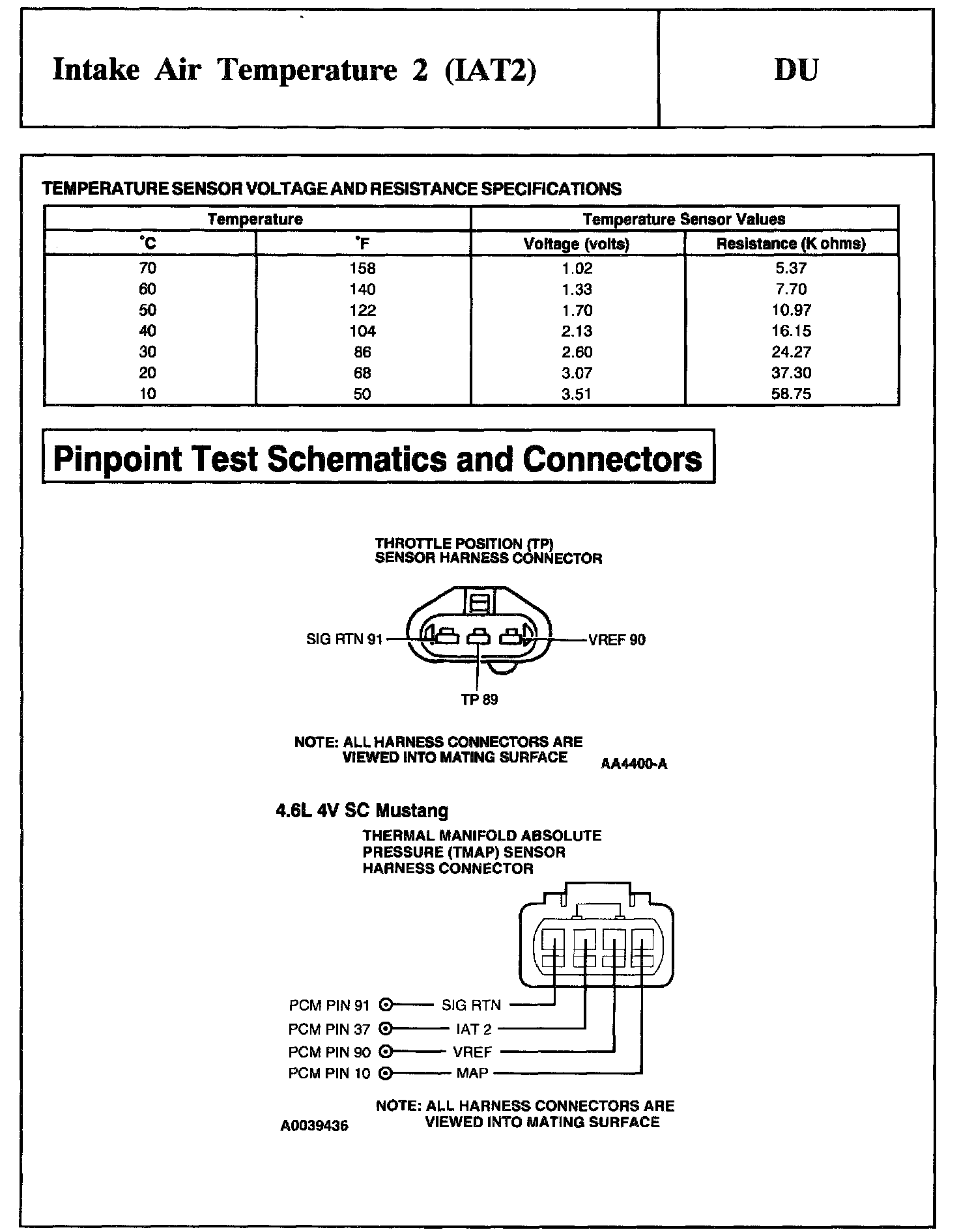

Table, Schematics and Connectors:

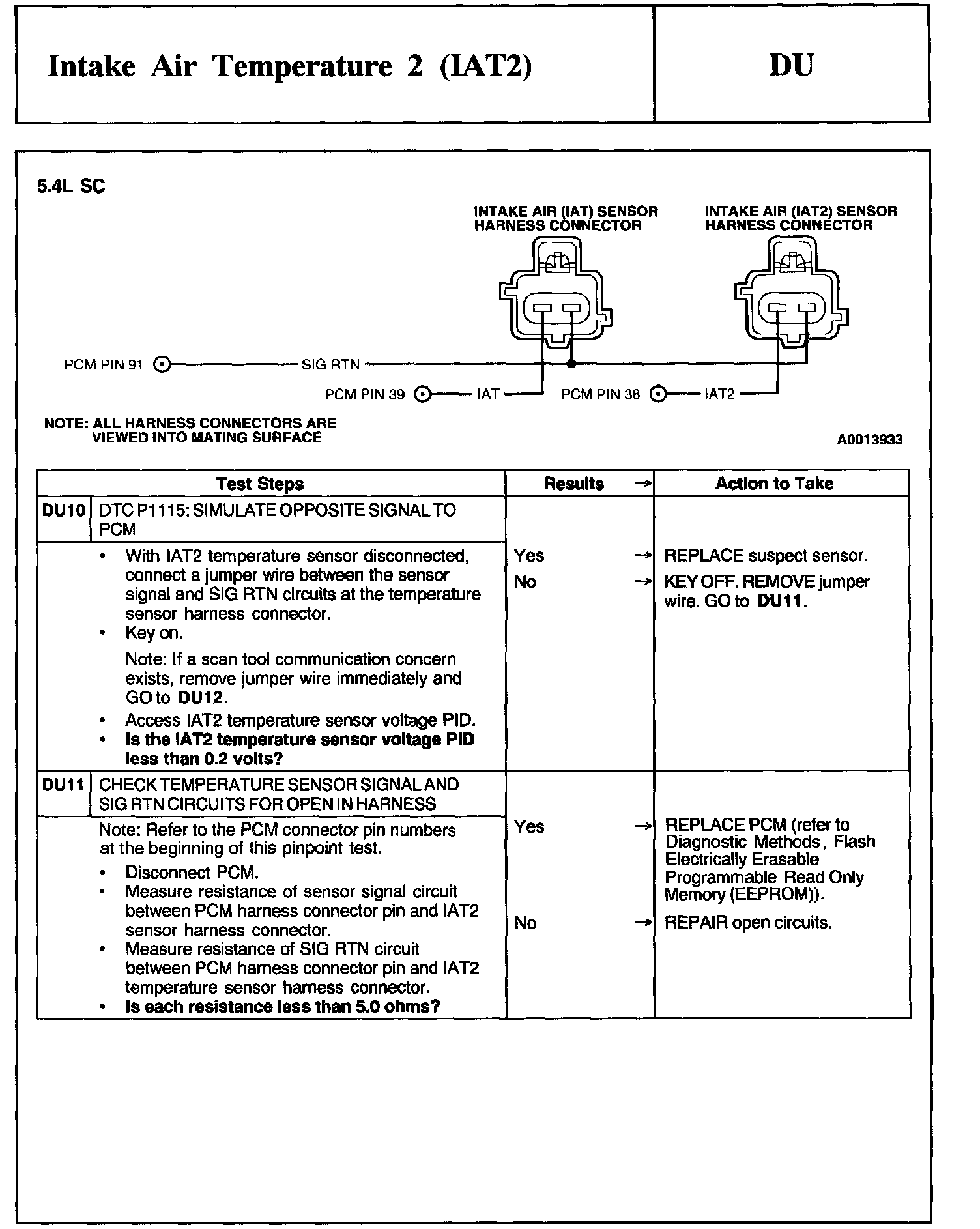

Schematic, Test DU10 - DU11:

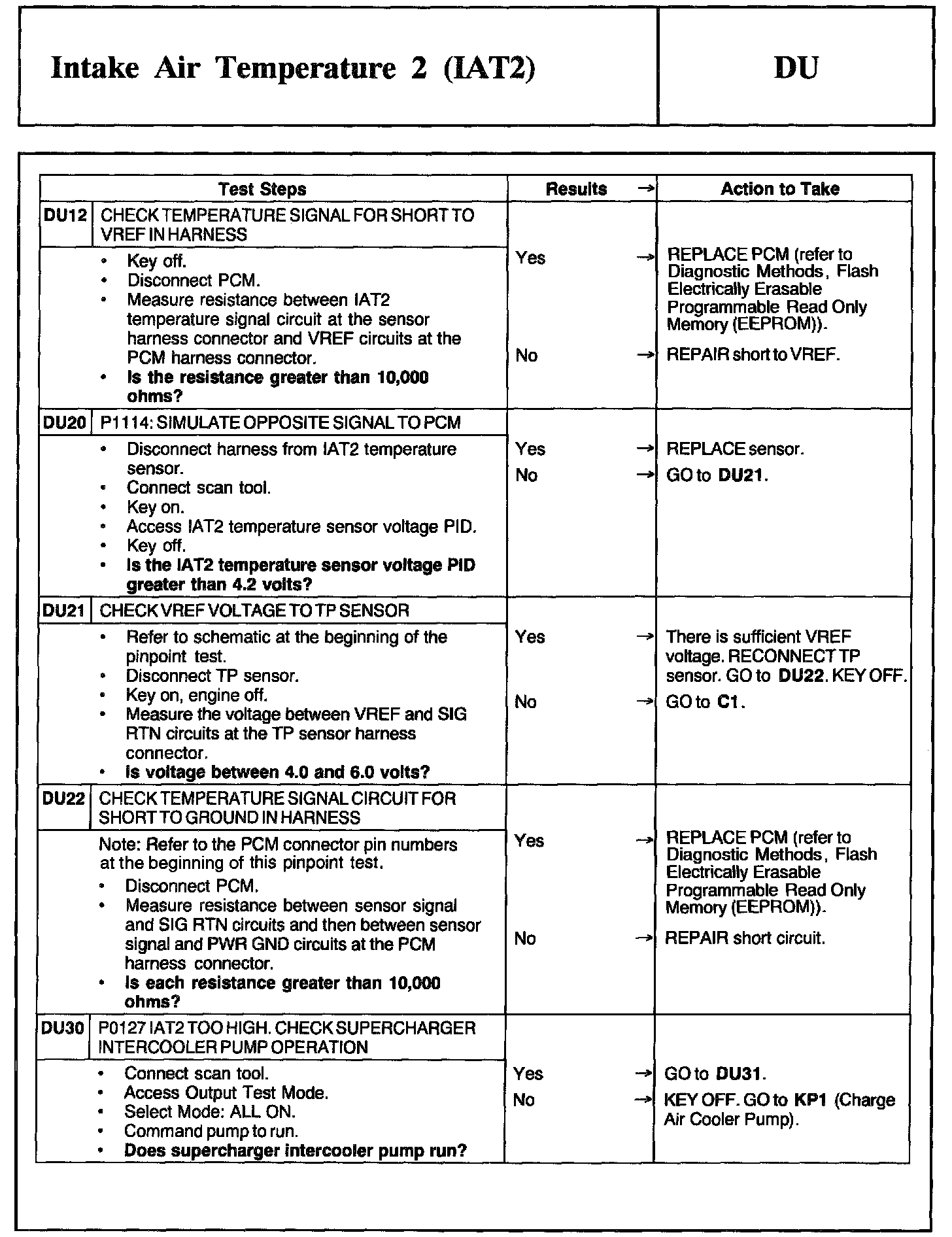

DU12 - DU30:

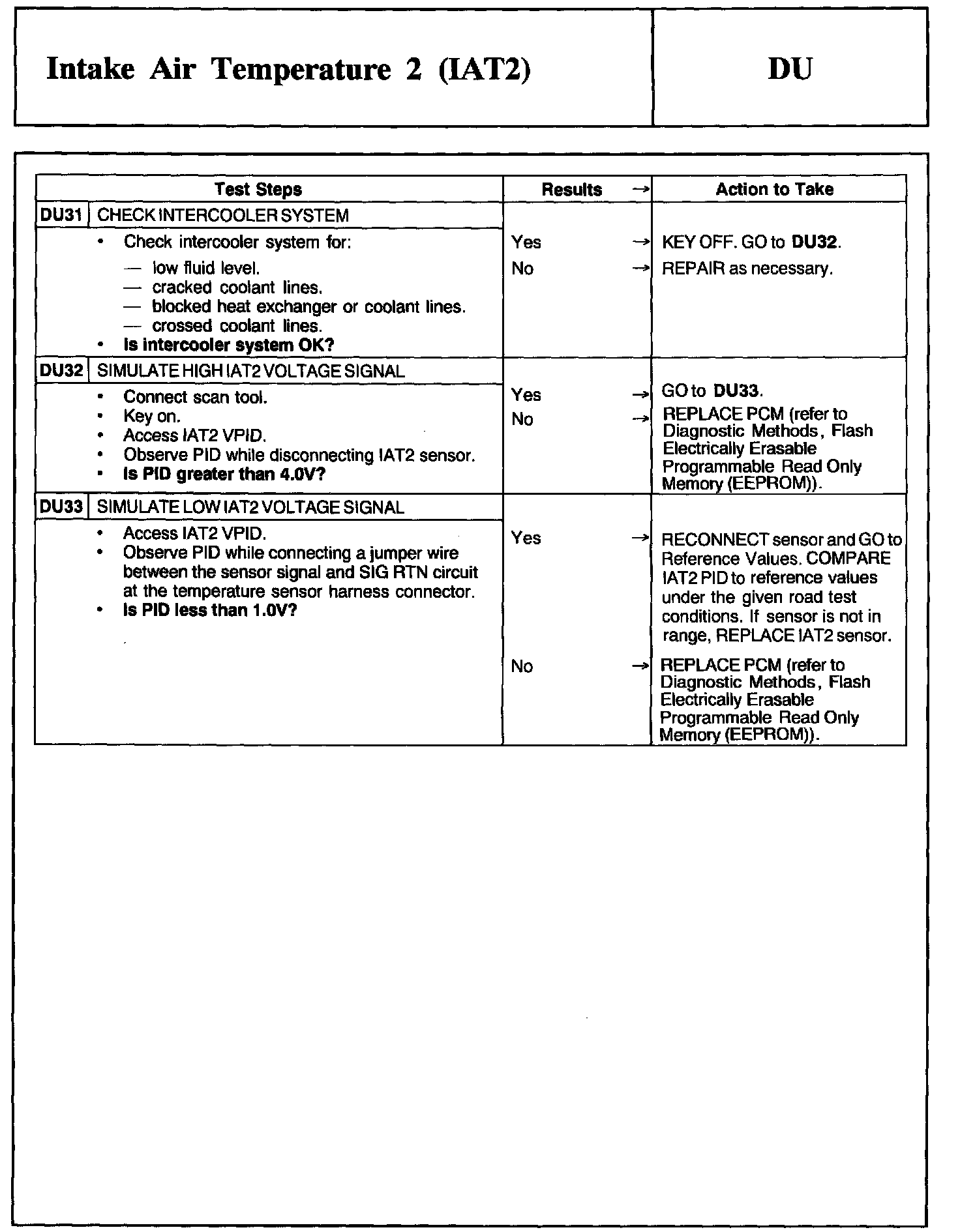

DU31 - DU33:
