Tests DP: Vehicle Speed Sensor/Transfer Case Speed Sensor

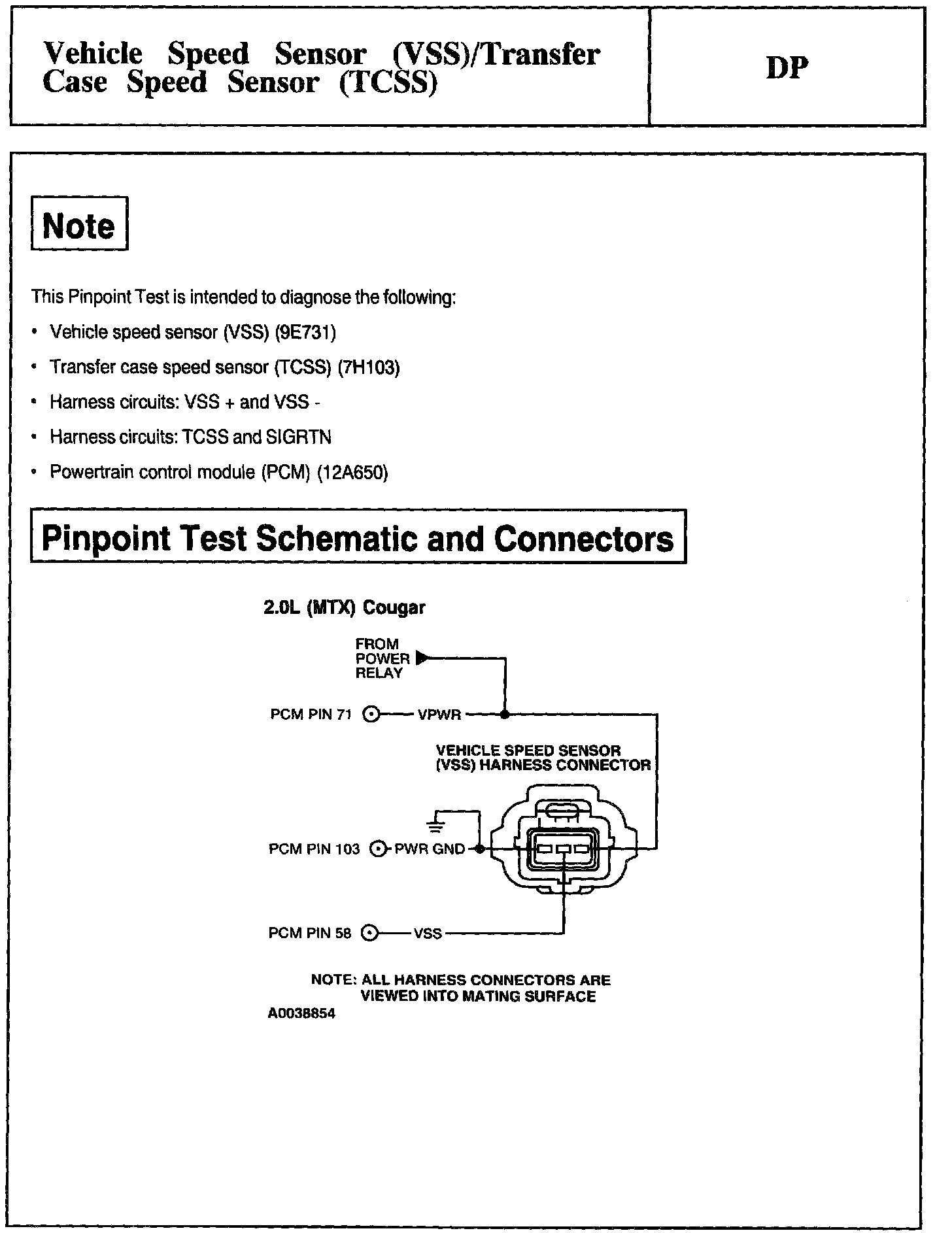

Note, Schematic and Connectors:

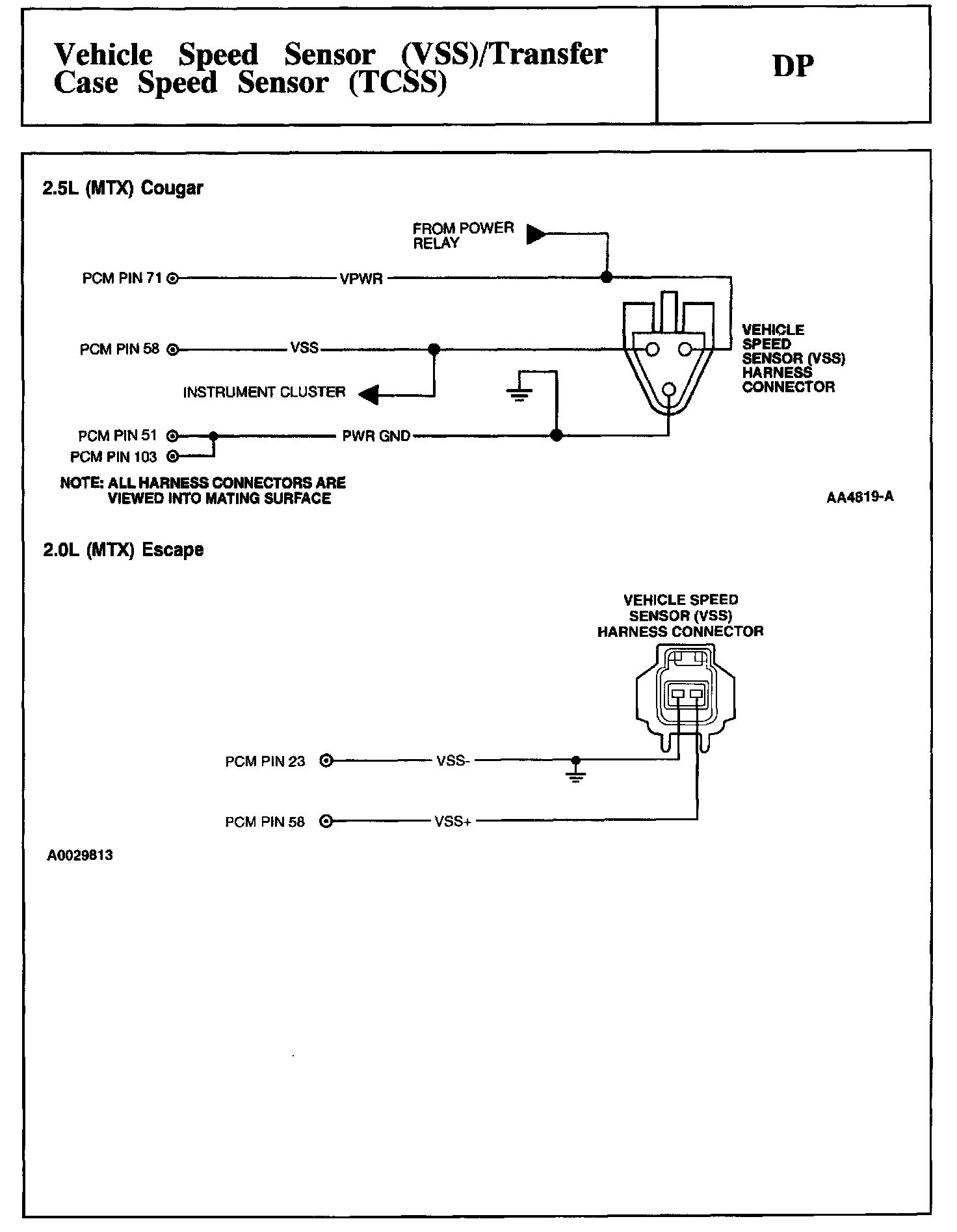

Test Schematic:

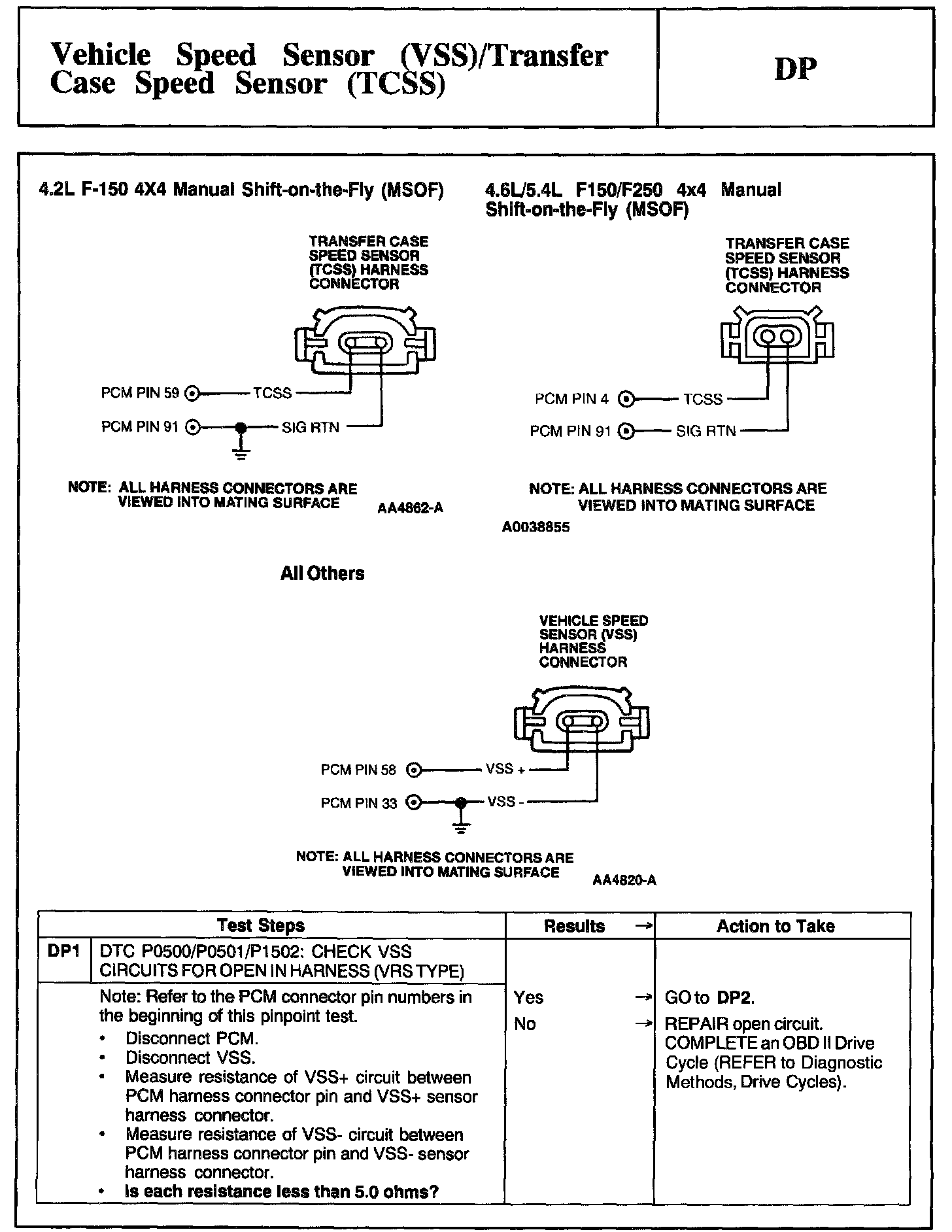

Schematic, Test DP1:

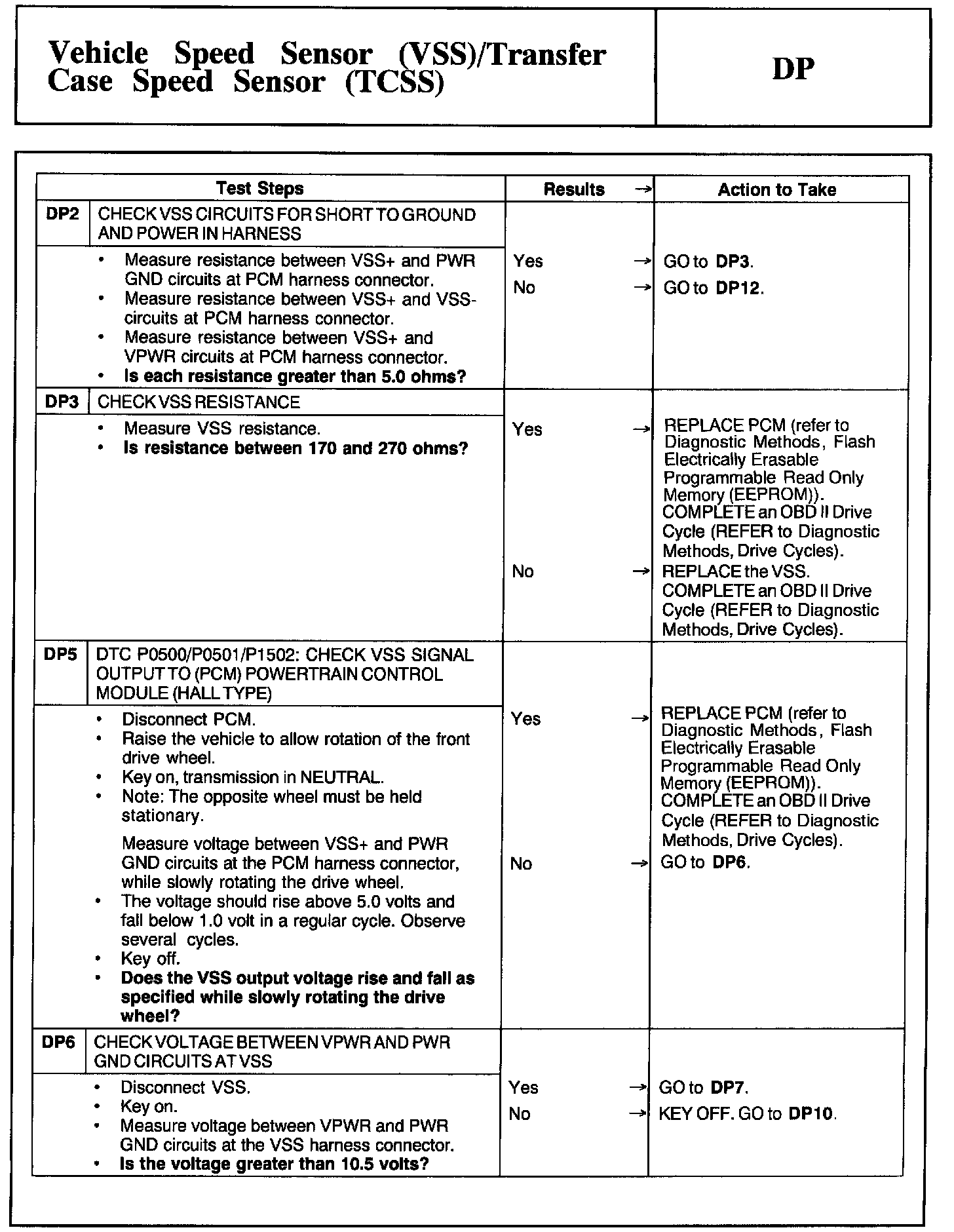

DP2 - DP6:

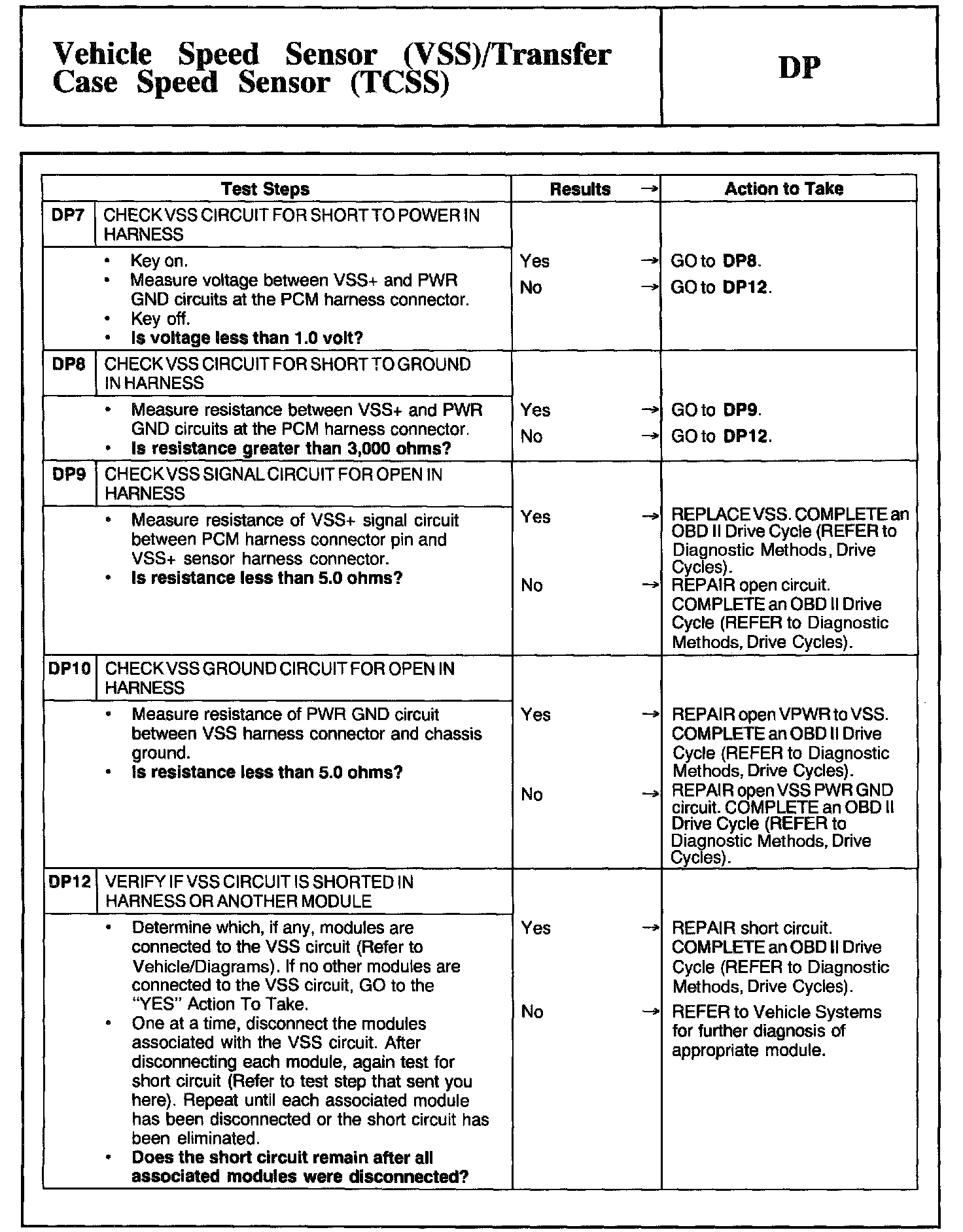

DP7 - DP12:

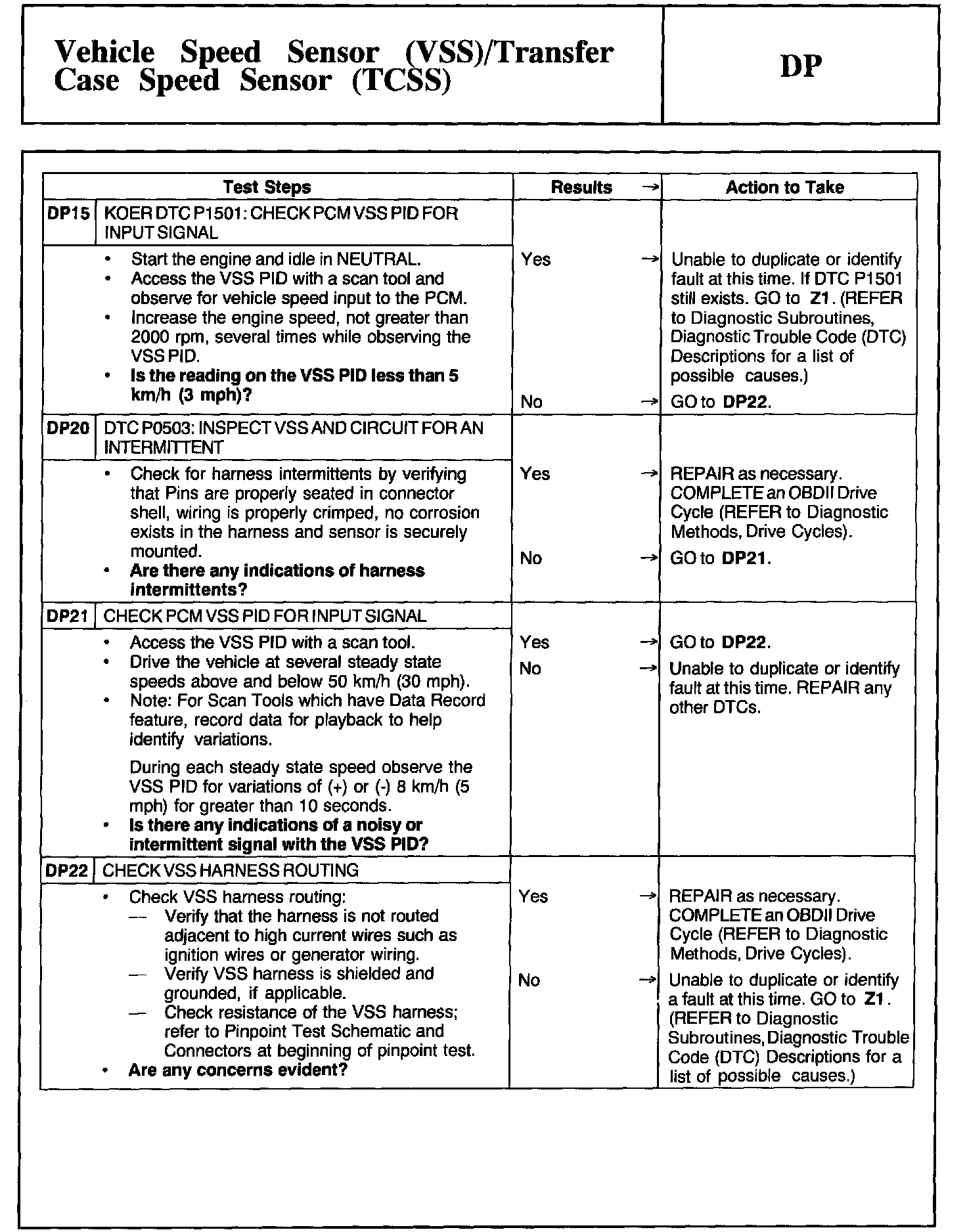

DP15 - DP22:

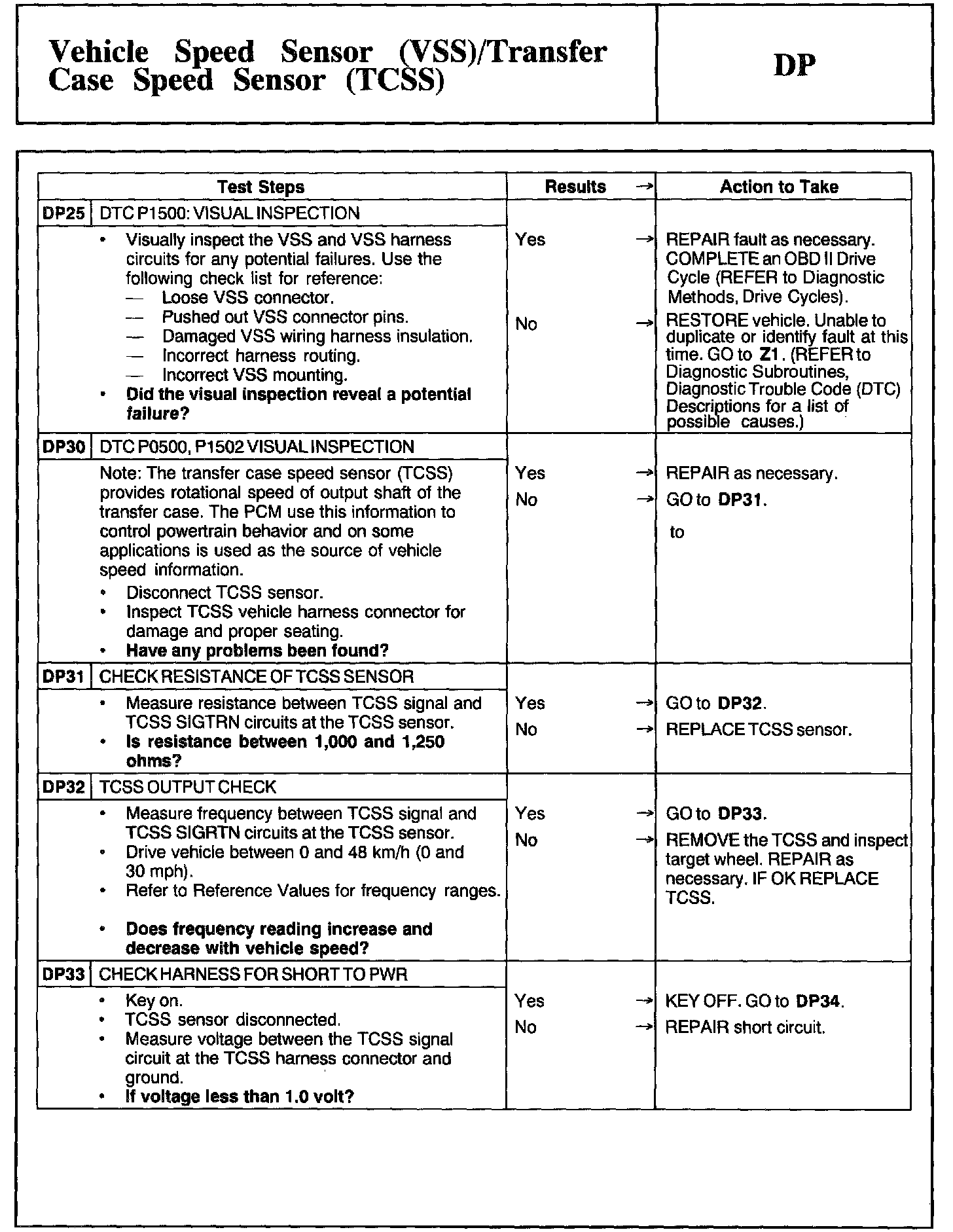

DP25 - DP33:

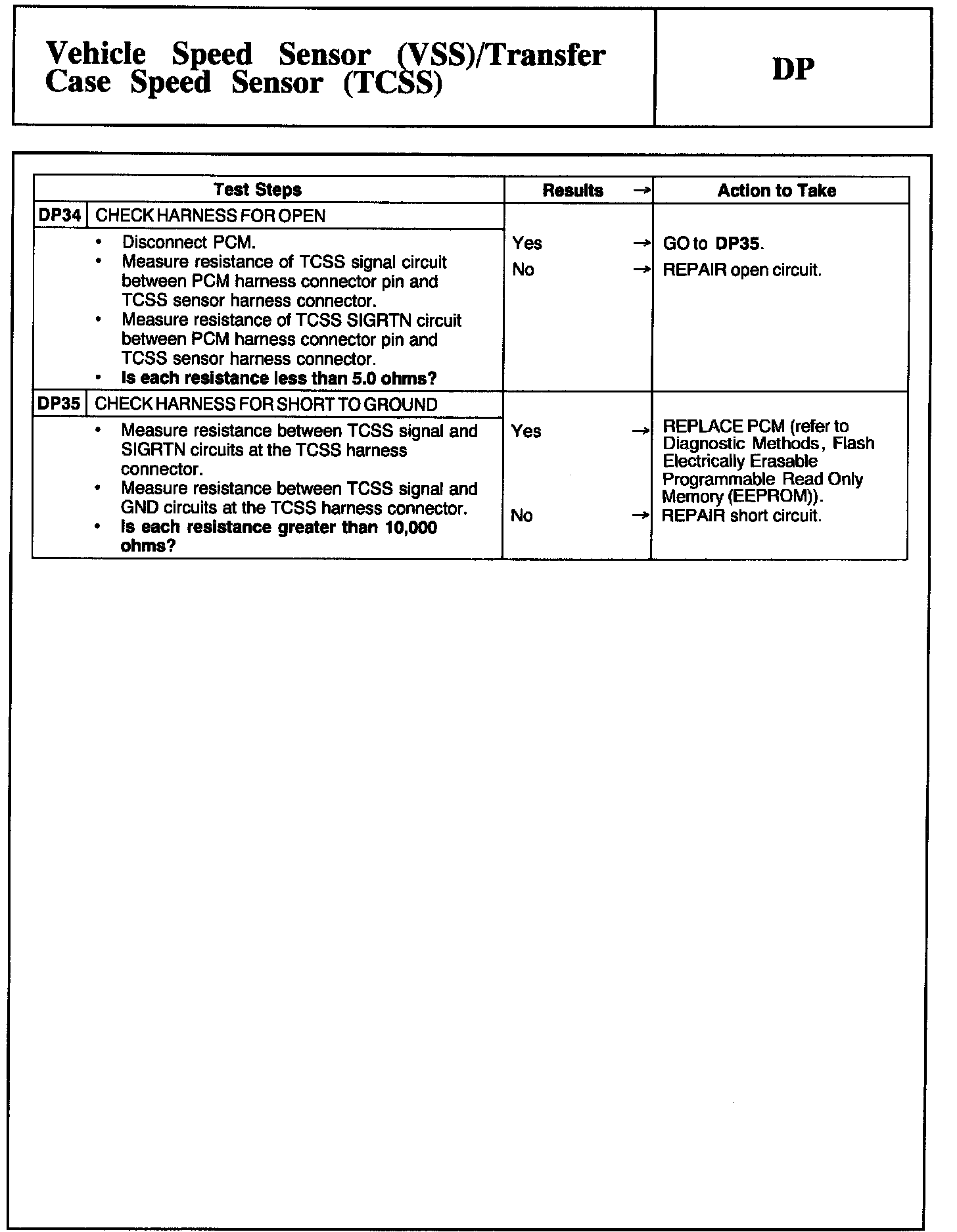

DP34 - DP35:
