Tests DL: Cylinder Head Temperature (CHT) Sensor

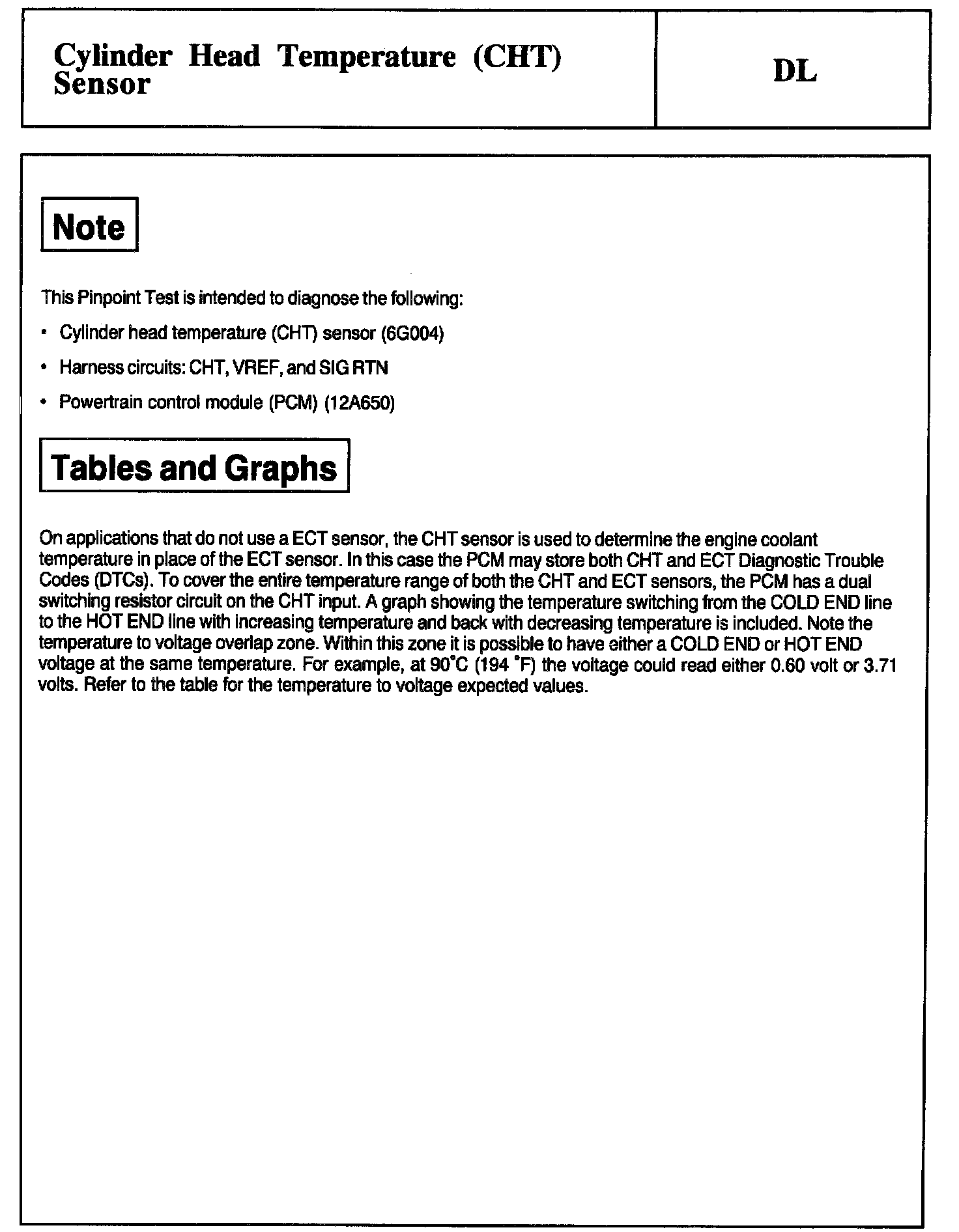

Test Note, Description:

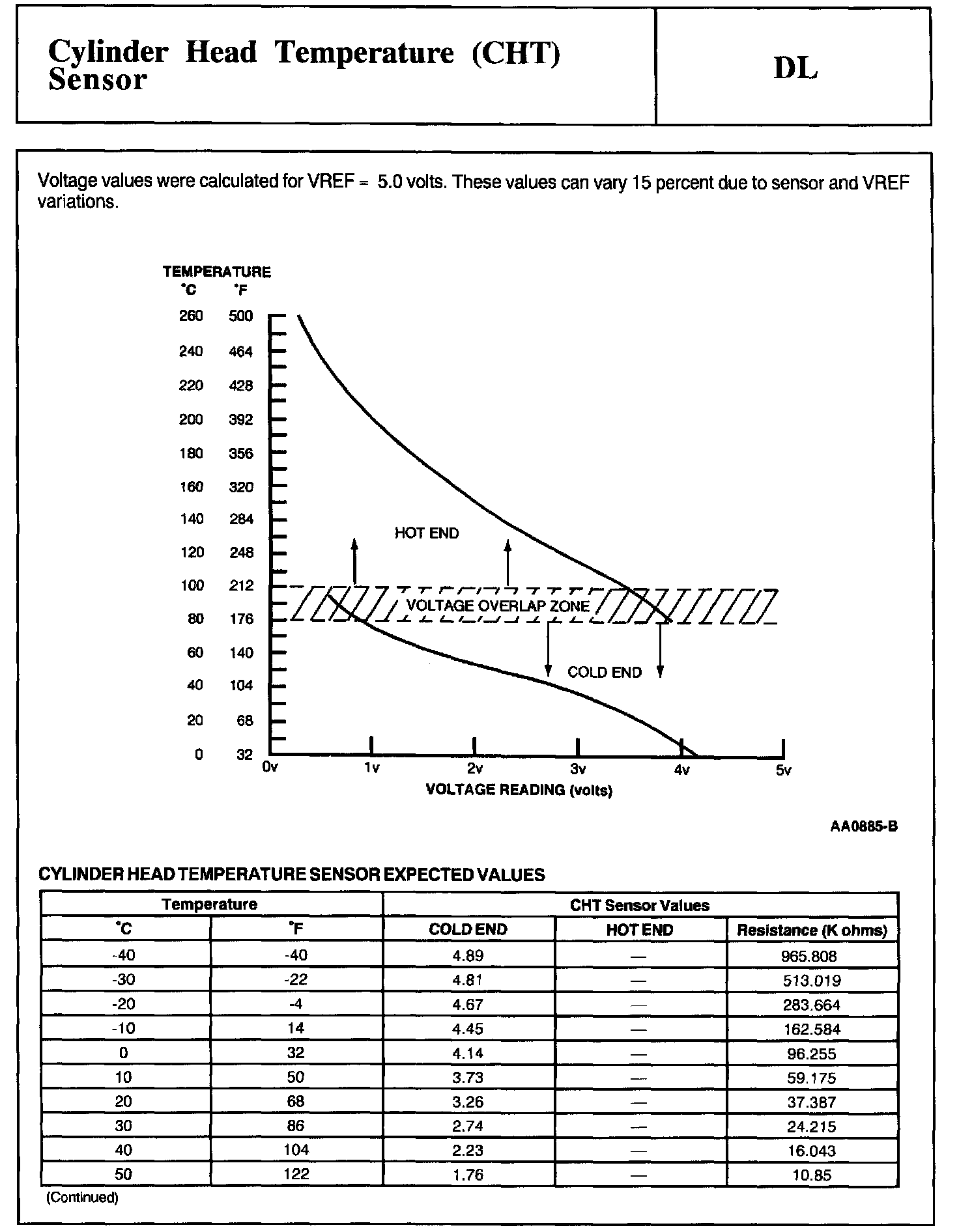

Graph and CHT Sensor Values Table:

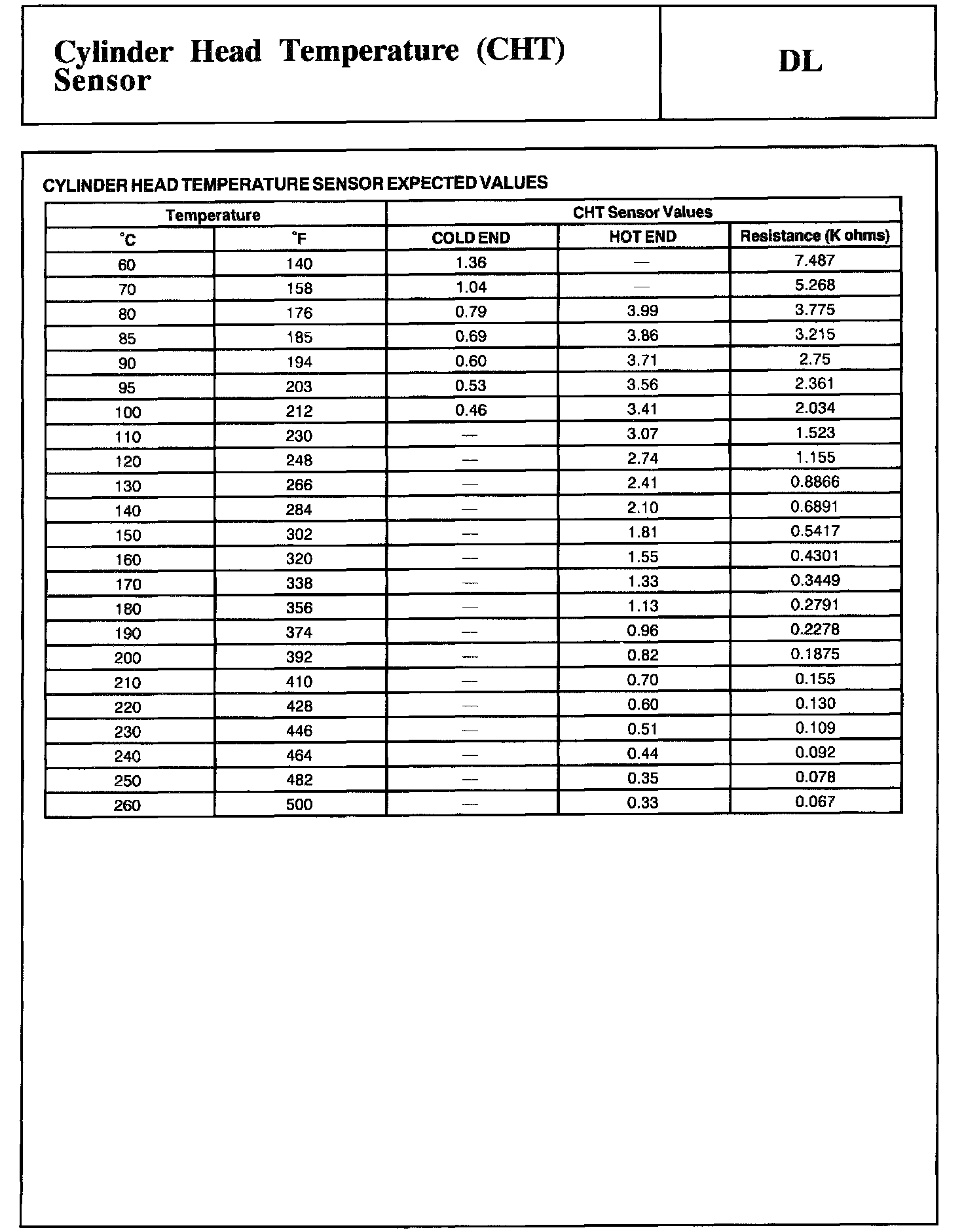

CHT Sensor Values Table:

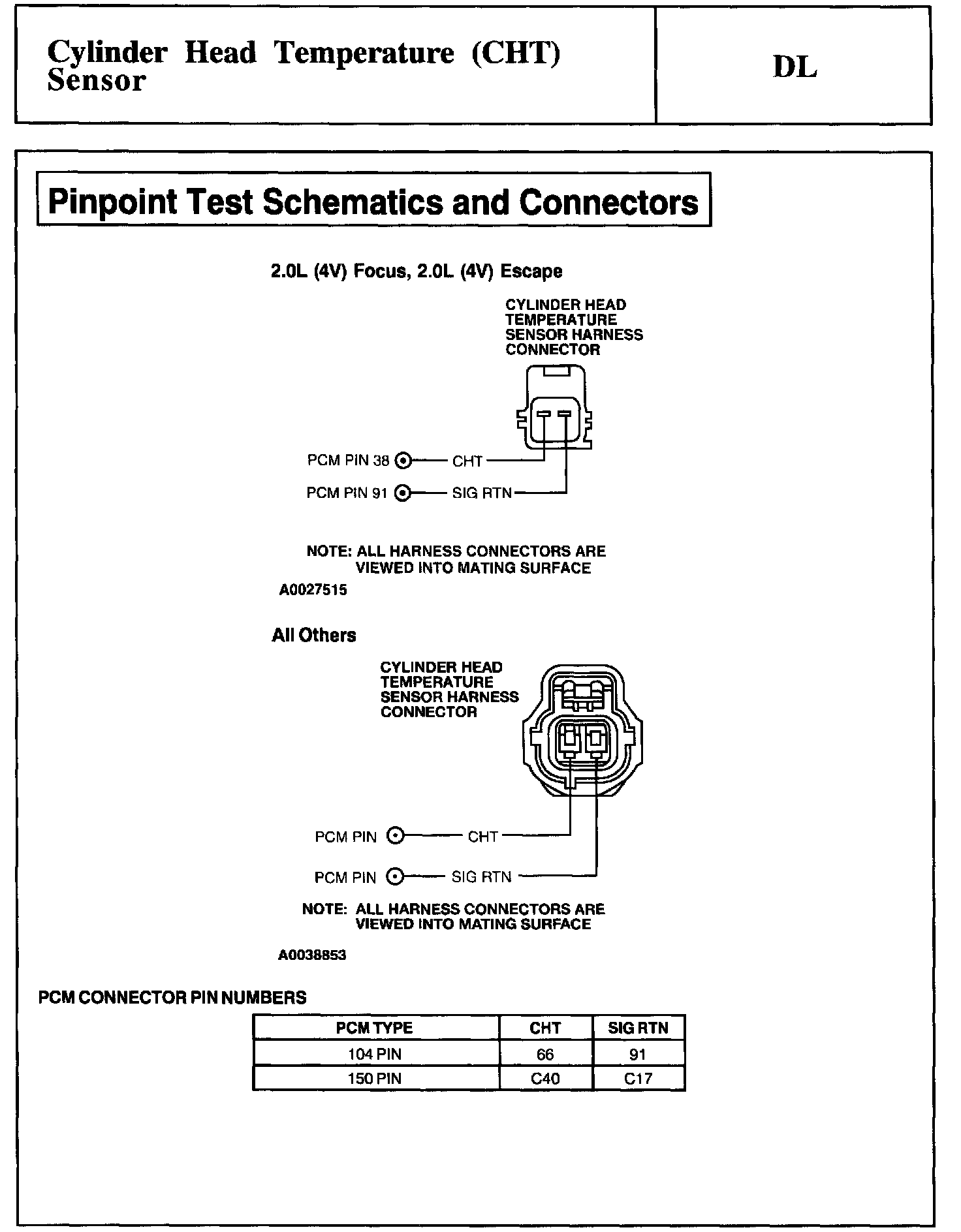

Schematics and Connectors:

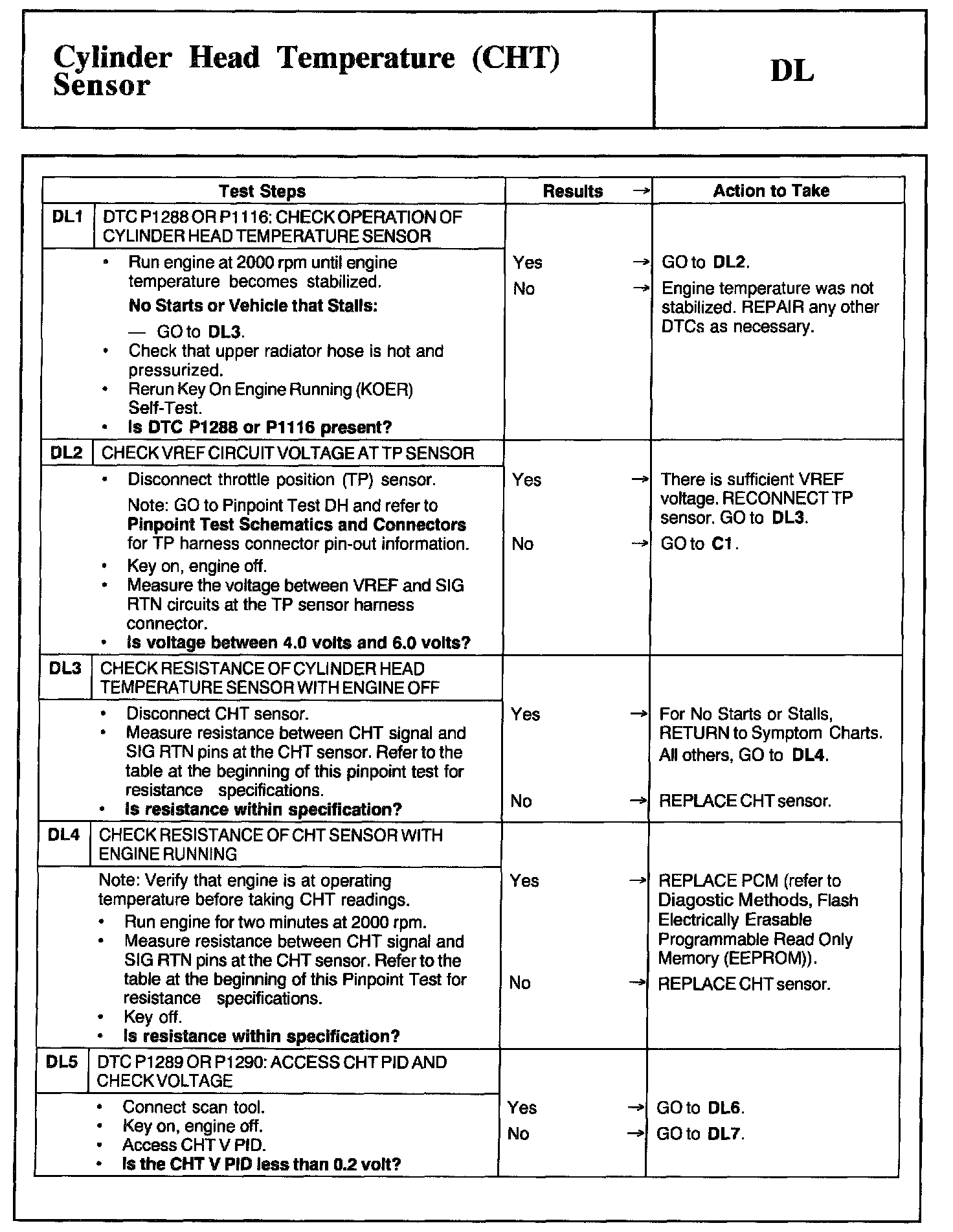

DL1 - DL5:

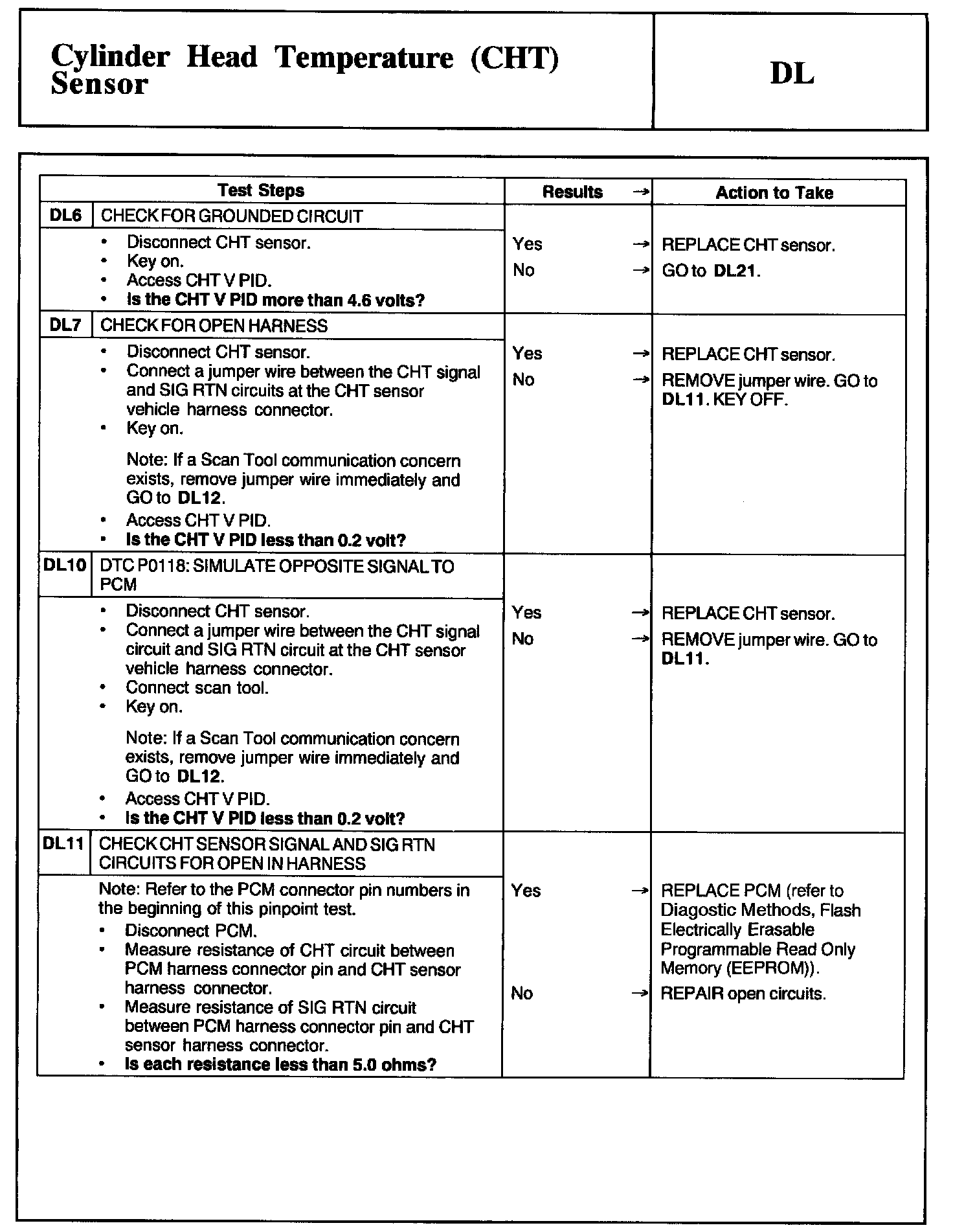

DL6 - DL11:

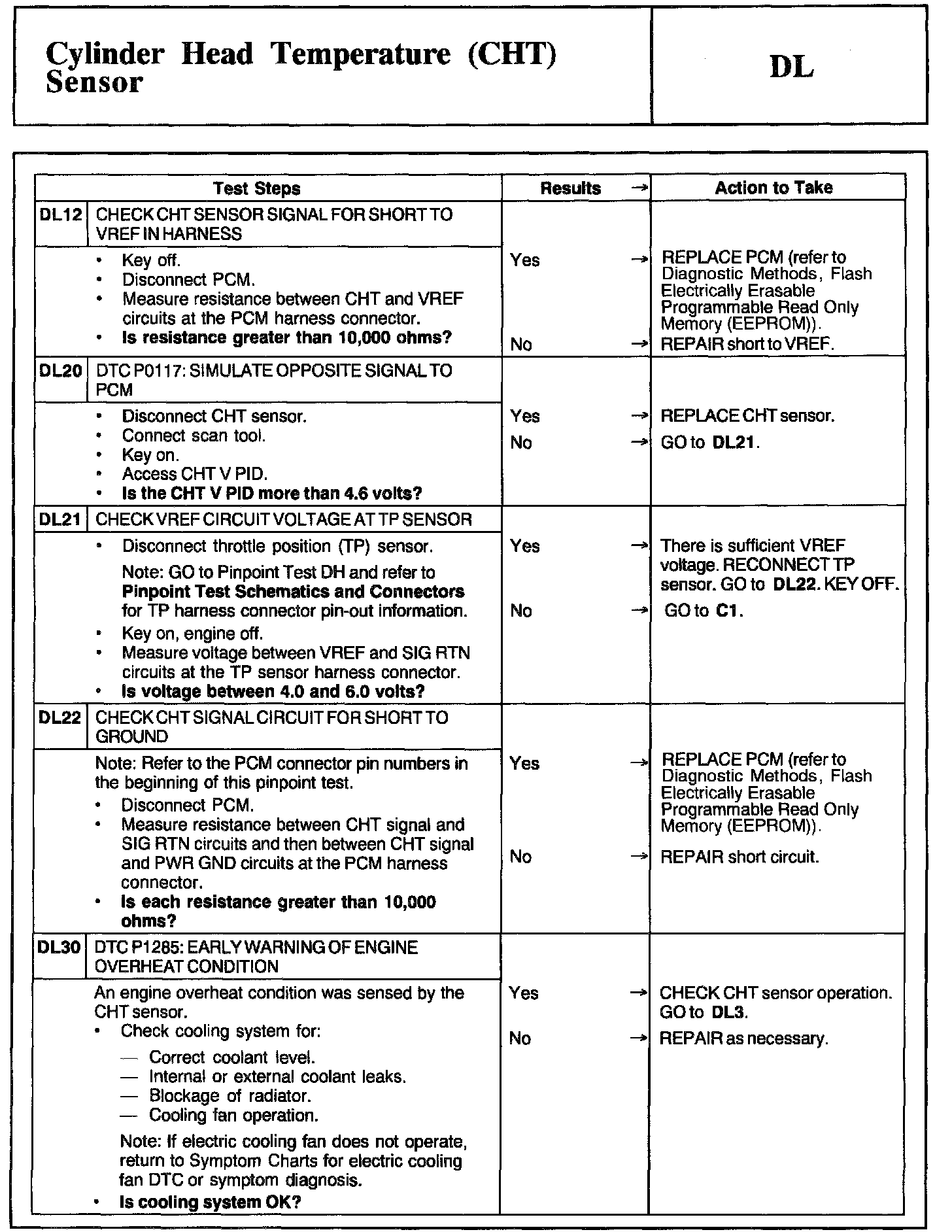

DL12 - DL30:

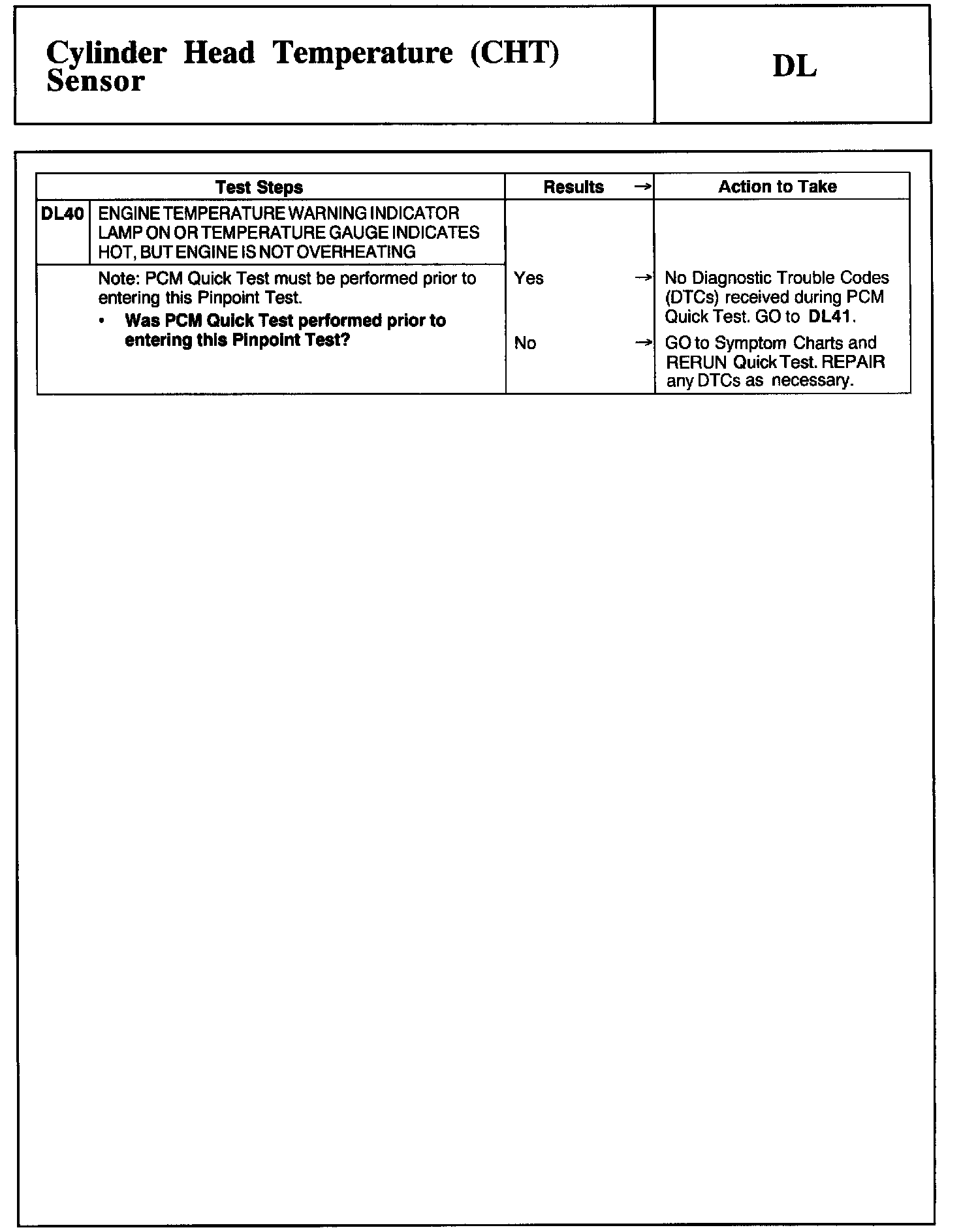

DL40:

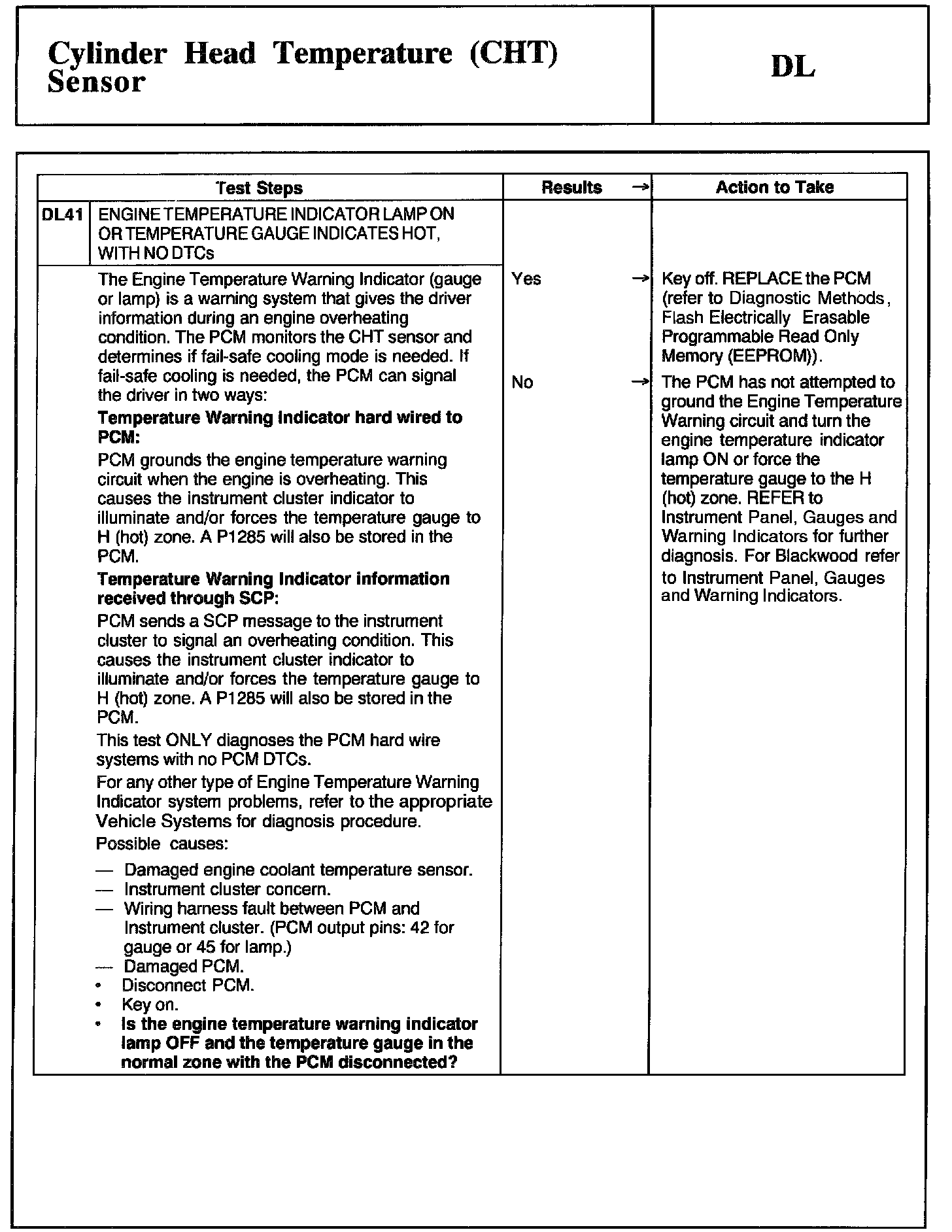

DL41:

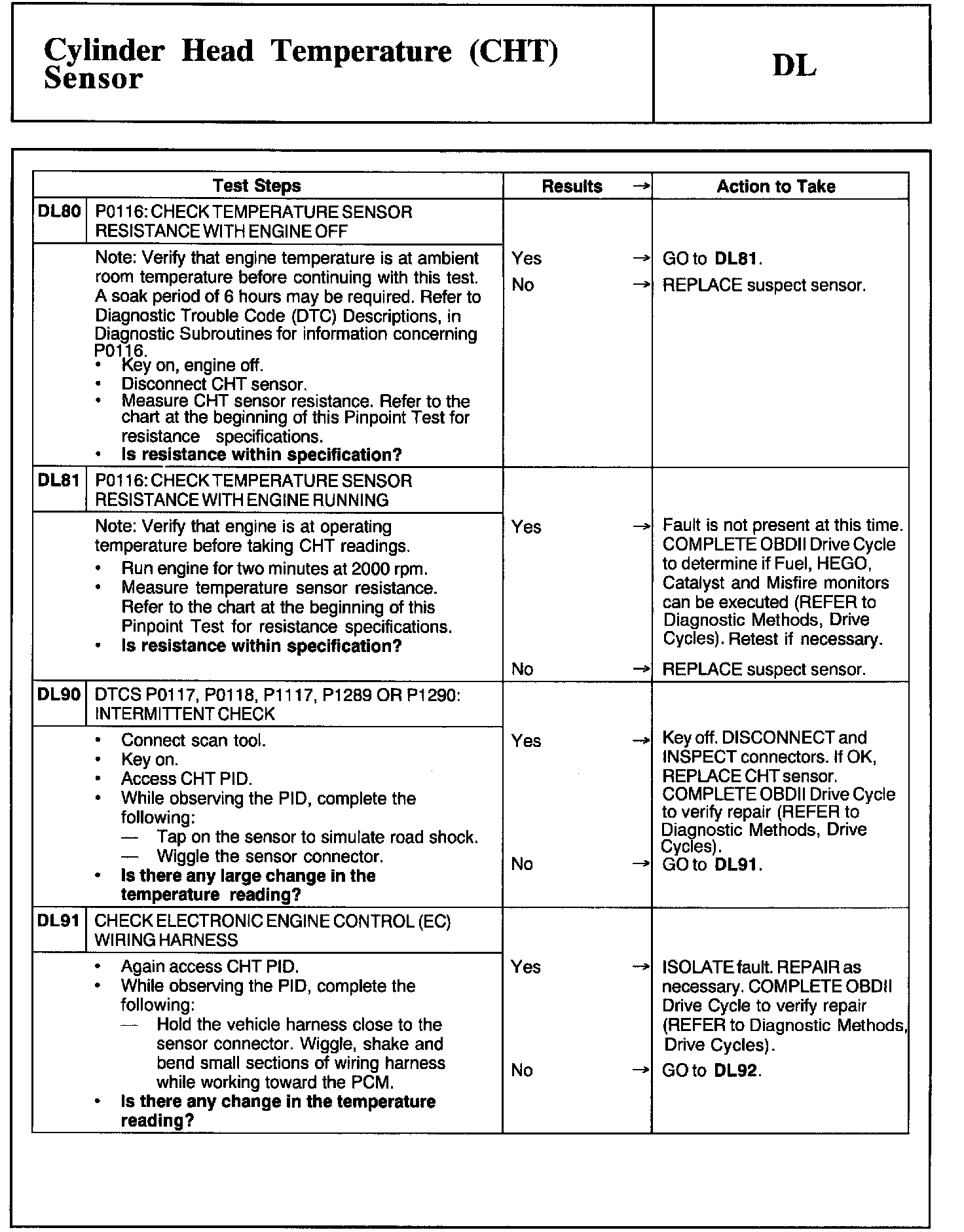

DL80 - DL91:

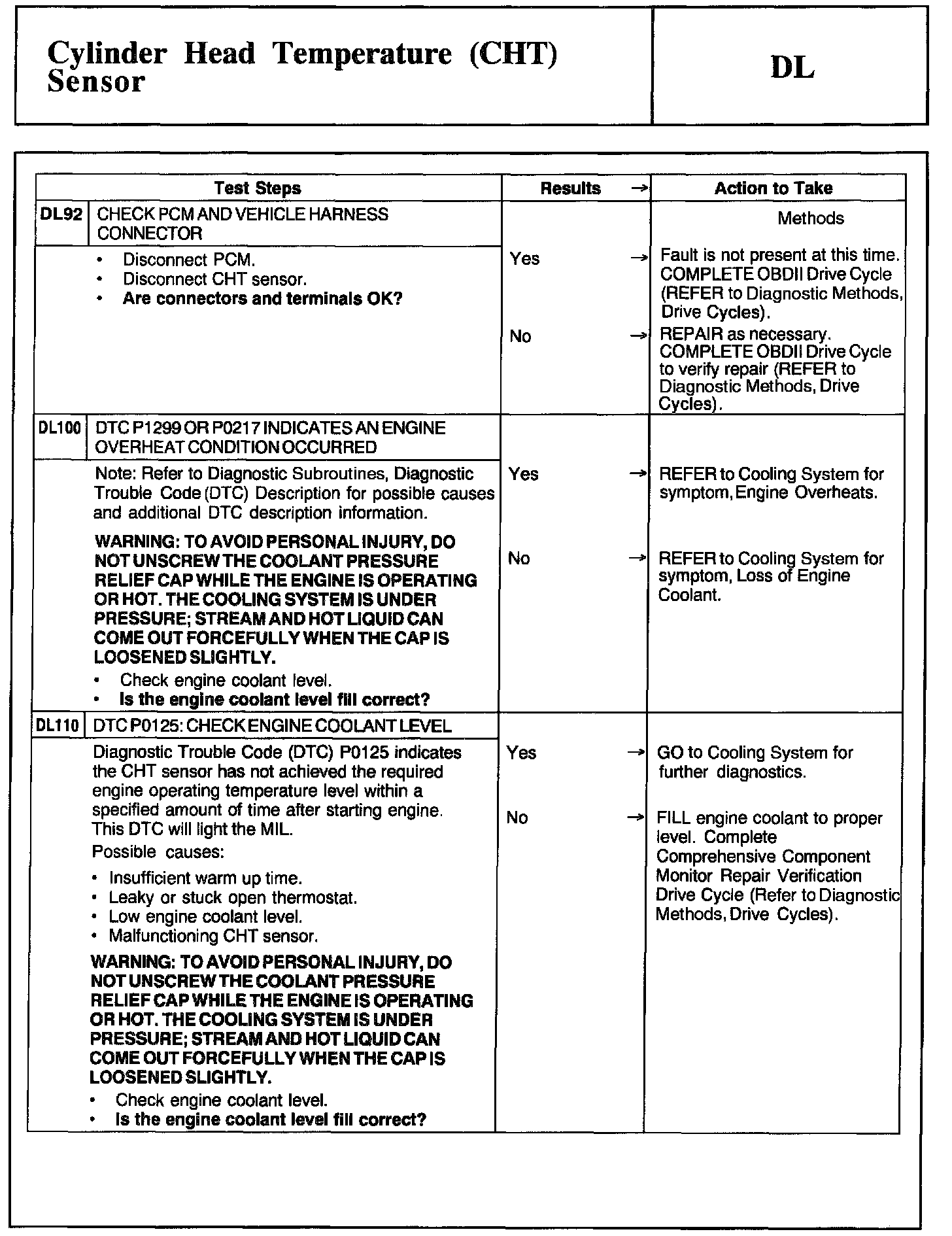

DL92 - DL110:
