Tests DH: Throttle Position (TP) Sensor

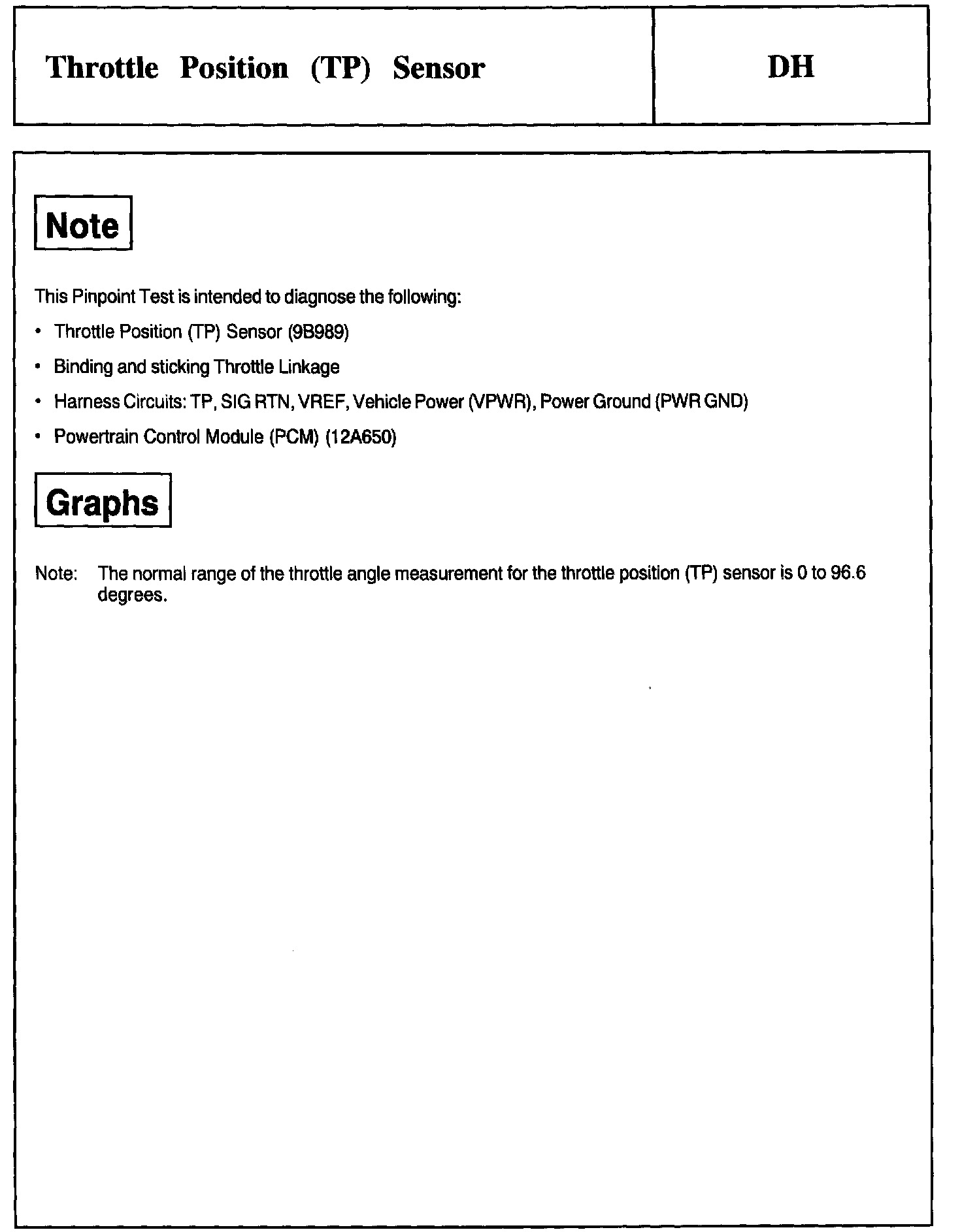

Test Note:

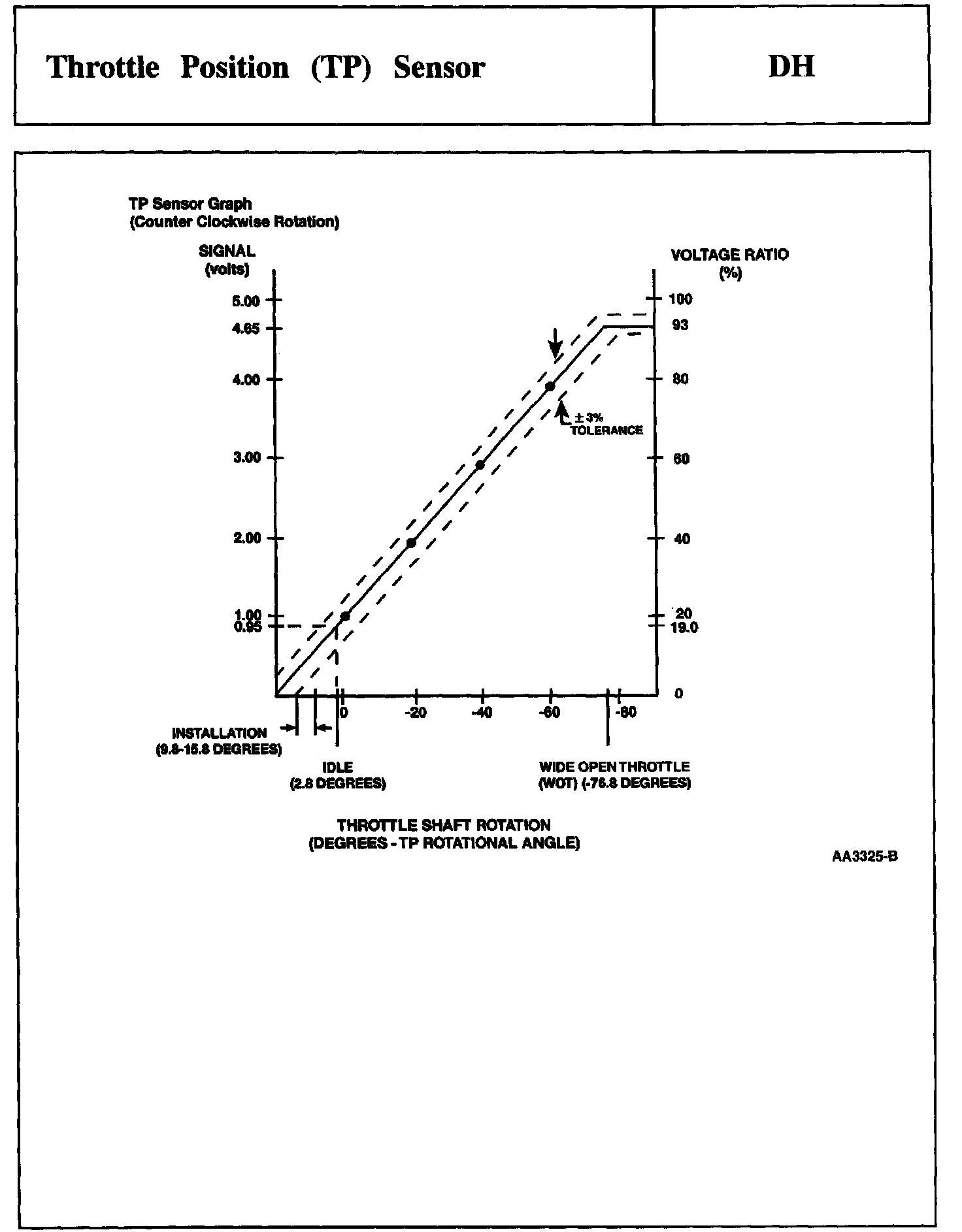

Test Graph:

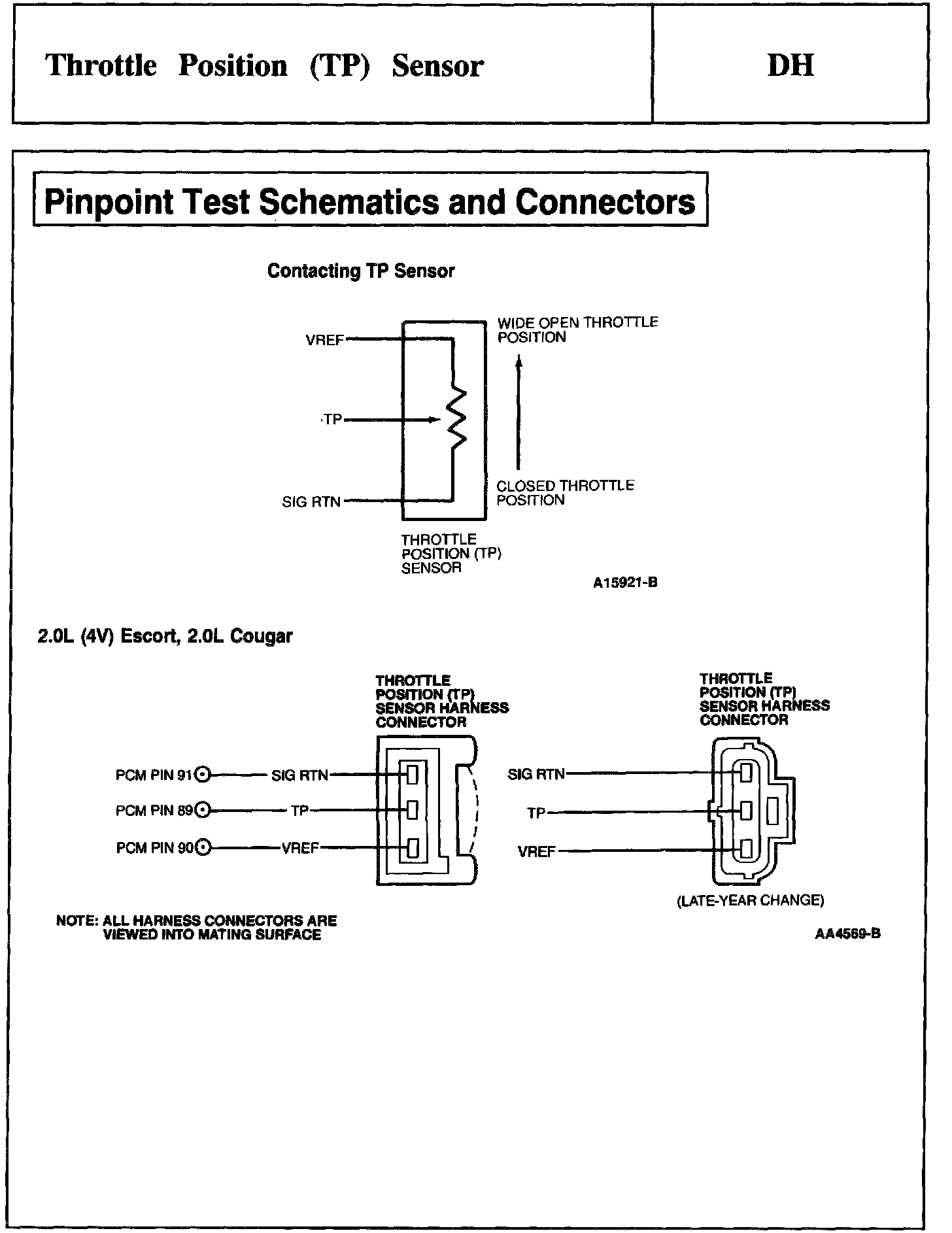

Schematics and Connectors:

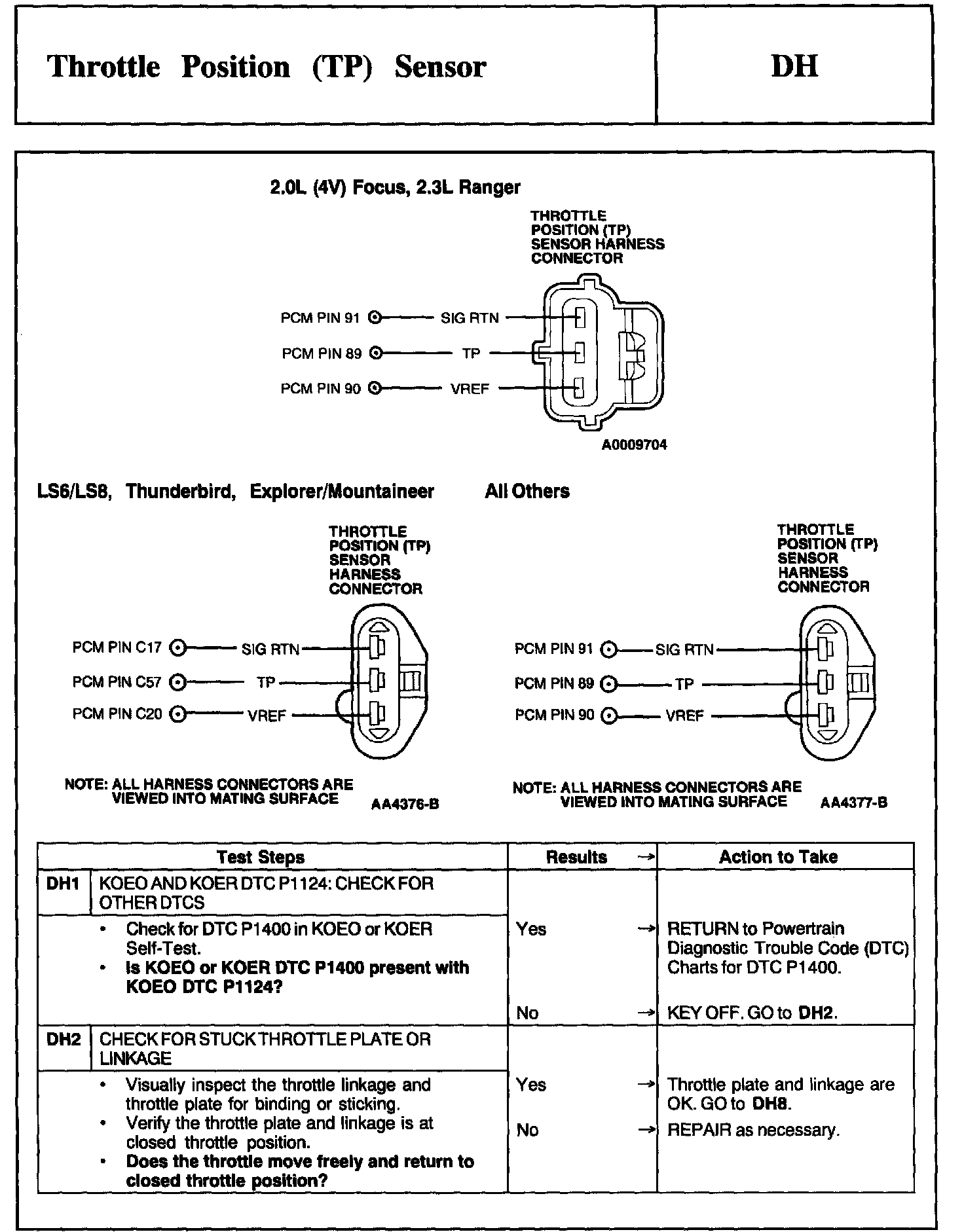

Test Schematic, Test DH1 - DH2:

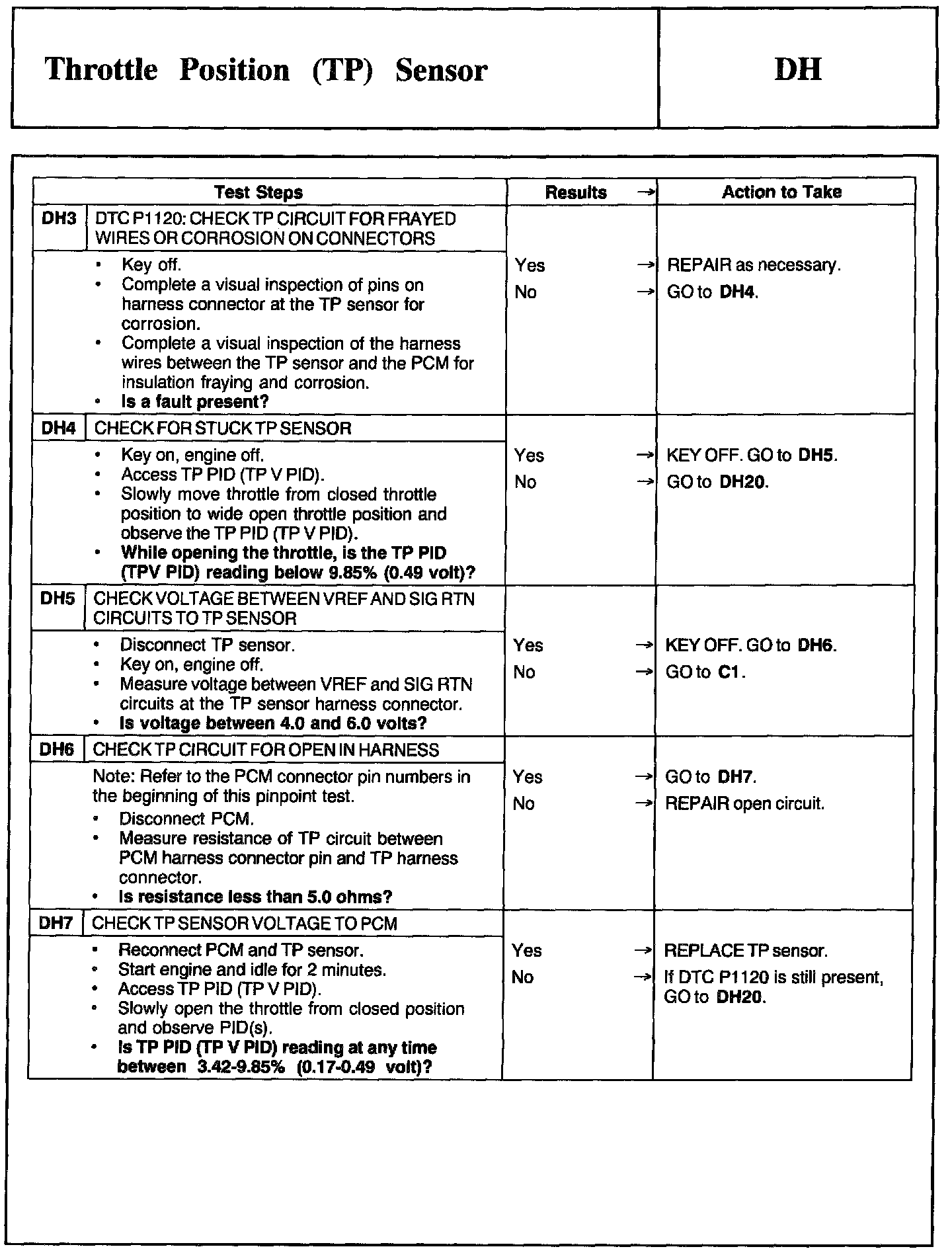

DH3 - DH7:

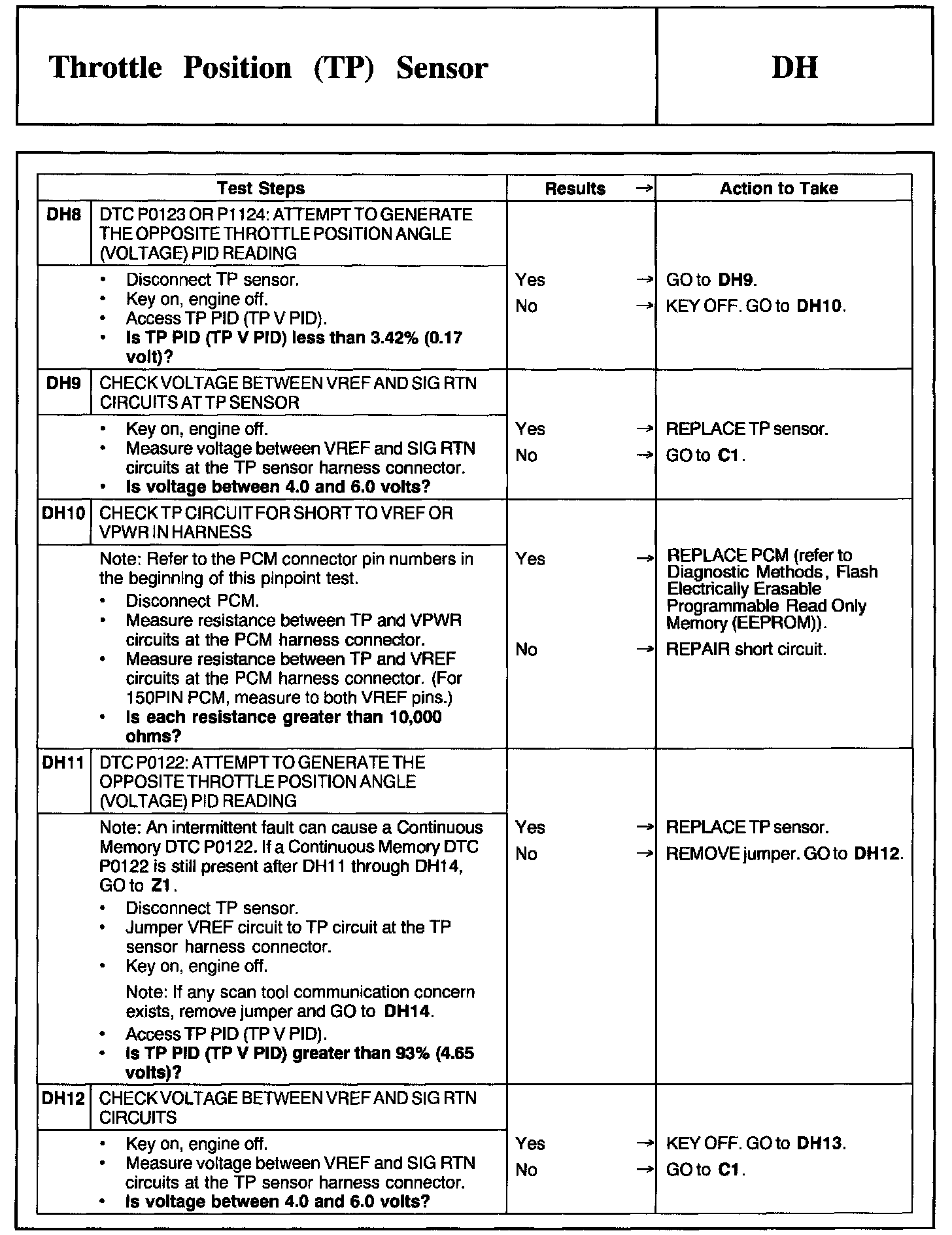

DH8 - DH12:

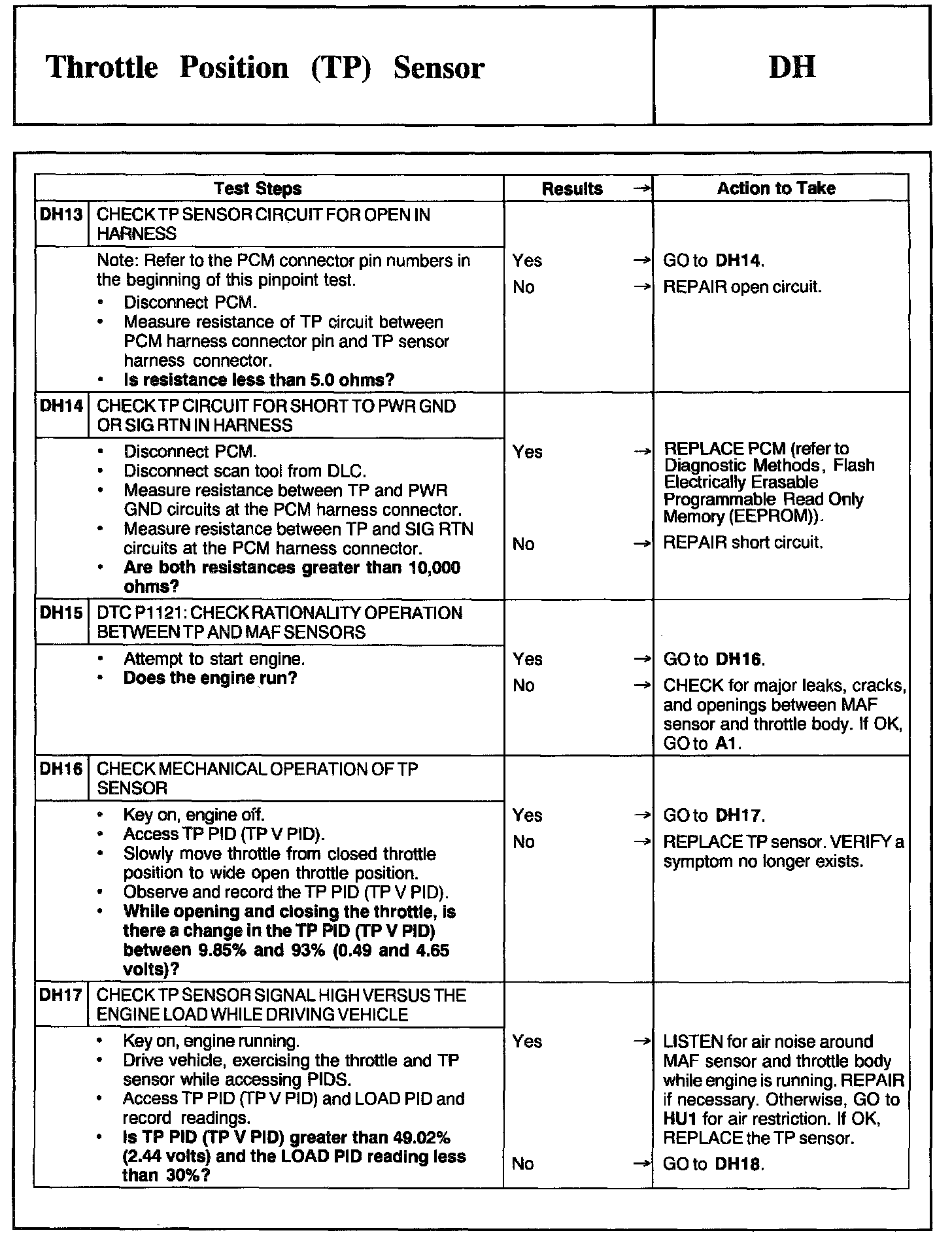

DH13 - DH17:

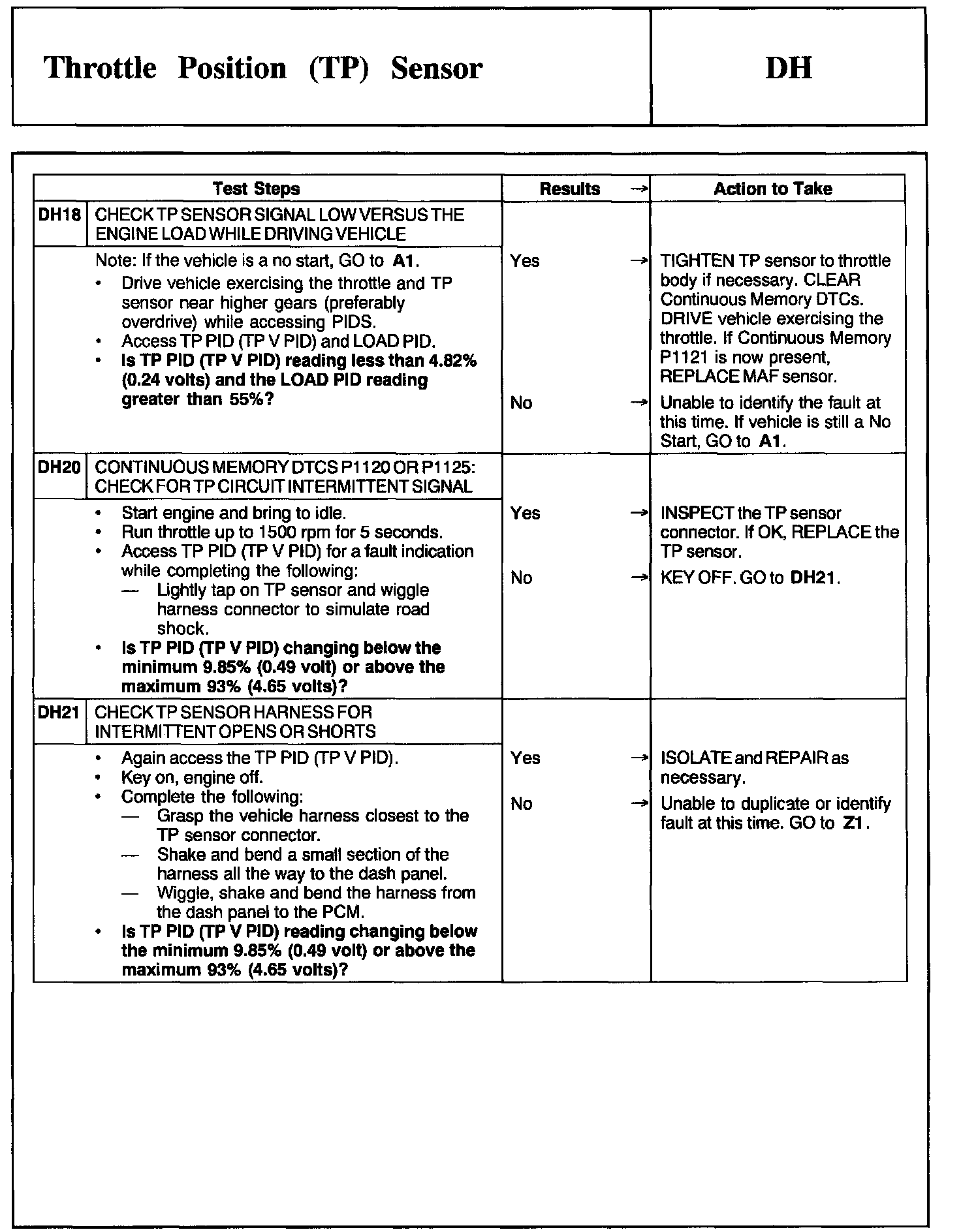

DH18 - DH21:

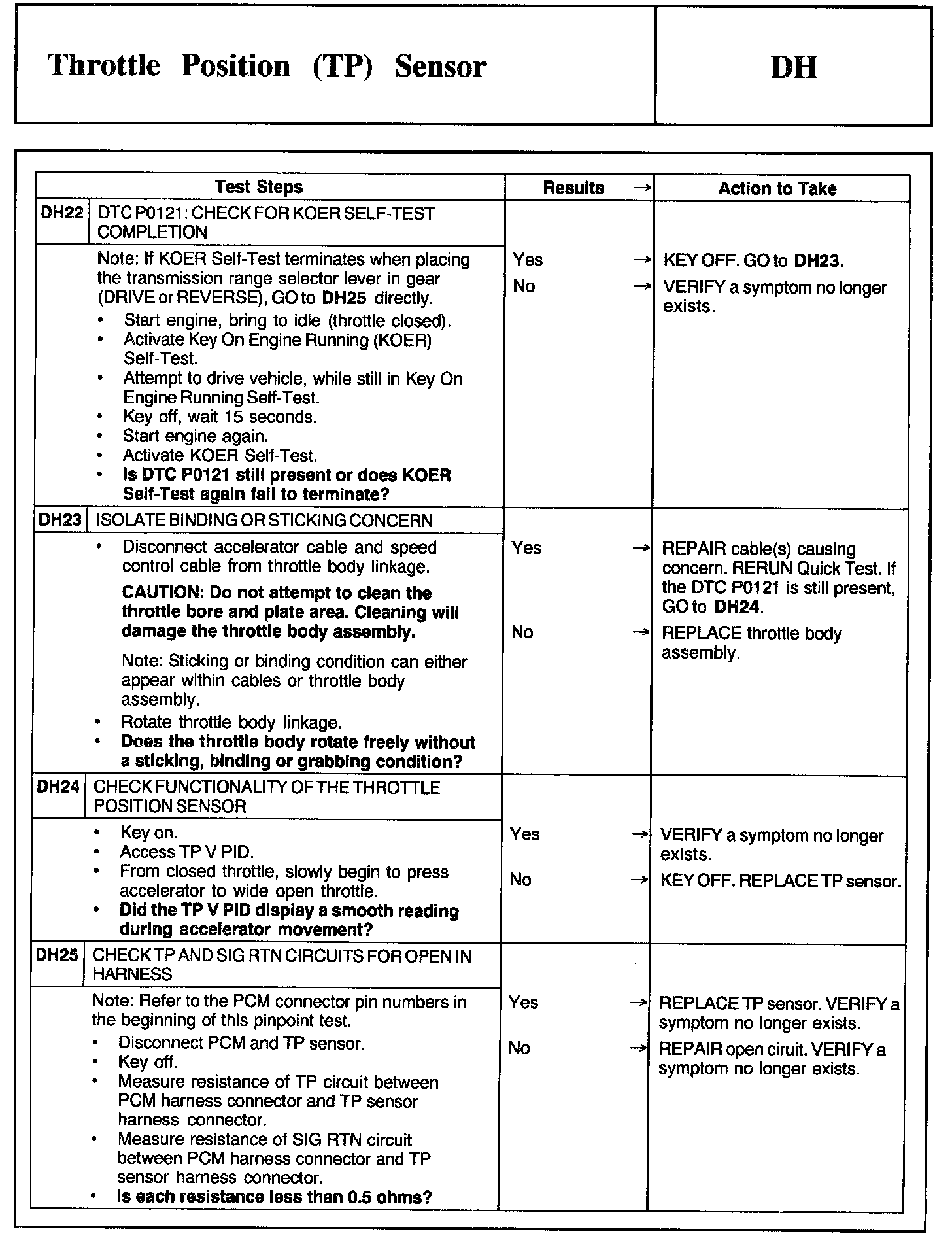

DH22 - DH25:
