Tests DD: Fuel Rail Pressure (FRP) Sensor

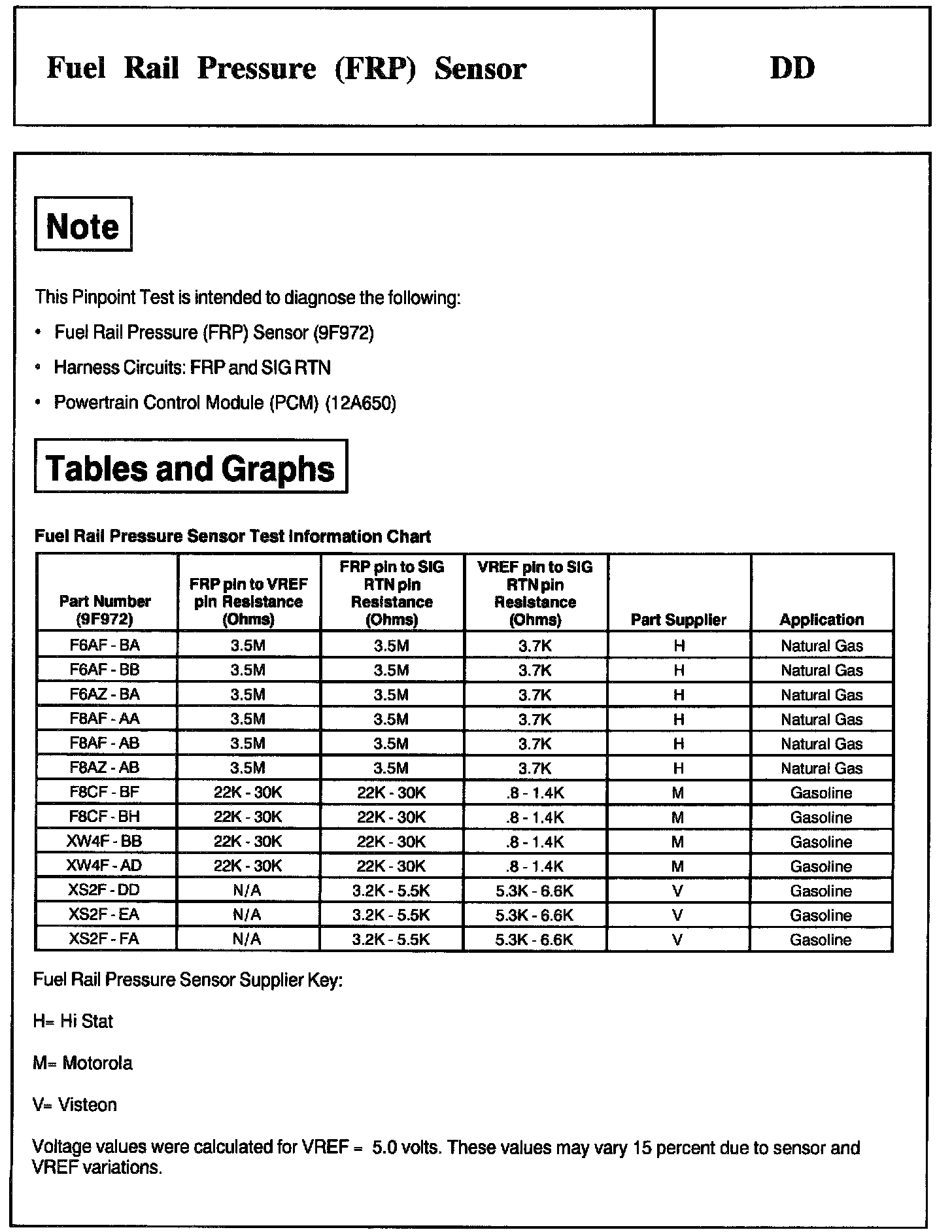

Note, Table and Description:

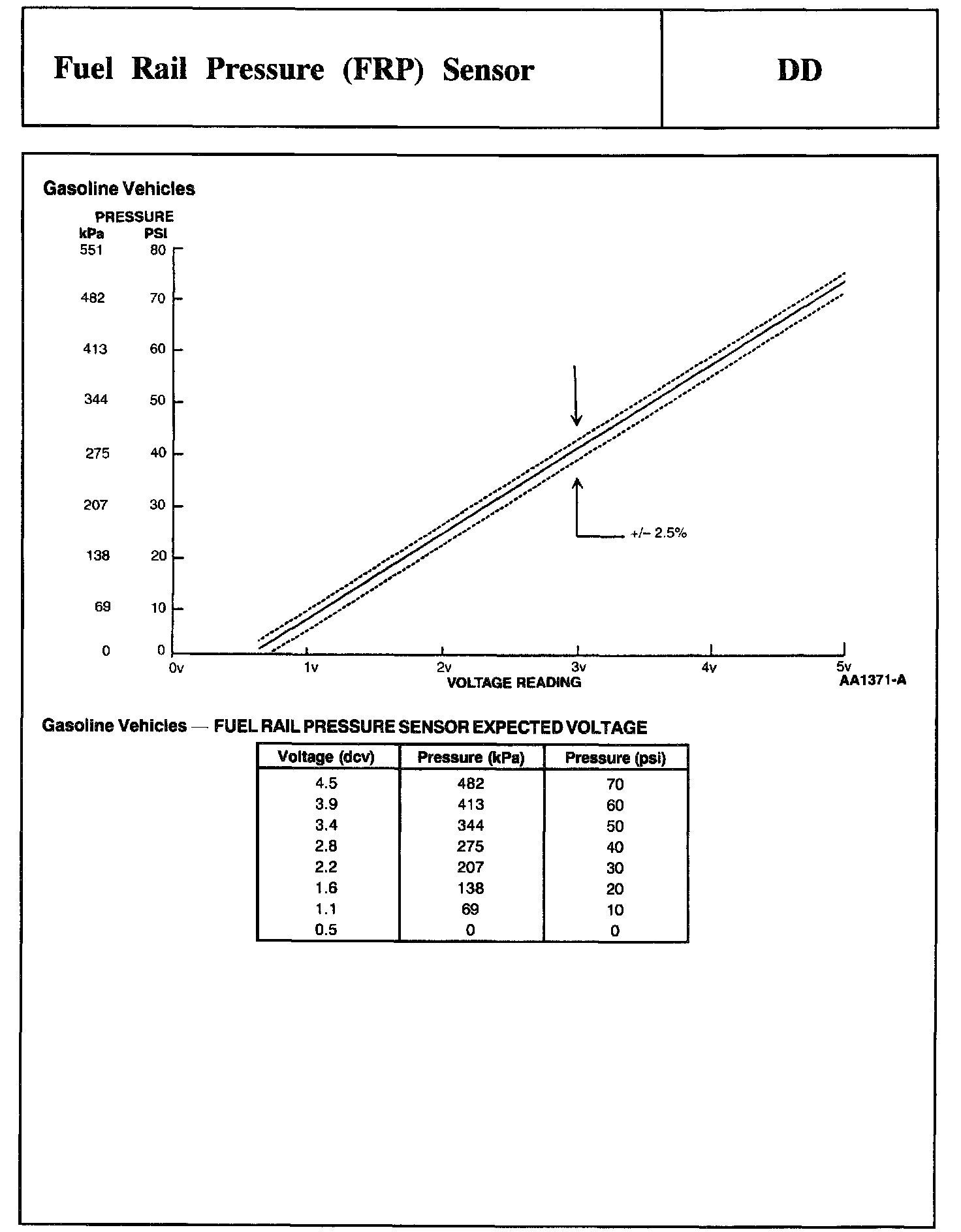

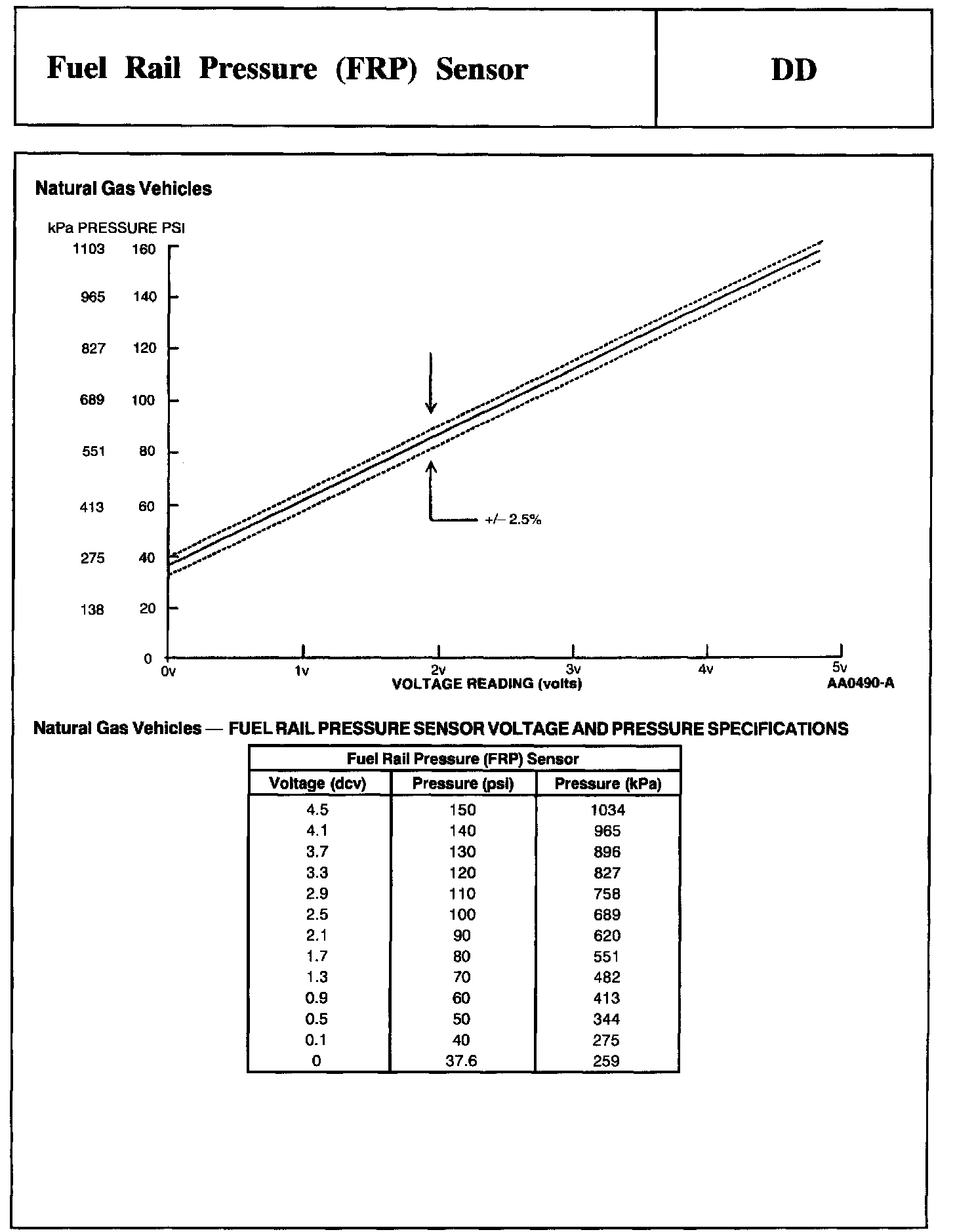

Tables and Graphs:
Tables and Graphs:

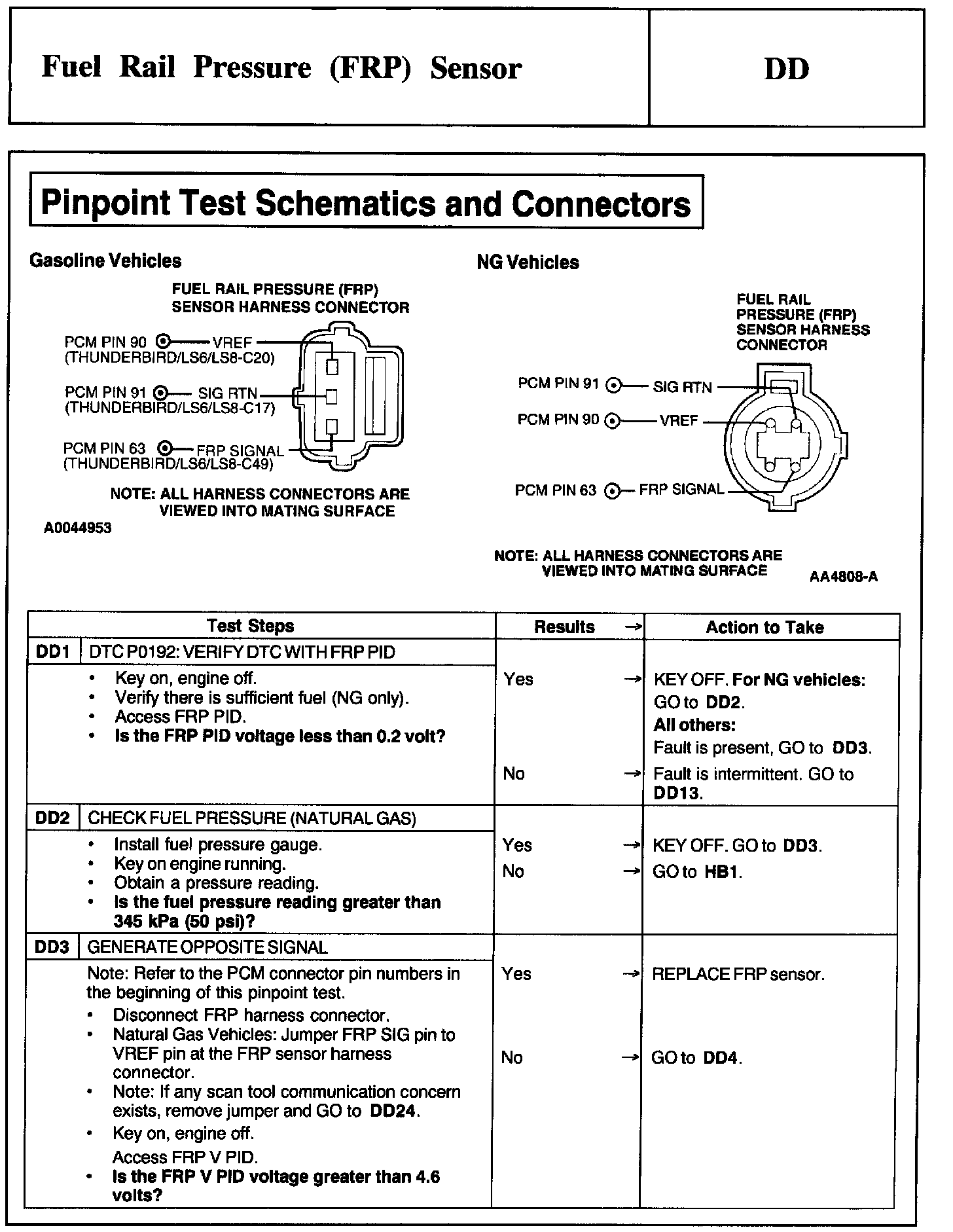

Schematics and Connectors, Test DD1 - DD3:

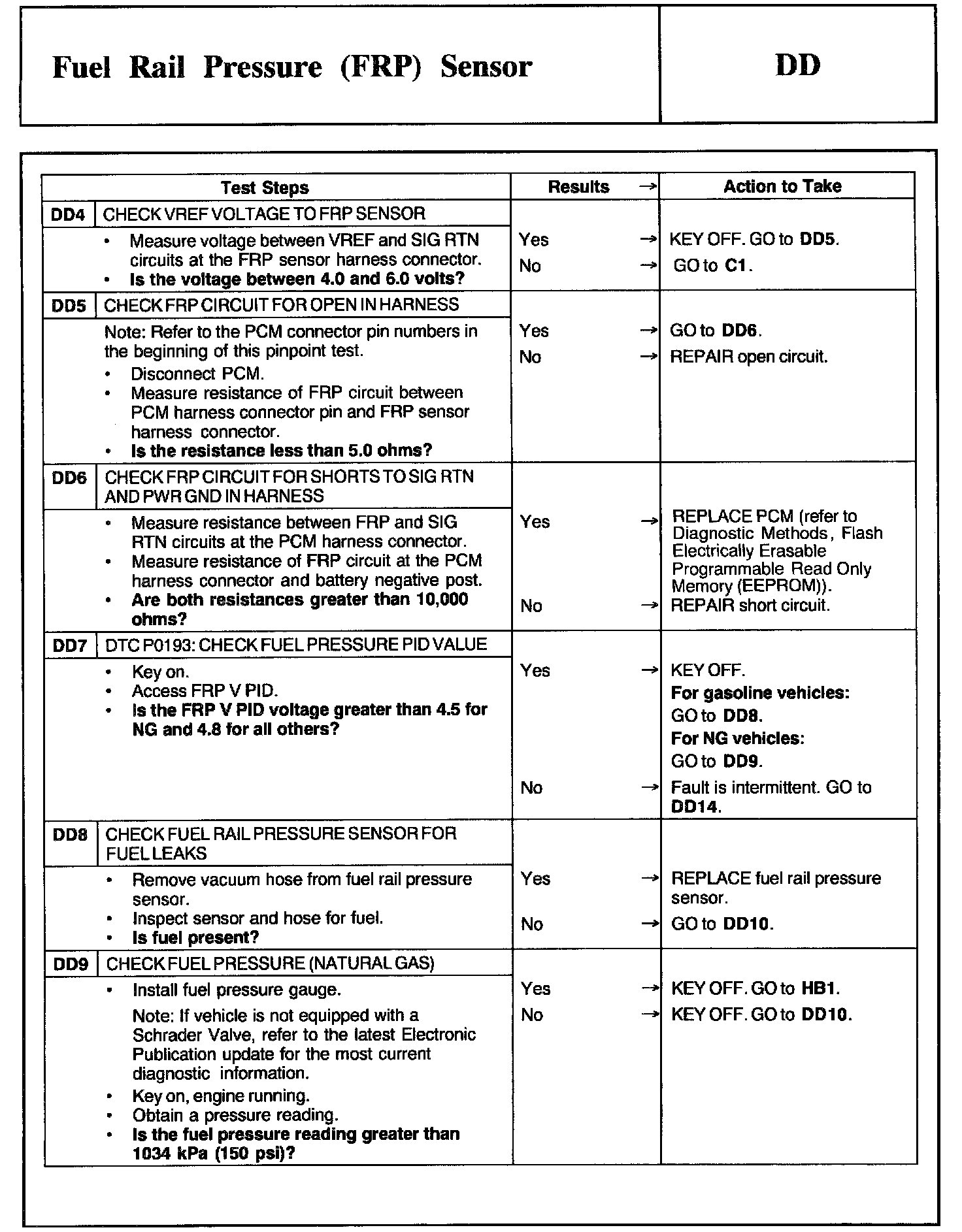

DD4 - DD9:

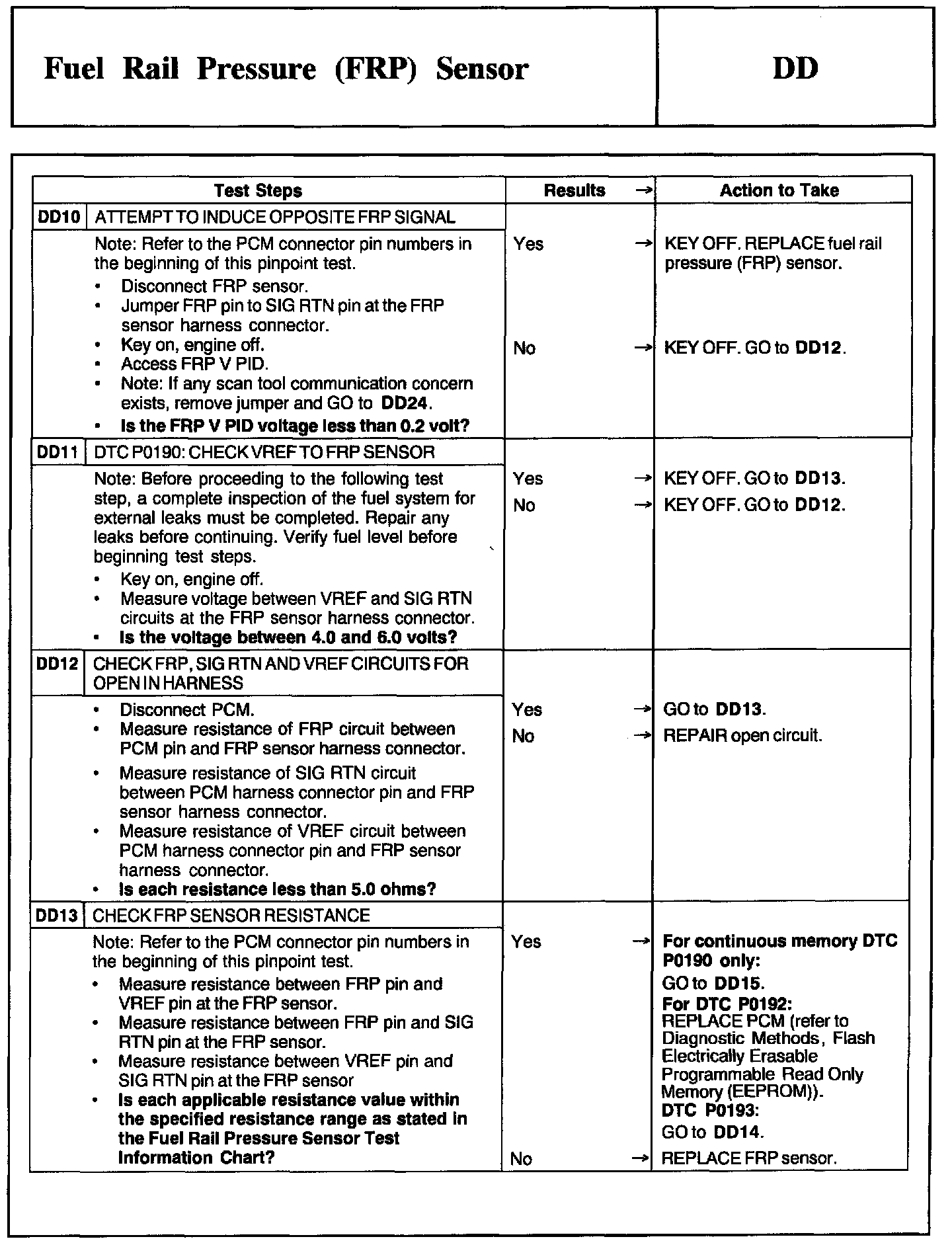

DD10 - DD13:

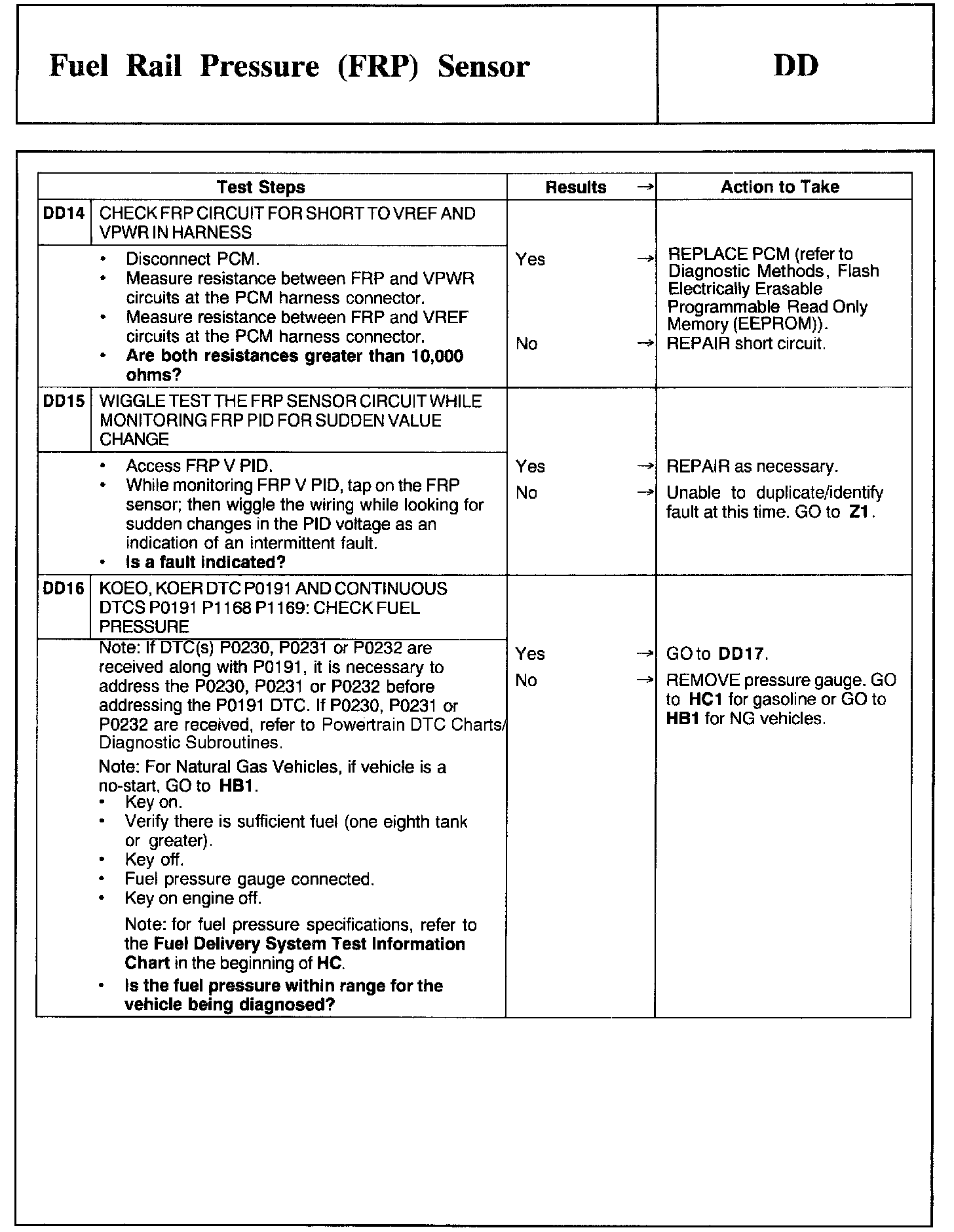

DD14 - DD16:

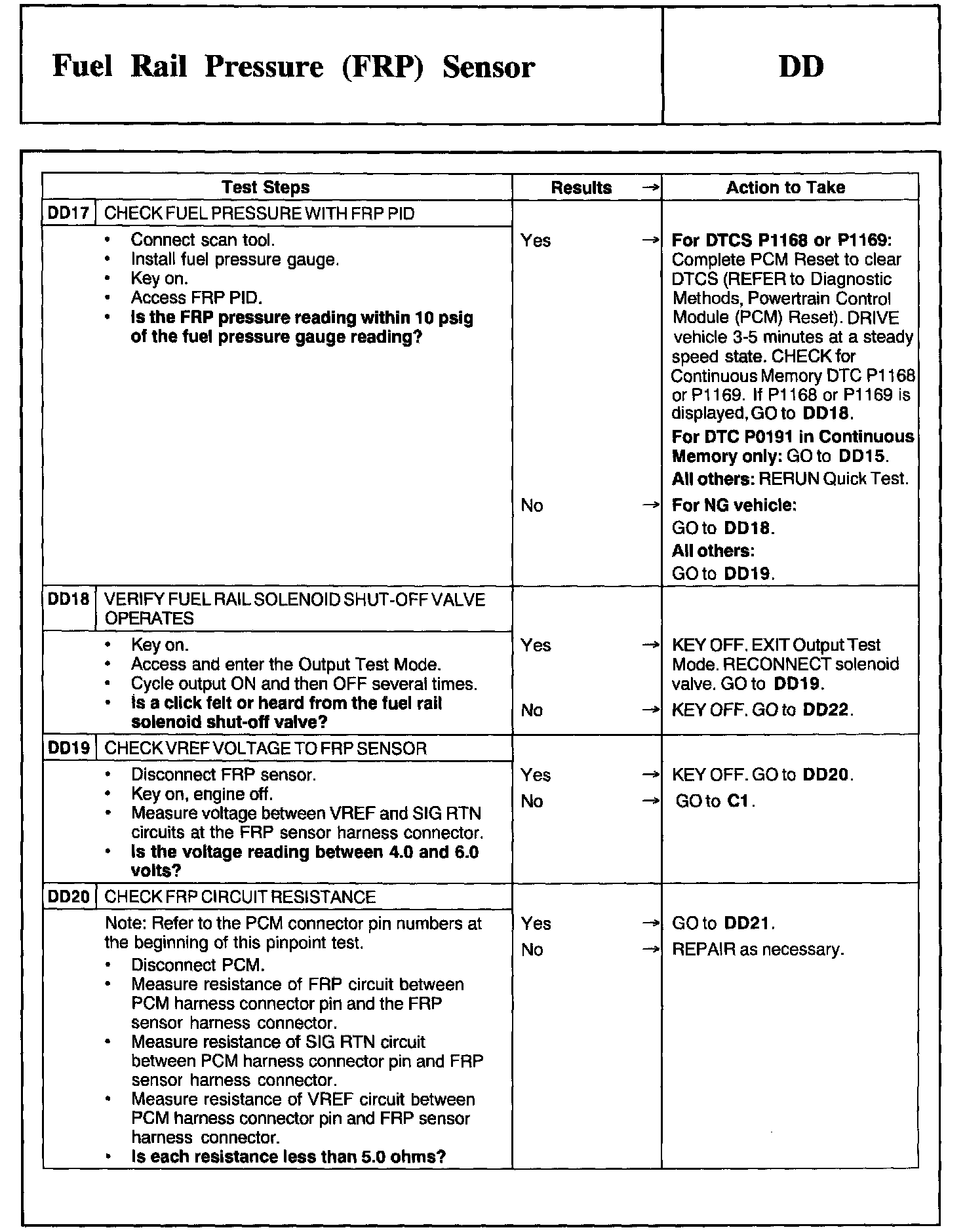

DD17 - DD20:

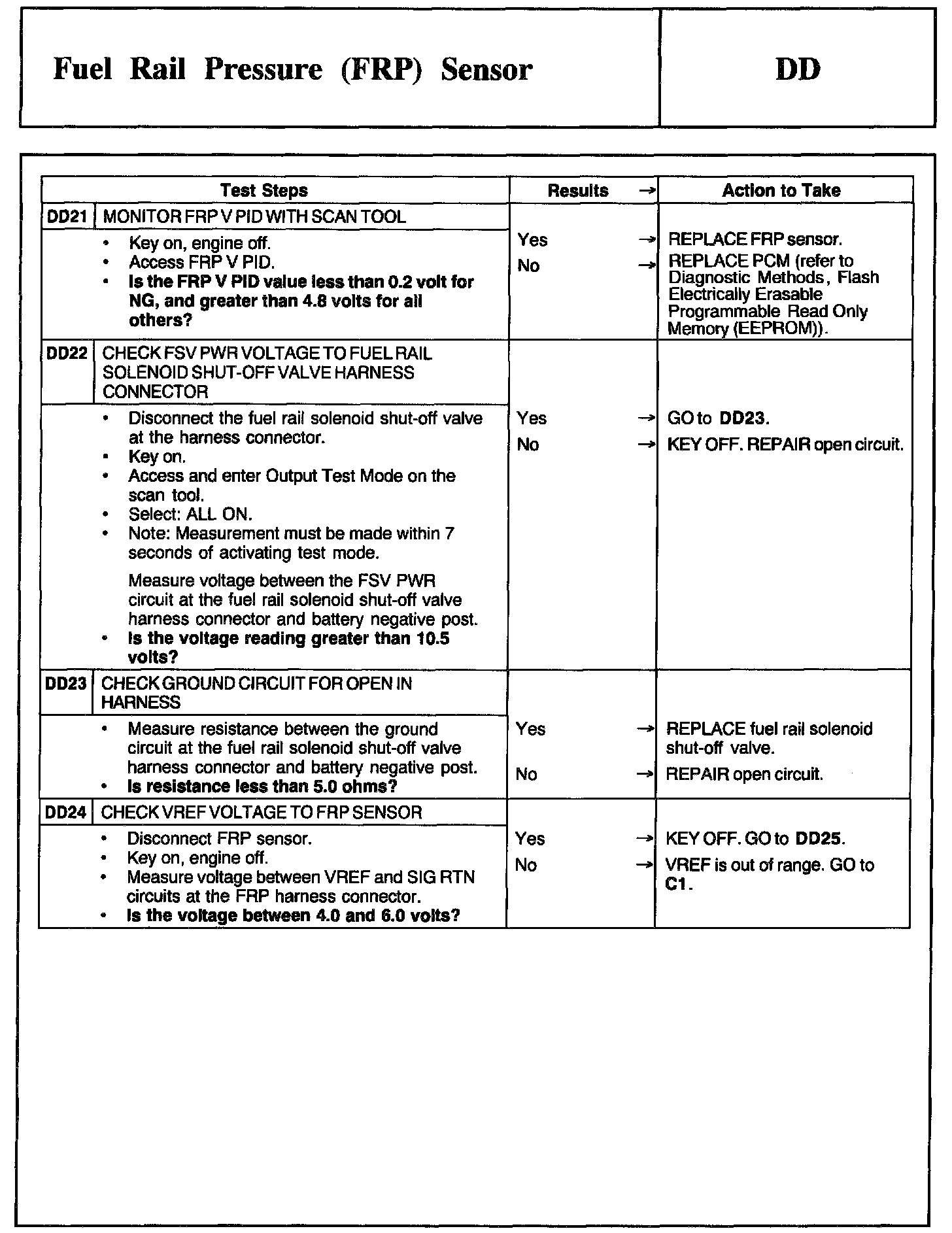

DD21 - DD24:

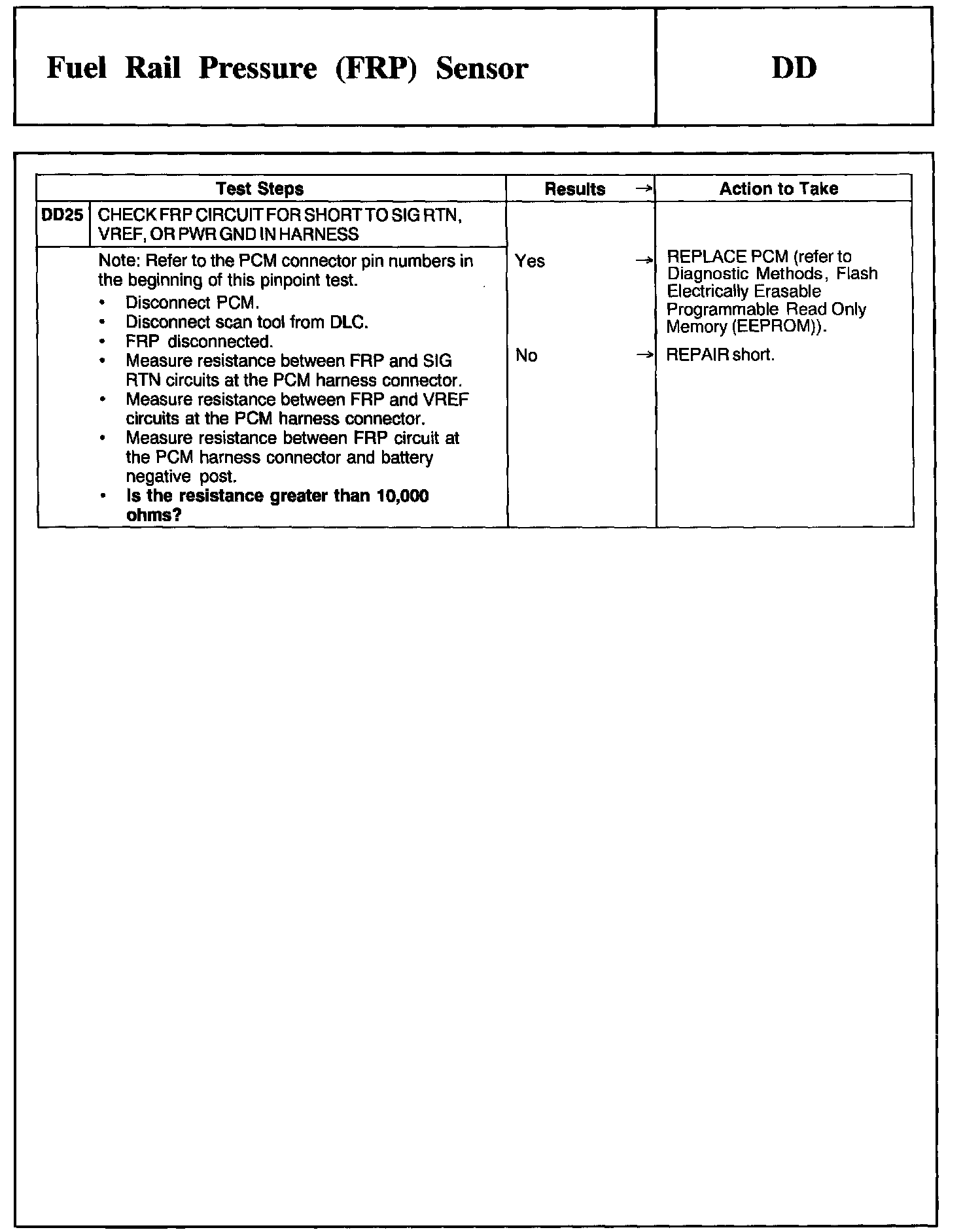

DD25:
