Tests DC: Mass Air Flow (MAF) Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests DC: Mass Air Flow (MAF) Sensor

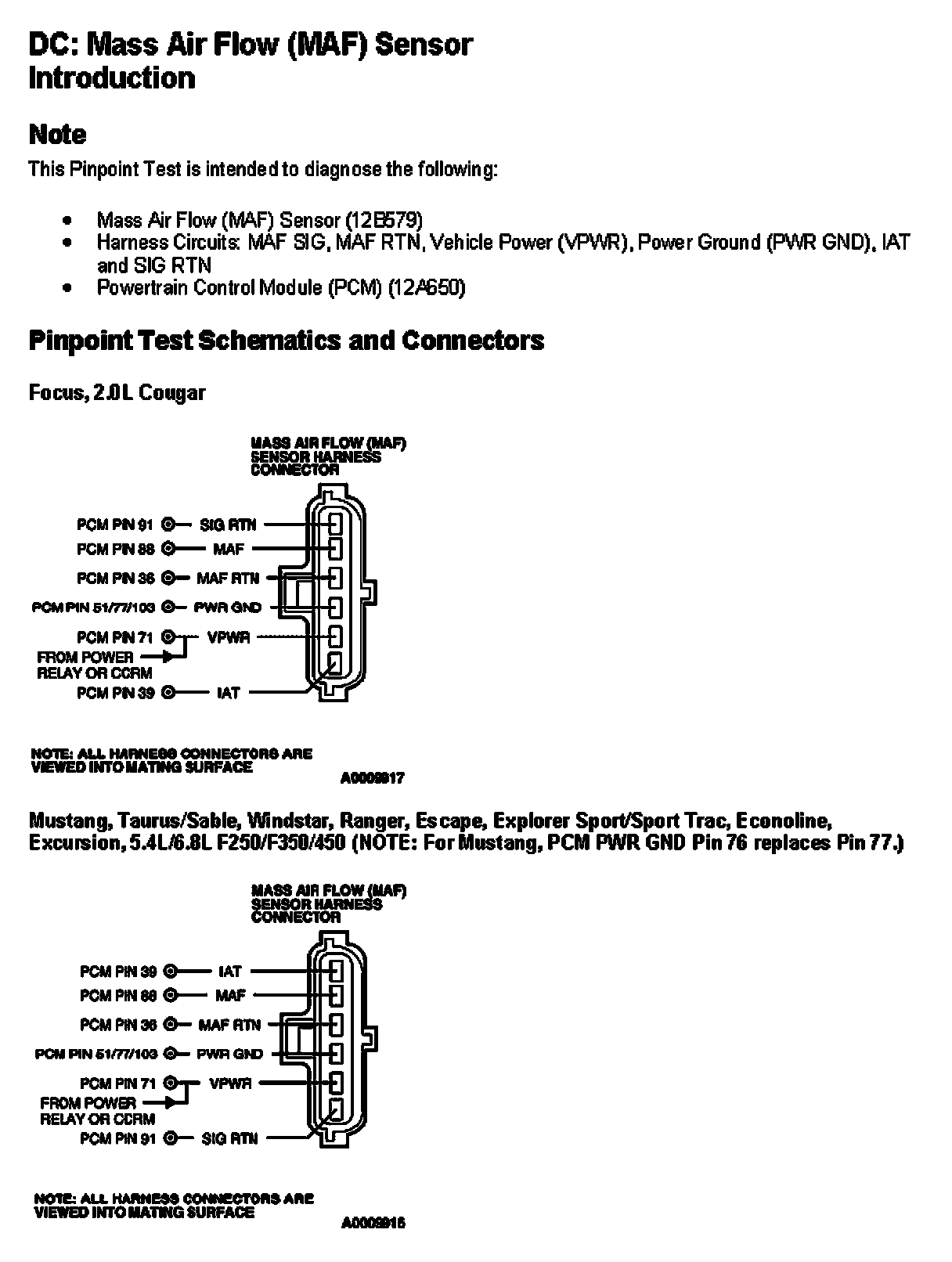

Note, Schematics, And Connectors:

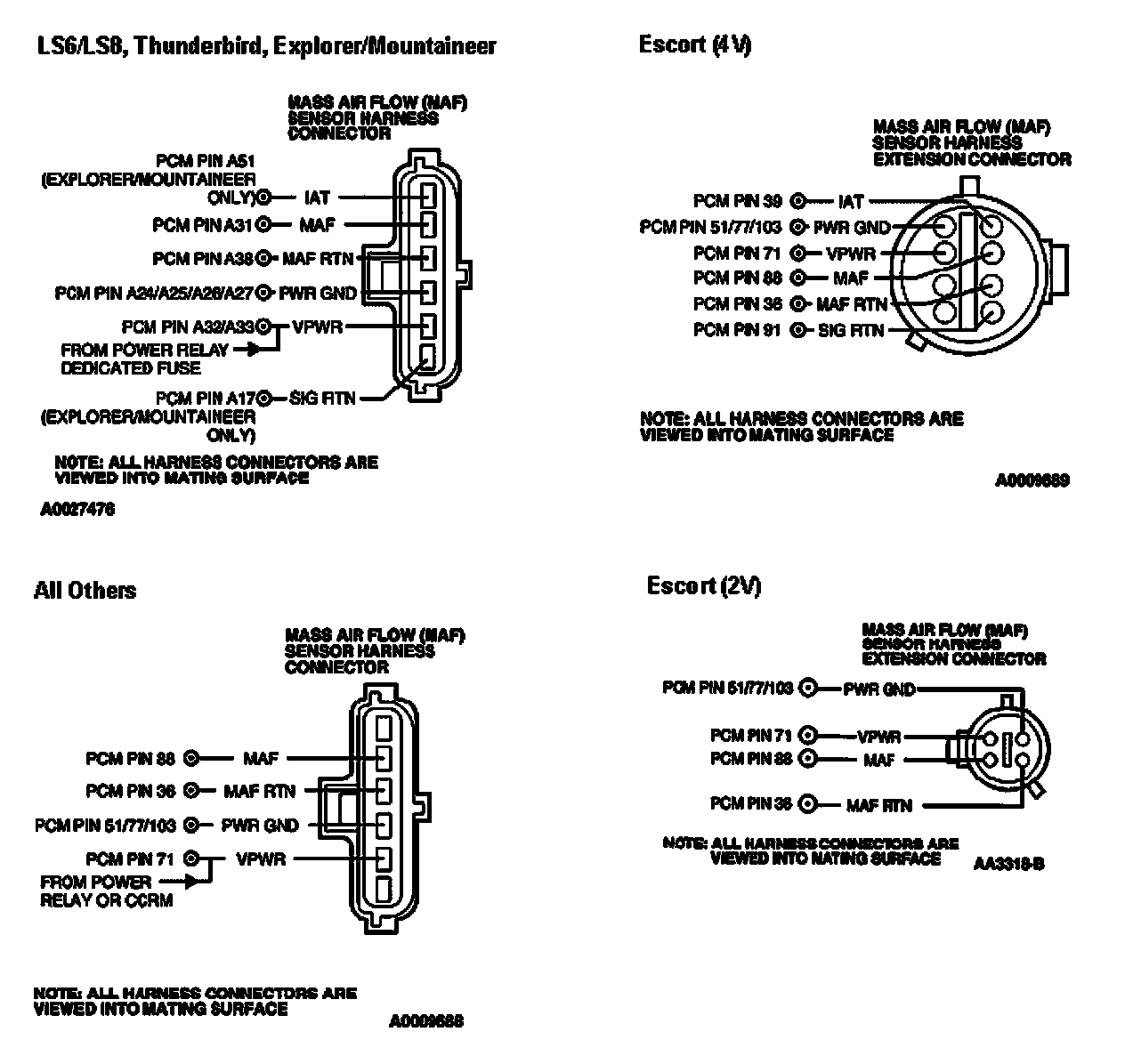

Schematics, And Connectors:
Barometric Pressure Chart:

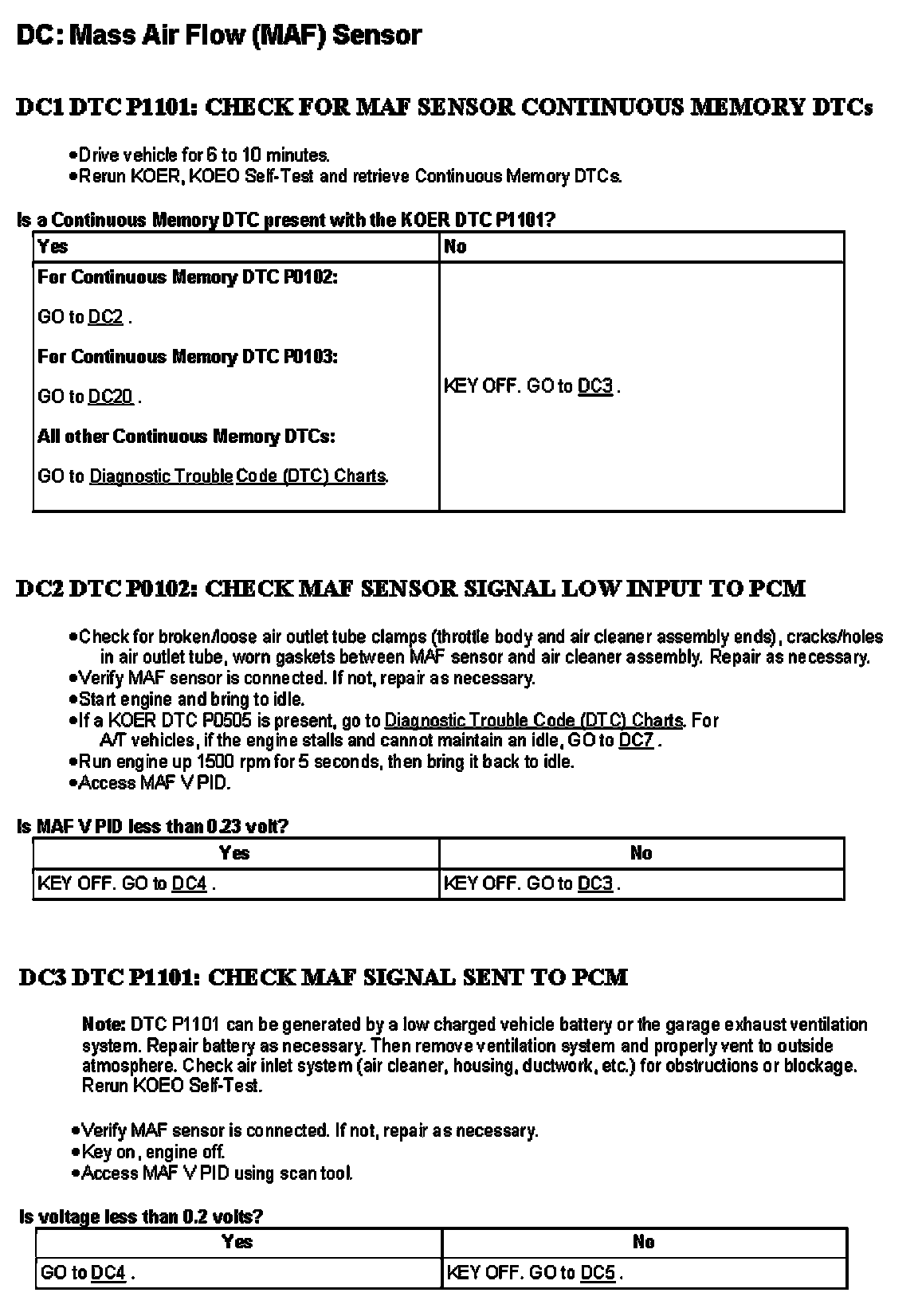

DC1 - DC3:

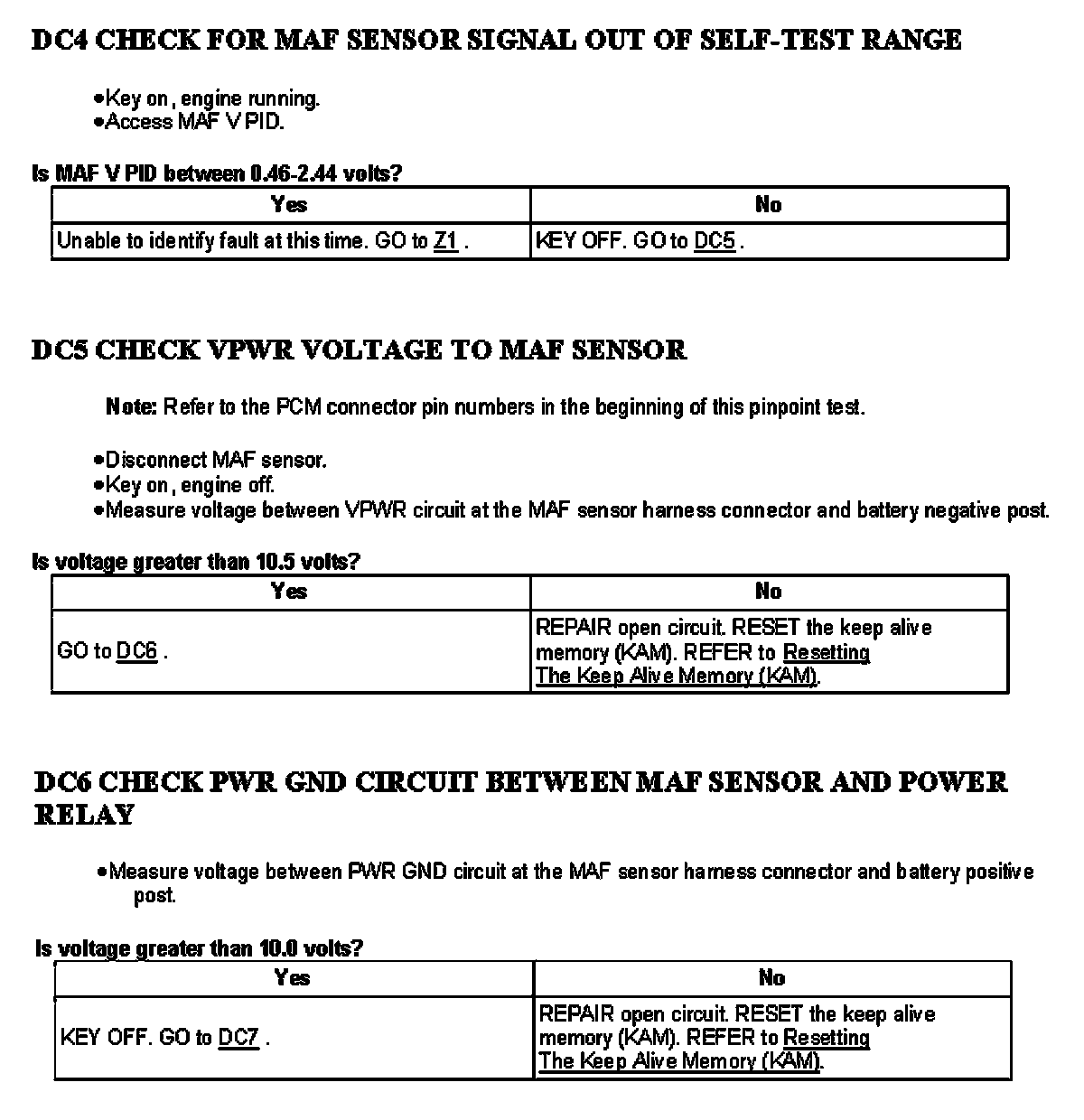

DC4 - DC6:

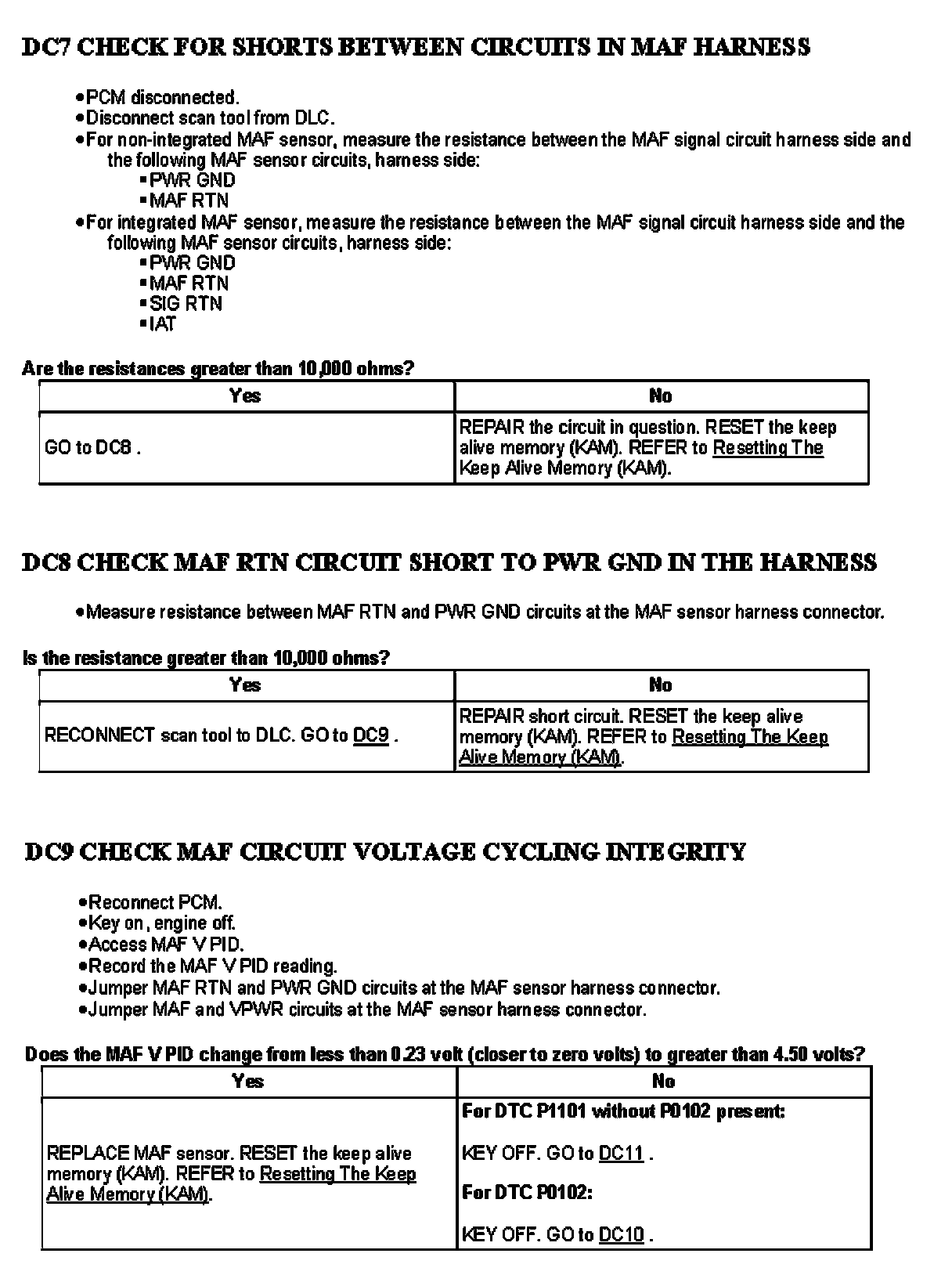

DC7 - DC9:

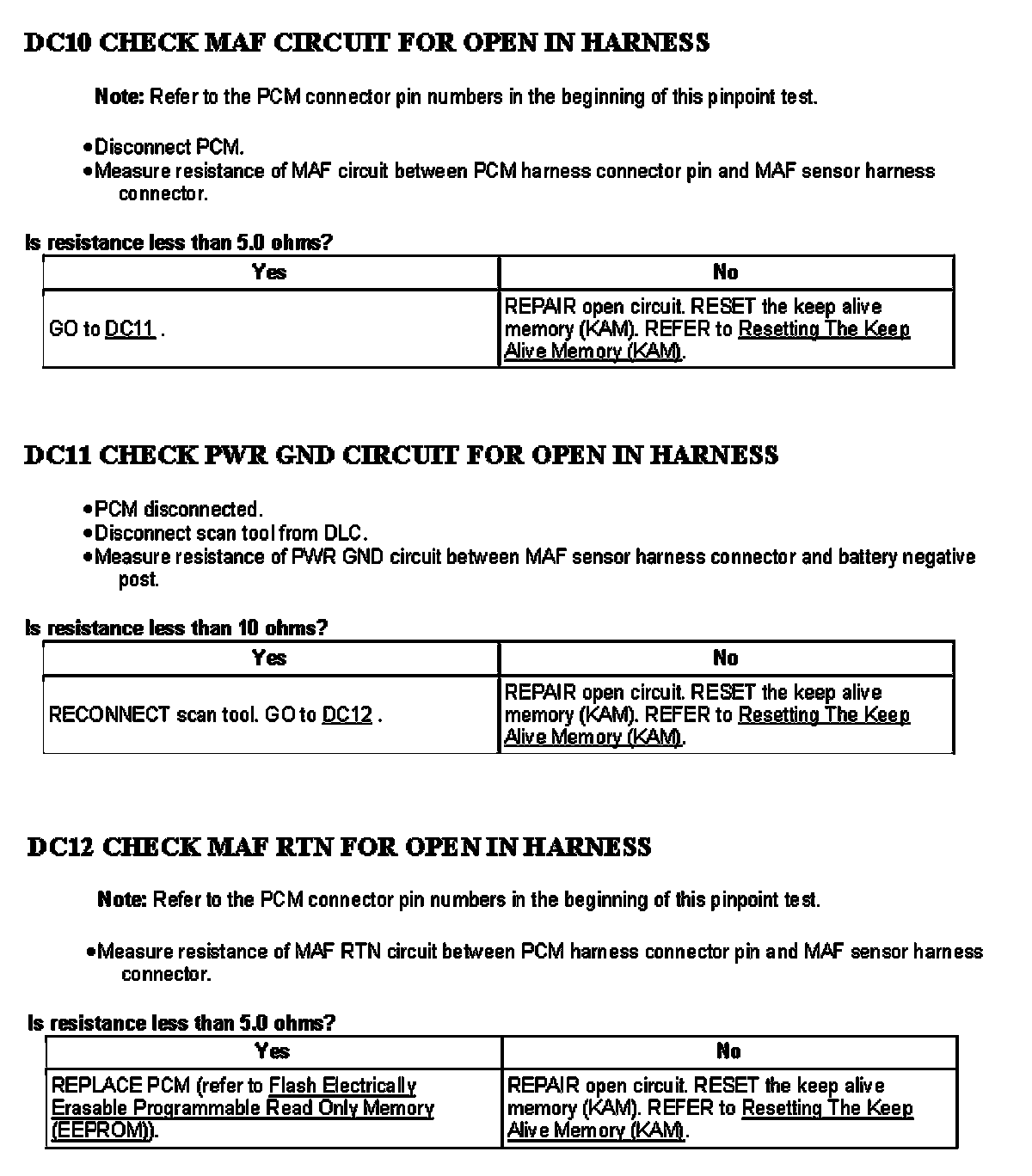

DC10 - DC12:

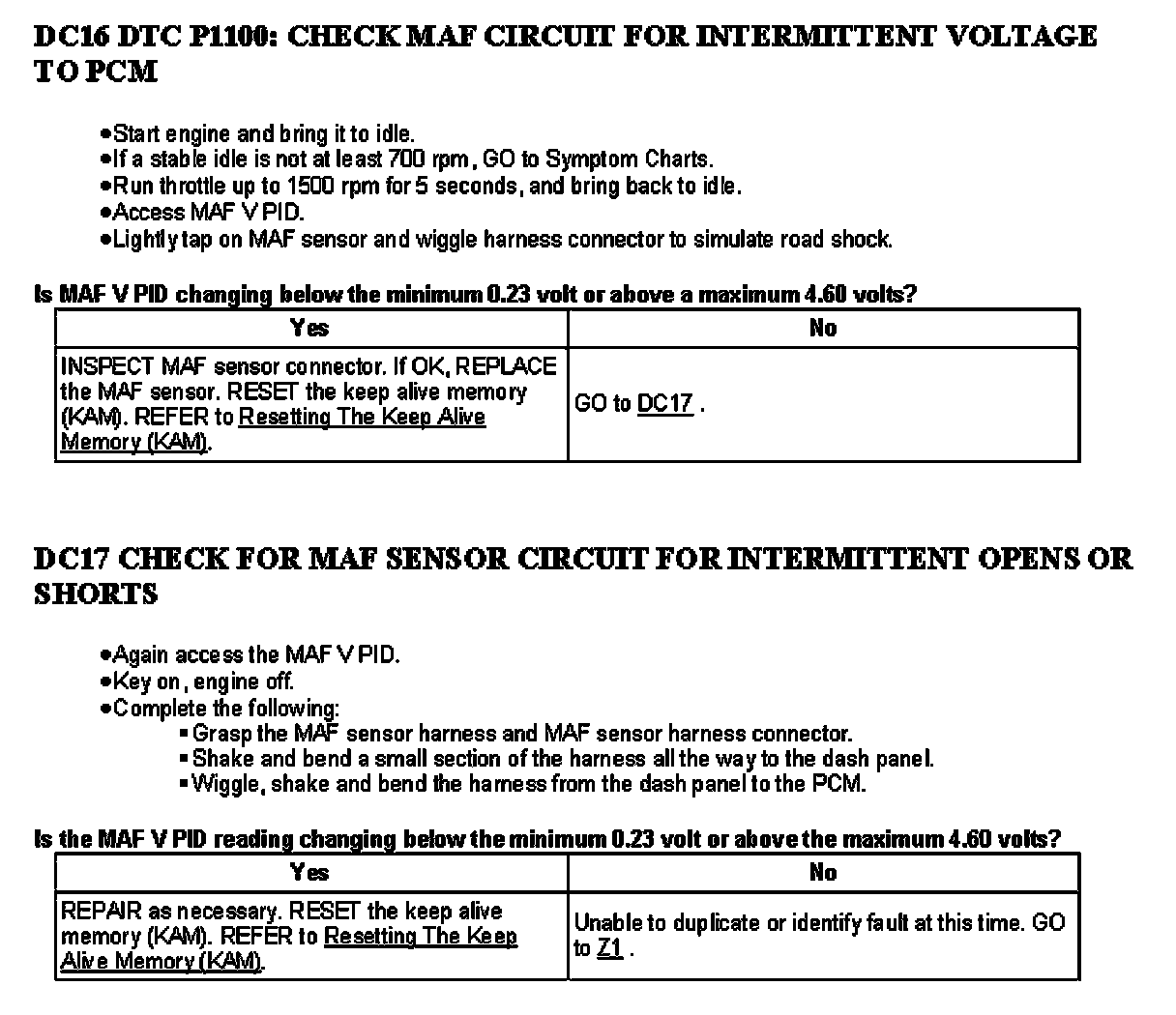

DC16 - DC17:

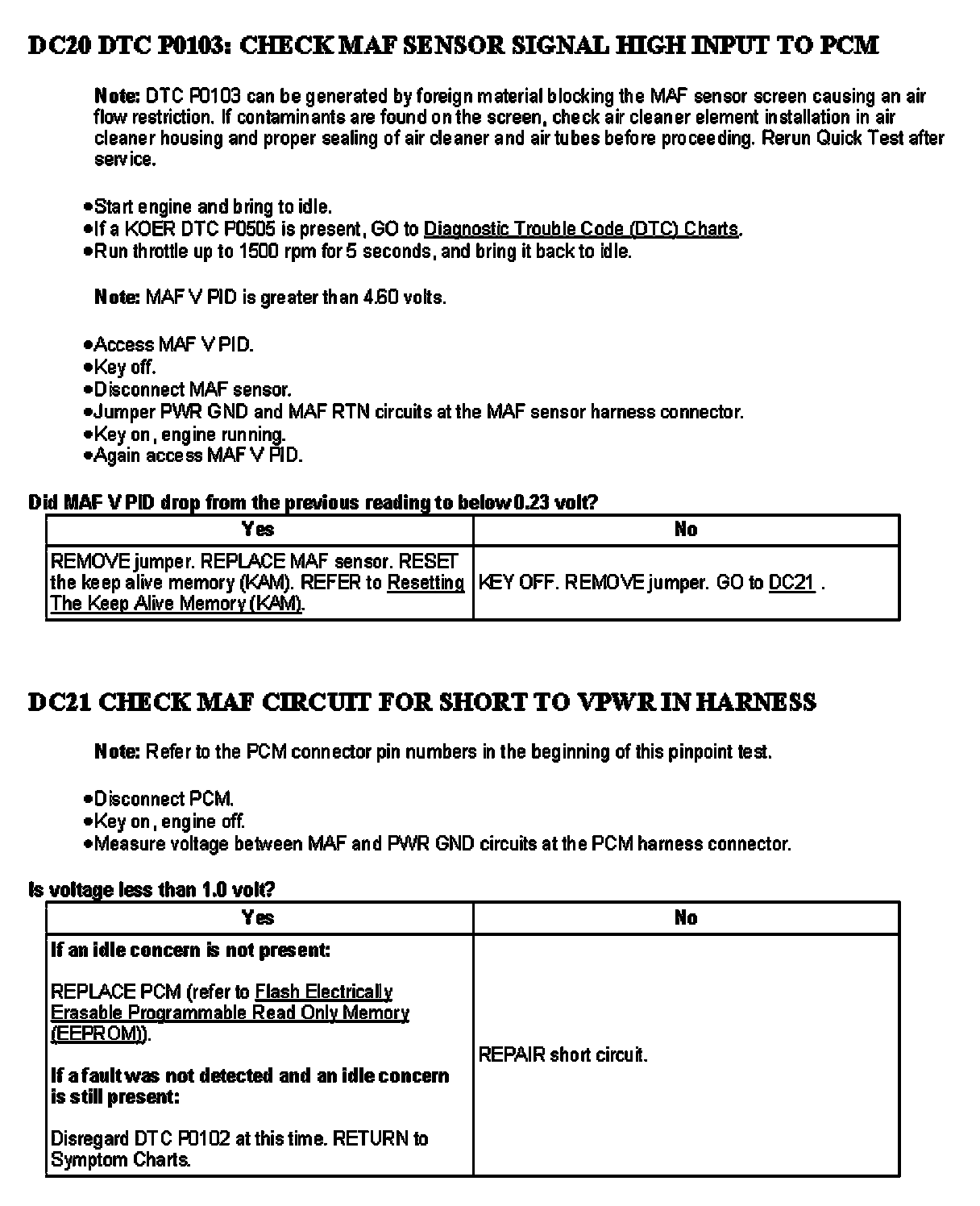

DC20 - DC21:

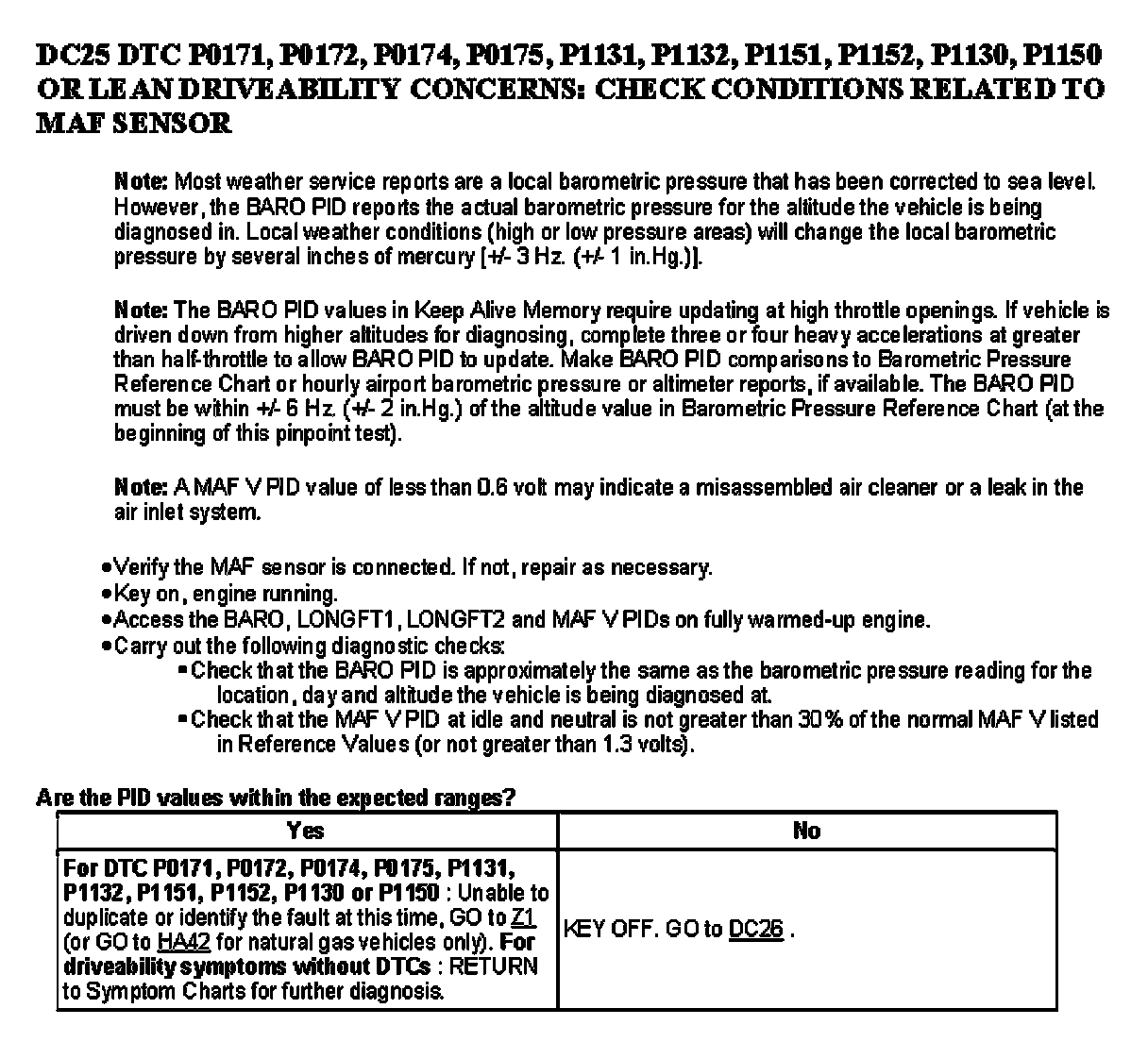

DC25:

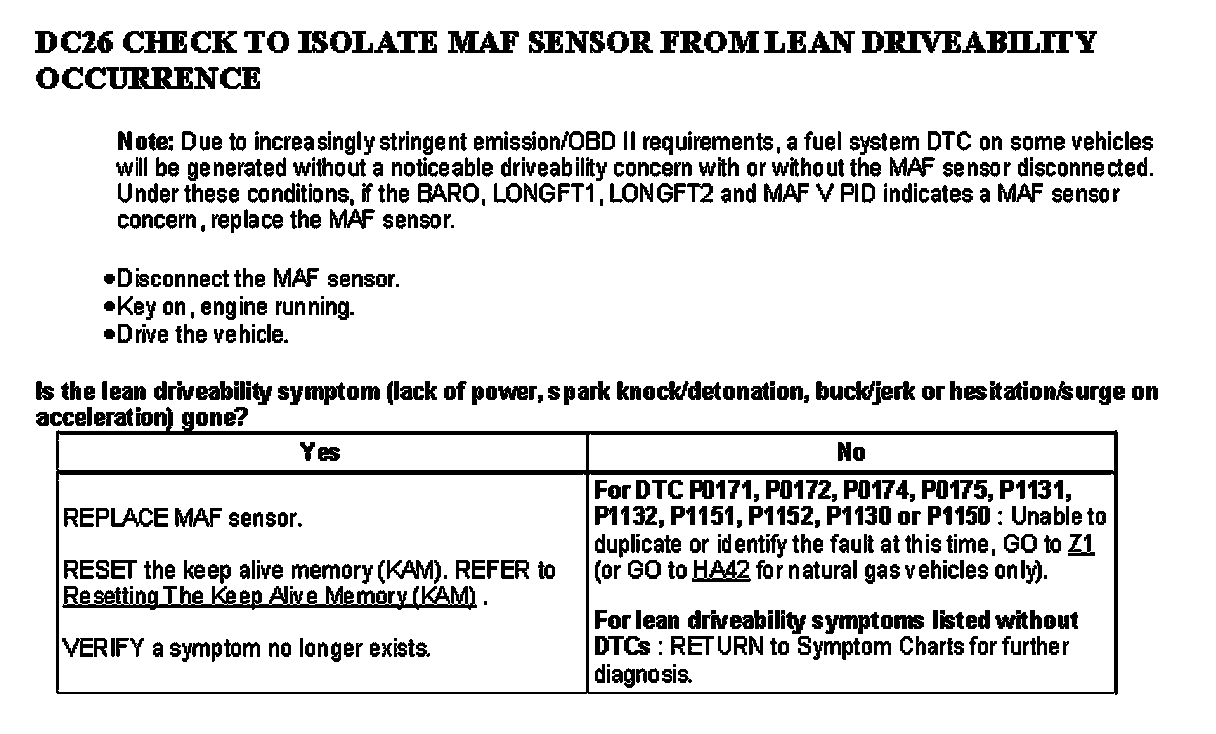

DC26:
