Test C: Speed Control Does Not Disengage With Brakes Applied

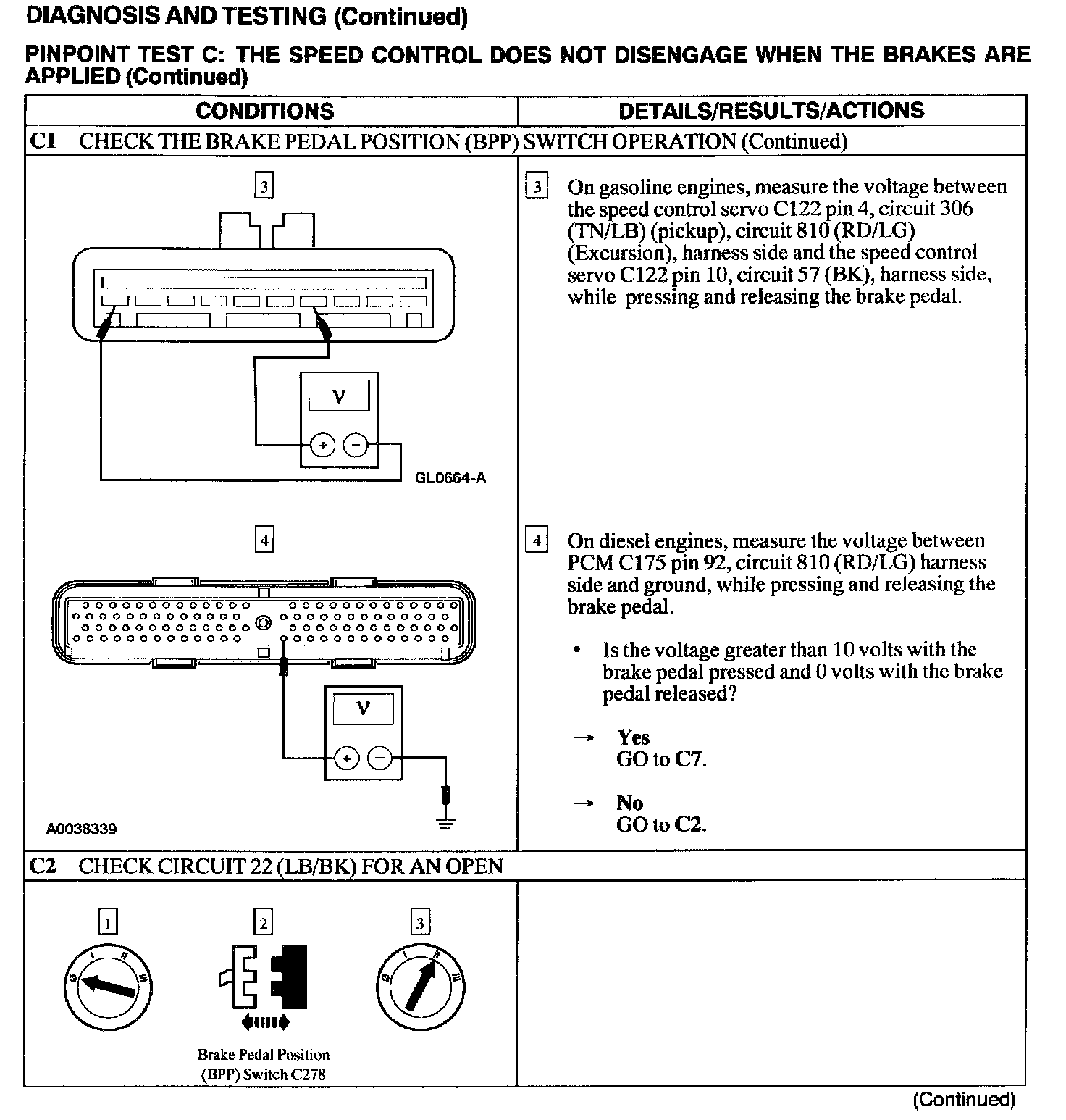

C1:






C1 - C2:

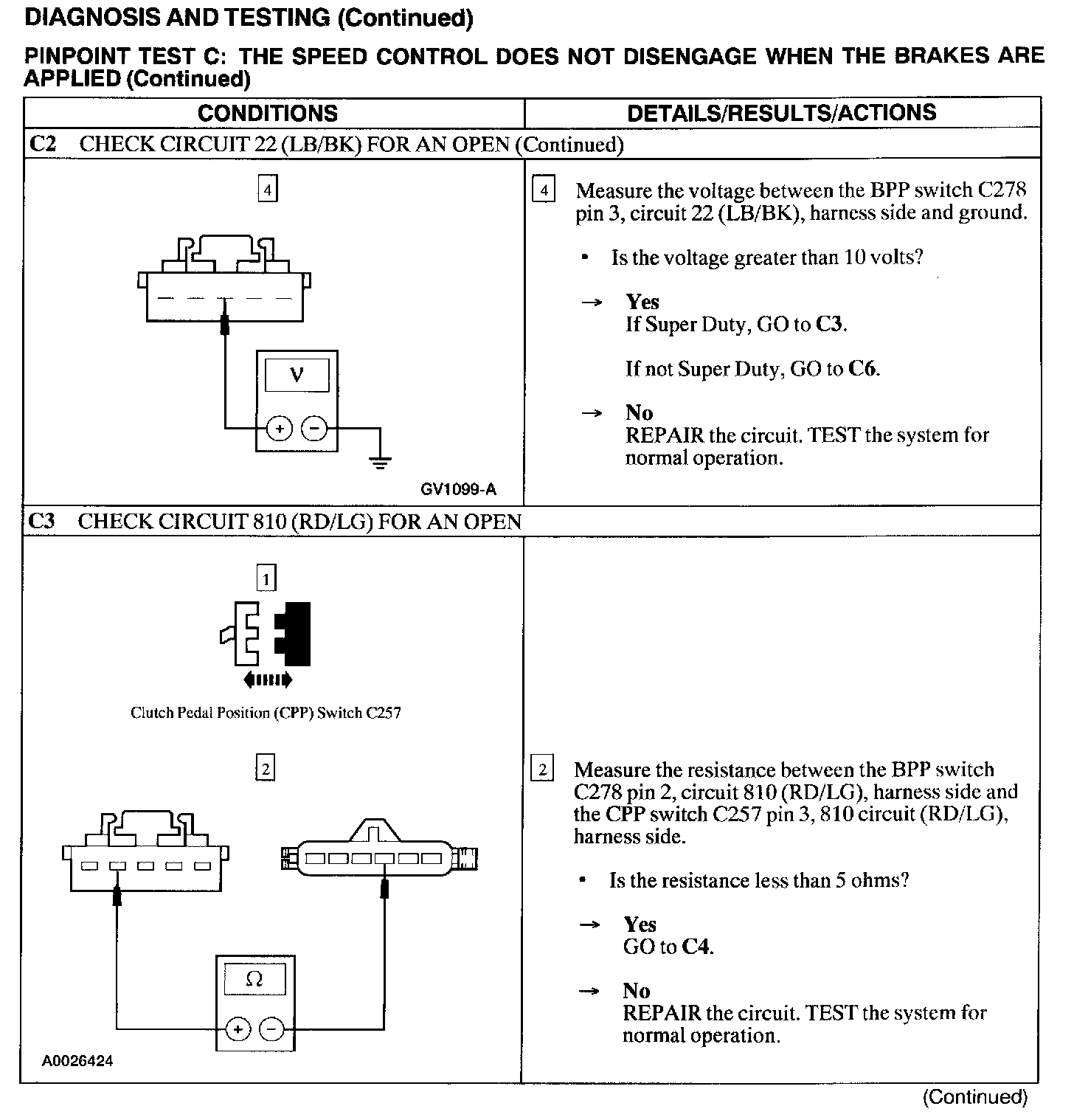

C2 - C3:

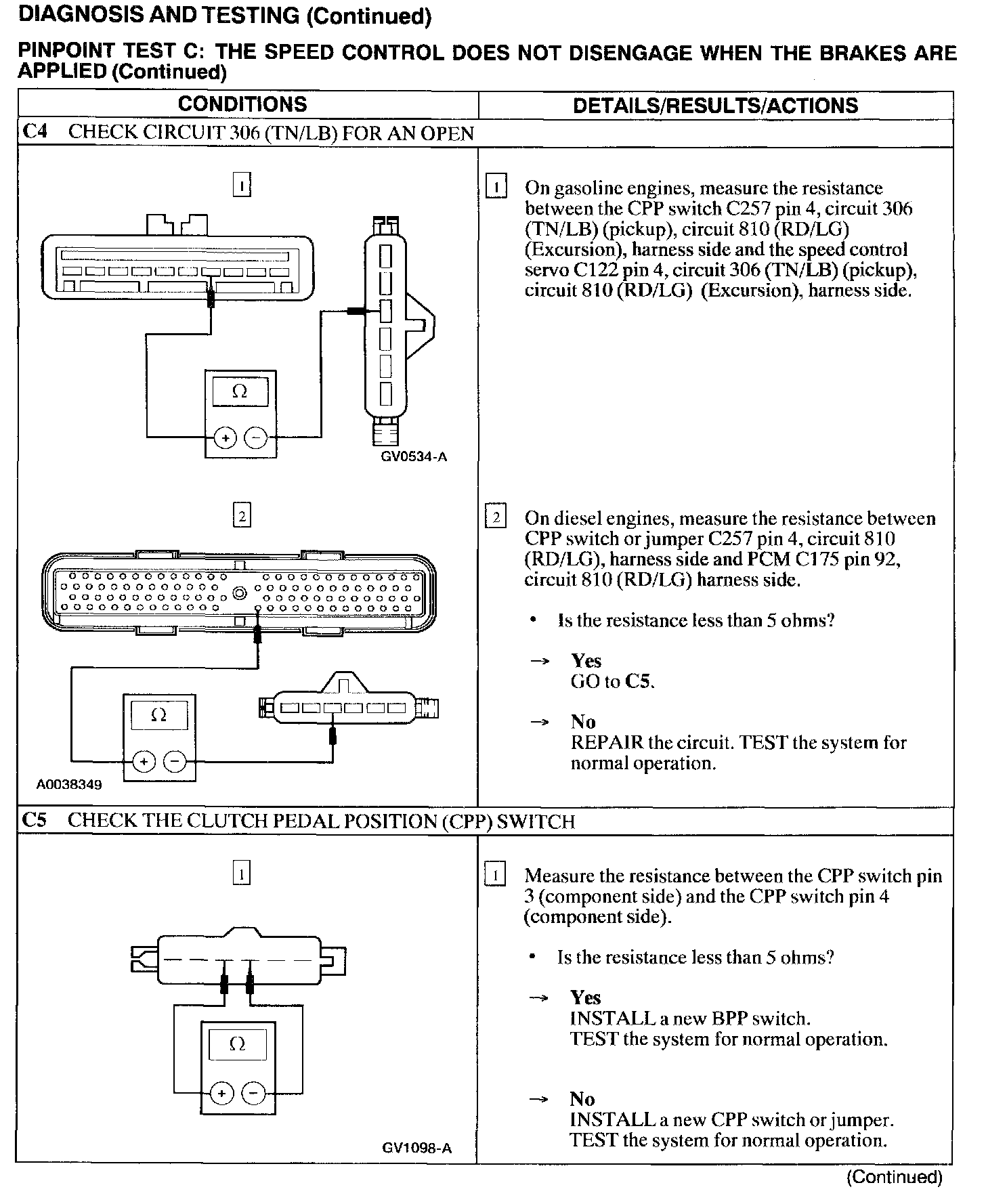

C4 - C5:

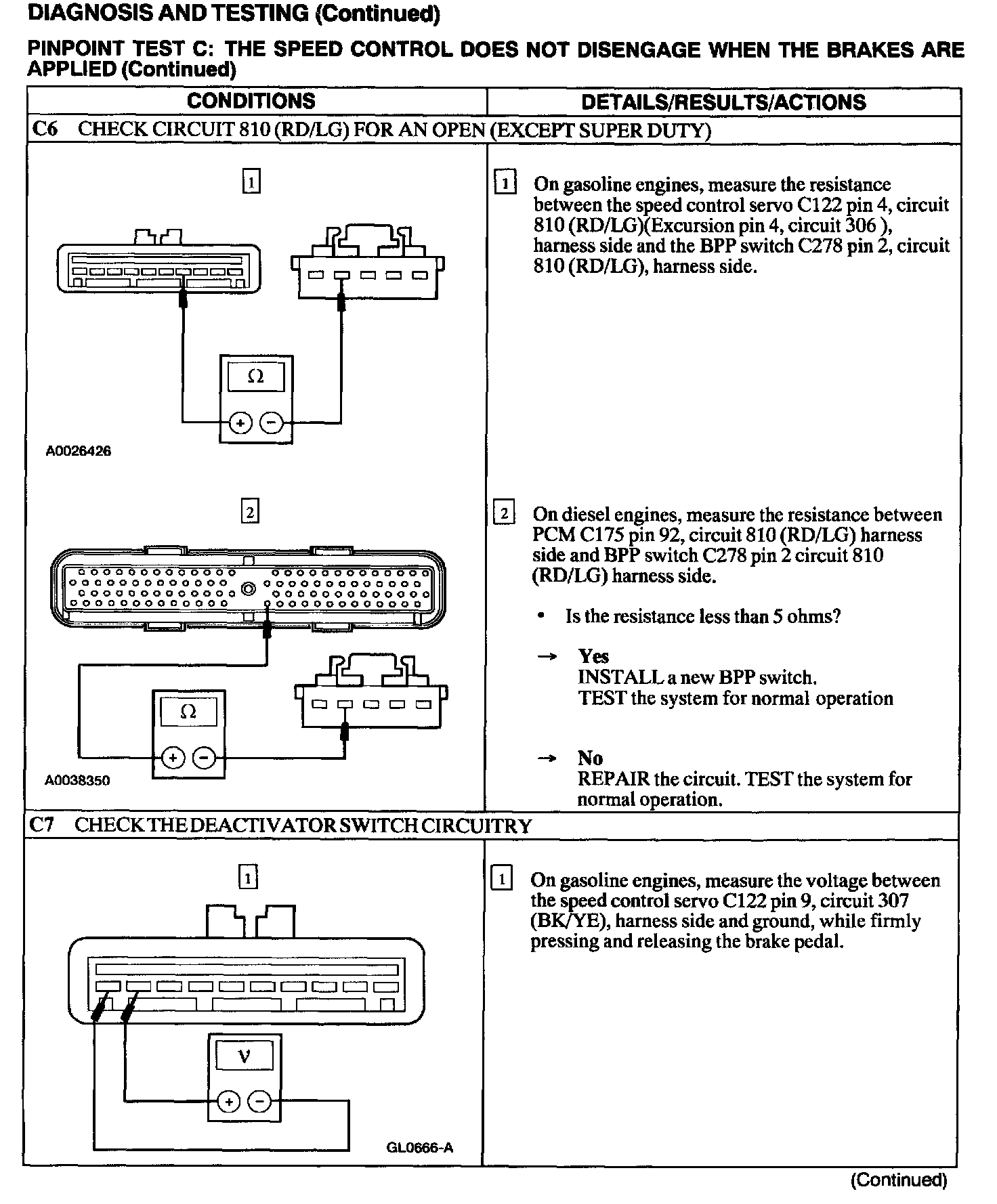

C6 - C7:

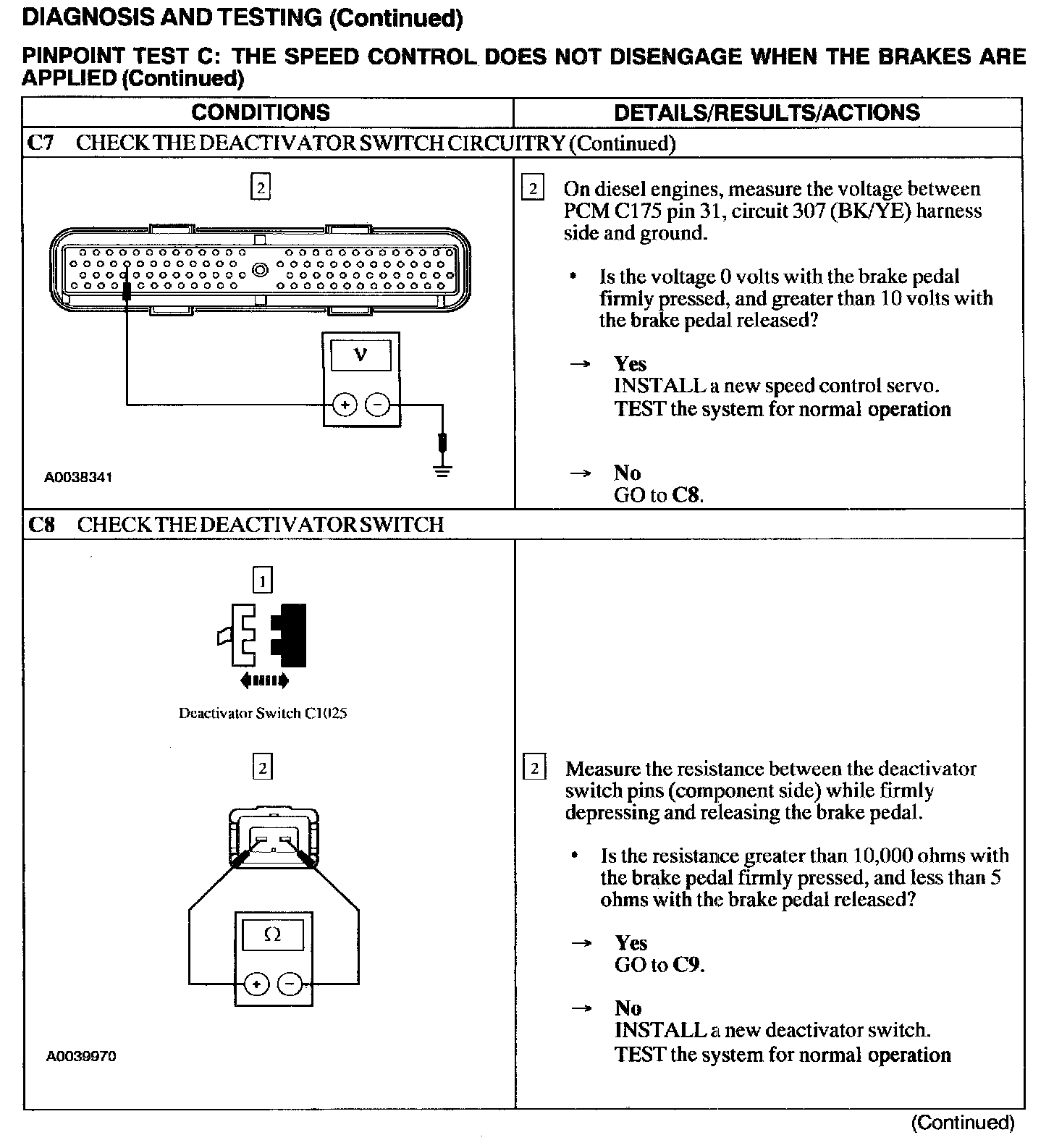

C7 - C8:

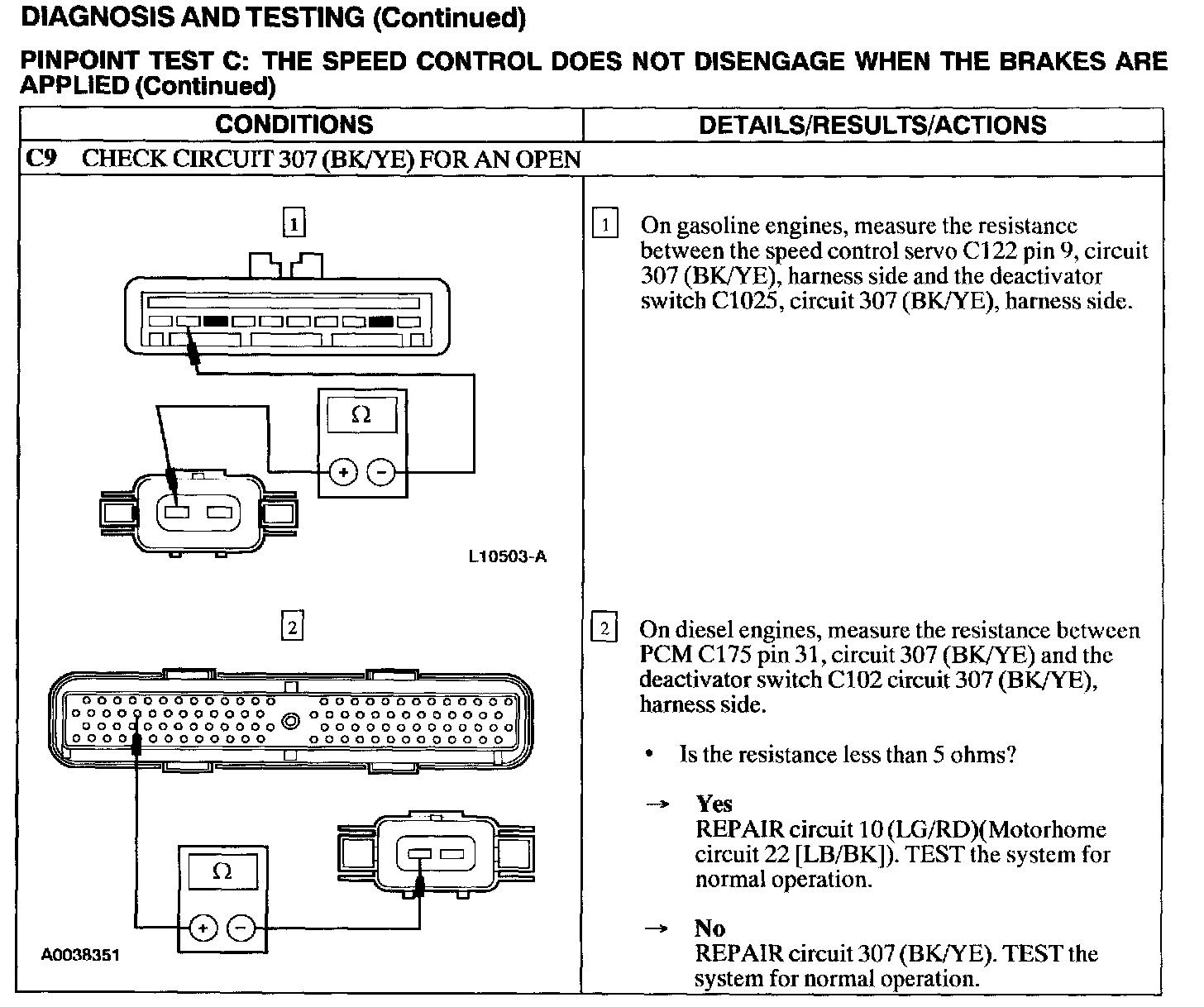

C9:
