Removal & Installation: Module: Removal

  1. Lower the panel.
    Fig 1: Lower Underdash Panel
    G01941897Courtesy of FORD MOTOR CO.
  2. Remove the lamp from the panel and disconnect the wiring.
    Fig 2: Identifying Lamp From Panel & Disconnecting Wiring
    G01941898Courtesy of FORD MOTOR CO.

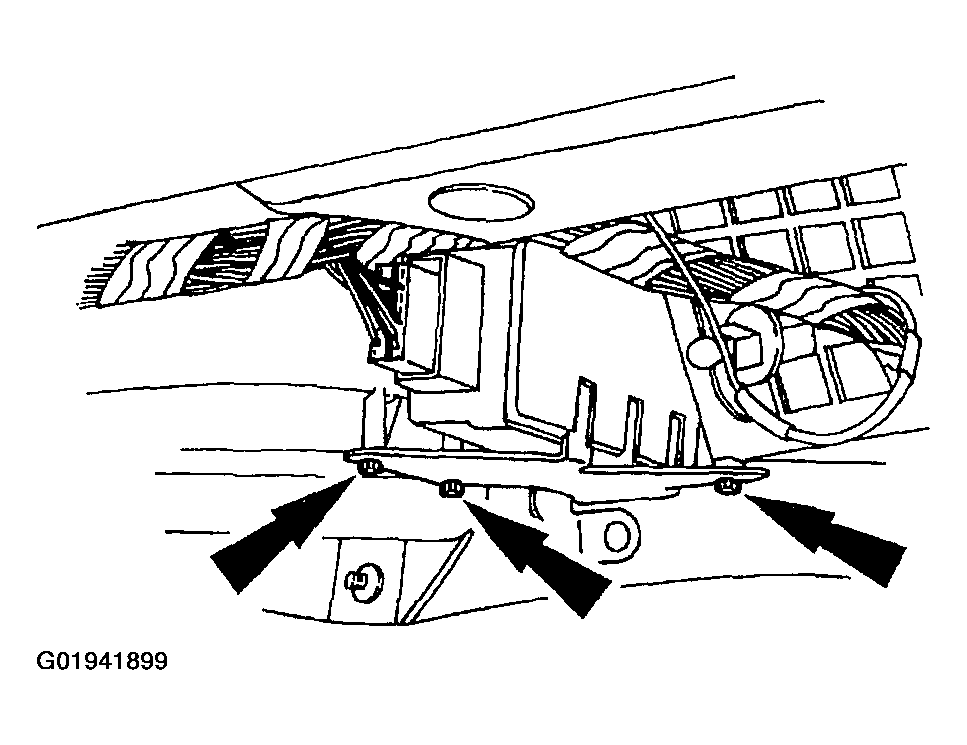

  3. Remove the screws.
    Fig 3: Removing Retaining Screws
    G01941899Courtesy of FORD MOTOR CO.

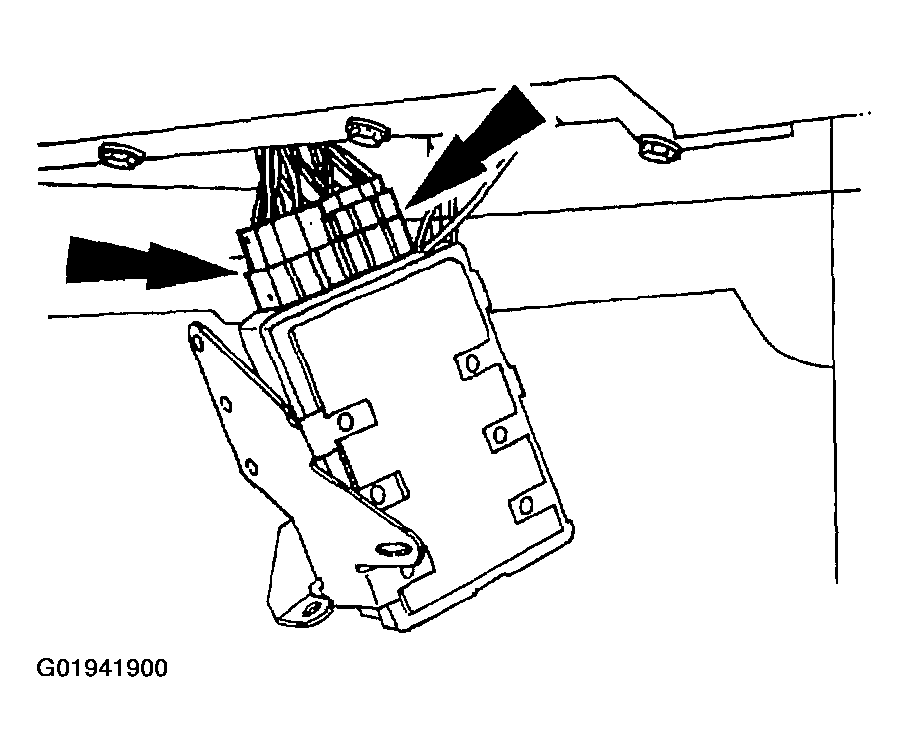

  4. Disconnect the wiring and remove the control module.
    Fig 4: Identifying Control Module Electrical Connector
    G01941900Courtesy of FORD MOTOR CO.
