Front Electronic Module

Multifunction Module

Front Electronic Module

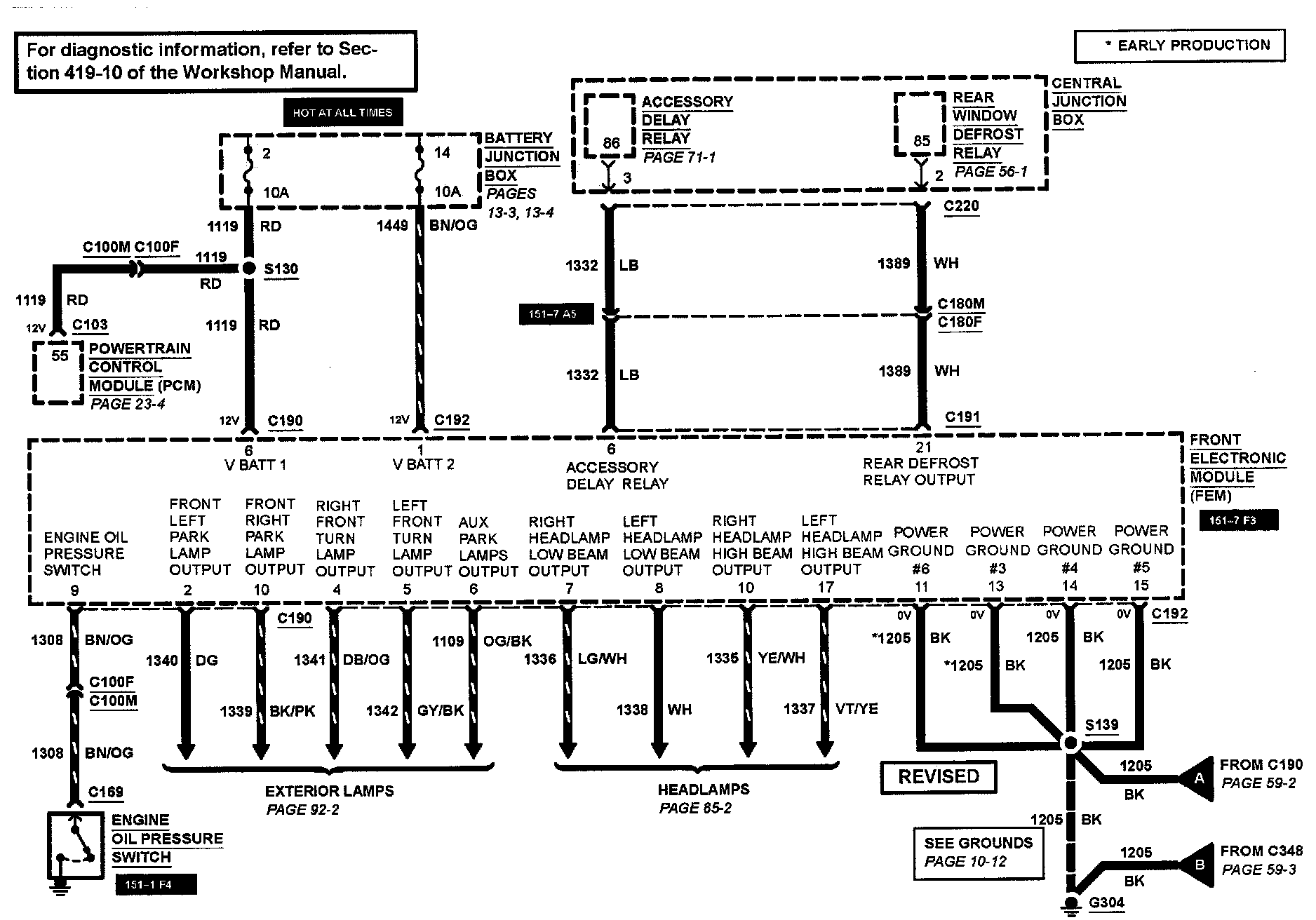

Diagram 59-1:

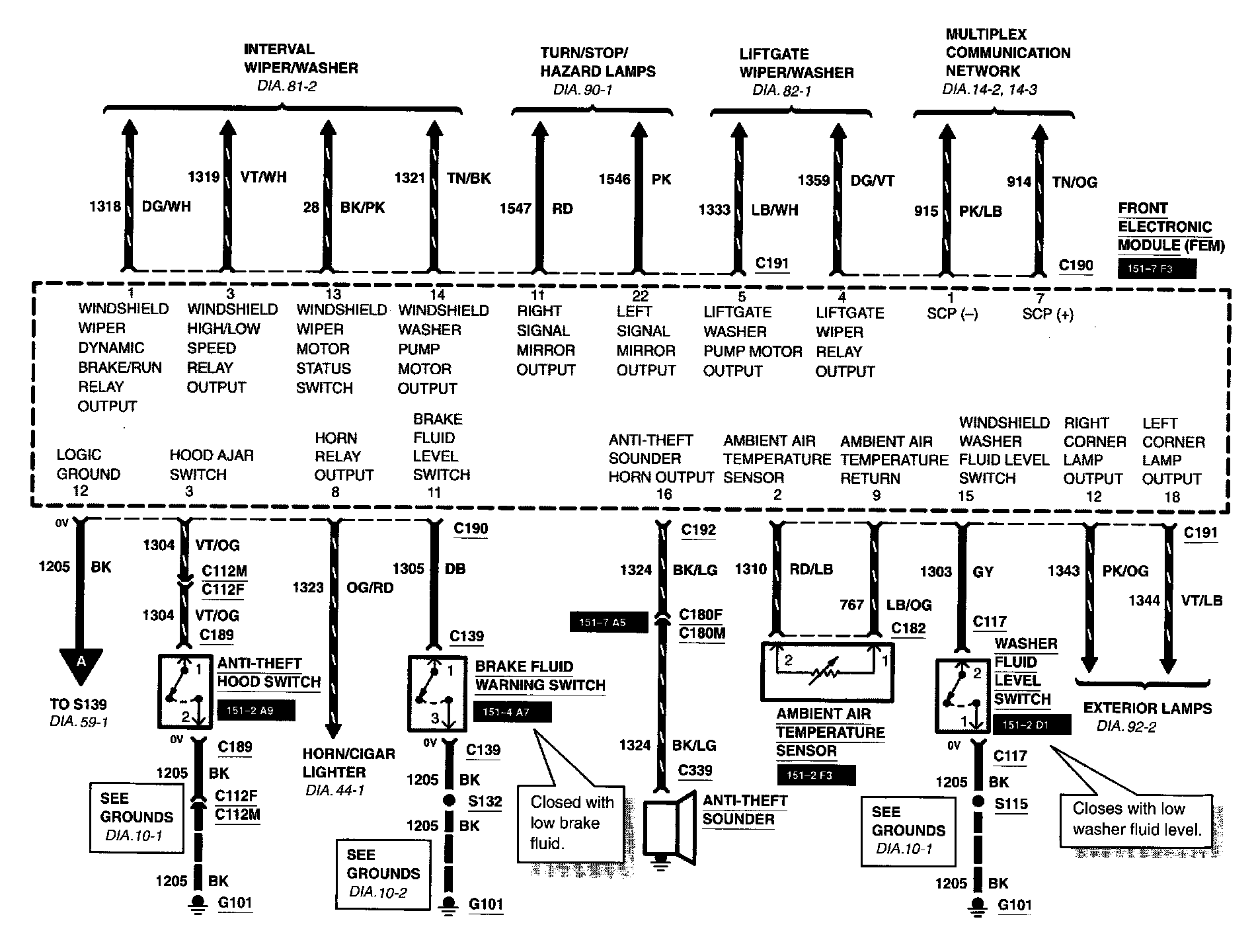

Diagram 59-2:

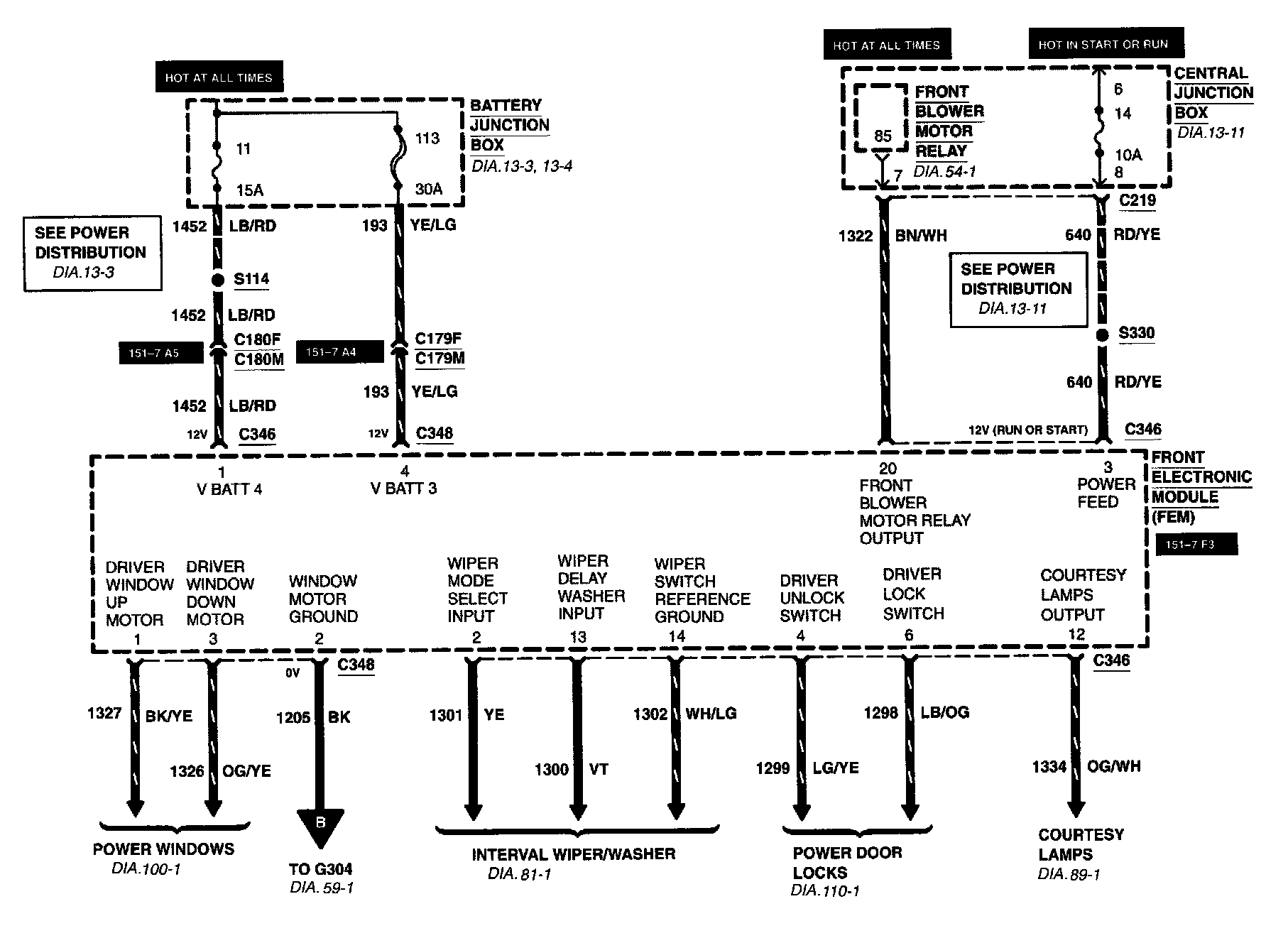

Diagram 59-3:

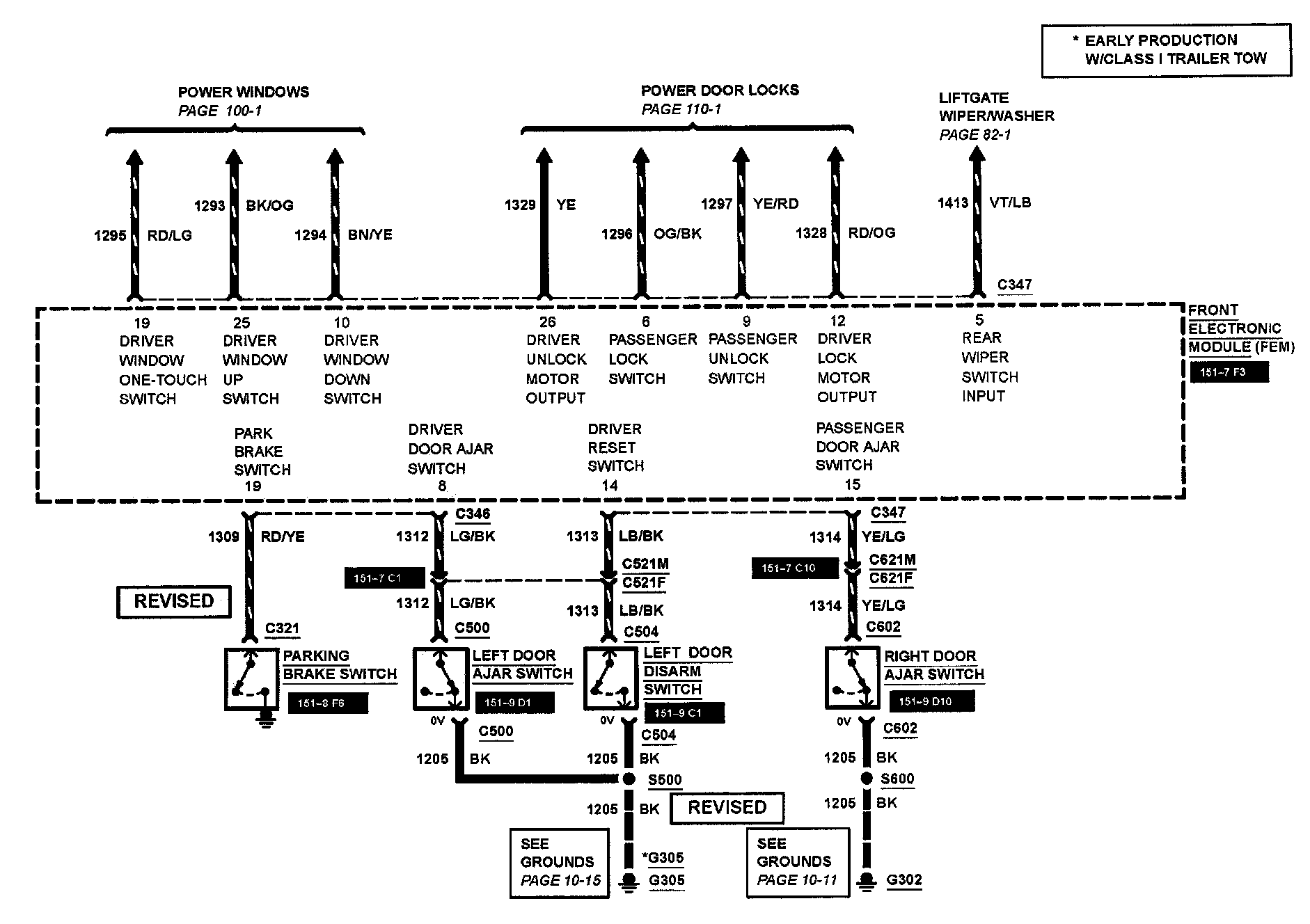

Diagram 59-4:
