Test F: 4WD Control Module Does Not Respond to the Diagnostic Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test F: 4WD Control Module Does Not Respond to the Diagnostic Tool

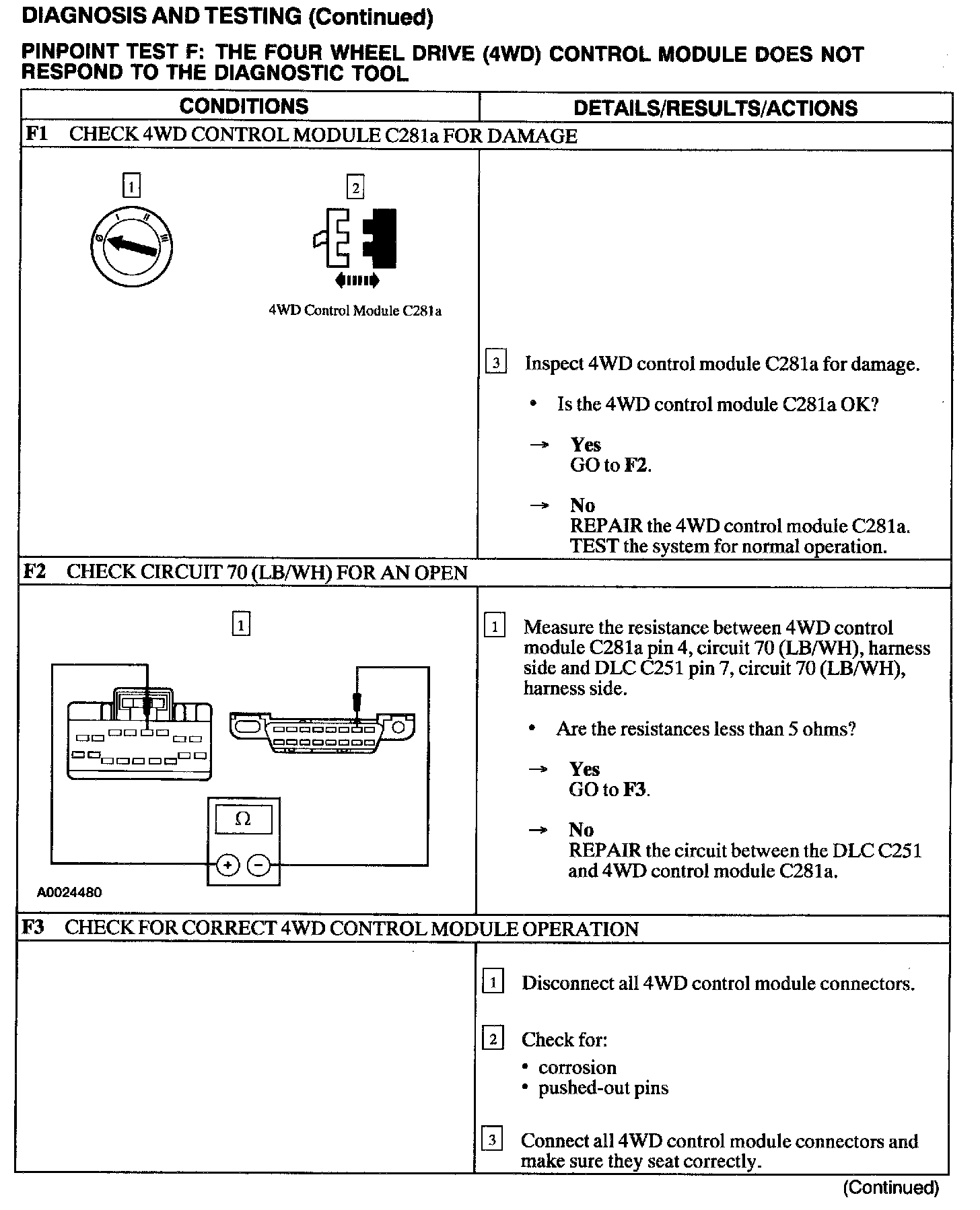

F1 - F3:

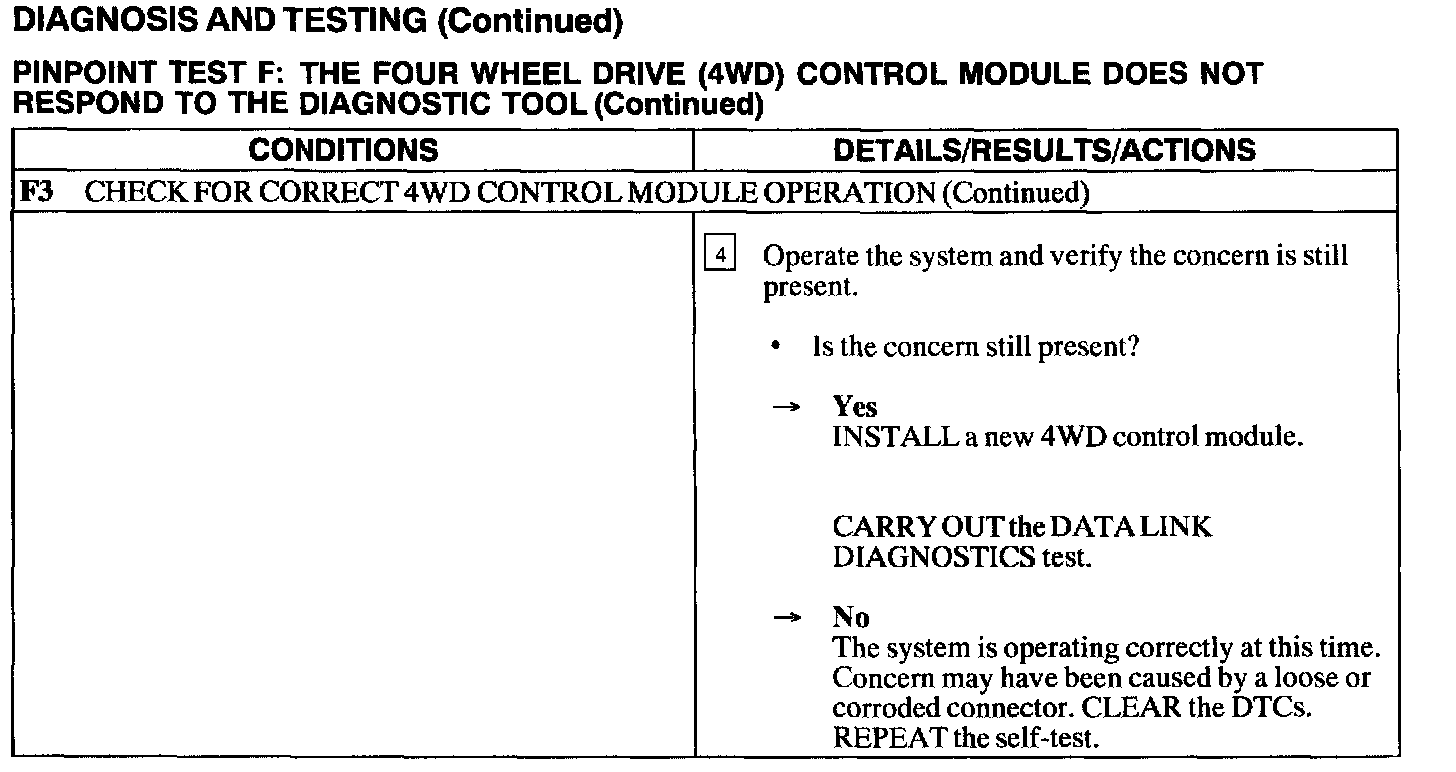

F3:
