Test B: GEM Module Does Not Respond to the Scan Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test B: GEM Module Does Not Respond to the Scan Tool

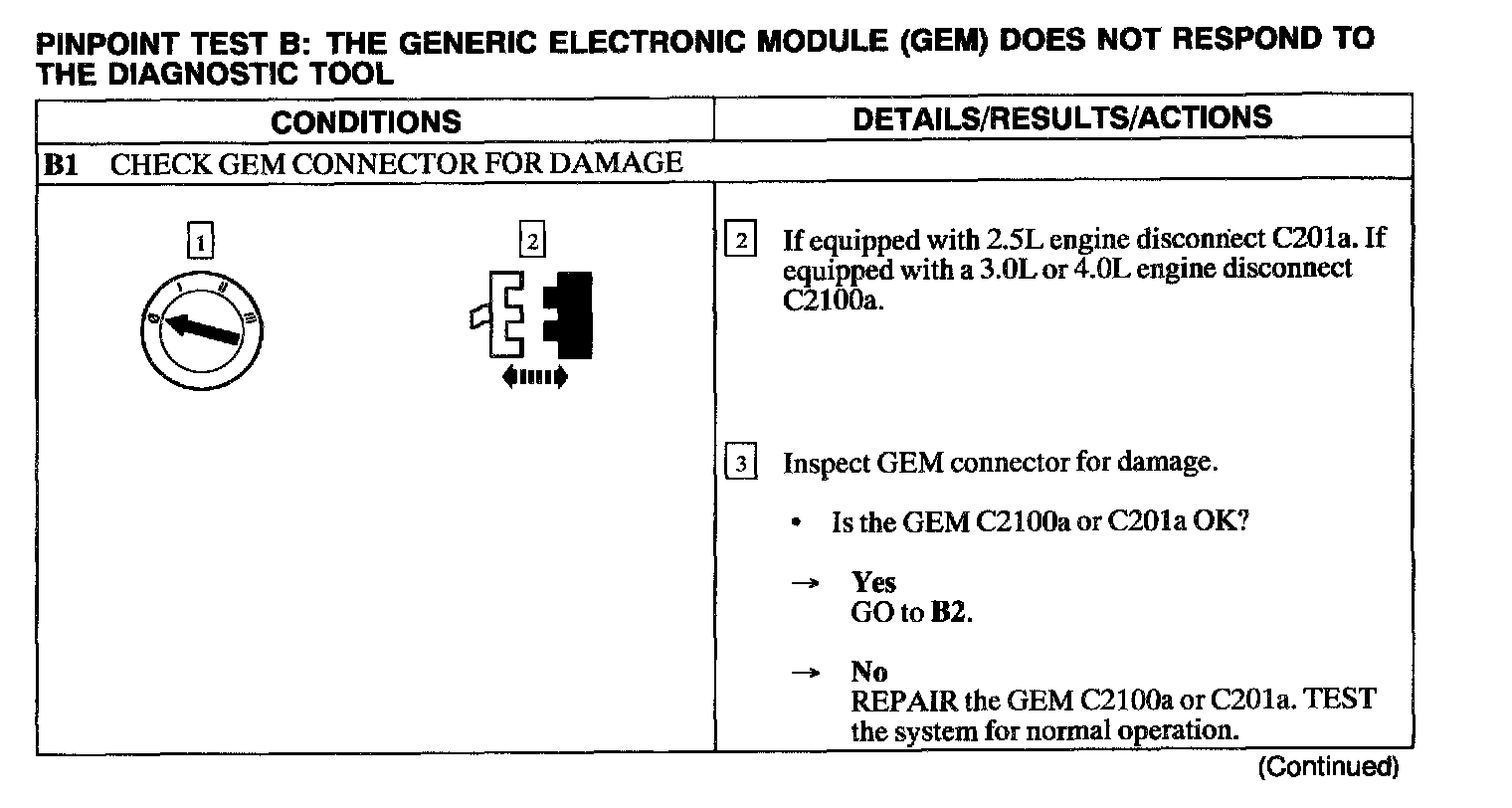

B1:

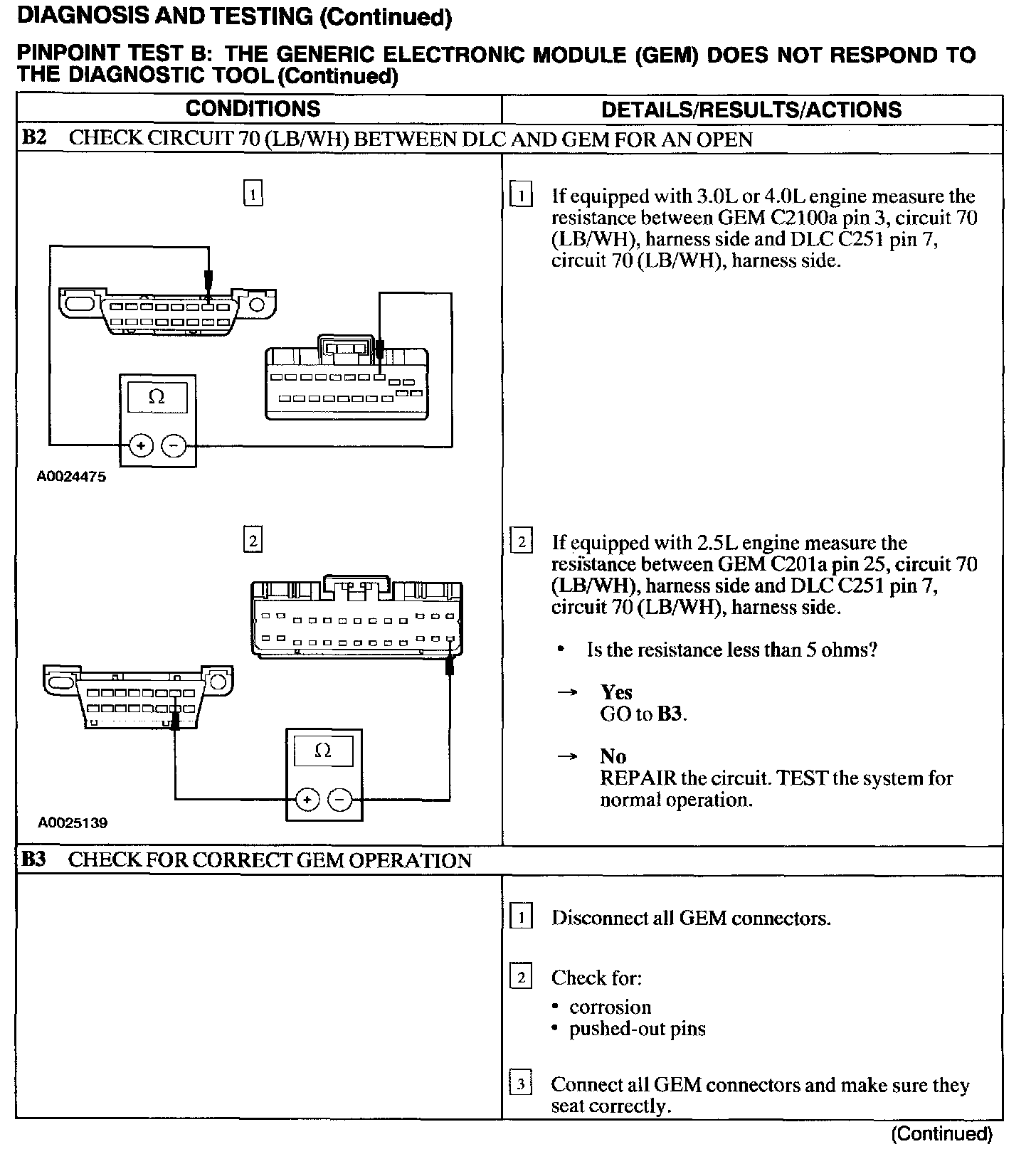

B2 - B3:

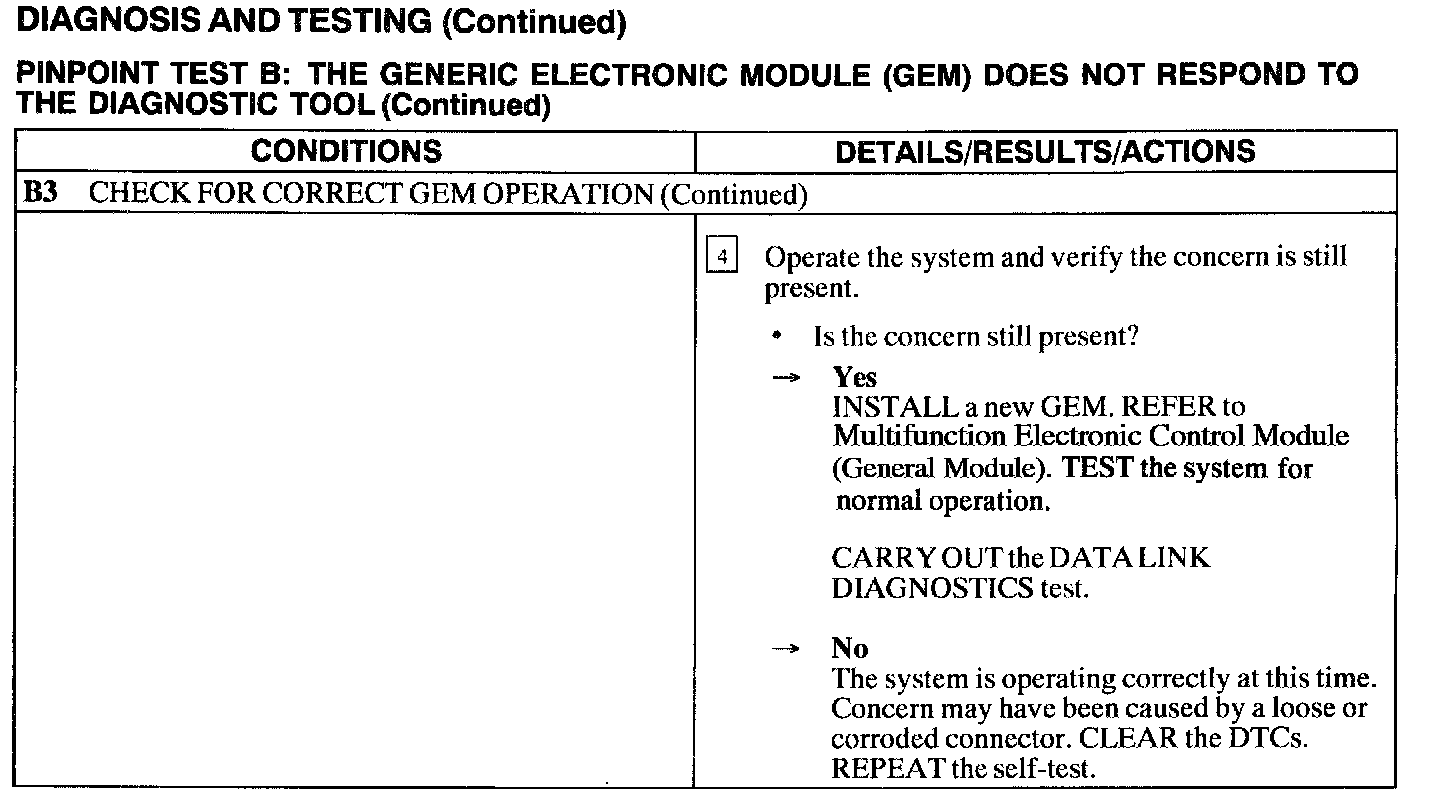

B3:
