Tests TJ: Output Shaft Speed (OSS) Sensor




TJ: Output Shaft Speed ( OSS ) Sensor

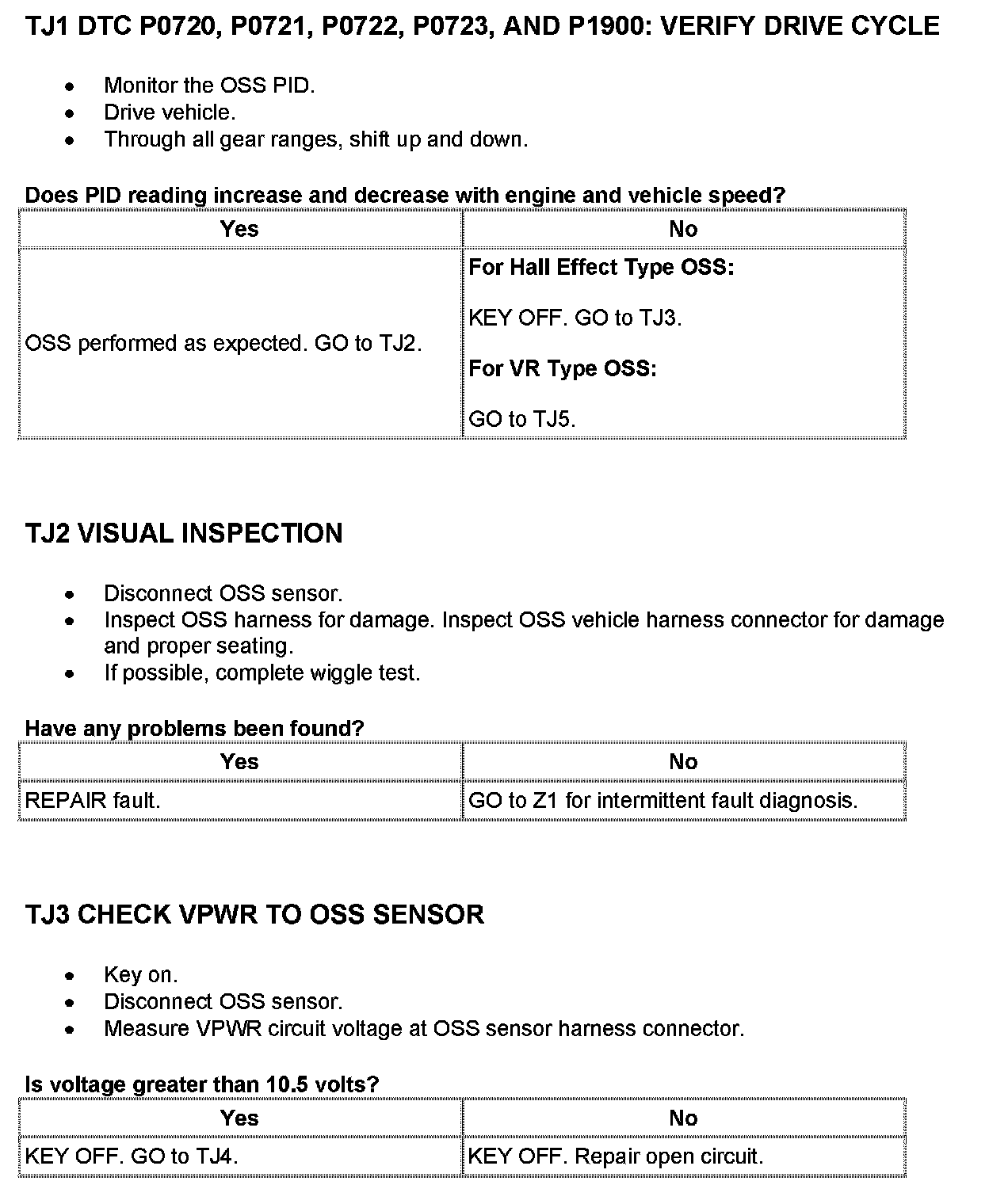

Pinpoint Test TJ1 - TJ3:

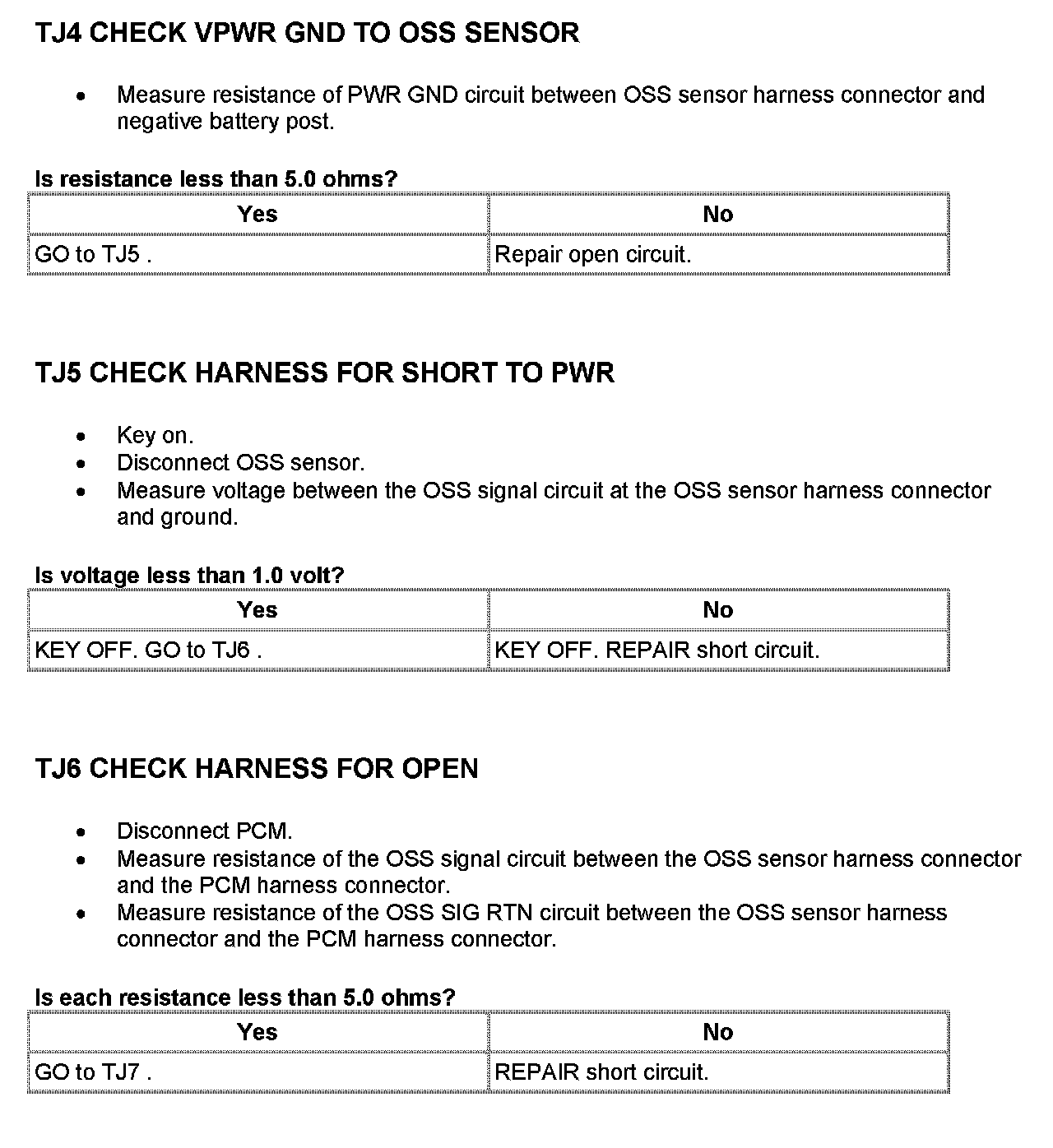

Pinpoint Test TJ4 - TJ6:

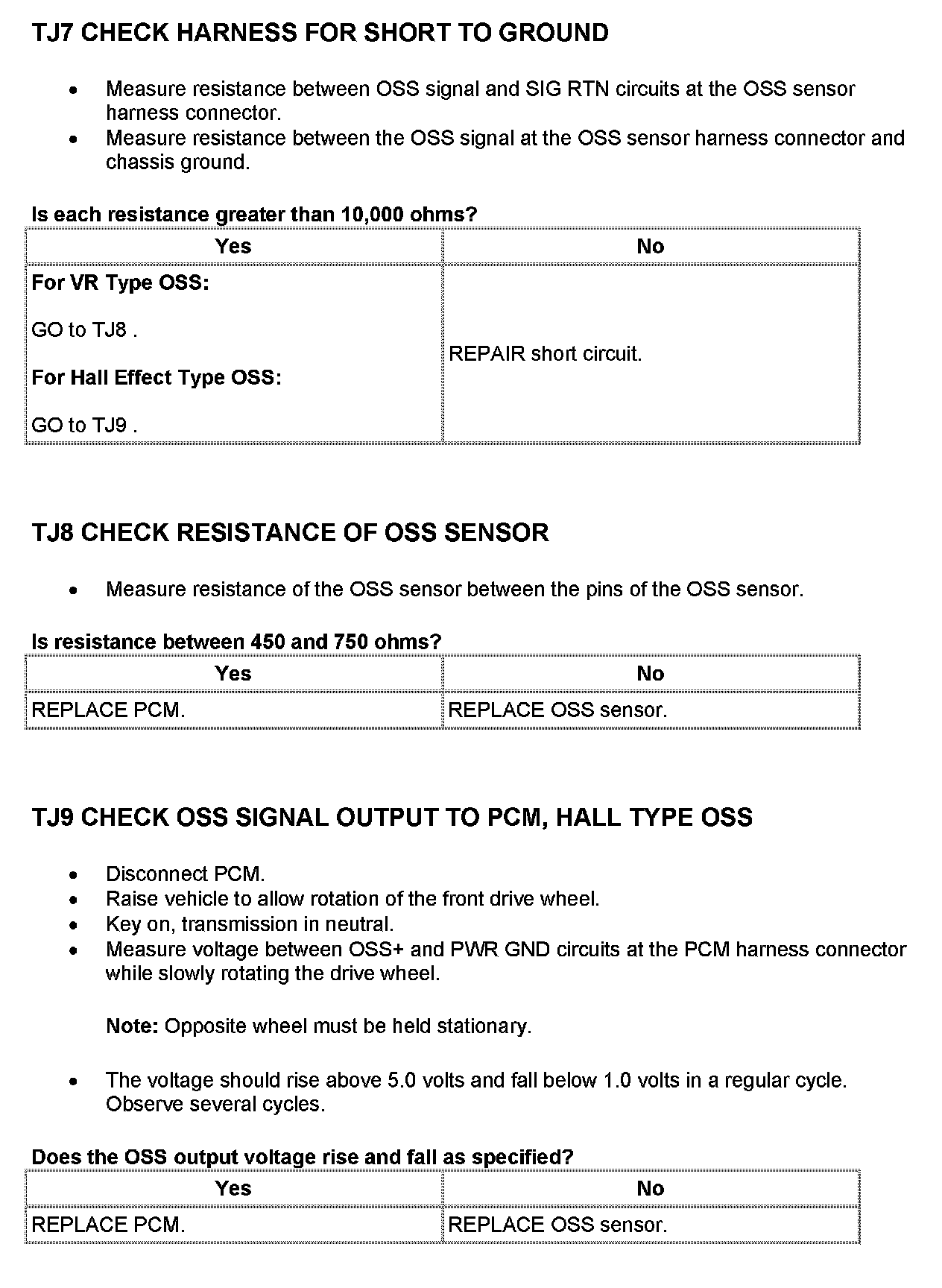

Pinpoint Test TJ7 - TJ9:
