Exploded Views

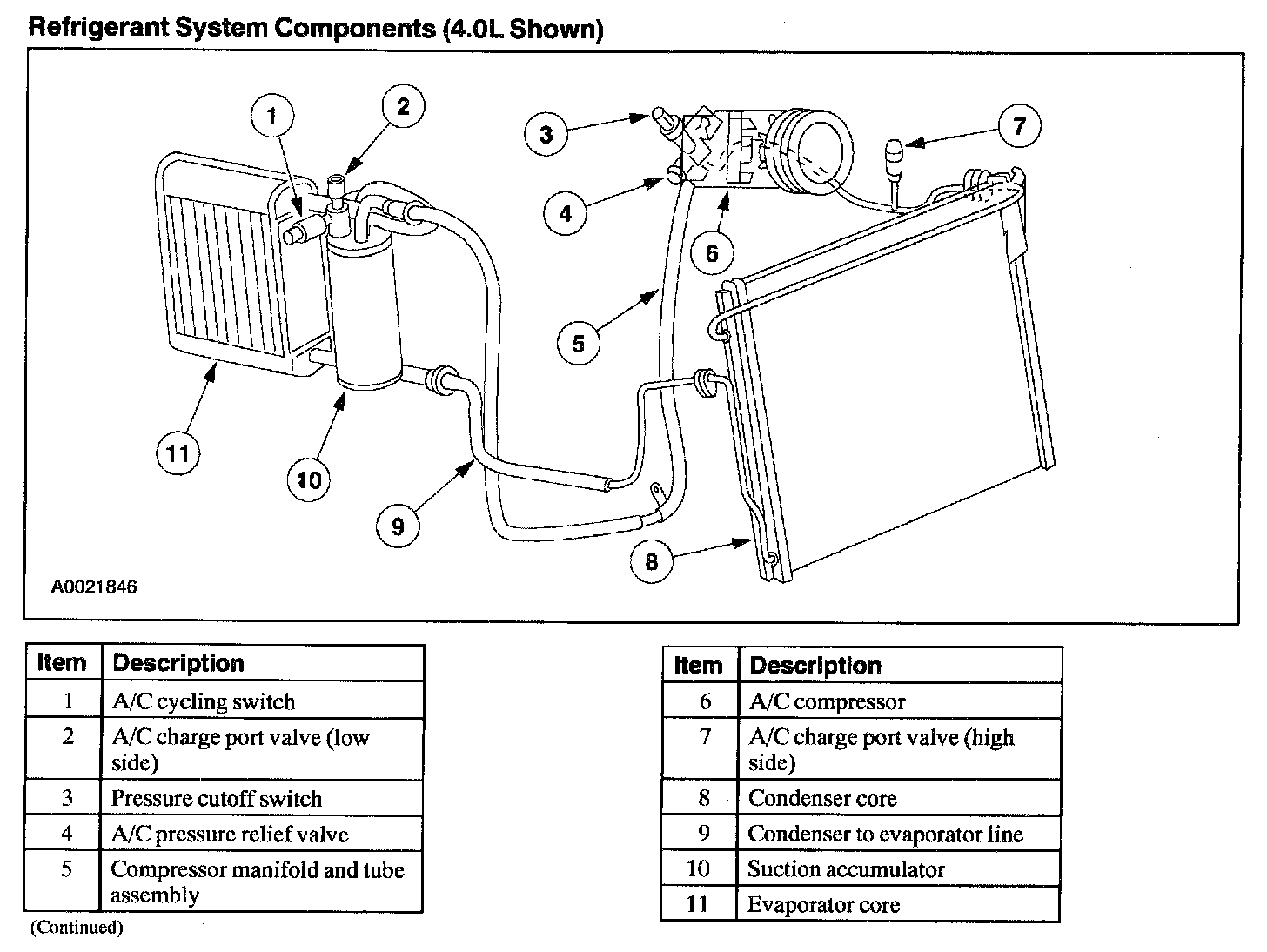

Refrigerant System Components:











Spring Lock Coupling:






Service Gauge Port Valve:






Blower Motor Resistor Coils:






Blower Motor Thermal Limiter:
