Transmission Control (TC) Switch: Removal

  1. Remove the transmission control switch (TCS).
    1. Remove the TCS cover.
    2. Remove the-TCS.

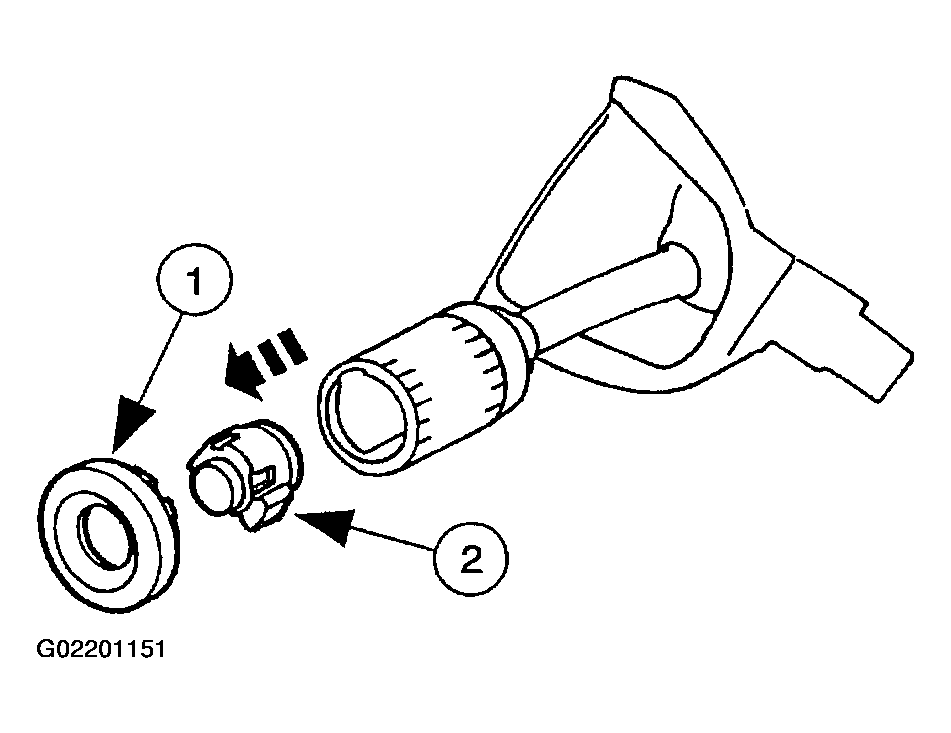

      Fig 1: Removing Transmission Control Switch
      G02201151
