Pinpoint Tests: Notes

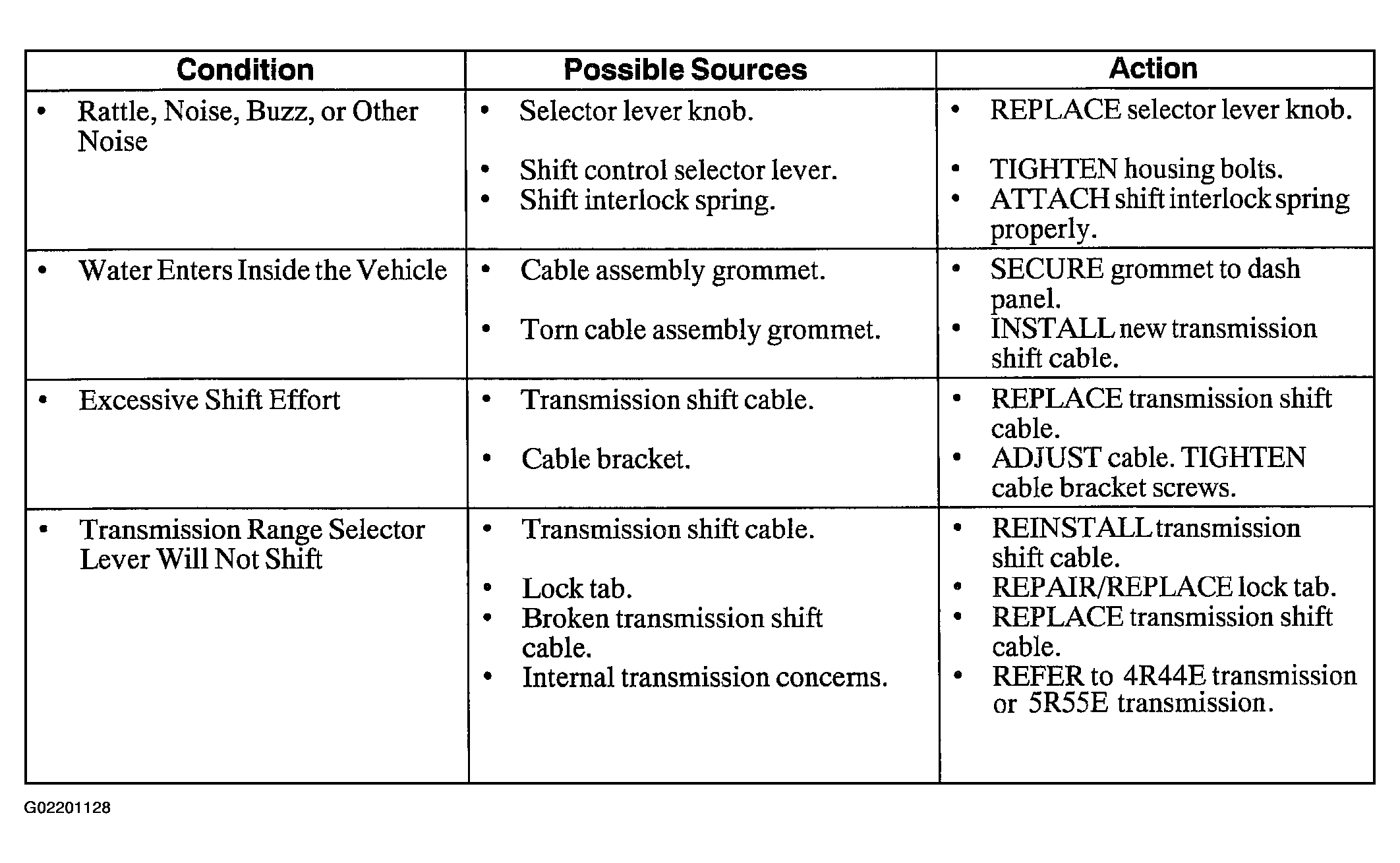

Fig 1: Pinpoint Test Symptom Chart (1 Of 2)

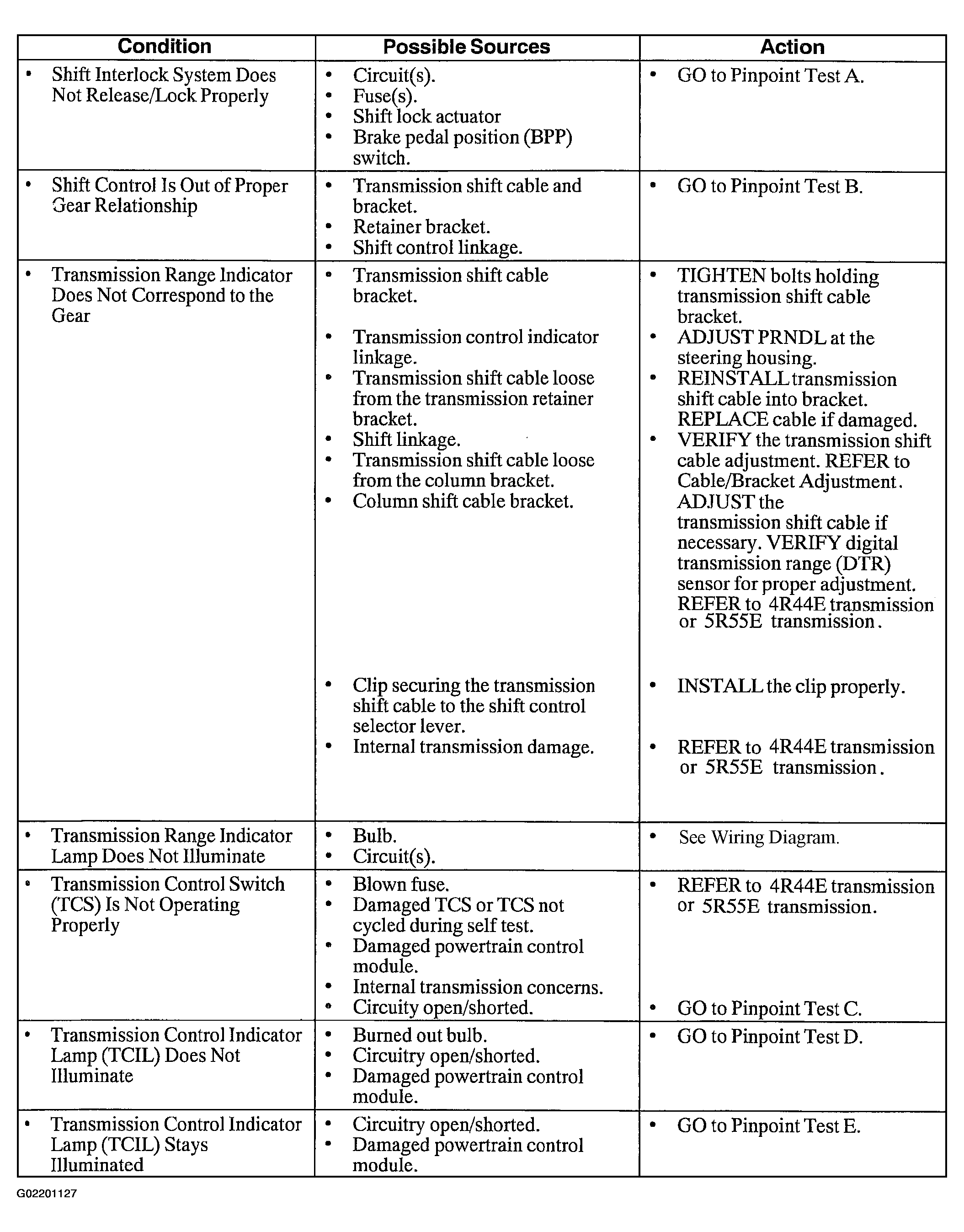

Fig 2: Pinpoint Test Symptom Chart (2 Of 2)
