Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly

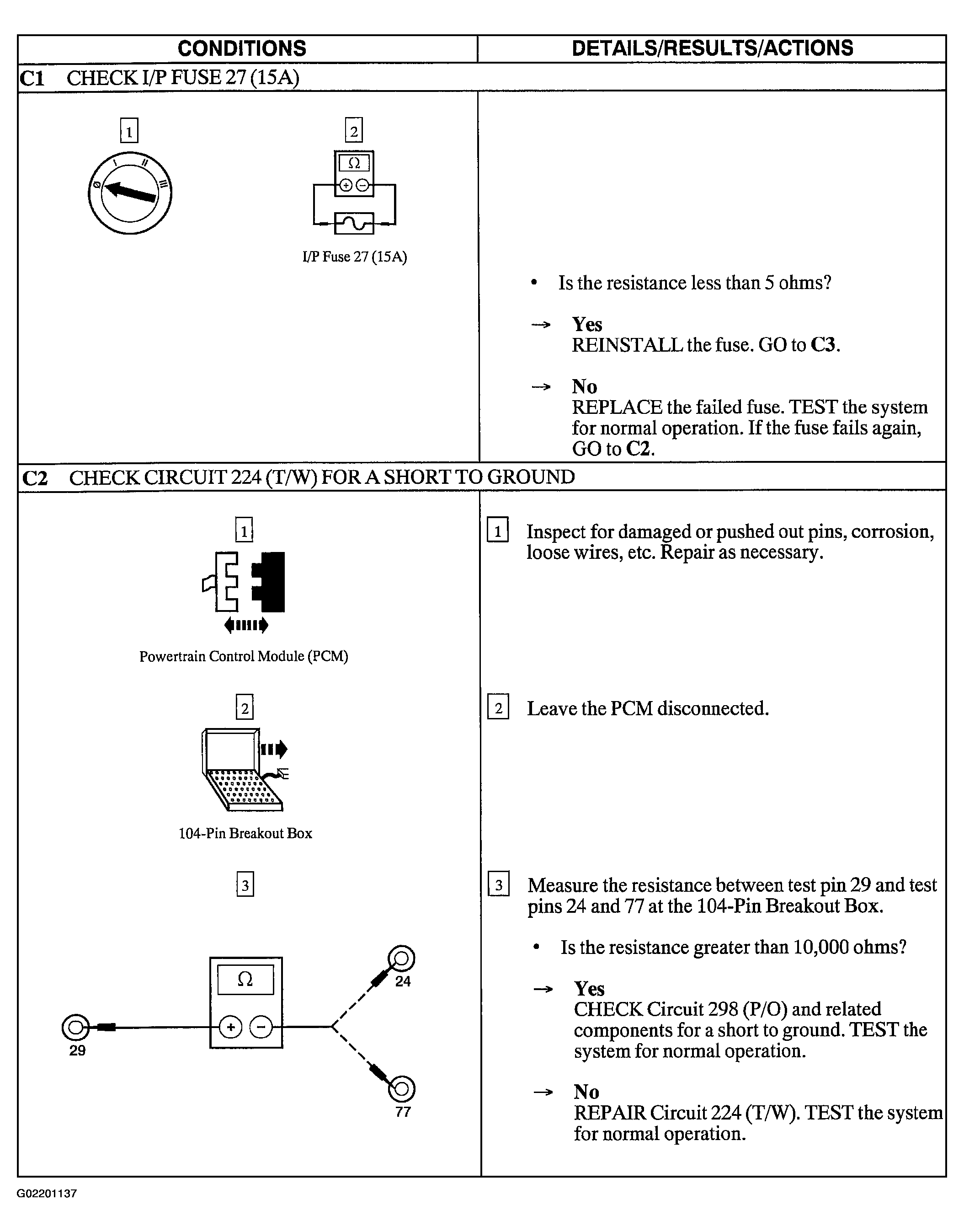

Fig 1: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C1 & C2)

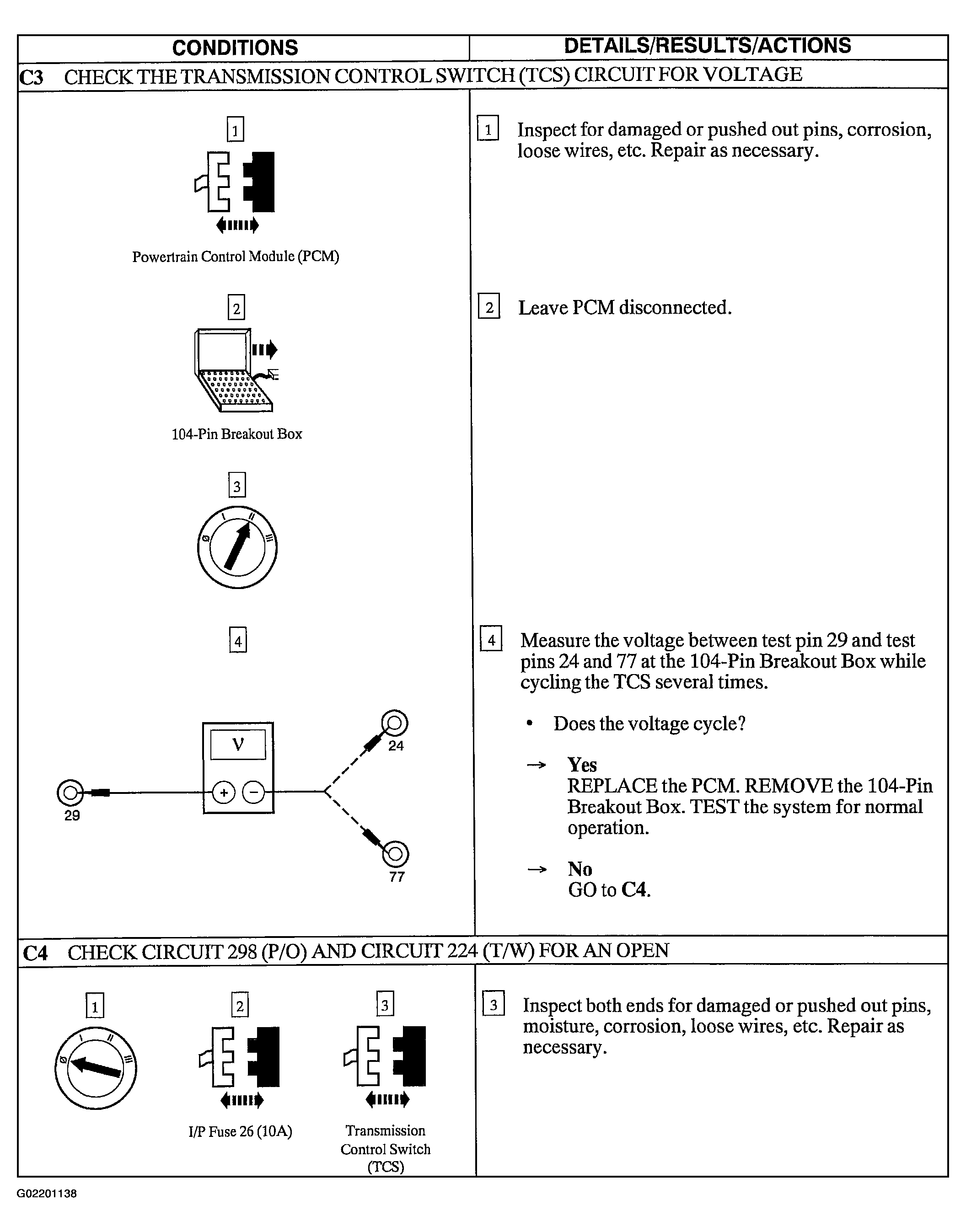

Fig 2: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C3 & C4)

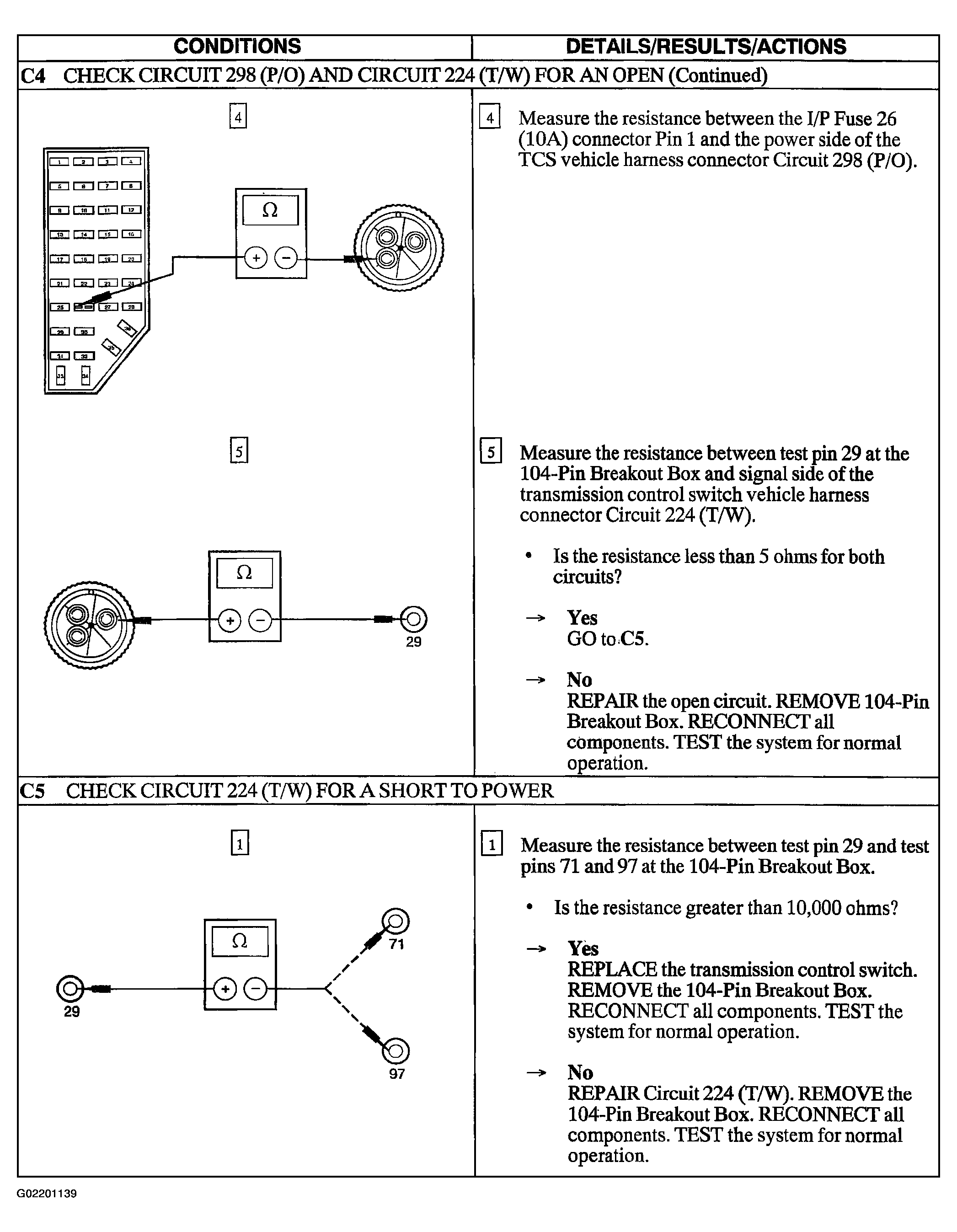

Fig 3: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C4 Cont. & C5)
