Test F: No Module/Network Communication - ISO 9141 Network
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test F: No Module/Network Communication - ISO 9141 Network

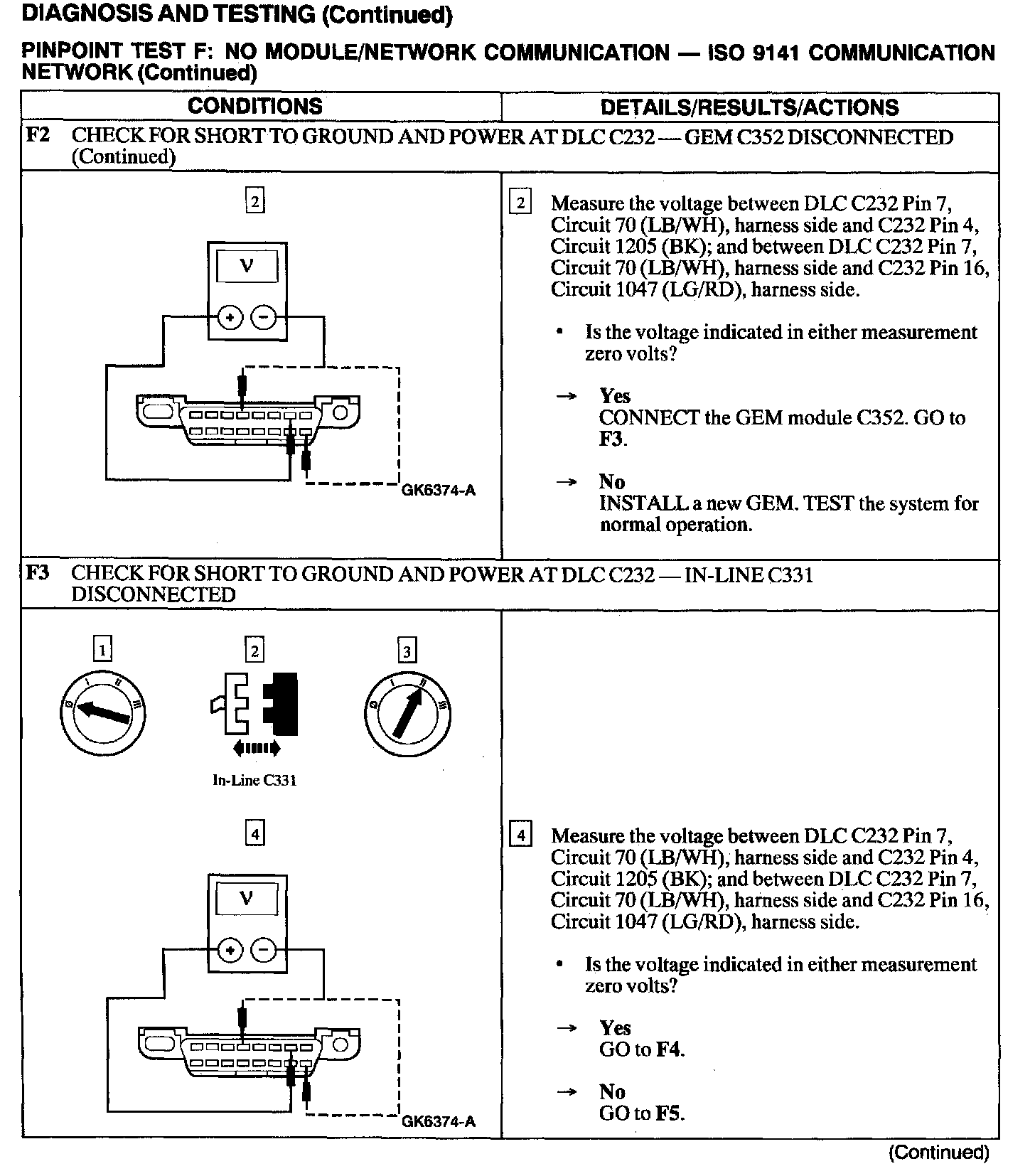

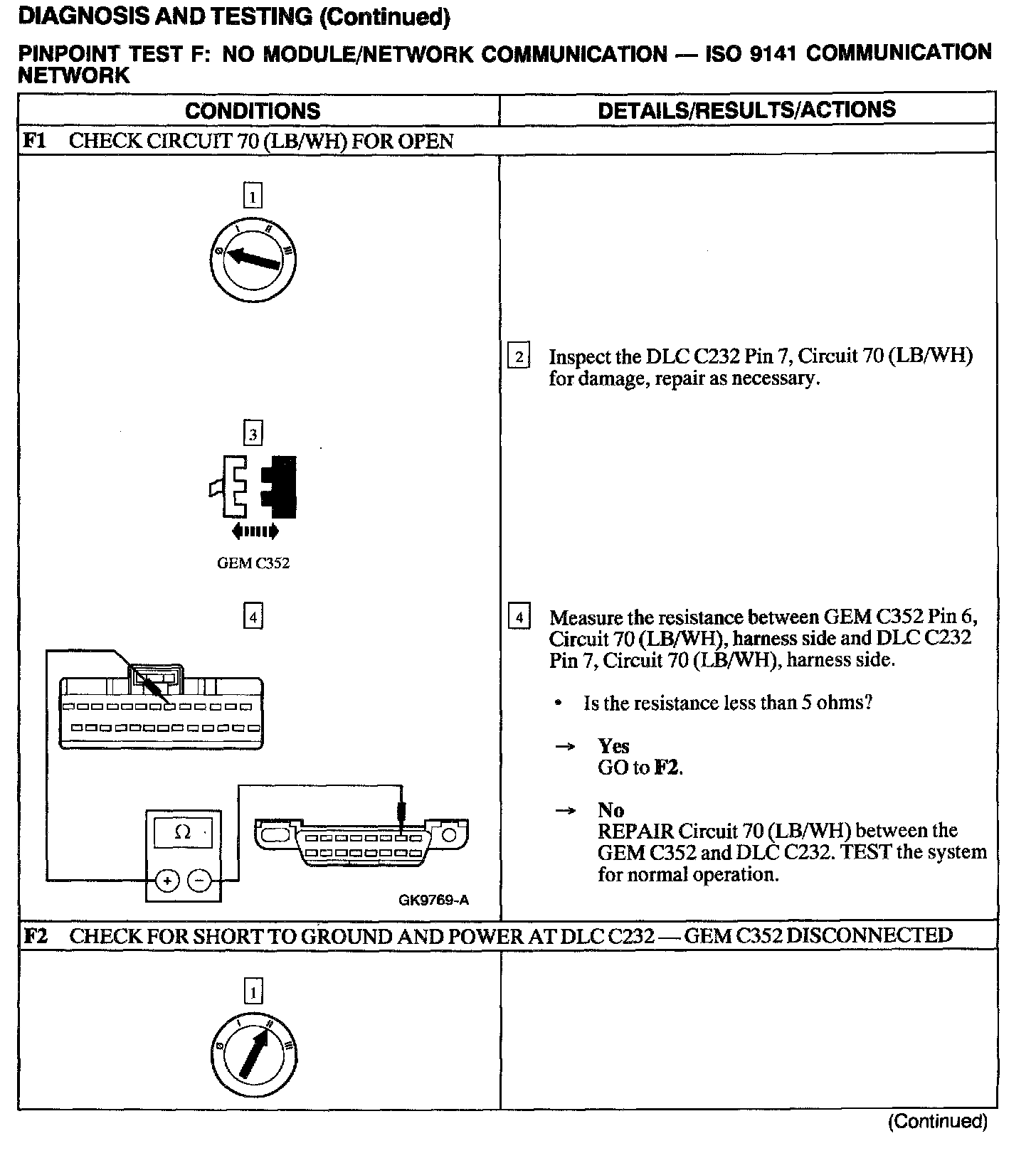

F1 - F2:
F2 - F3:

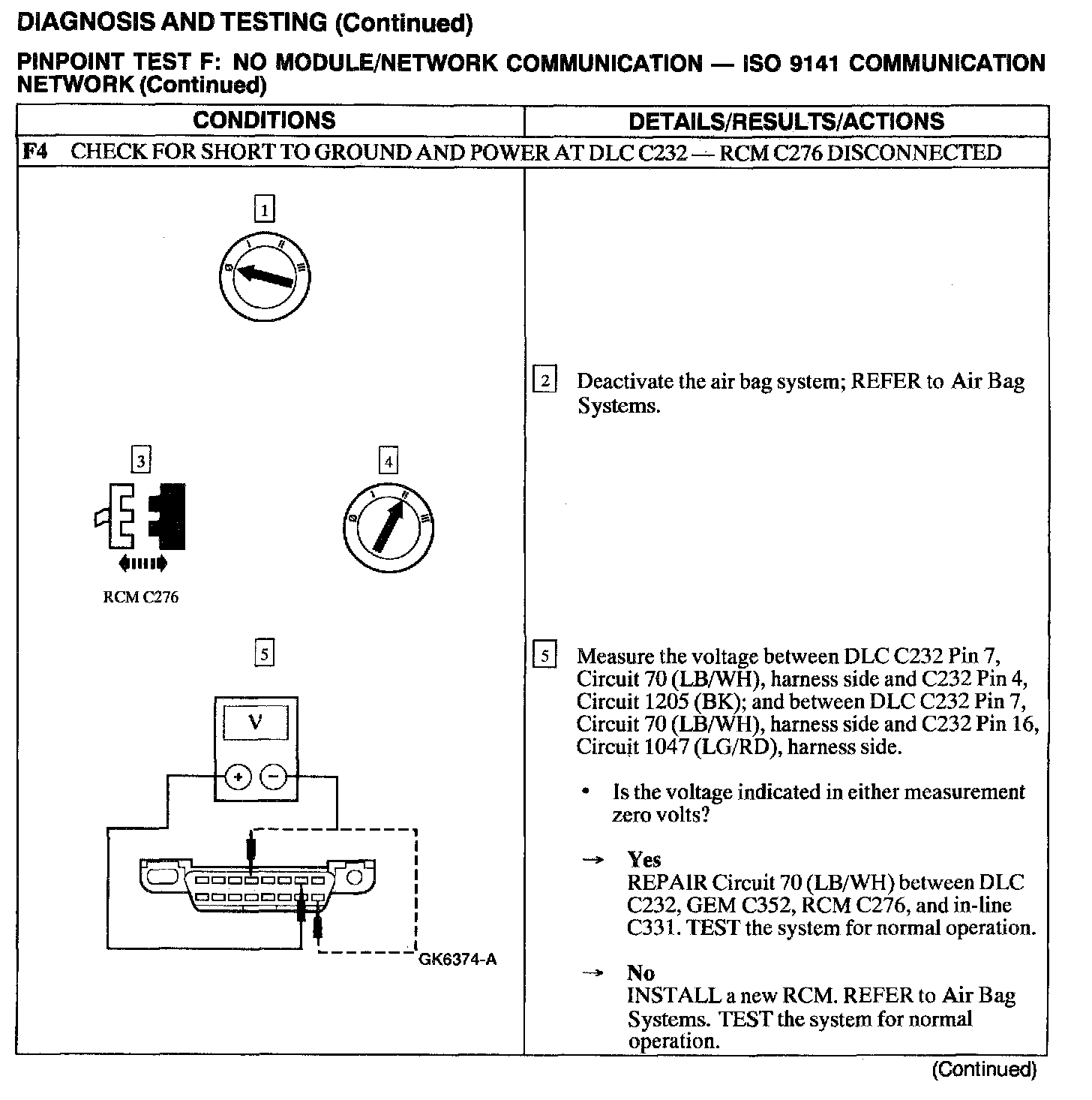

F4:

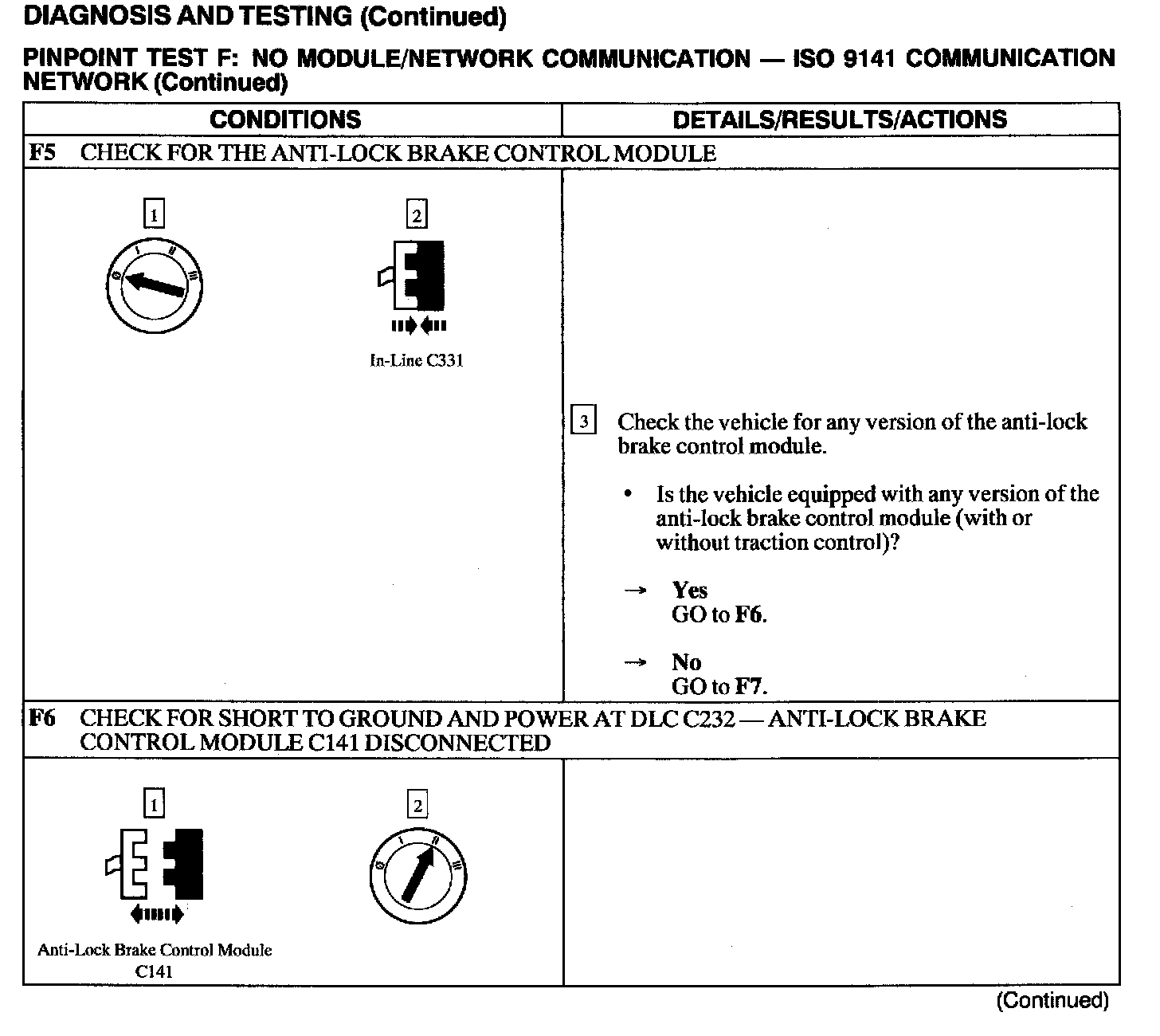

F5 - F6:

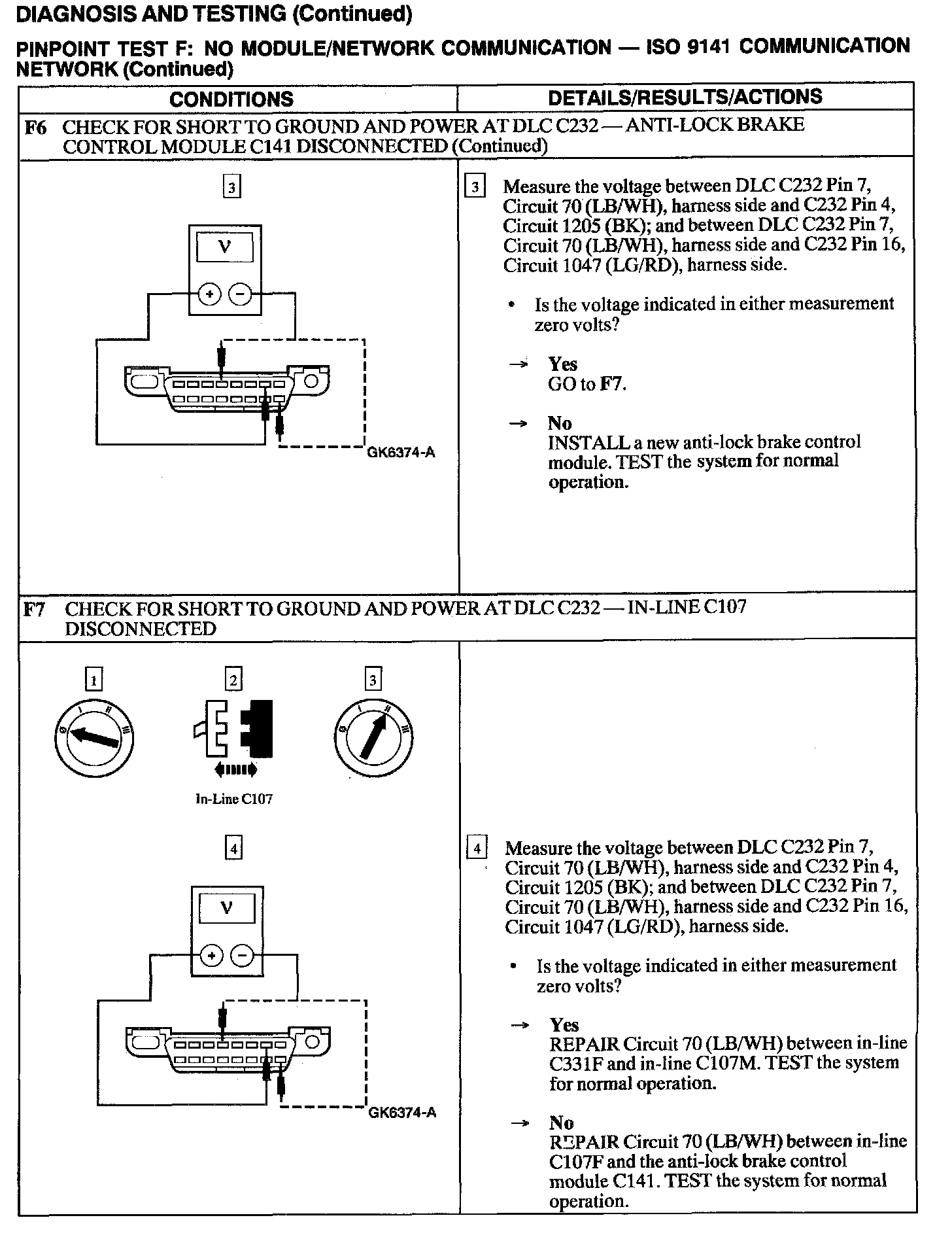

F6 - F7:
