Component Tests

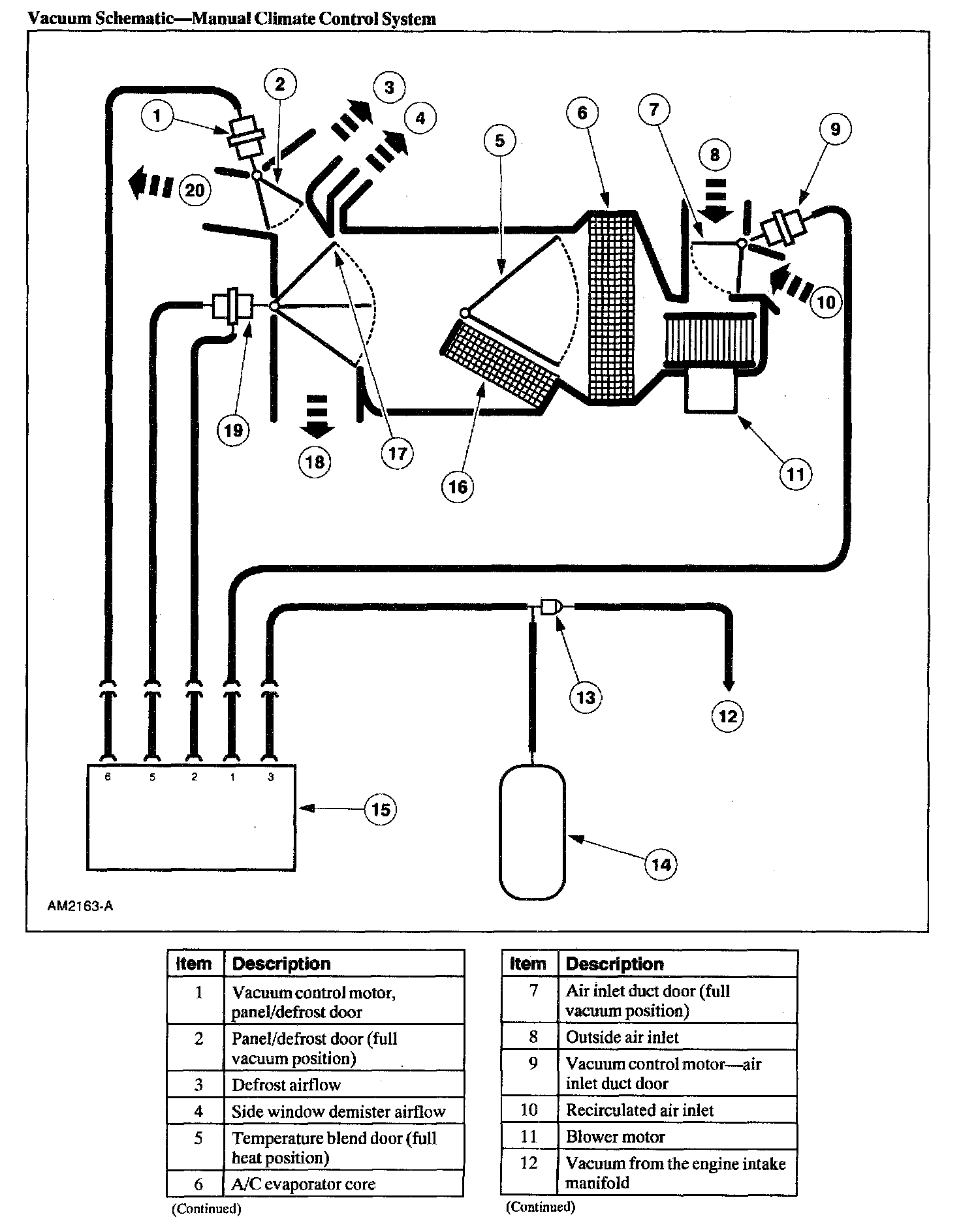

Vacuum Schematic - Manual Climate Control System, Part 1:





Vacuum Schematic - Manual Climate Control System, (Legend Continued) Part 2:





Function Selector Switch Vacuum Connector:





Function Selector Switch Vacuum Application Chart:
