Connector Identification

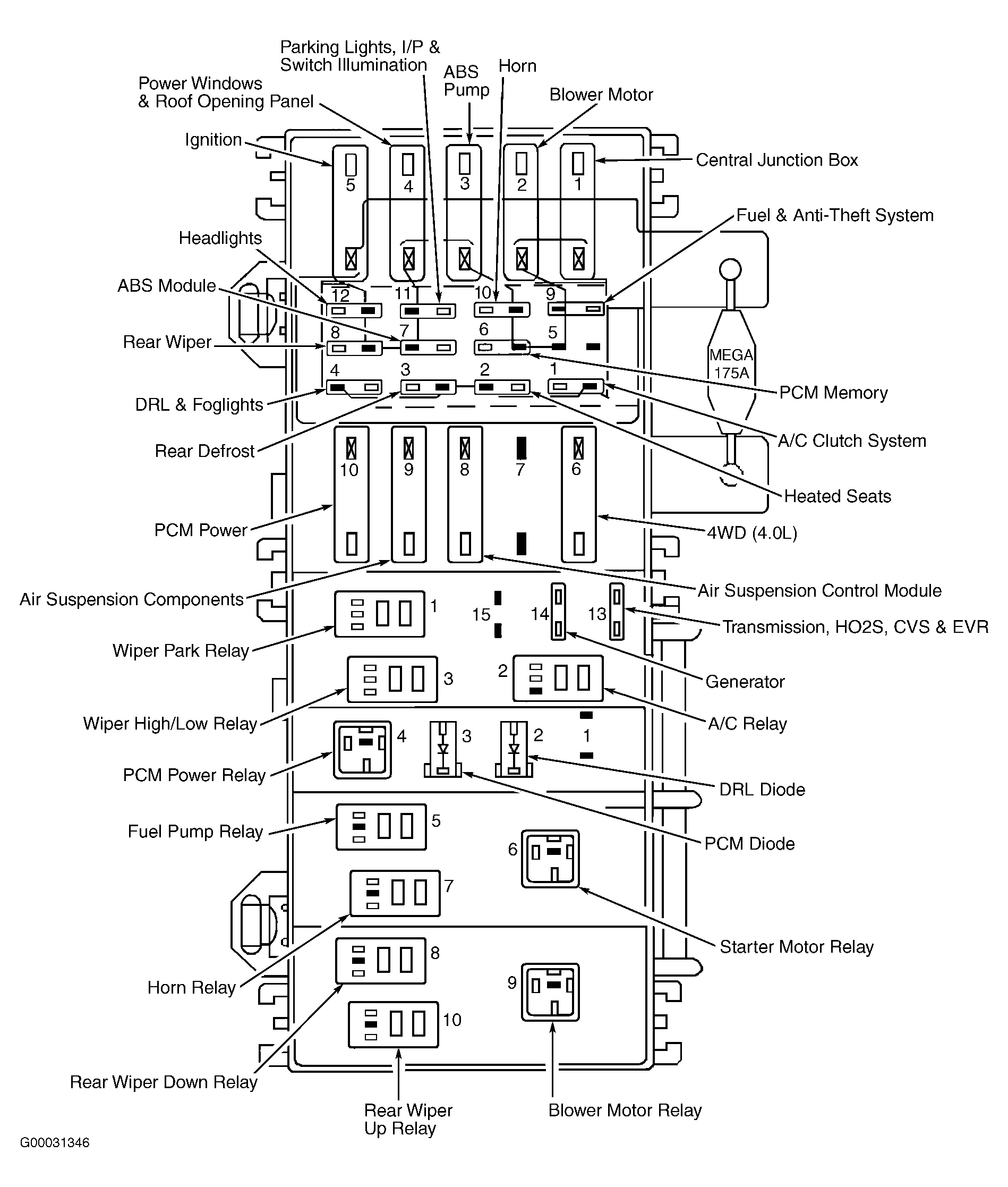

Fig 1: Identifying Power Distribution Box Contents
G00031346Courtesy of FORD MOTOR CO.
Fig 2: Identifying Air Suspension Switch Terminals
G97A28258Courtesy of FORD MOTOR CO.
Fig 3: Identifying Air Suspension Control Module Connector Terminals
G99H03648Courtesy of FORD MOTOR CO.

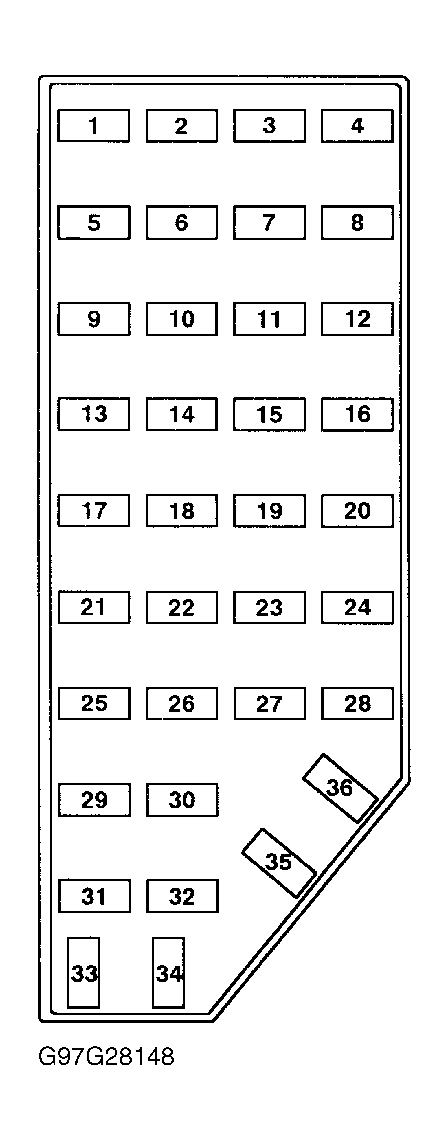

Fig 4: Identifying Interior Fuse Panel Terminals
G97G28148Courtesy of FORD MOTOR CO.
