Selector Lever: Removal

  1. Remove the ignition switch lock cylinder (11582); refer to LOCK CYLINDER .
  2. Remove the upper steering column shroud (3530).

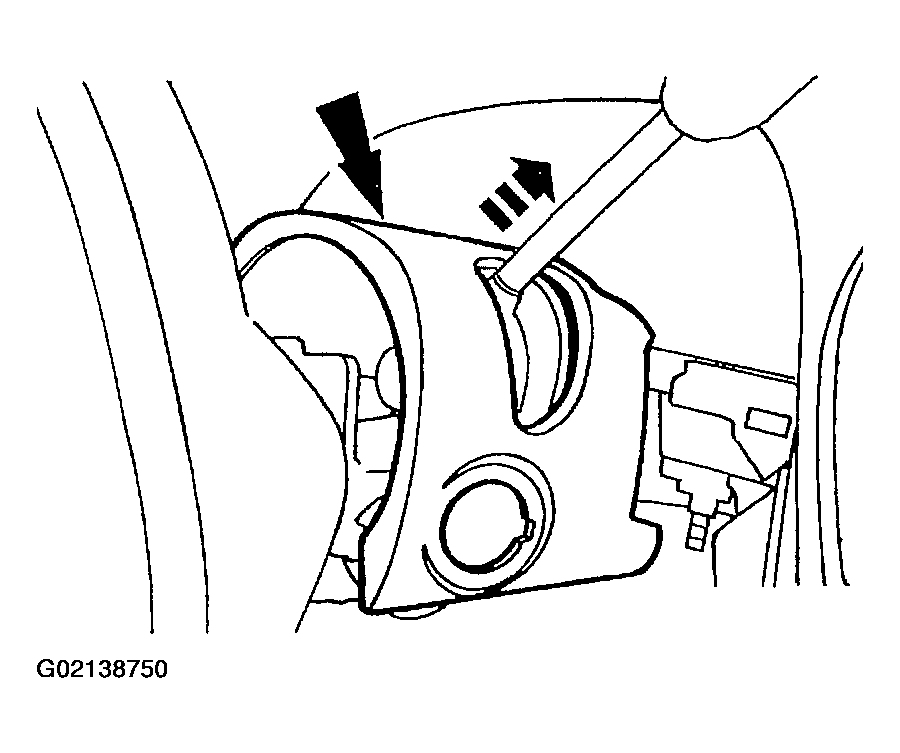

    Fig 1: Removing Upper Steering Column Shroud (3530)
    G02138750
  3. Remove the gearshift lever (7210).
    1. Disconnect the electrical connector.
    2. Remove and discard the gearshift lever pin (7G357).
    3. Remove the gearshift lever.

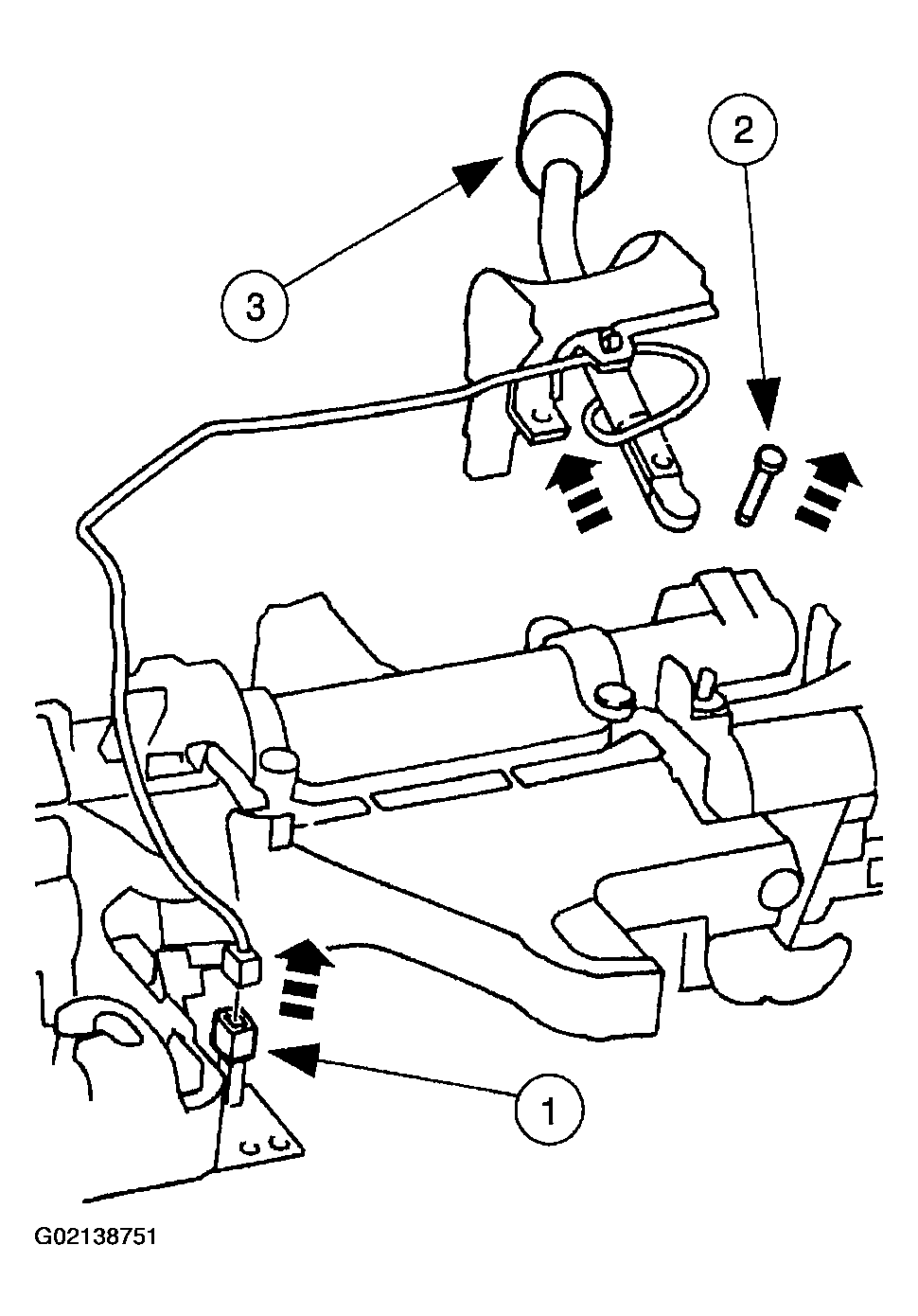

    Fig 2: Removing Gearshift Lever (7210)
    G02138751
