Inner Tie Rod: Material

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Premium Long Life Grease XG-1-C ESA-M1C75-B

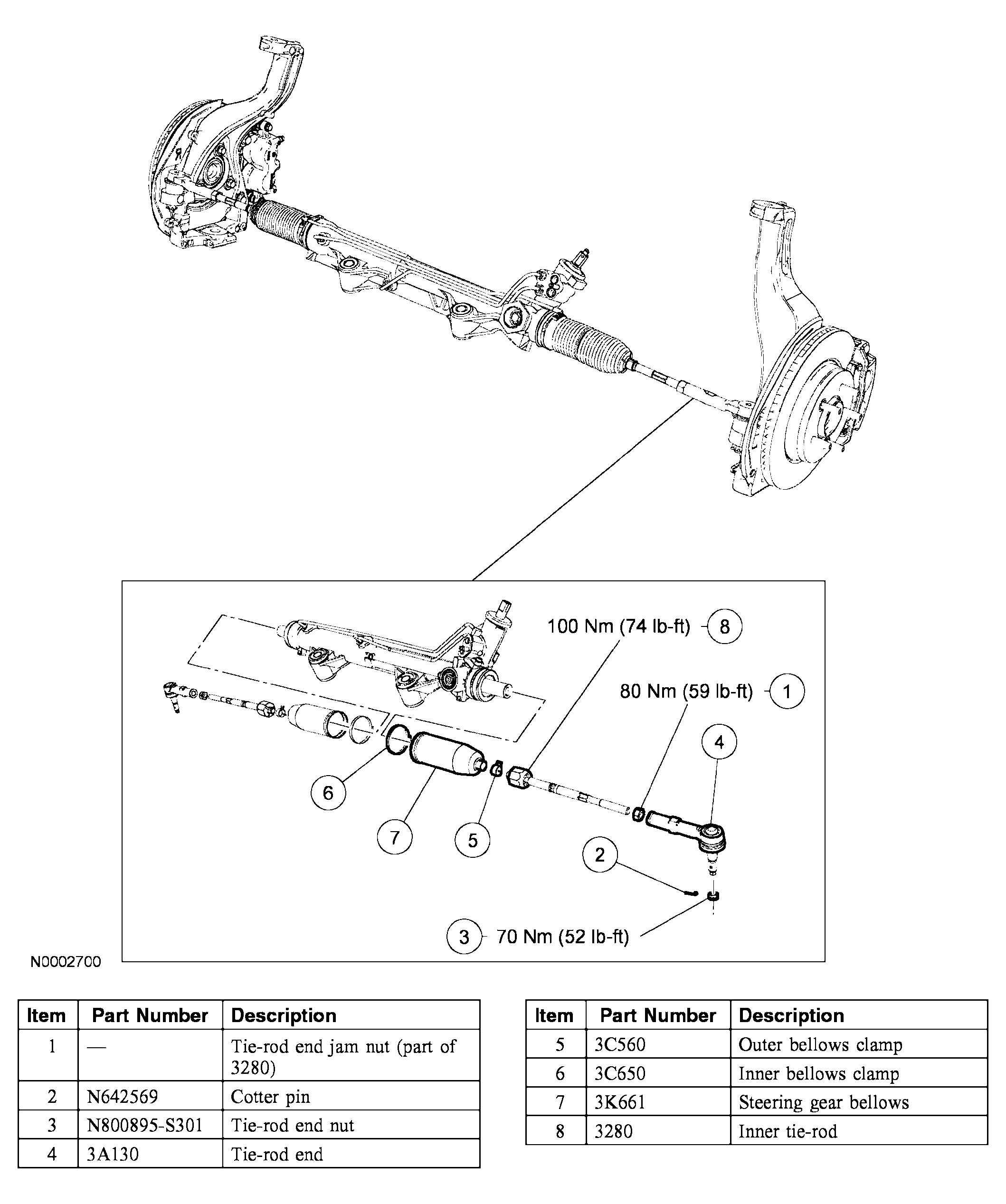

Fig 1: Displaying Inner Tie Rod With Torque Specifications
G03945484Courtesy of FORD MOTOR CO.
