Positive Crankcase Ventilation (PCV) Valve: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration.

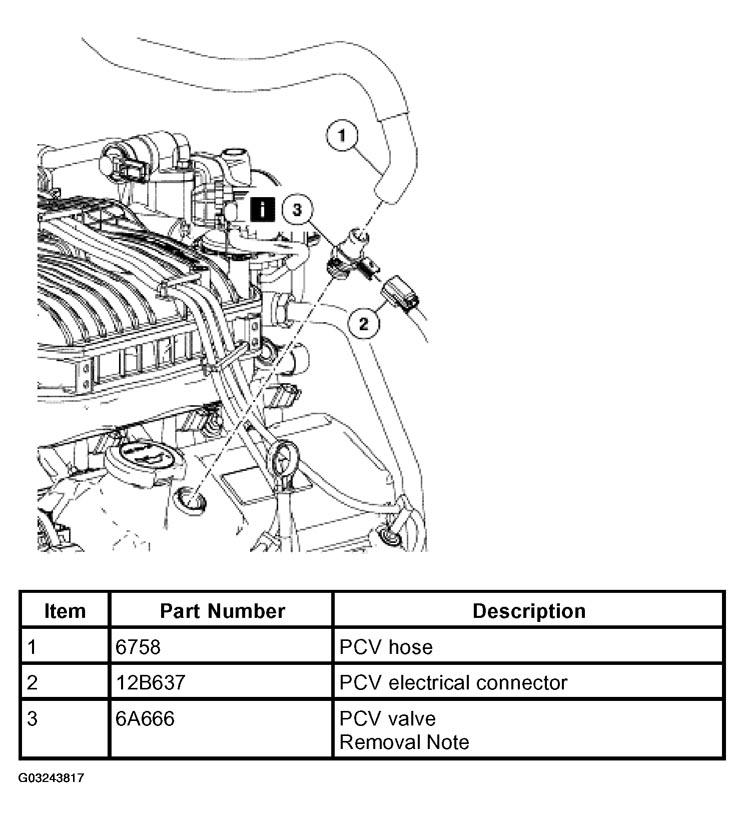

    Fig 1: PCV Valve Parts Removal Sequence
    G03243817Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
