Test A: Speed Control Is Inoperative

A1 - A2:

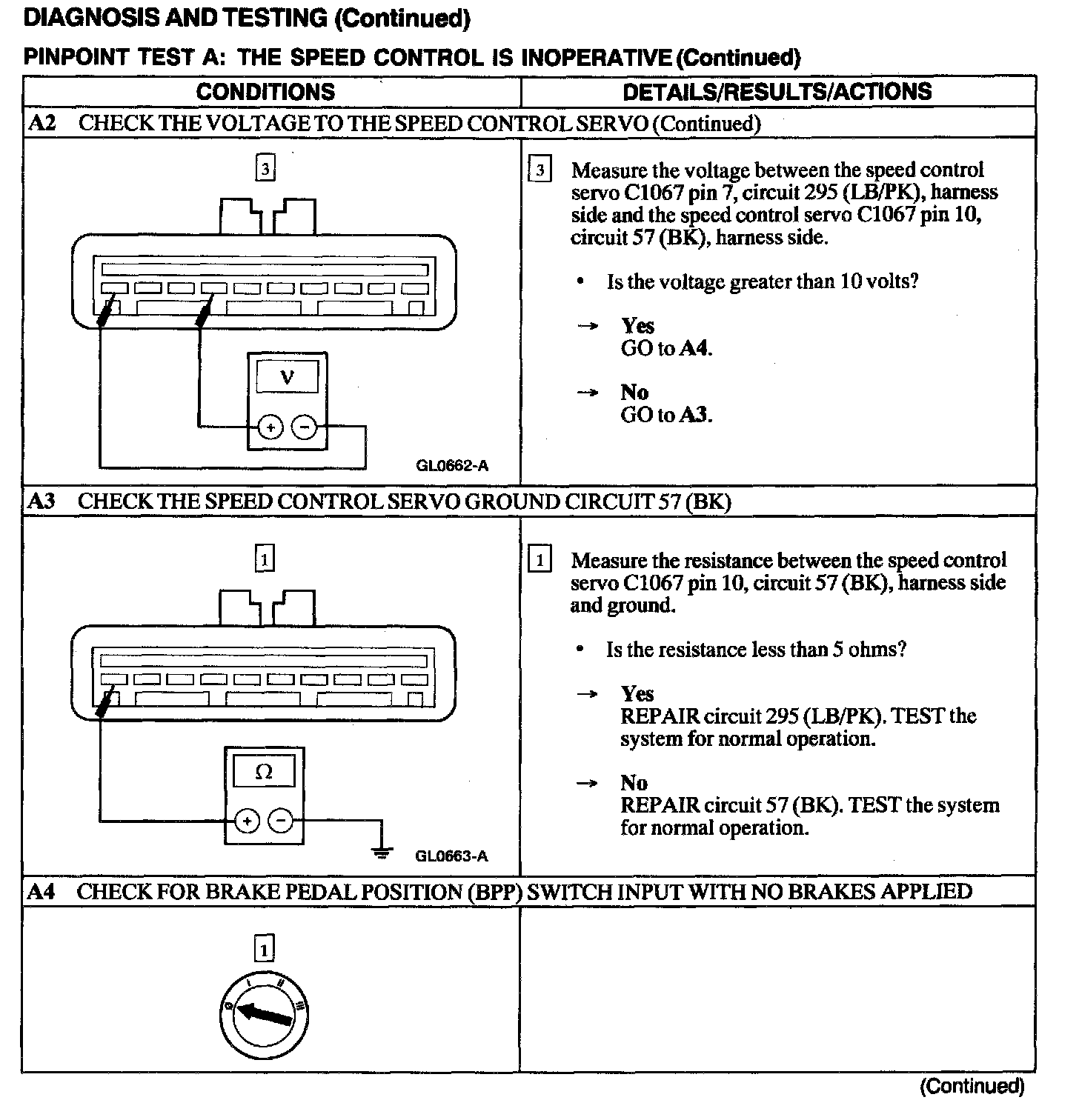

A2 - A4:

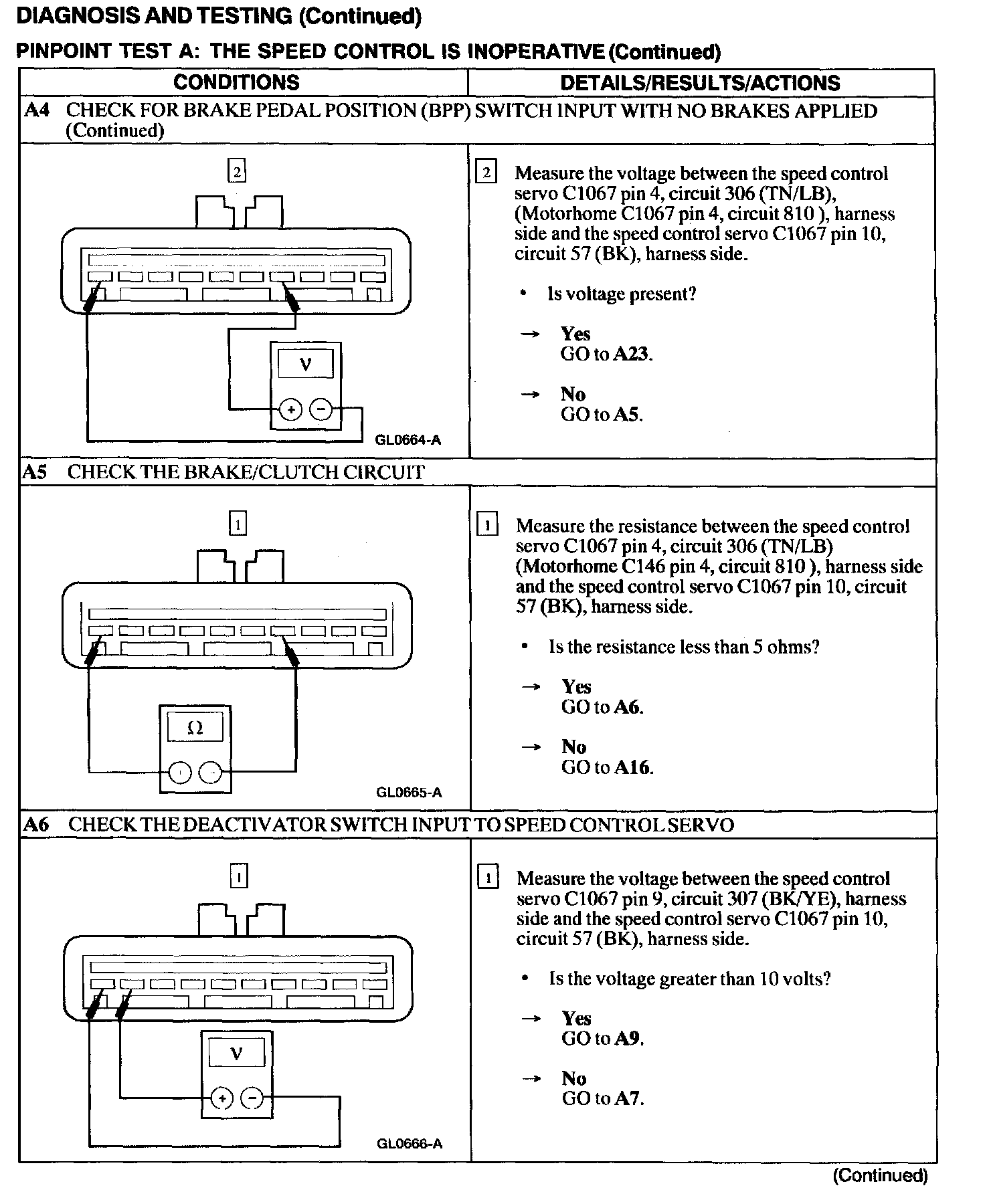

A4 - A6:

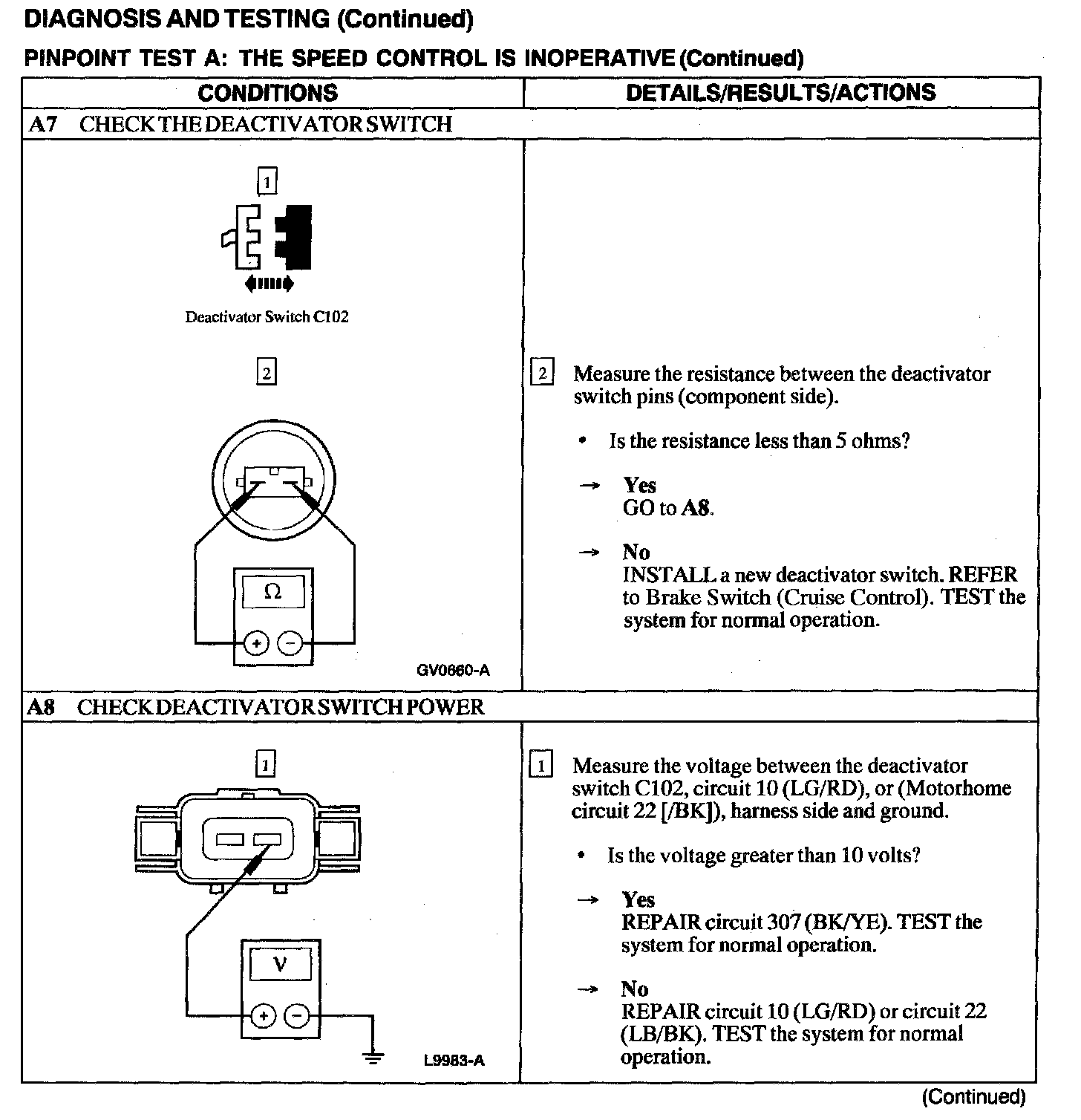

A7 - A8:

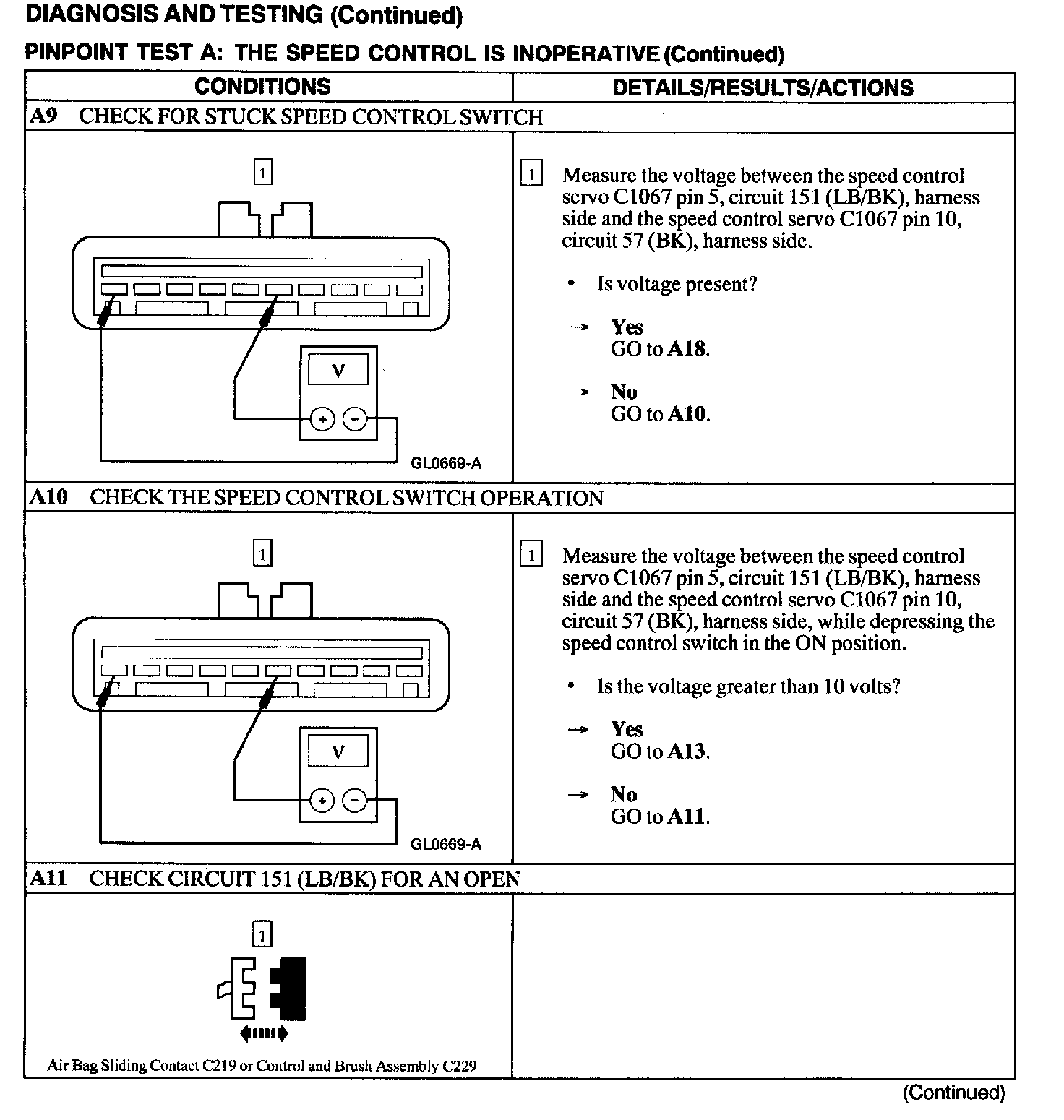

A9 - A11:

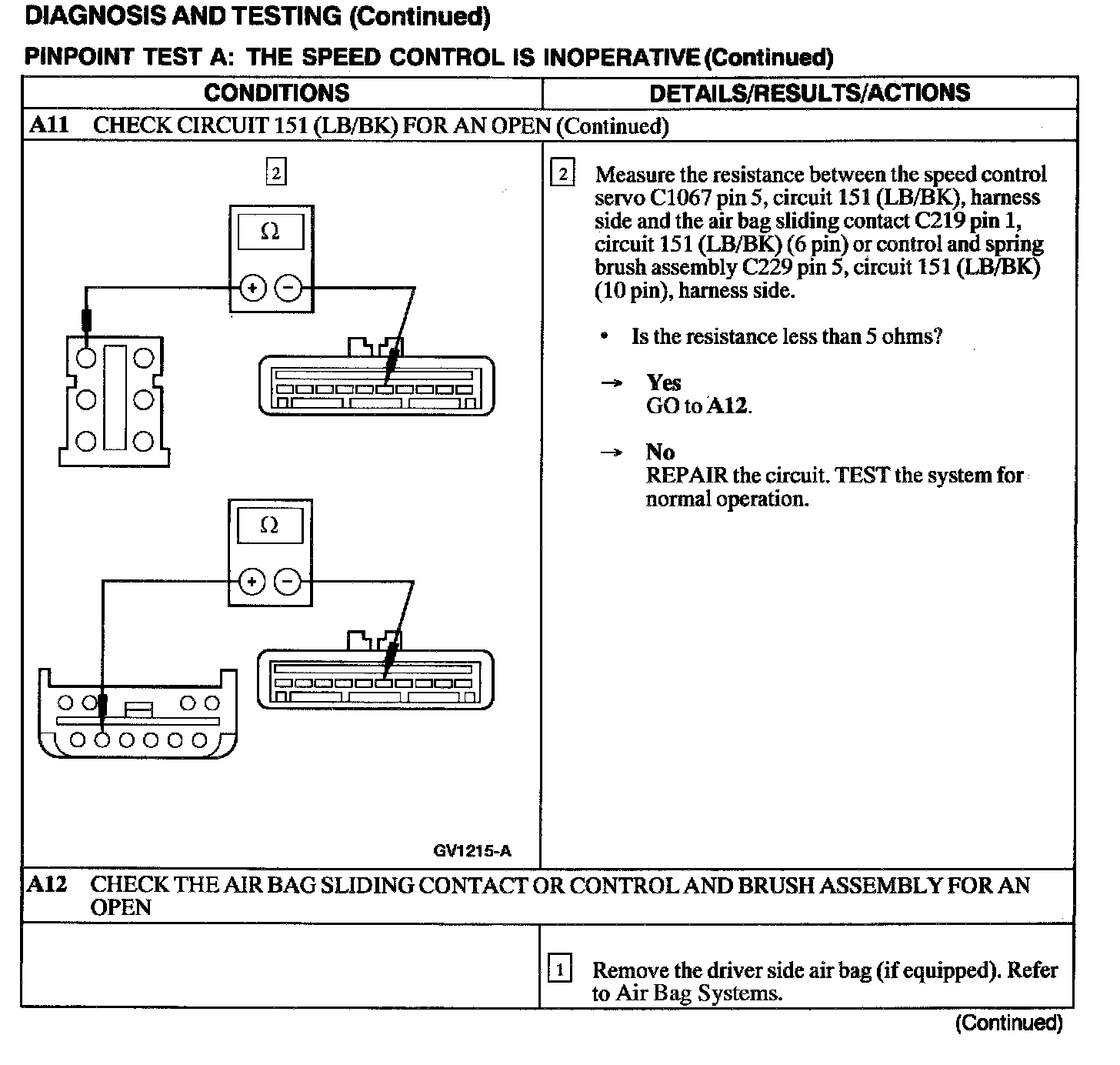

A11 - A12:

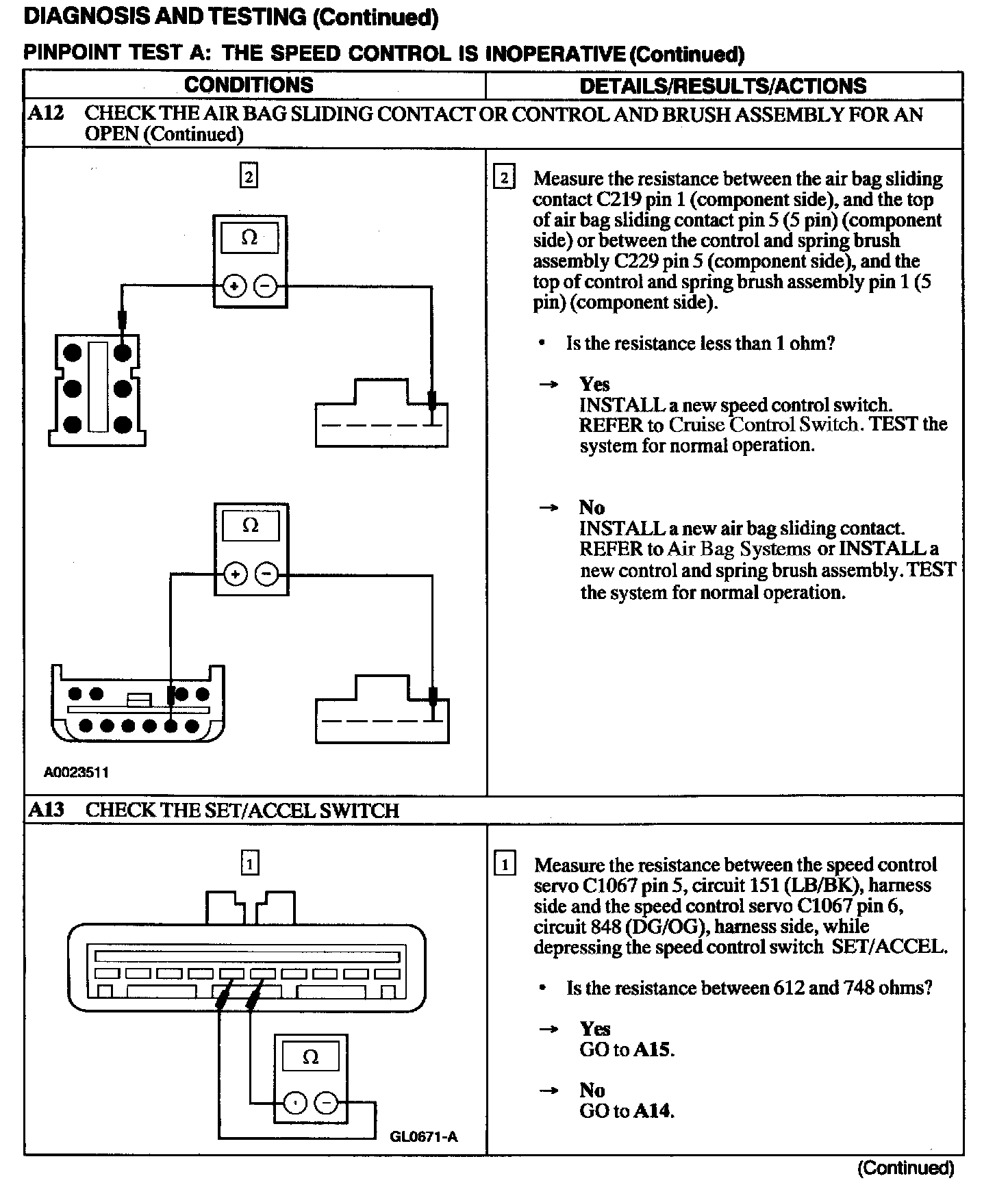

A12 - A13:

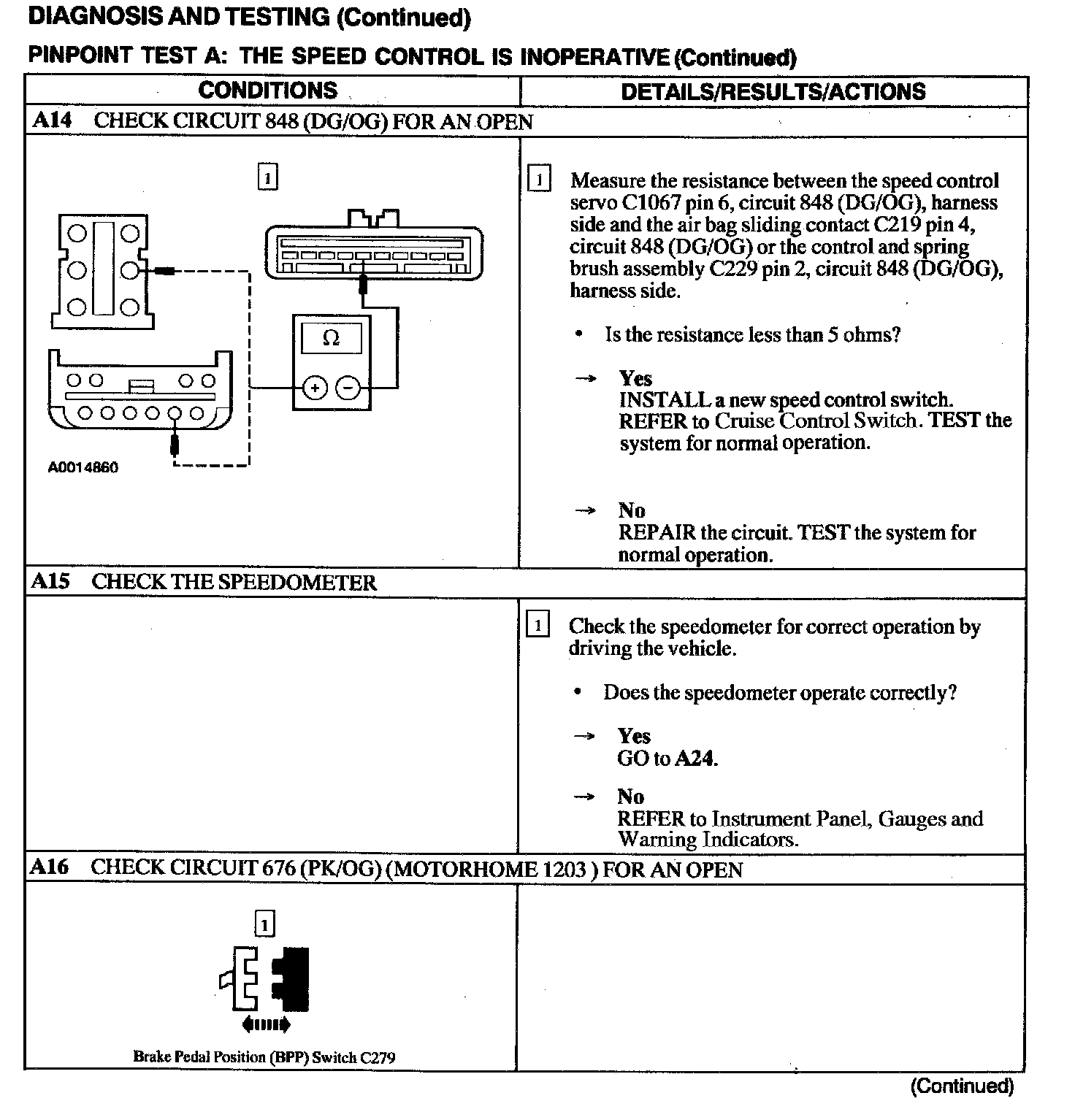

A14 - A16:

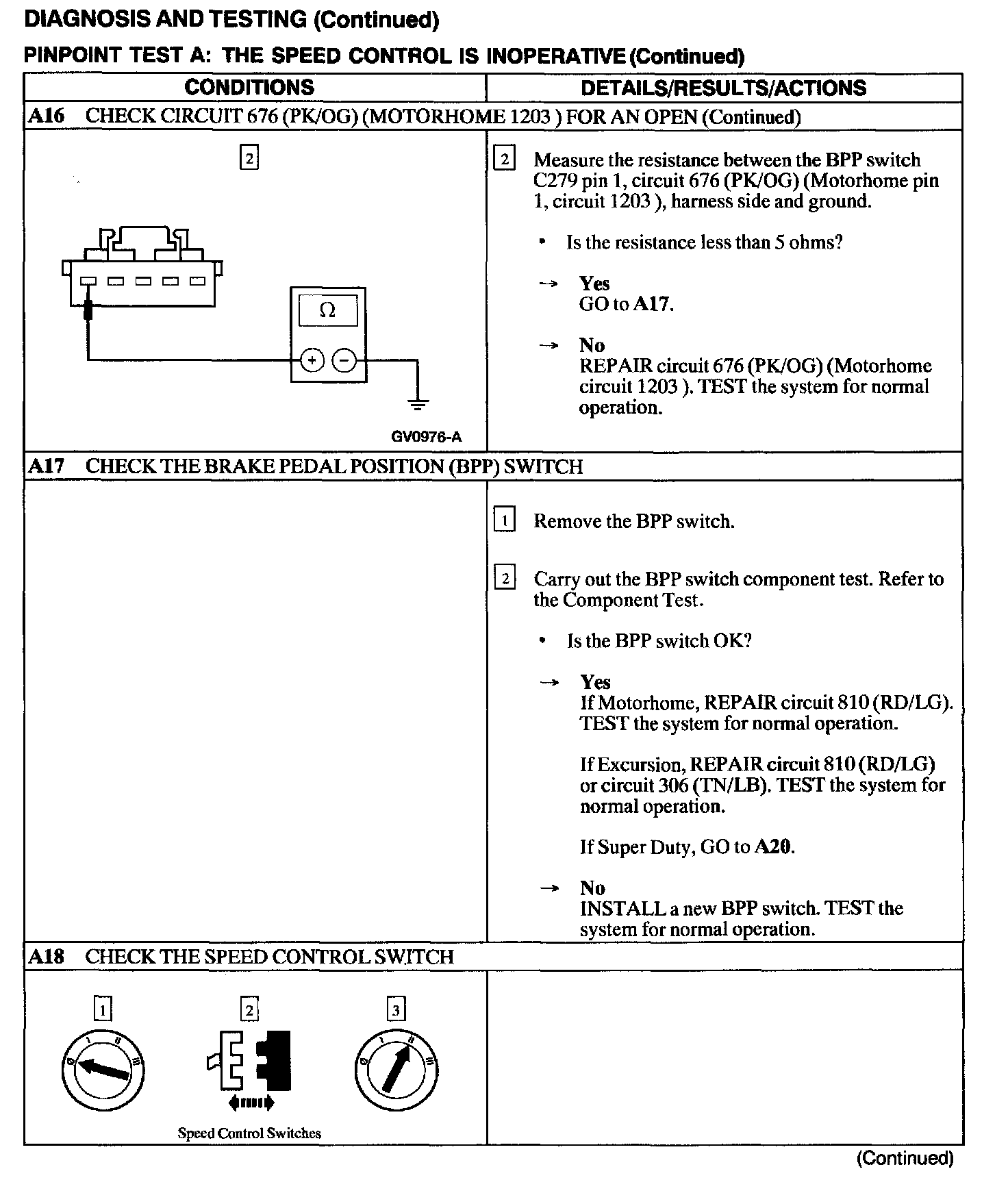

A16 - A18:

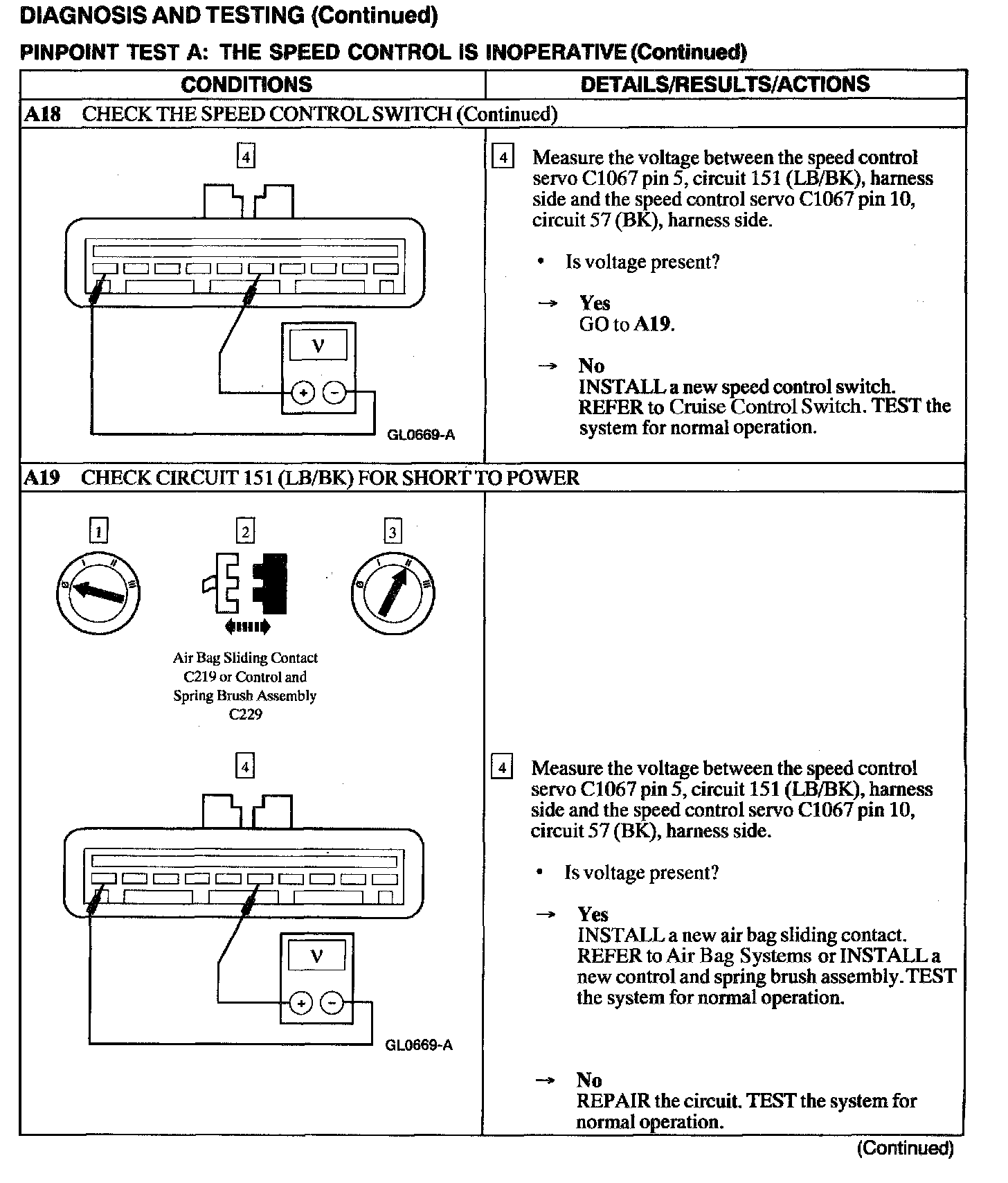

A18 - A19:

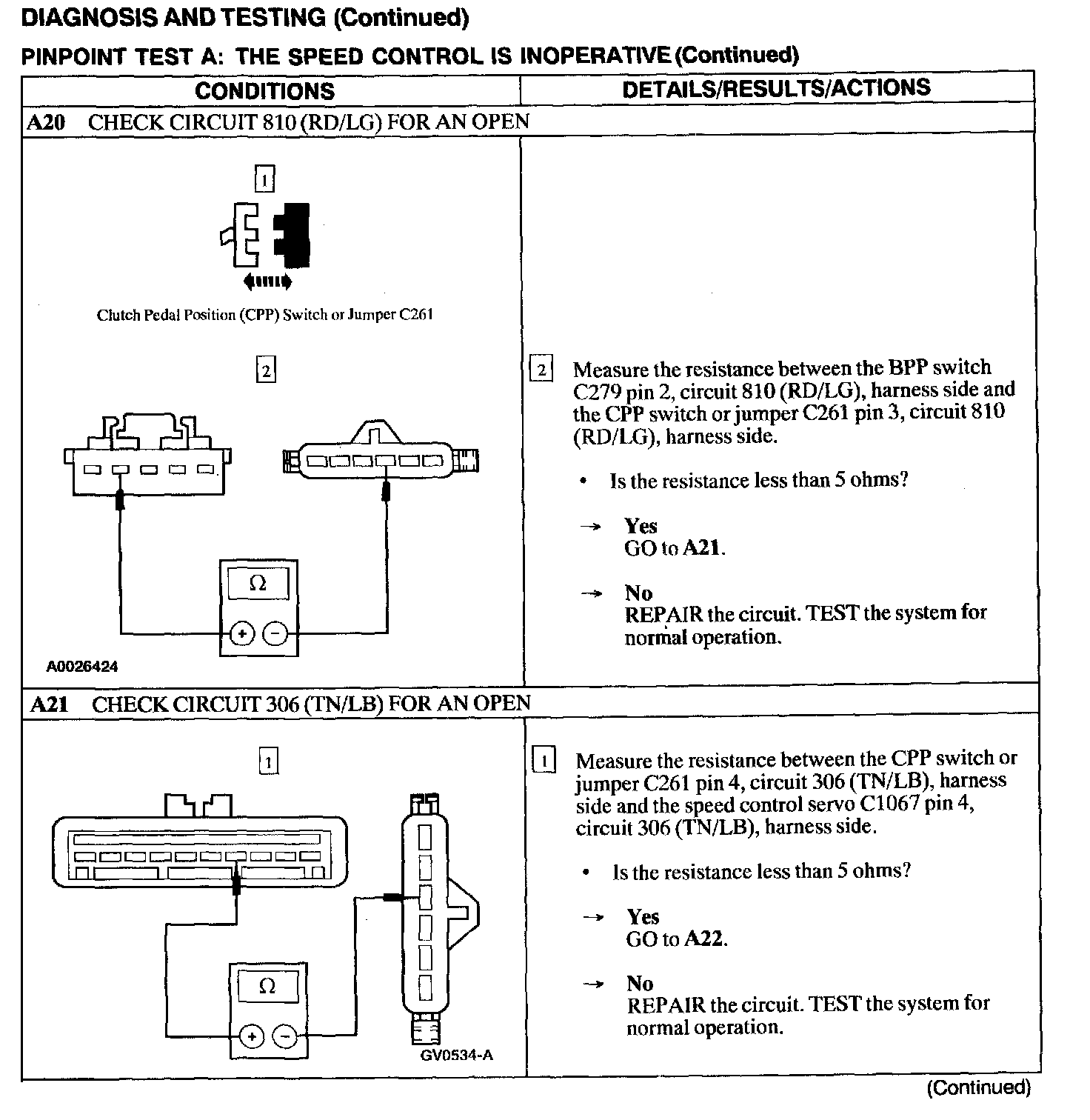

A20 - A21:

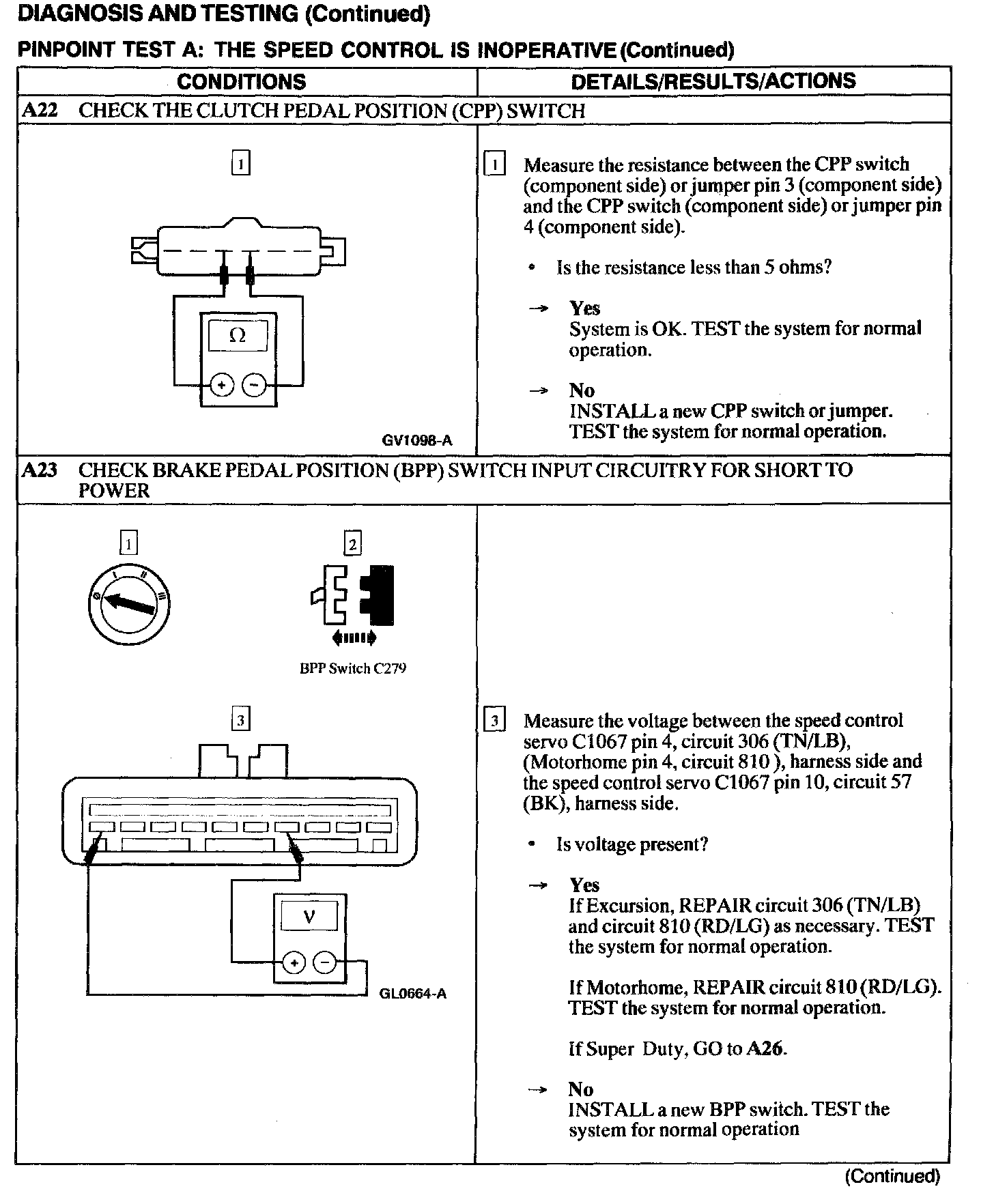

A22 - A23:

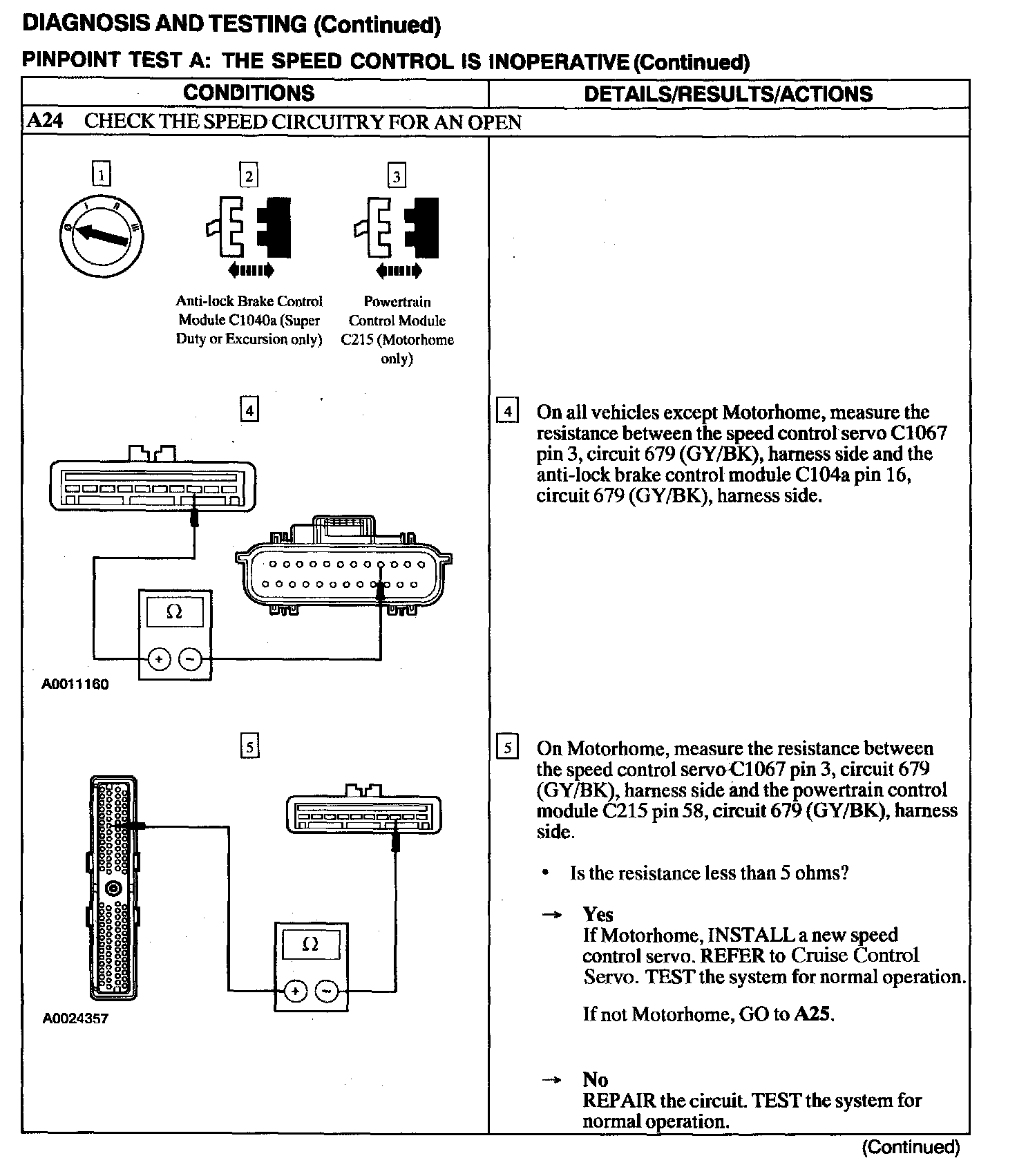

A24:

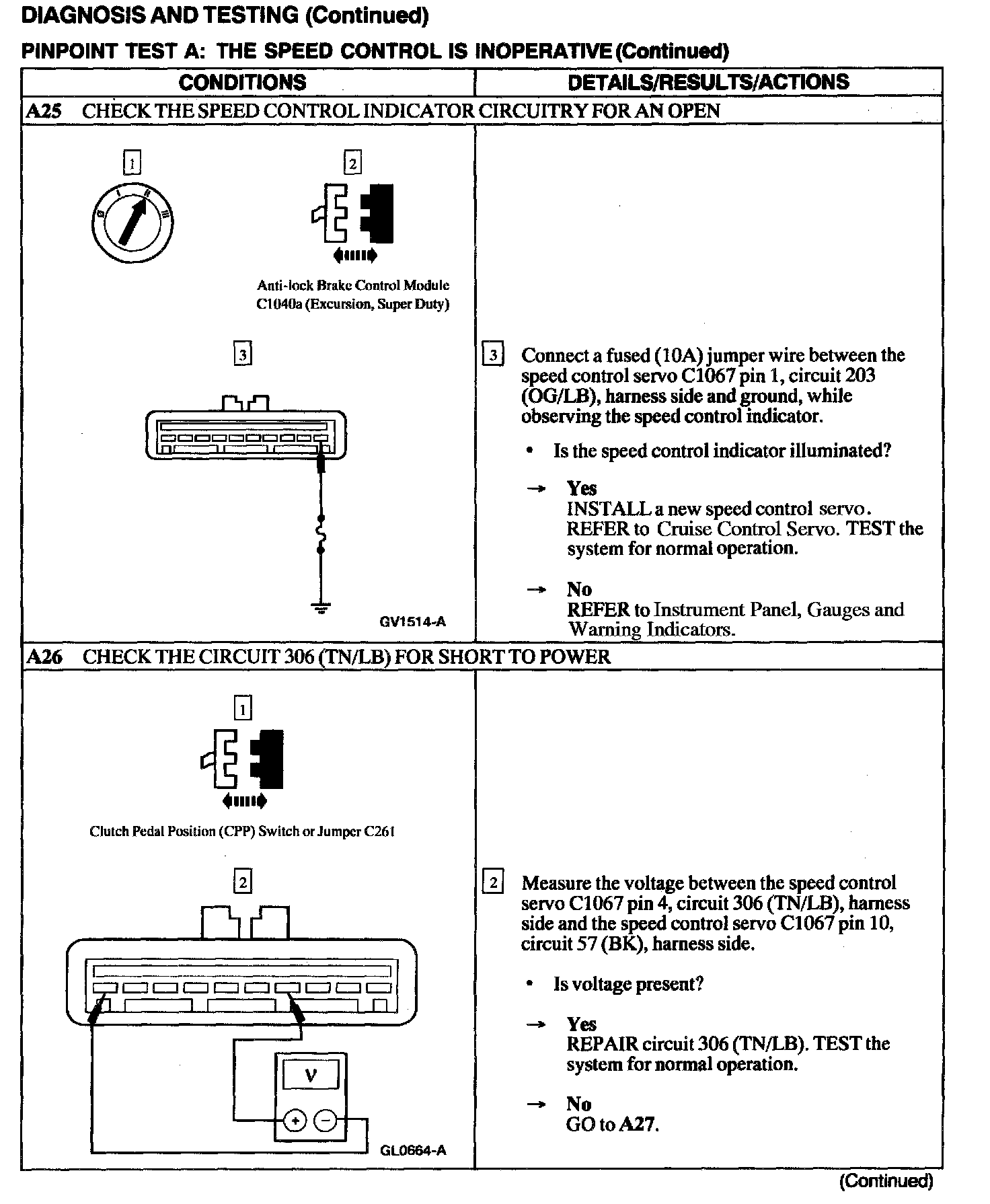

A25 - A26:

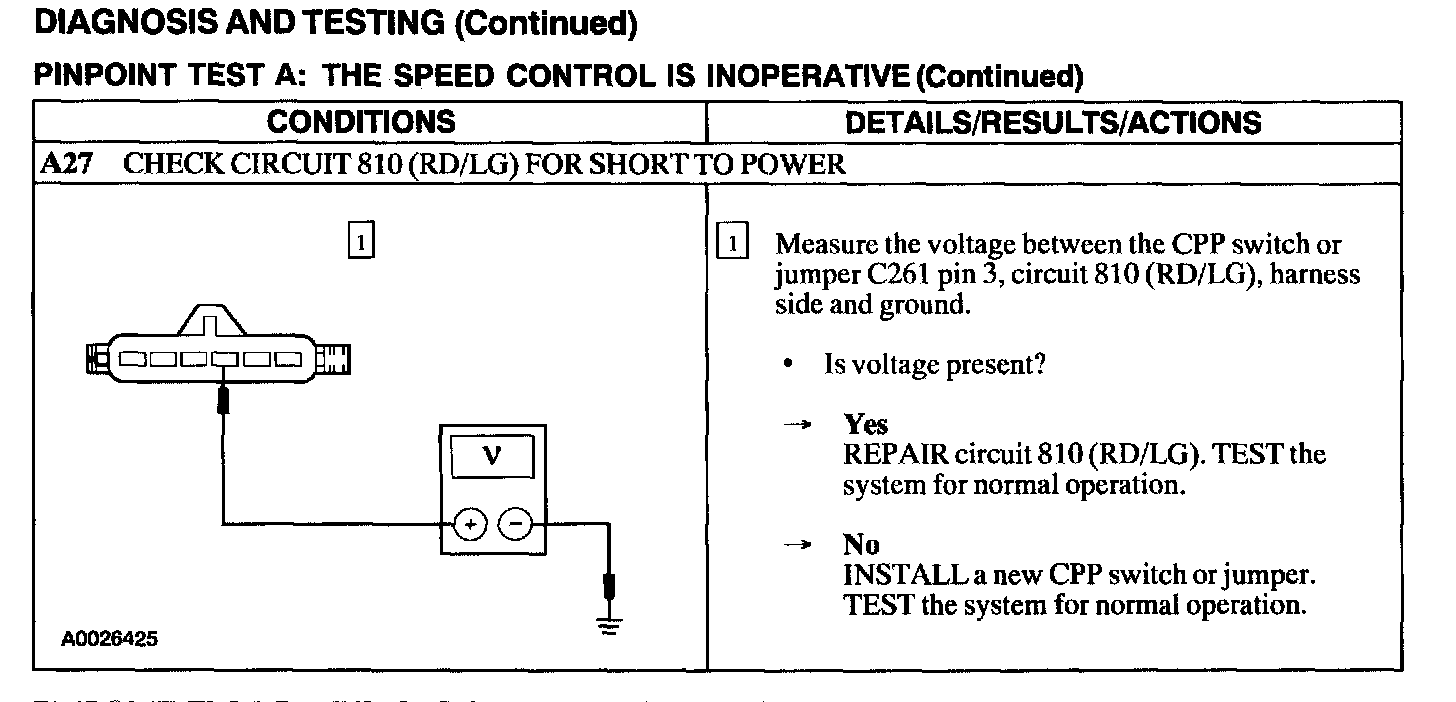

A27:
