Tests FD: Brake Lamp Switch

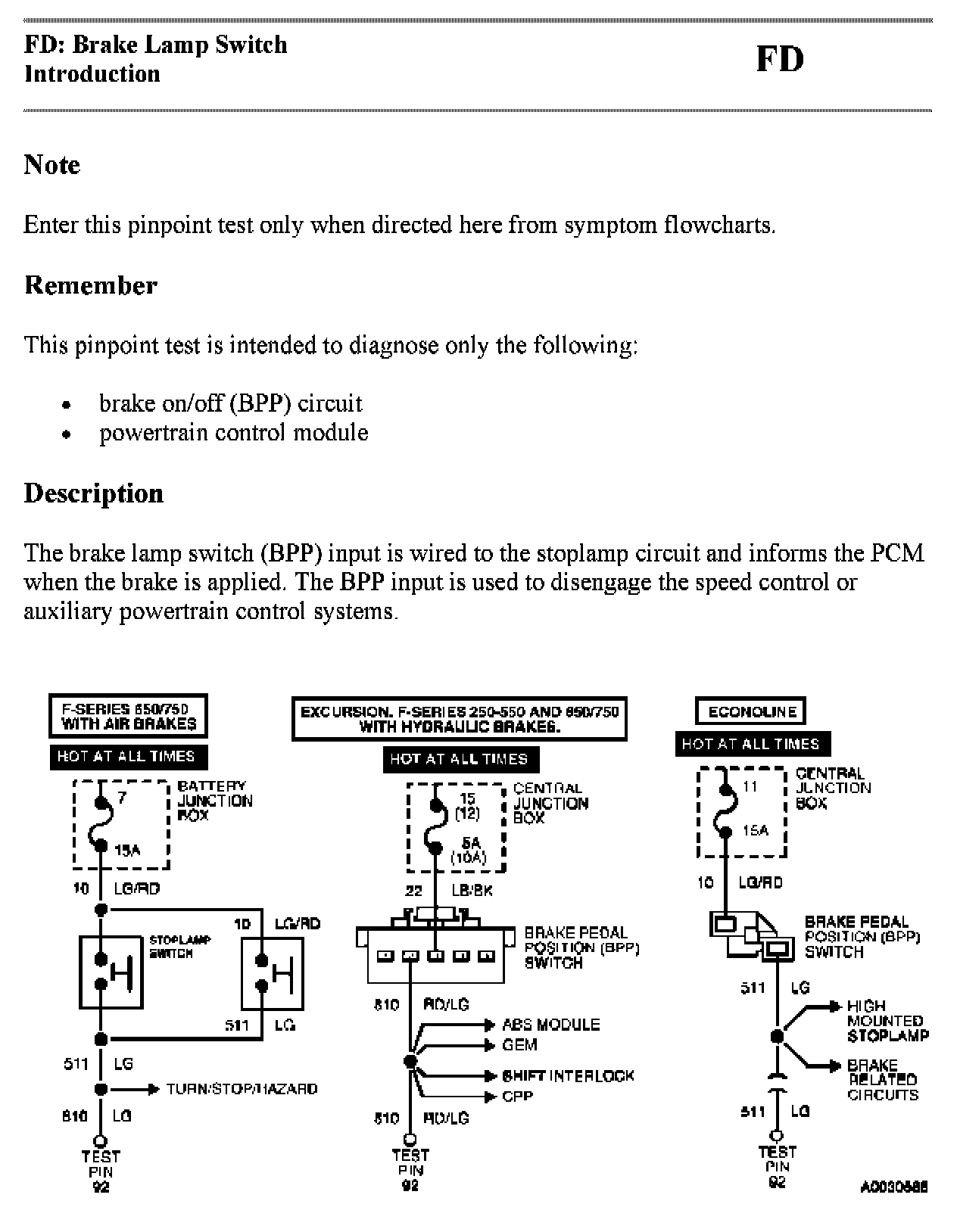

FD Introduction 1 Of 2:





FD Introduction 2 Of 2:





FD1 - FD2:





FD3 - FD5:





FD6 - FD7:





FD8 - FD9:

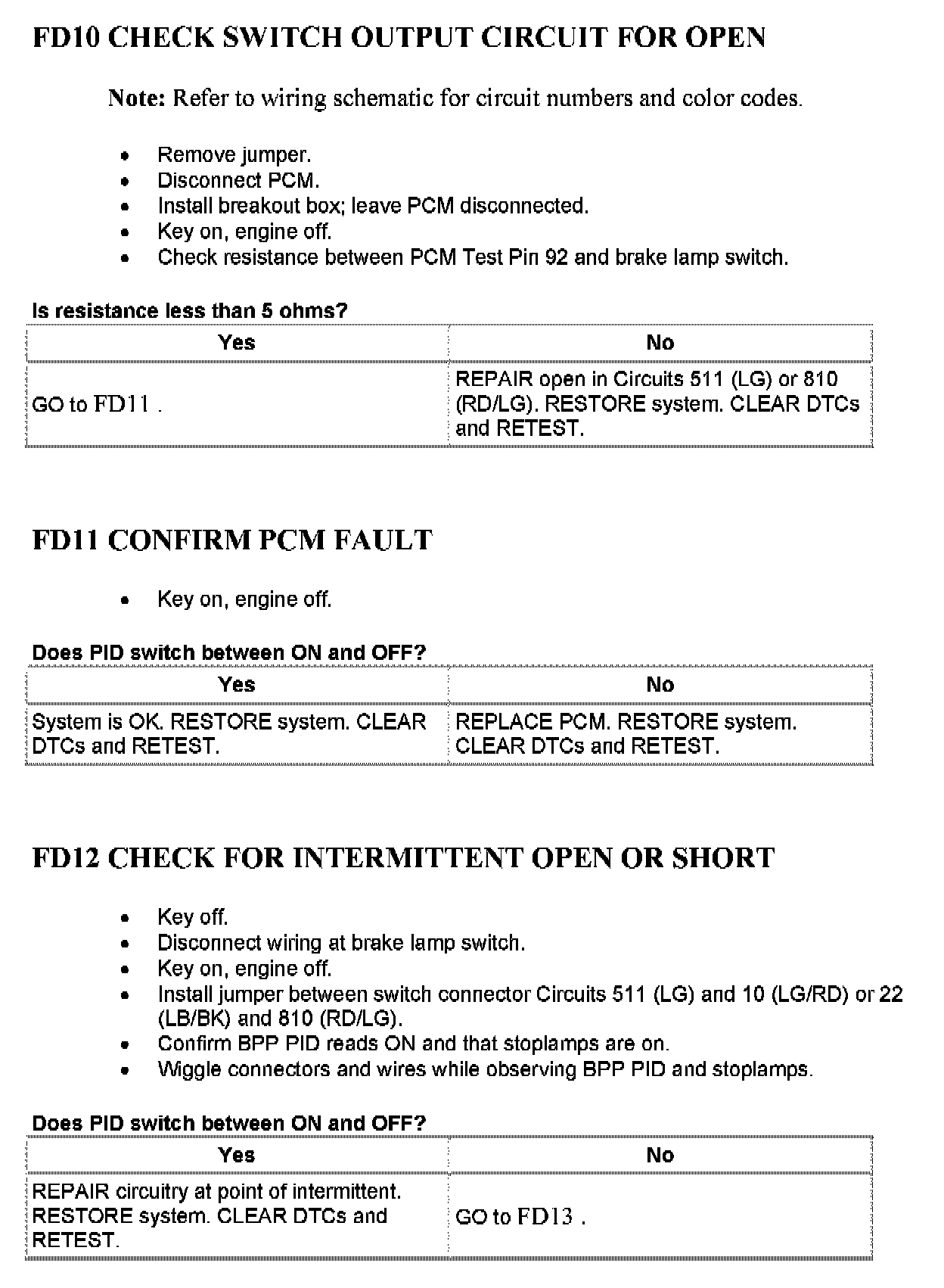

FD10 - FD12:





FD13:
