Control Assembly, HVAC

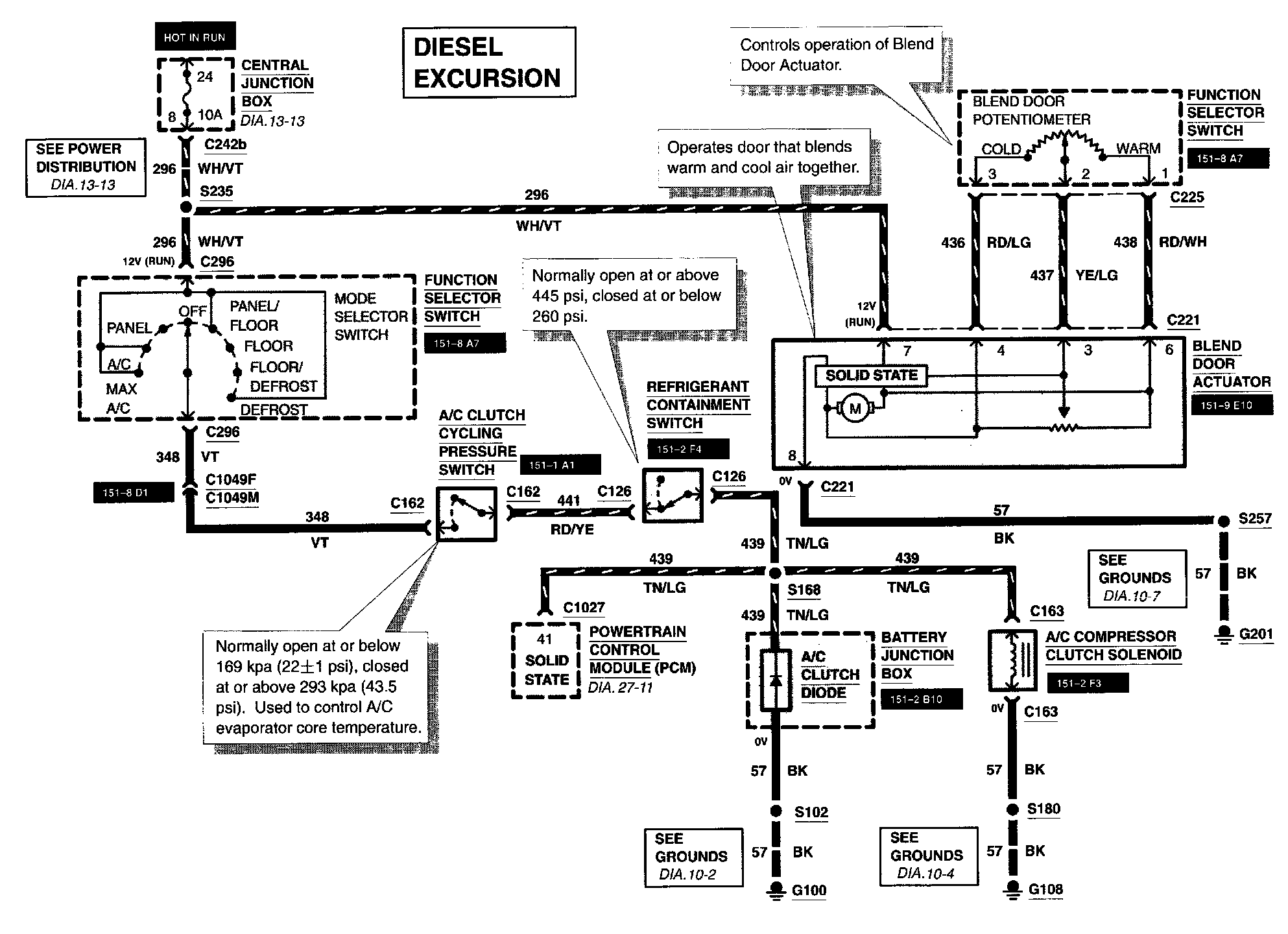

Diagram 54-1:






Diagram 54-4:






Diagram 54-5:






Diagram 54-6:






Diagram 54-7:






Diagram 54-8:






Diagram 54-9:
