Test HC: Fuel Delivery System

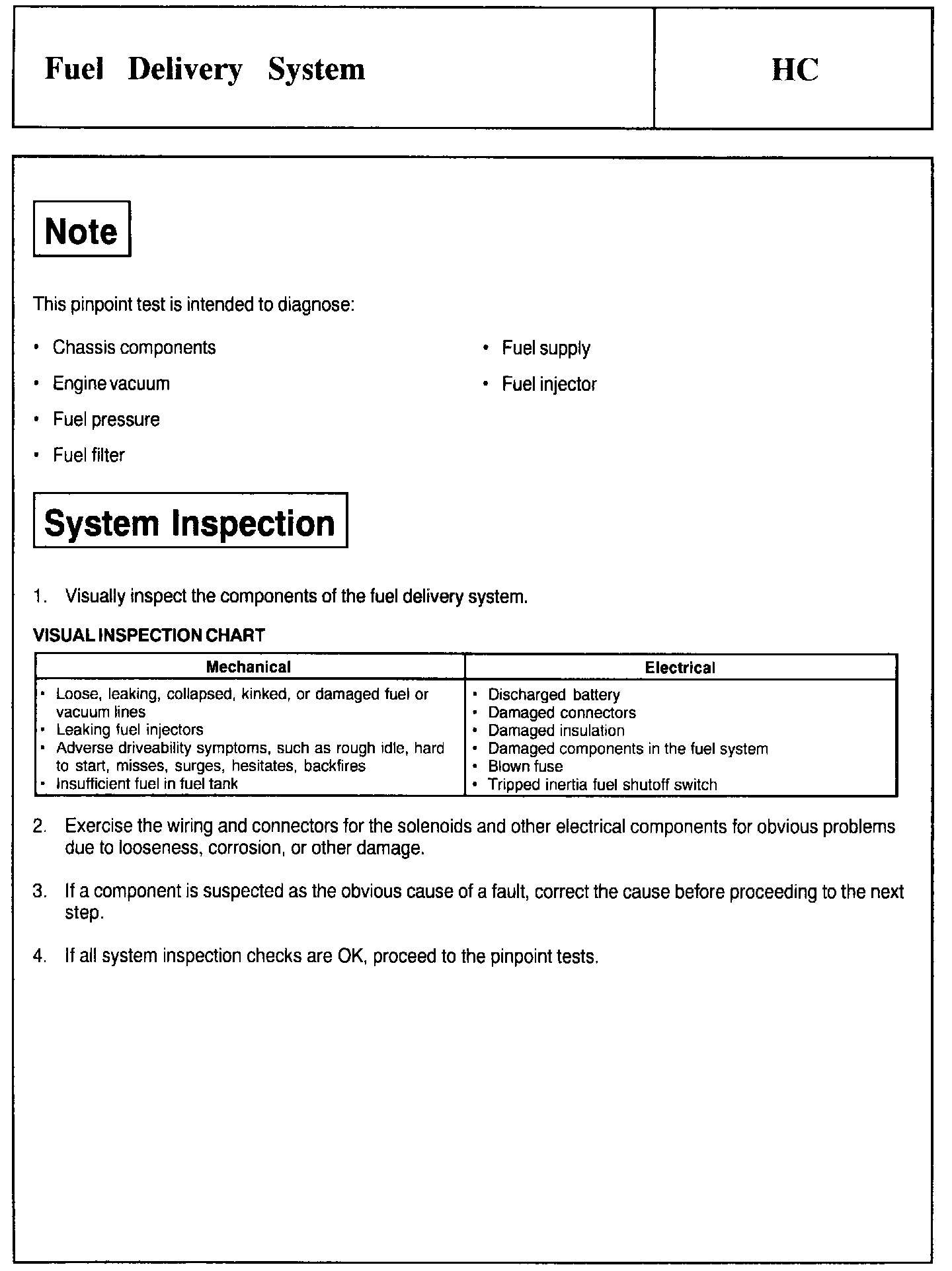

Test Note And System Inspection:

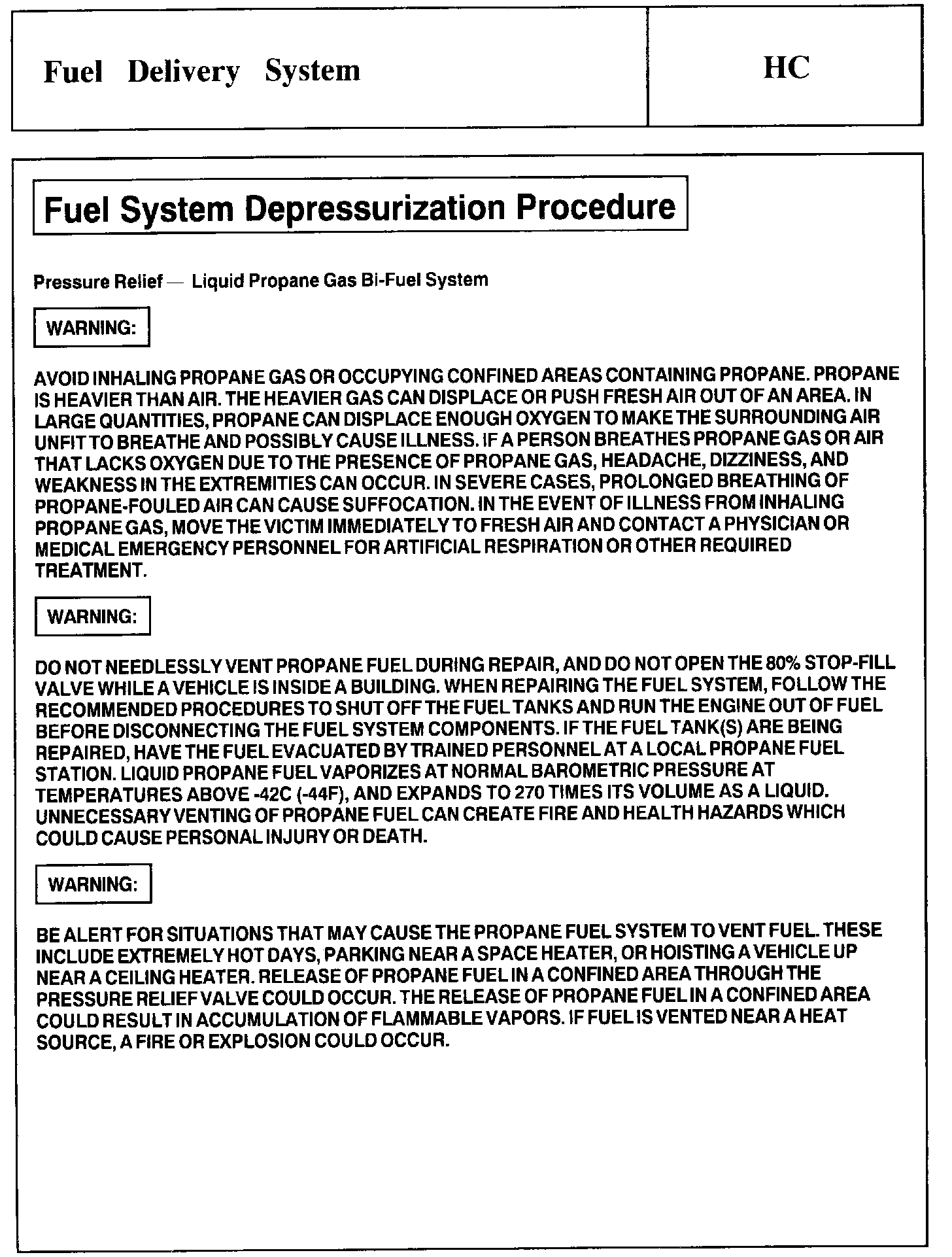

Test WARNINGS:

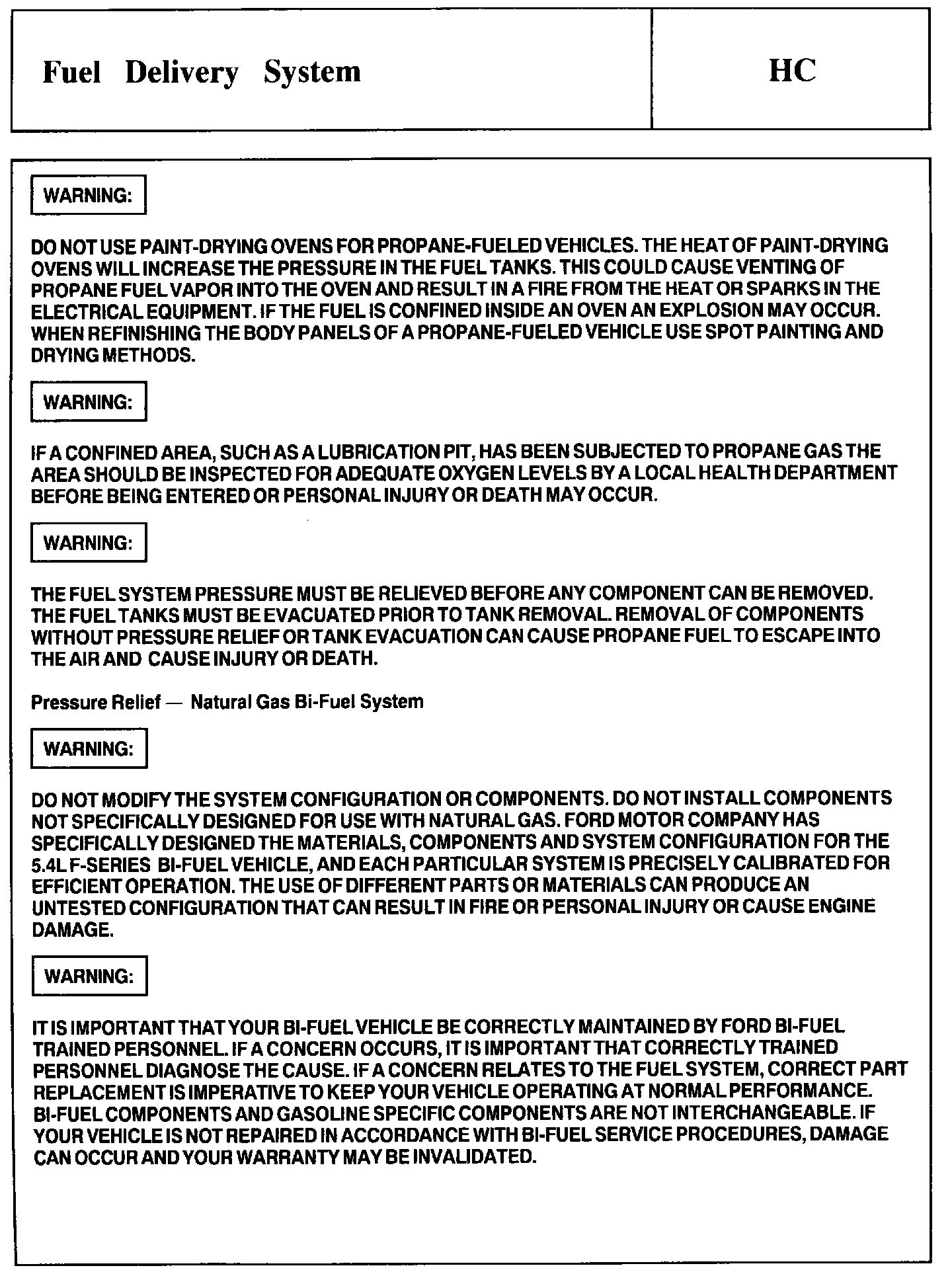

Test WARNINGS:

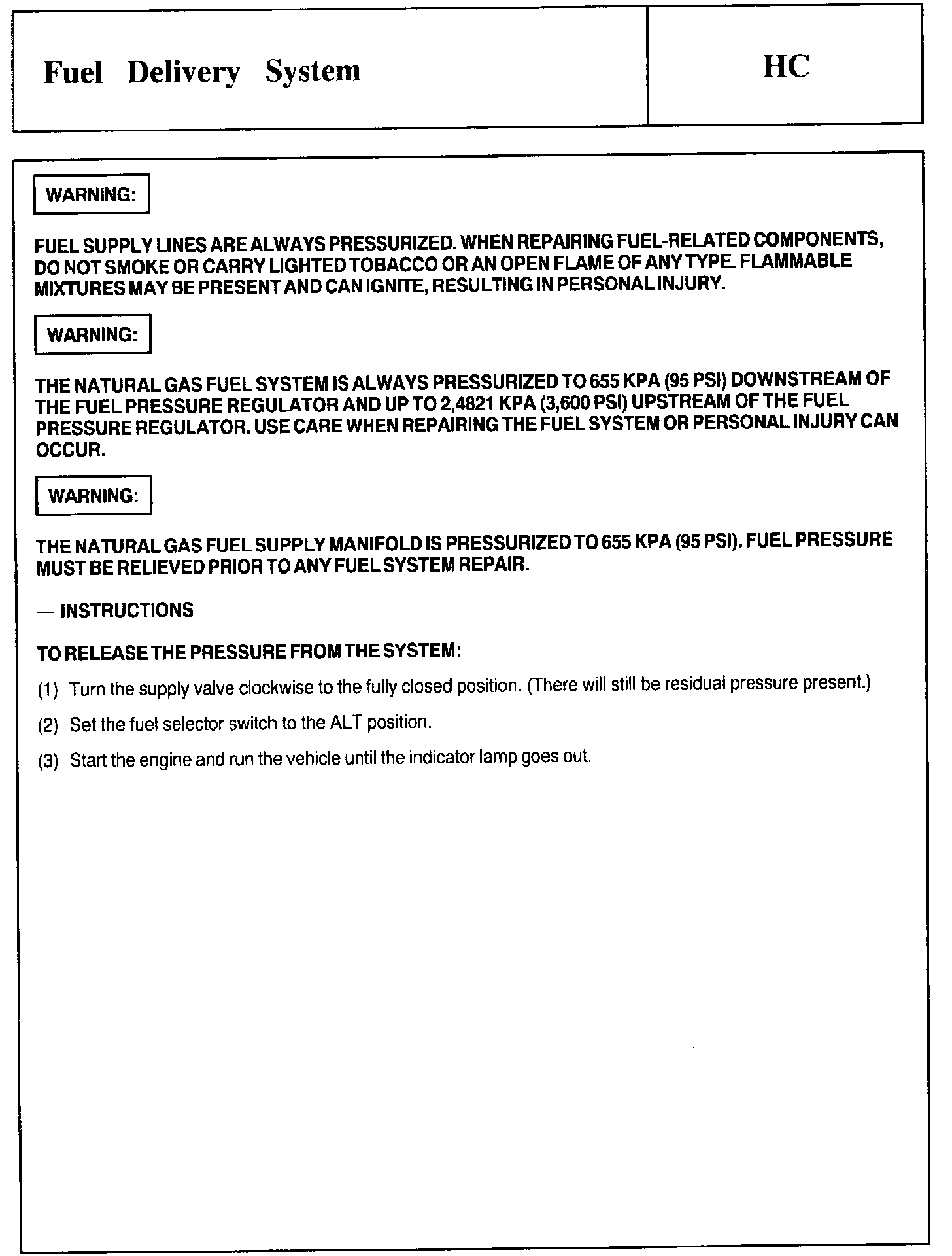

Test WARNINGS And Instructions:

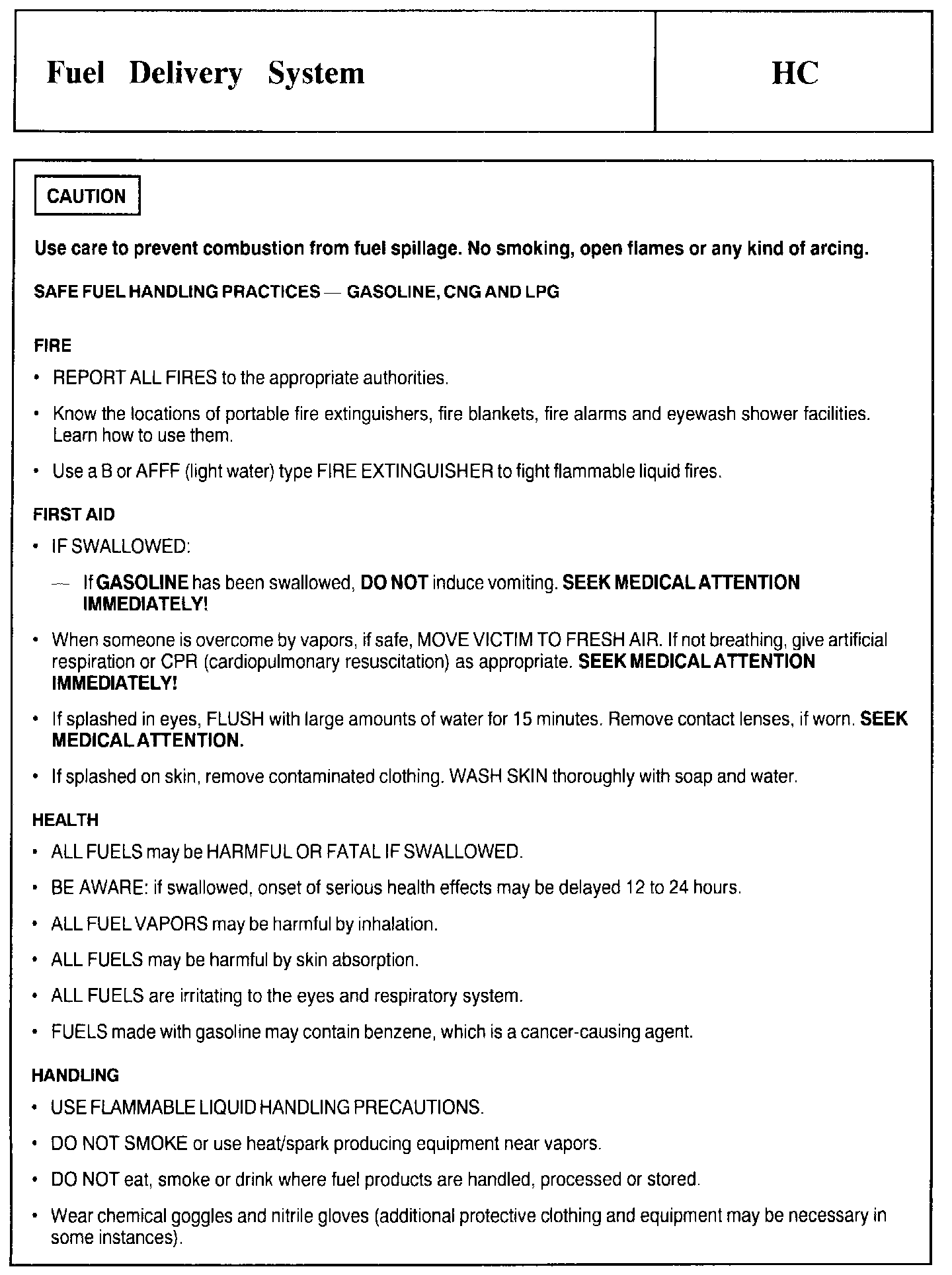

Test CAUTION And Safe Fuel Handling Practices:

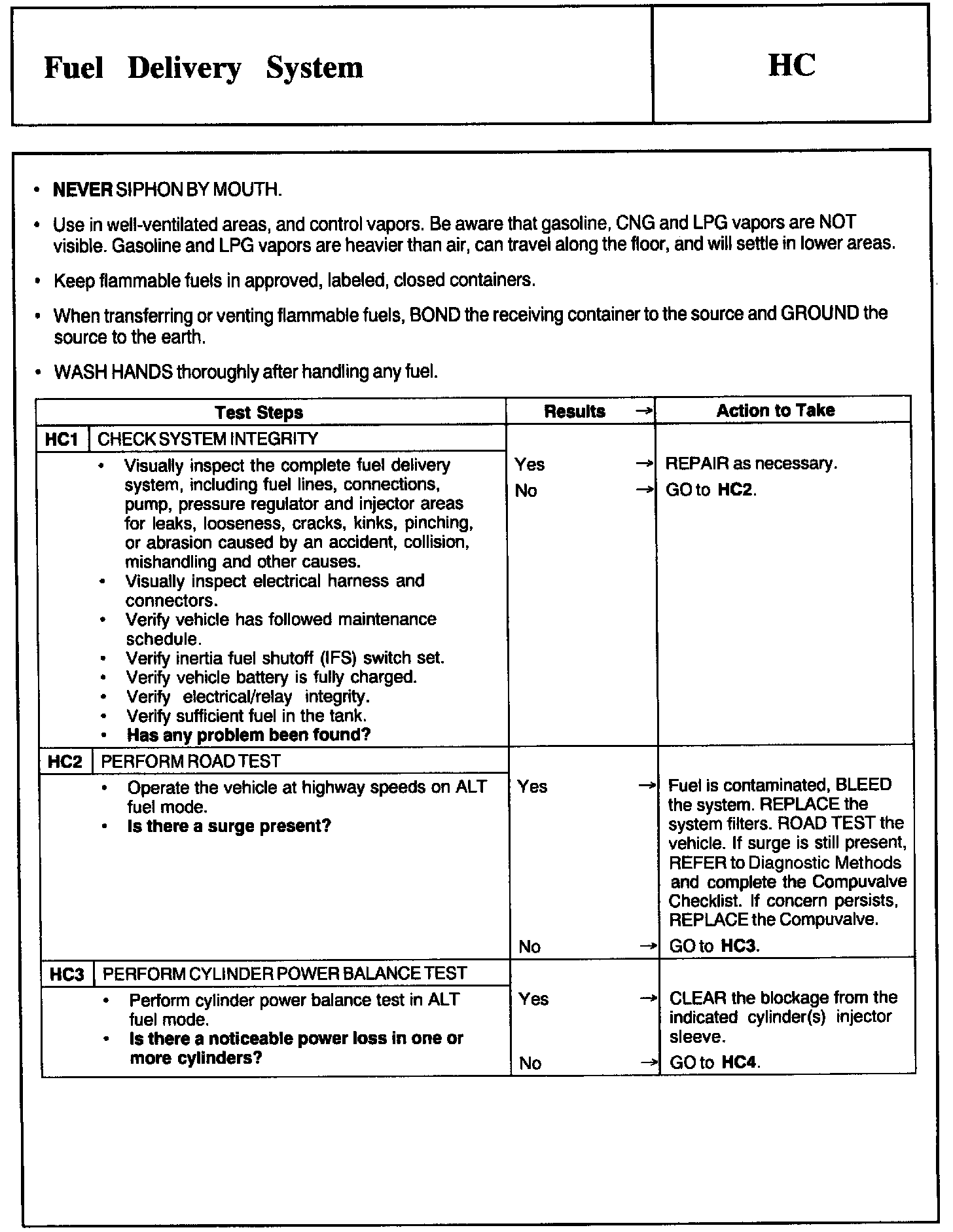

Test Safe Fuel Handling Practices Continued And HC1 - HC3:

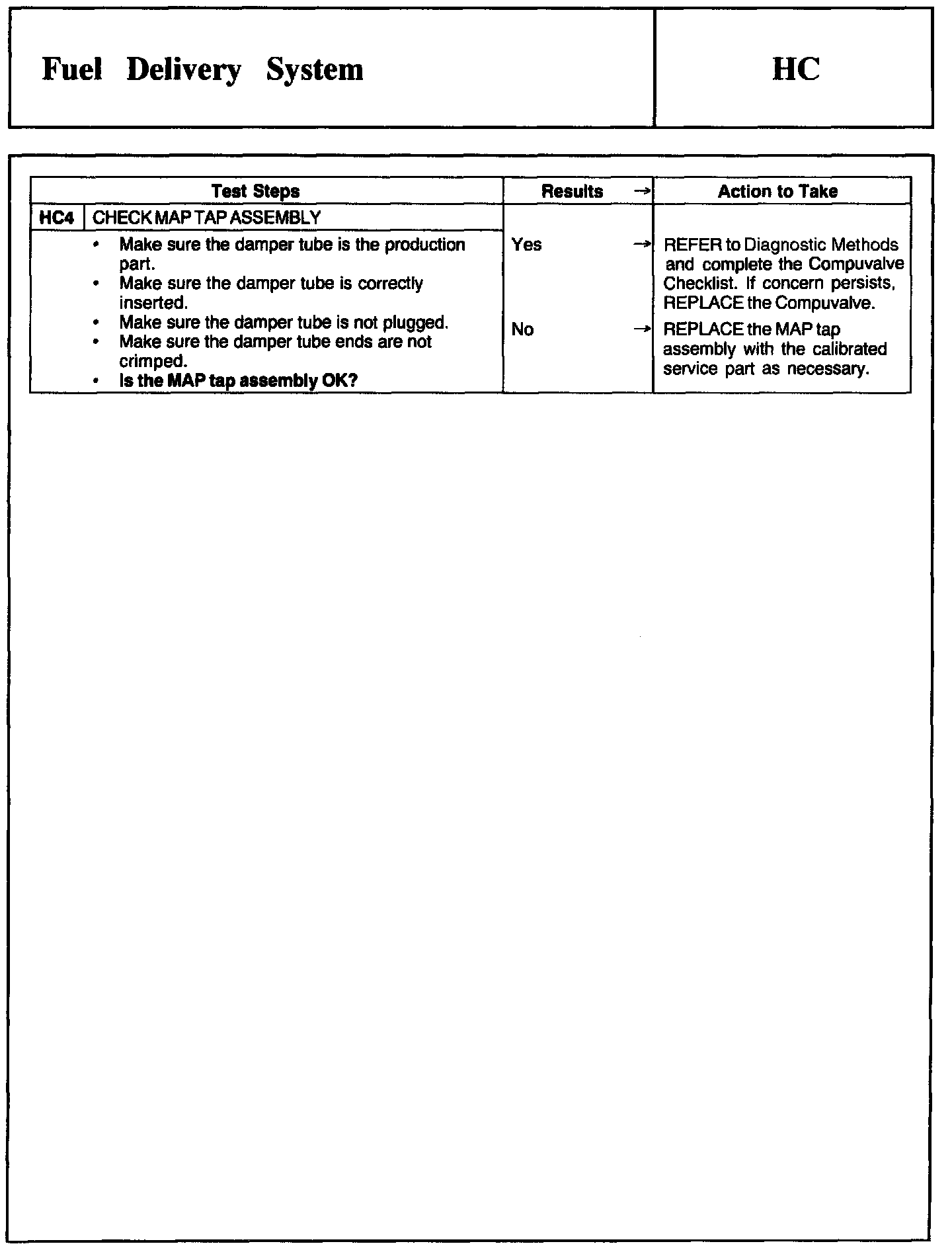

HC4:
