Electronic Climate Control Module

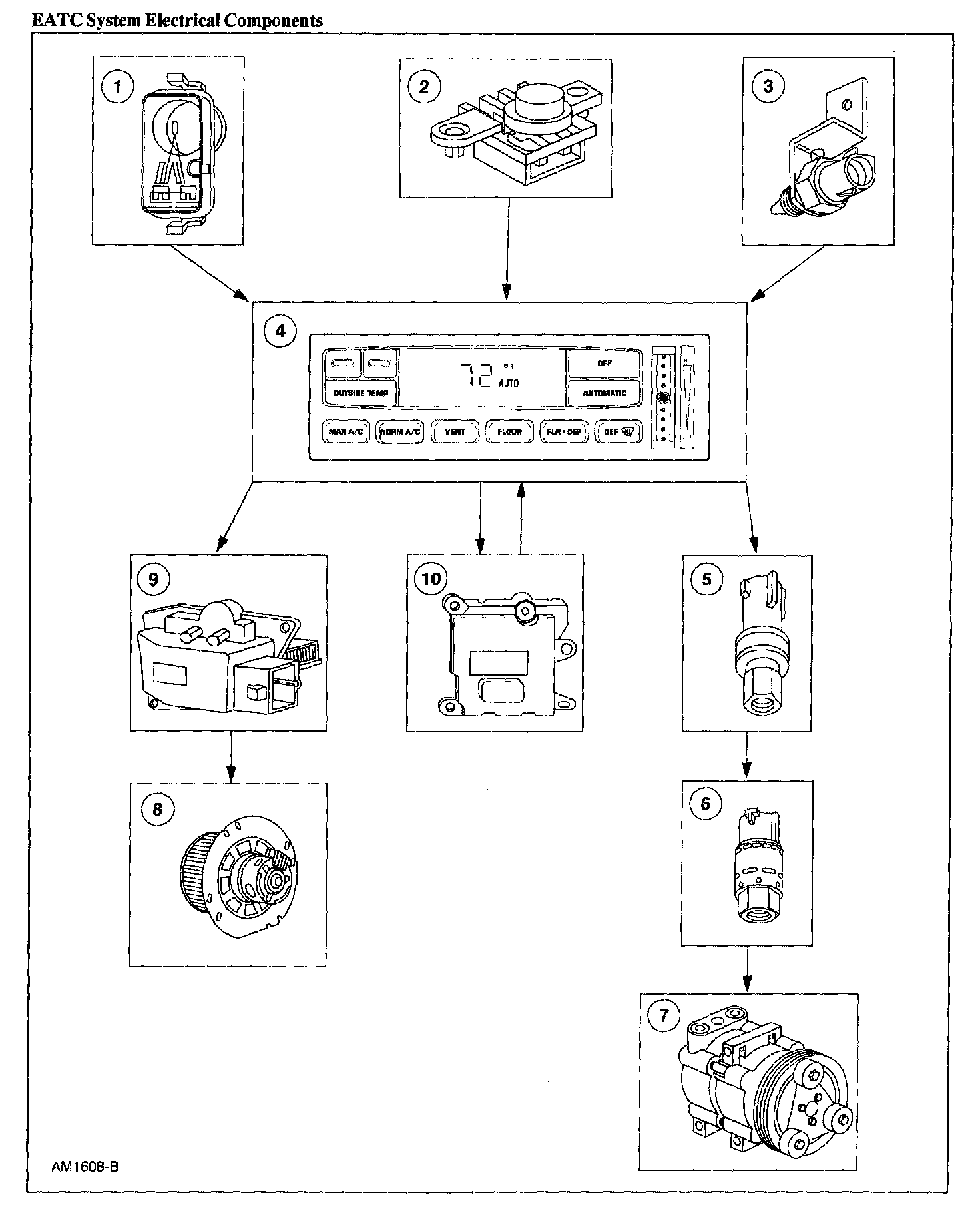

EATC System Electrical Components, Part 1:






EATC System Electrical Components, Part 2:

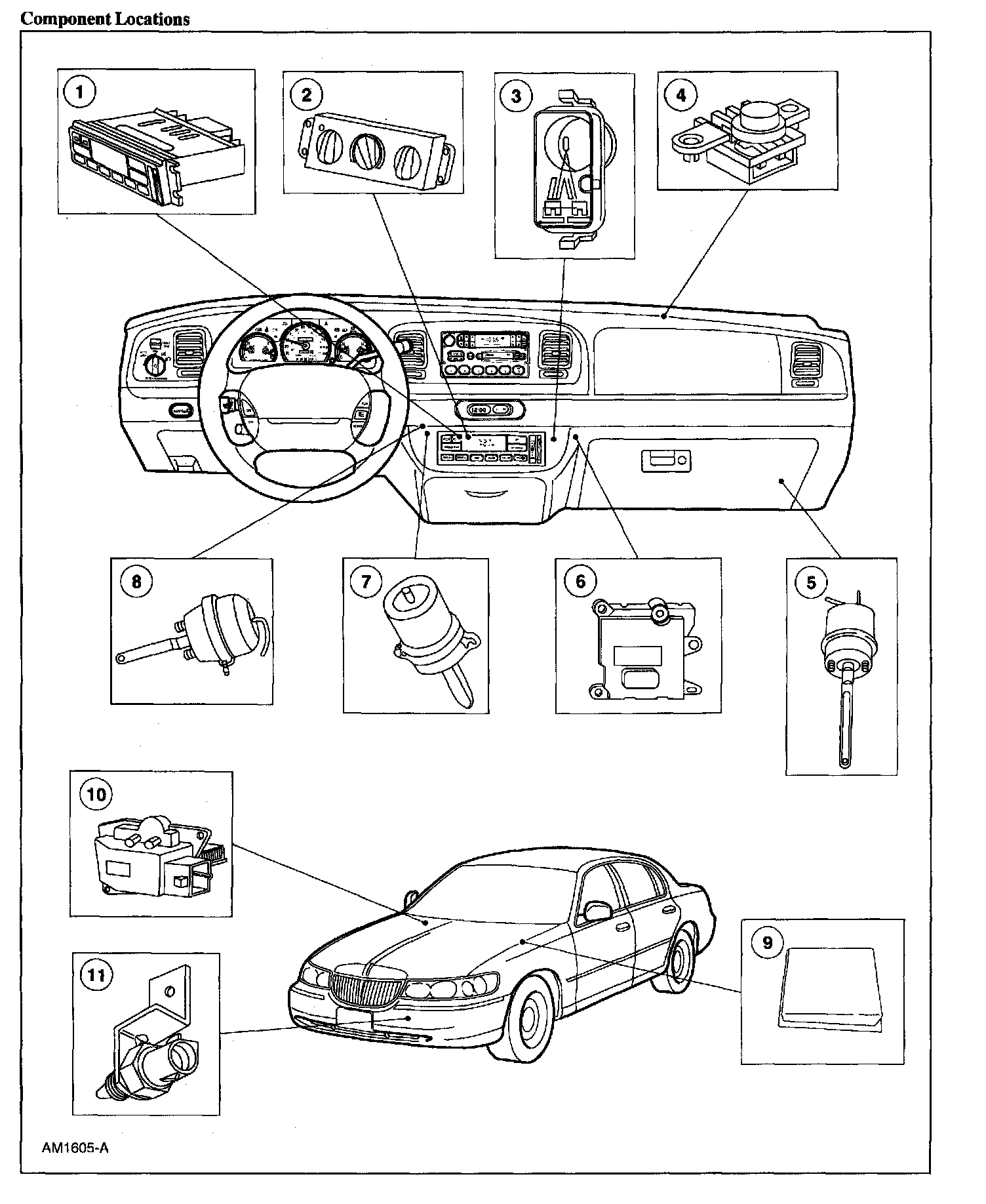

Part 1:

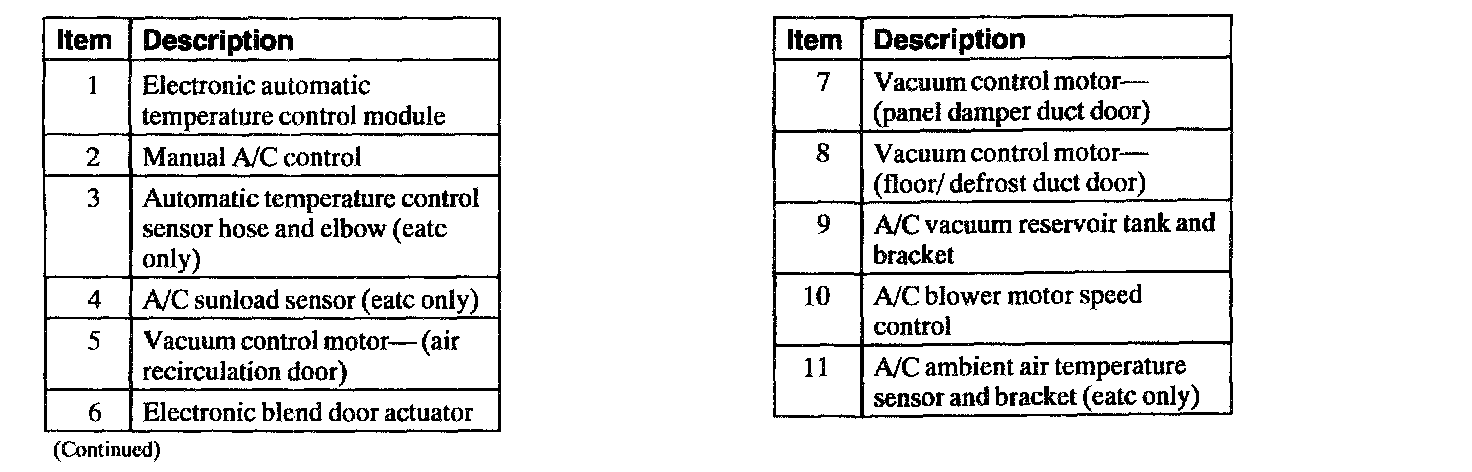

Part 2:






View 151-7:
