Lamp Assembly - Overhead Console Reading: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console assembly. Refer to, OVERHEAD CONSOLE .
  2. Separate the reading lamp assembly from the console.
    1. Remove the eight screws.
    2. Release the electrical connector.
    3. Separate the reading lamp assembly.
      Fig 1: Separating Reading Lamp Assembly
      G03426176Courtesy of FORD MOTOR CO.
  3. Remove the storage bin doors.
    1. Remove the four screws.
    2. Remove the storage bin doors.

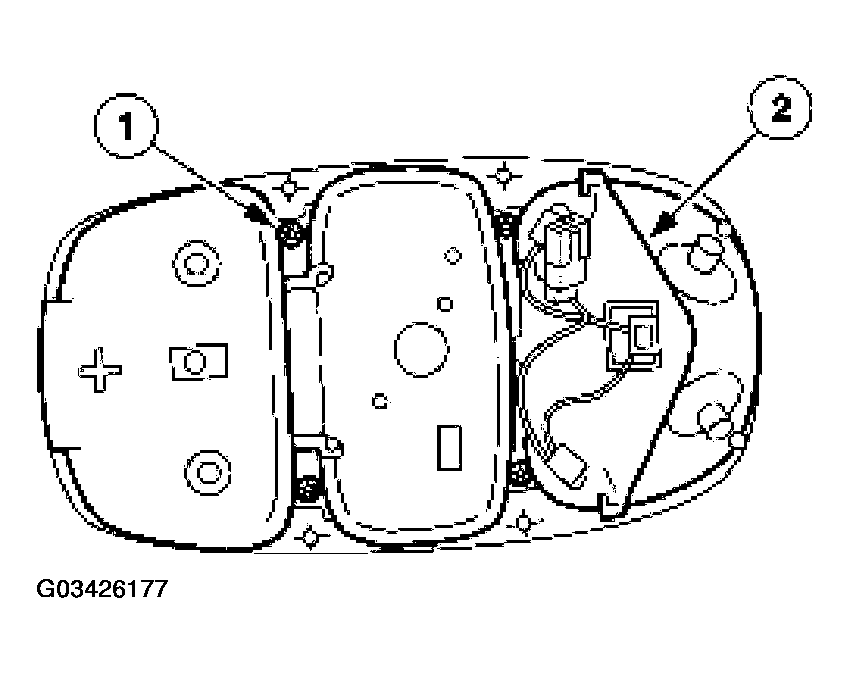

      Fig 2: Removing Storage Bin Doors
      G03426177Courtesy of FORD MOTOR CO.
