Steering Gear Insulator Bushing

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

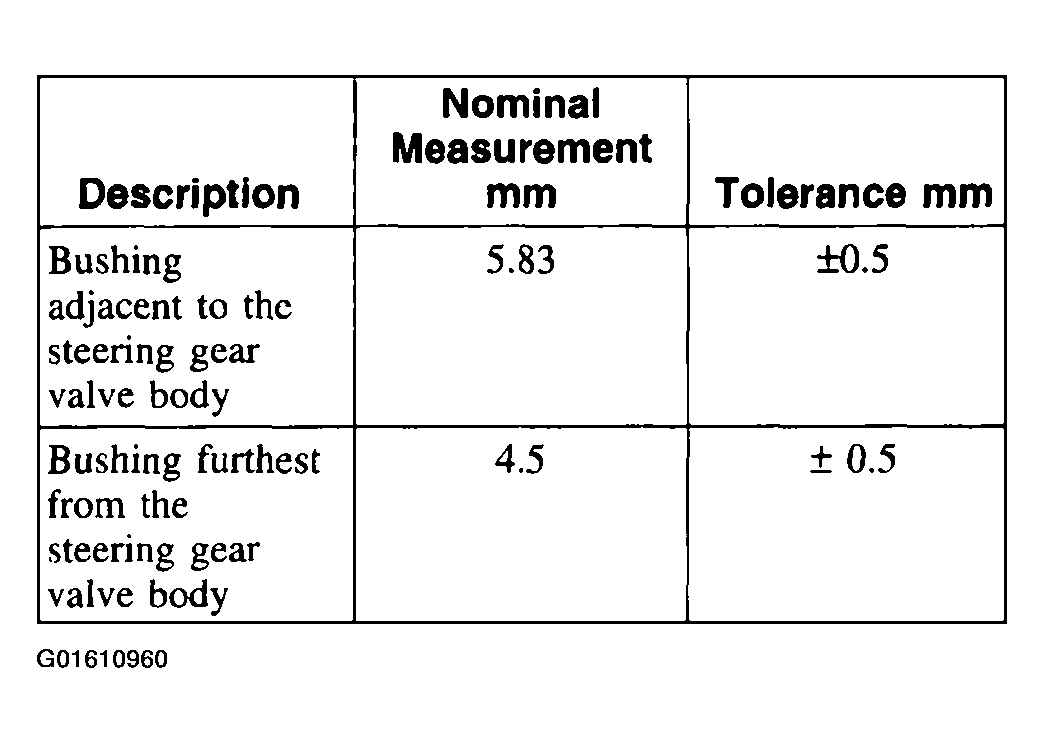

Fig 1: Steering Gear Insulator Bushing Specifications
G01610960Courtesy of FORD MOTOR CO.
