Powertrain Control Module Diagnostic Trouble Code (DTC) Index
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

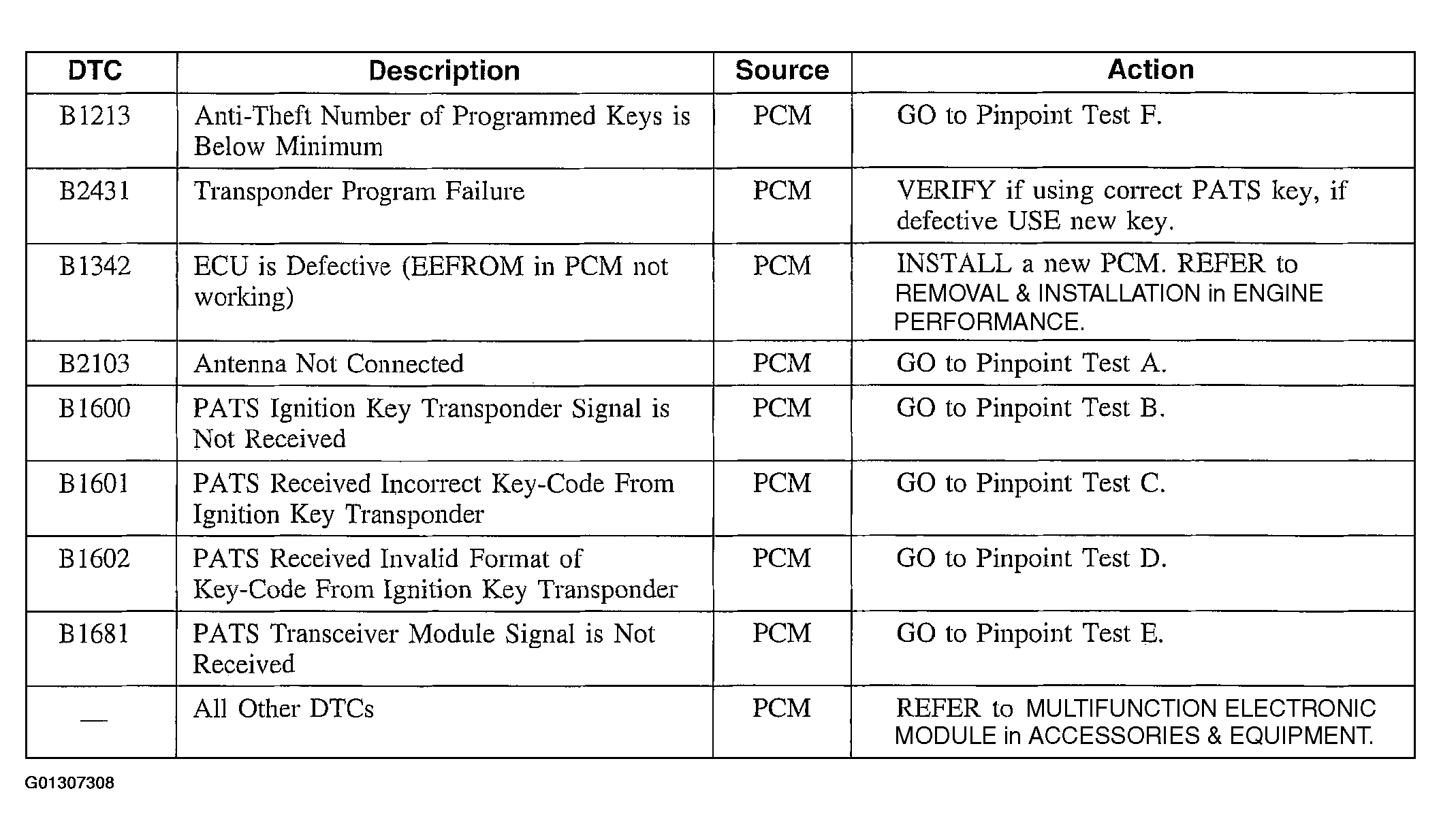

POWERTRAIN CONTROL MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX
| DTC | Description | Source | Action |
|---|---|---|---|
| B1213 | Anti-Theft Number of Programmed Keys is Below Minimum | PCM | Go To PINPOINT TEST F . |
| B2431 | Transponder Program Failure | PCM | VERIFY if using correct PATS key, if defective USE new key. |
| B1342 | ECU is Defective (EEFROM in PCM not working) | PCM | INSTALL a new PCM. REFER to REMOVAL & INSTALLATION in ENGINE PERFORMANCE. |
| B2103 | Antenna Not Connected | PCM | Go To PINPOINT TEST A . |
| B1600 | PATS Ignition Key Transponder Signal is Not Received | PCM | Go To PINPOINT TEST B . |
| B1601 | PATS Received Incorrect Key-Code From Ignition Key Transponder | PCM | Go To PINPOINT TEST C . |
| B1602 | PATS Received Invalid Format of Key-Code From Ignition Key Transponder | PCM | Go To PINPOINT TEST D . |
| B1681 | PATS Transceiver Module Signal is Not Received | PCM | Go To PINPOINT TEST E . |
| - | All Other DTCs | PCM | REFER to MULTIFUNCTION ELECTRONIC MODULE . |
