Engine Controls - Self-Diagnostics - EEC-V - CNG, Flex-Fuel & Gasoline
>>
Diagnostic Trouble Code Reference Charts
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Trouble Code Reference Charts

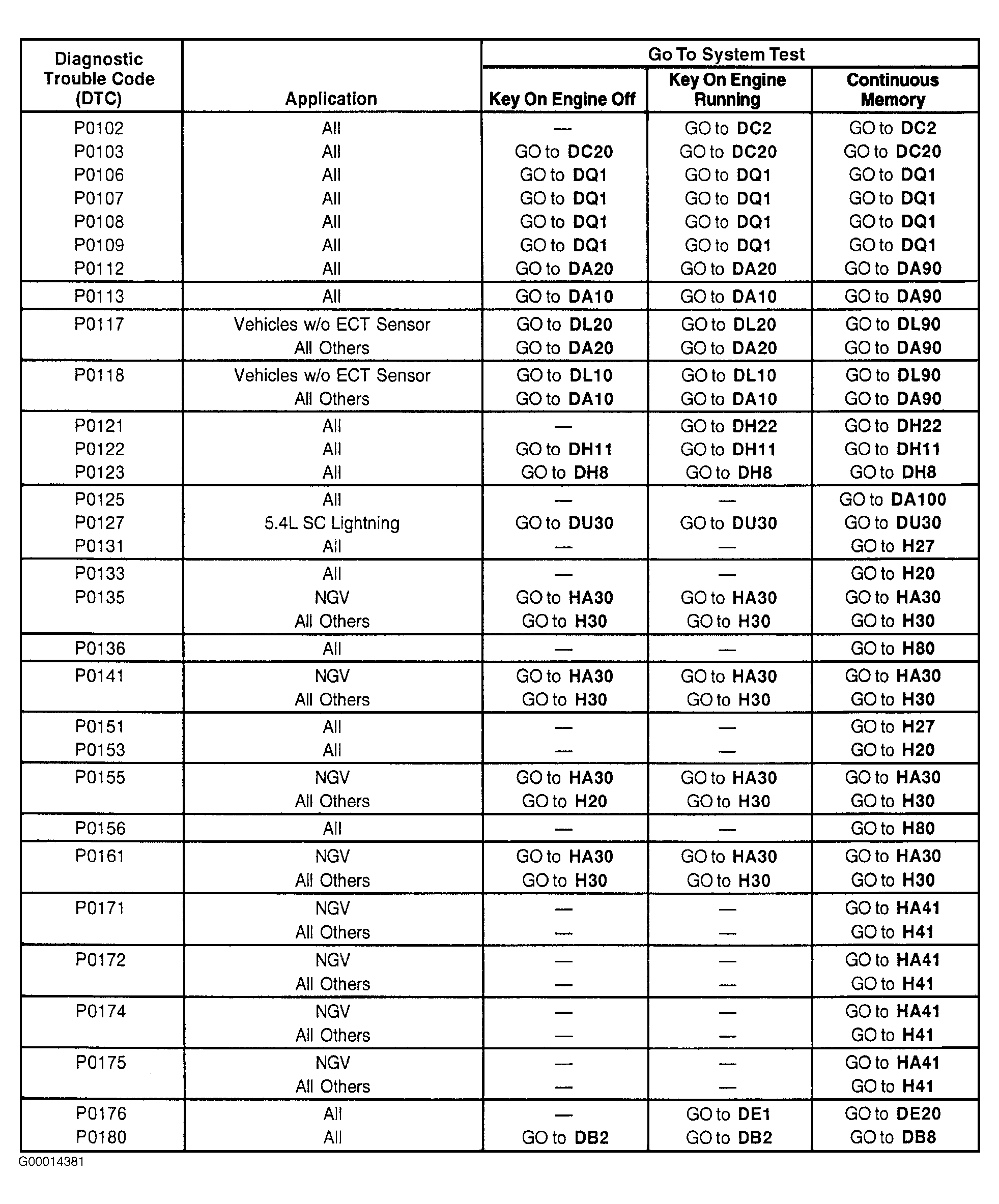

Fig 1: Diagnostic Trouble Code Reference Chart (P0102-P0180)
Courtesy of FORD MOTOR CO.

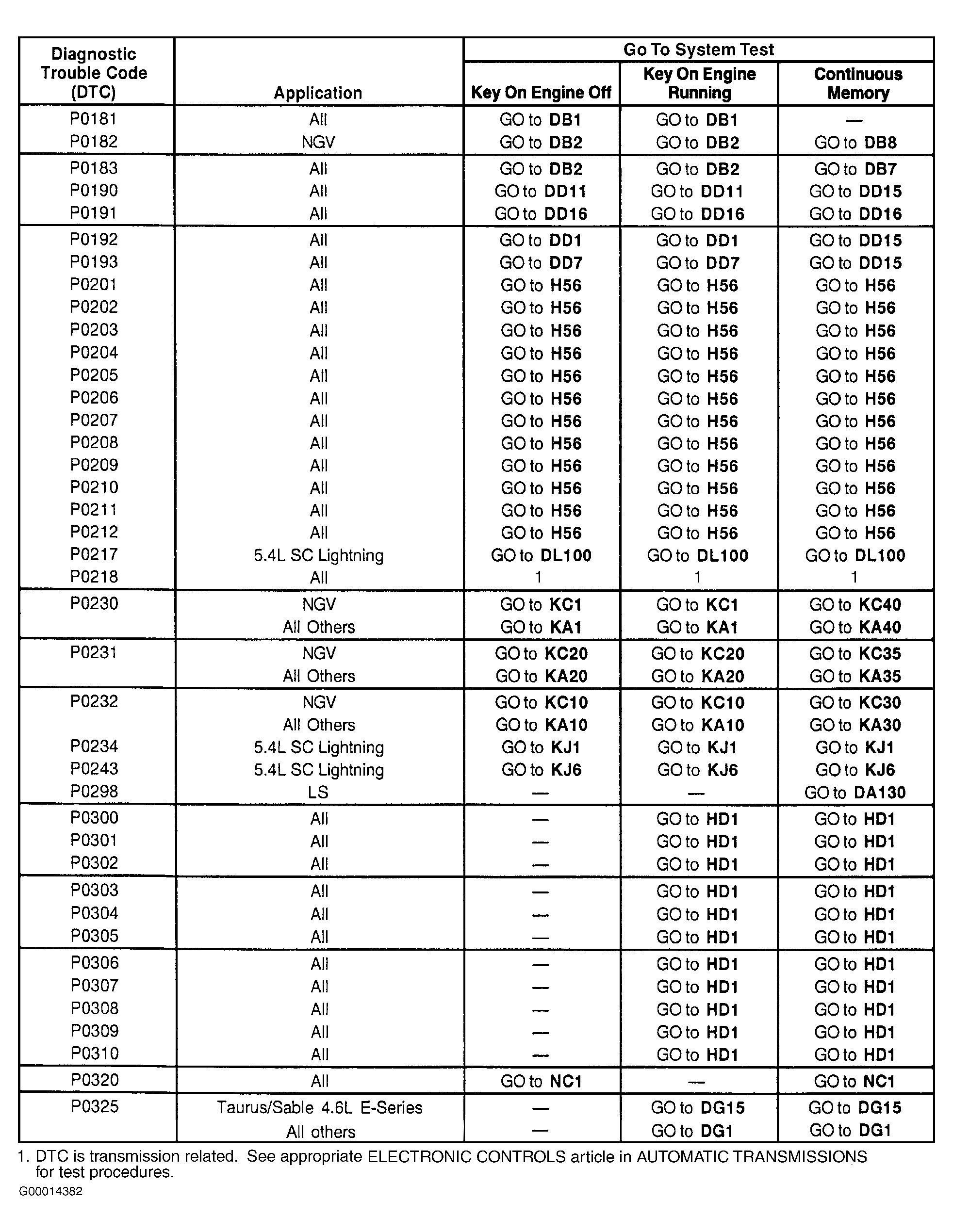

Fig 2: Diagnostic Trouble Code Reference Chart (P0181-P0325)
Courtesy of FORD MOTOR CO.

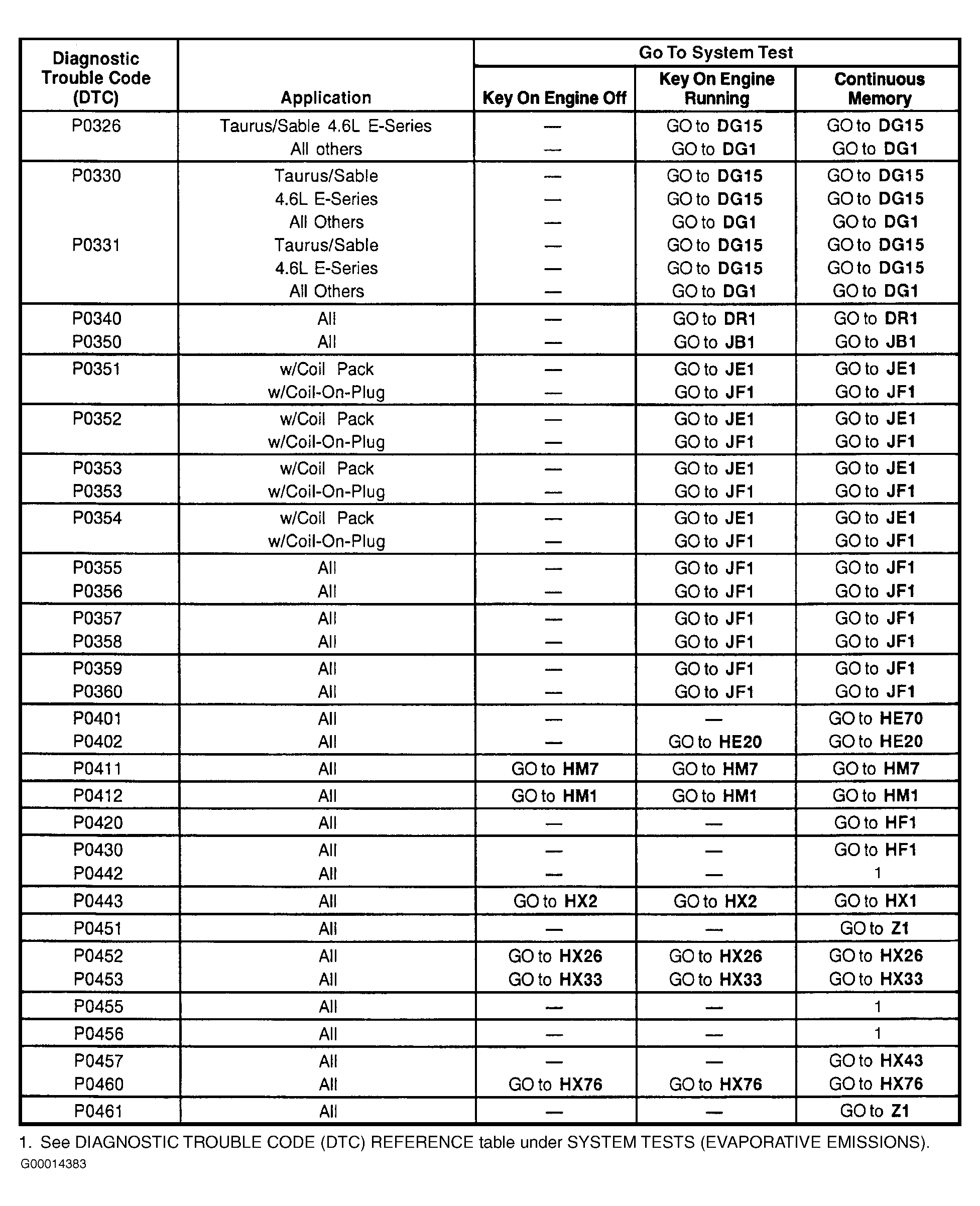

Fig 3: Diagnostic Trouble Code Reference Chart (P0326-P0461)
Courtesy of FORD MOTOR CO.

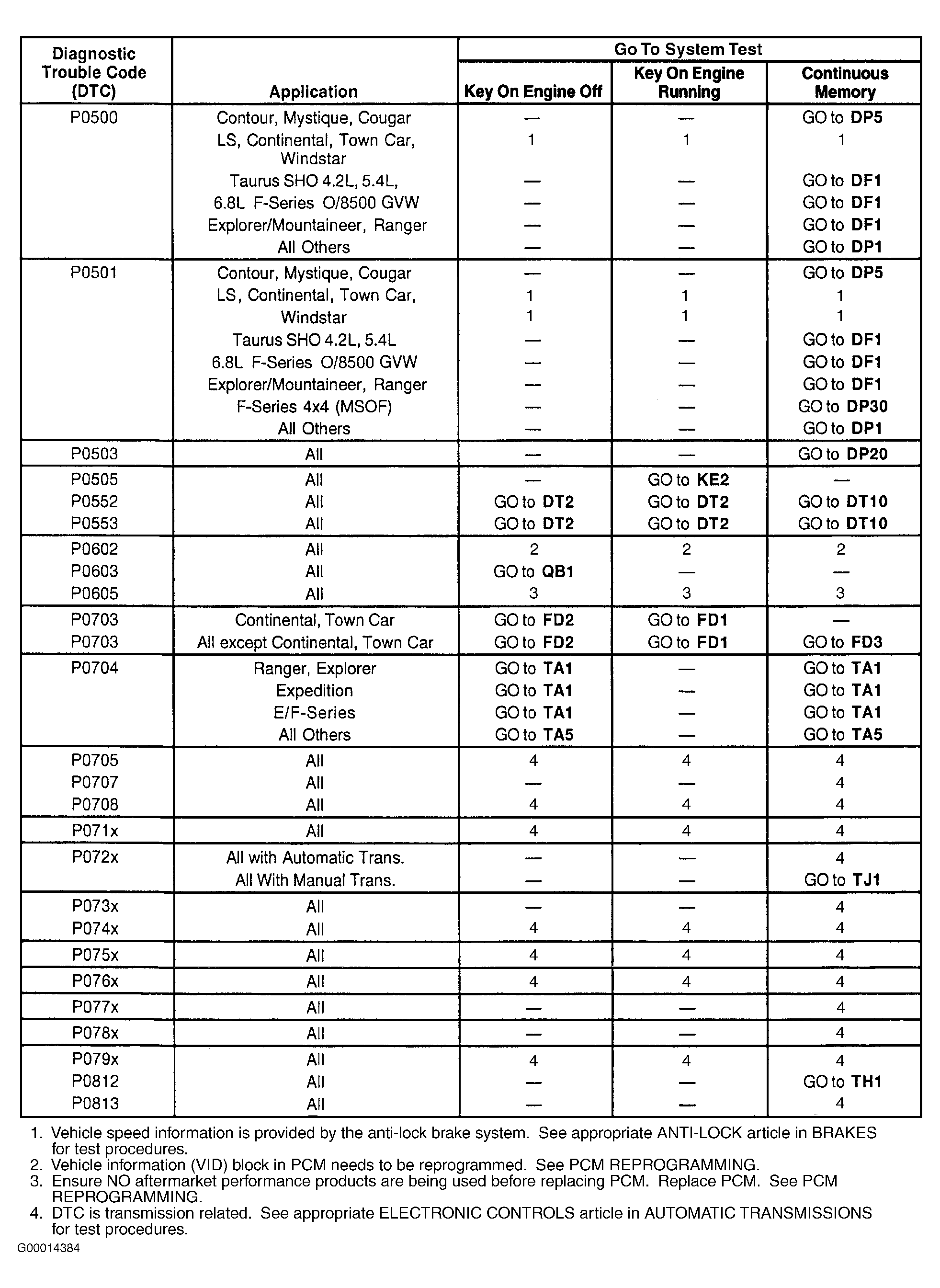

Fig 4: Diagnostic Trouble Code Reference Chart (P0500-P0813)
Courtesy of FORD MOTOR CO.

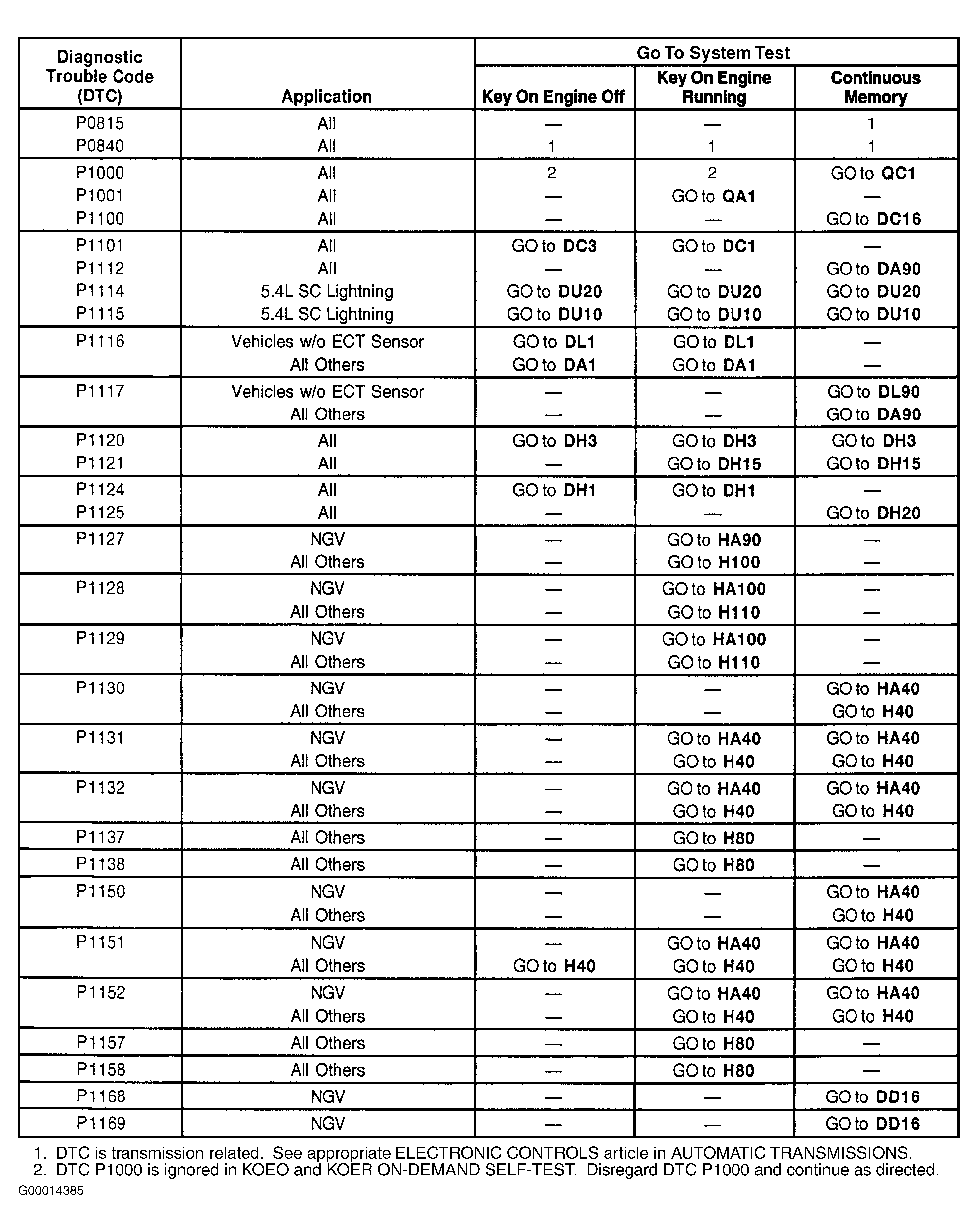

Fig 5: Diagnostic Trouble Code Reference Chart (P0815-P1169)
Courtesy of FORD MOTOR CO.

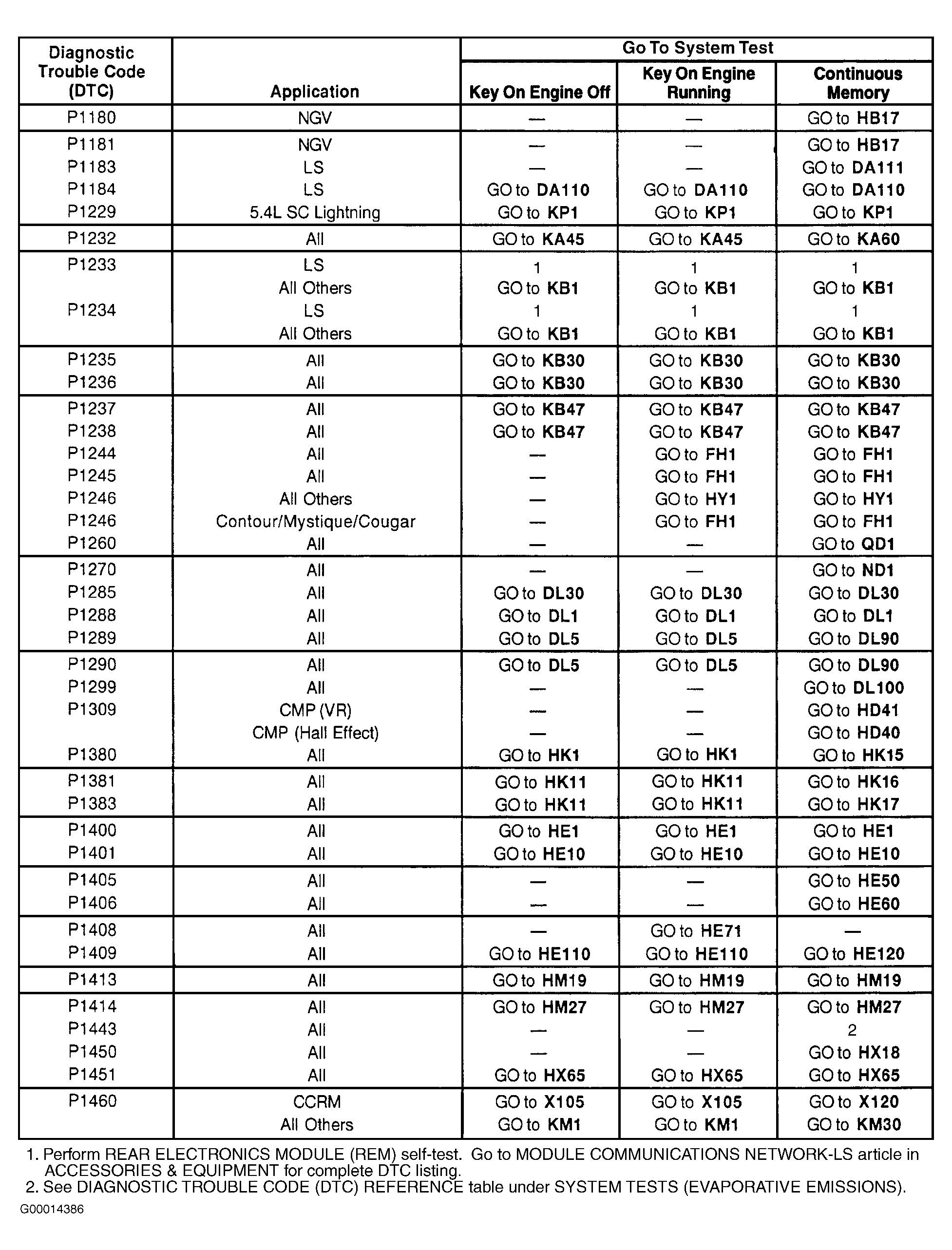

Fig 6: Diagnostic Trouble Code Reference Chart (P1180-P1460)
Courtesy of FORD MOTOR CO.

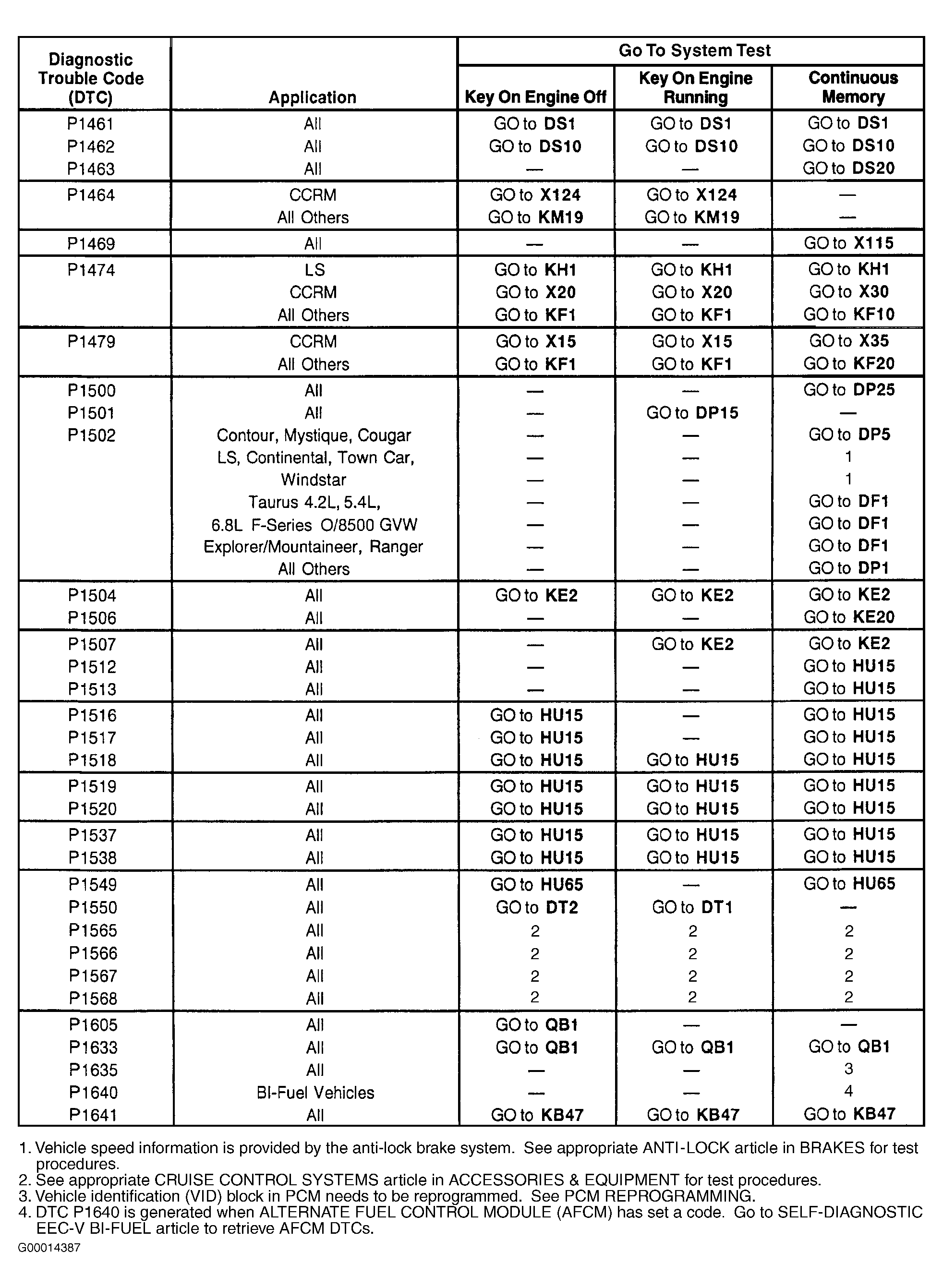

Fig 7: Diagnostic Trouble Code Reference Chart (P1461-P1641)
Courtesy of FORD MOTOR CO.

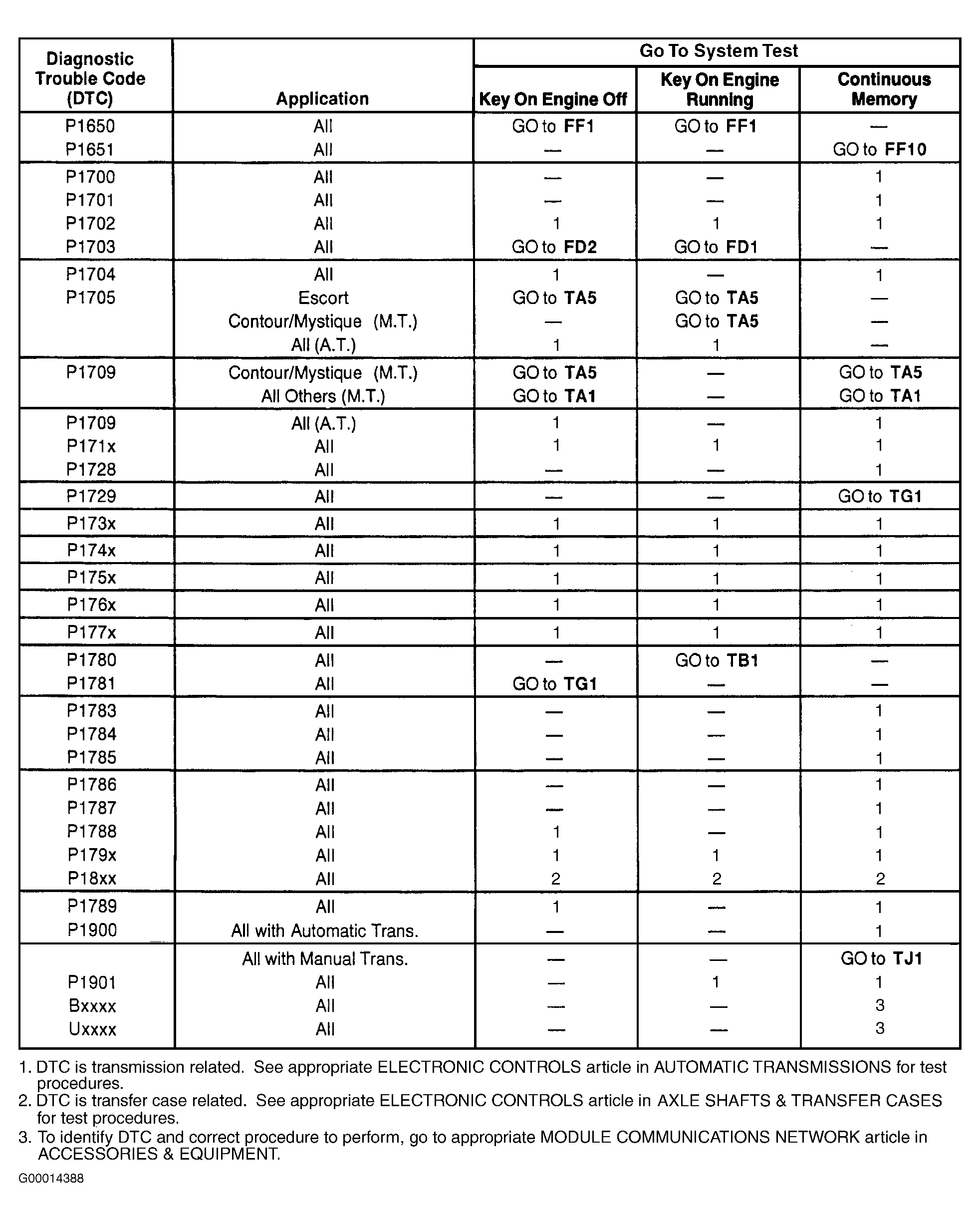

Fig 8: Diagnostic Trouble Code Reference Chart (P1650-P1901, B & U Codes)
Courtesy of FORD MOTOR CO.
