Home
>>
Ford
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Multifunction Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multifunction Switch
Multifunction Switch
Tests

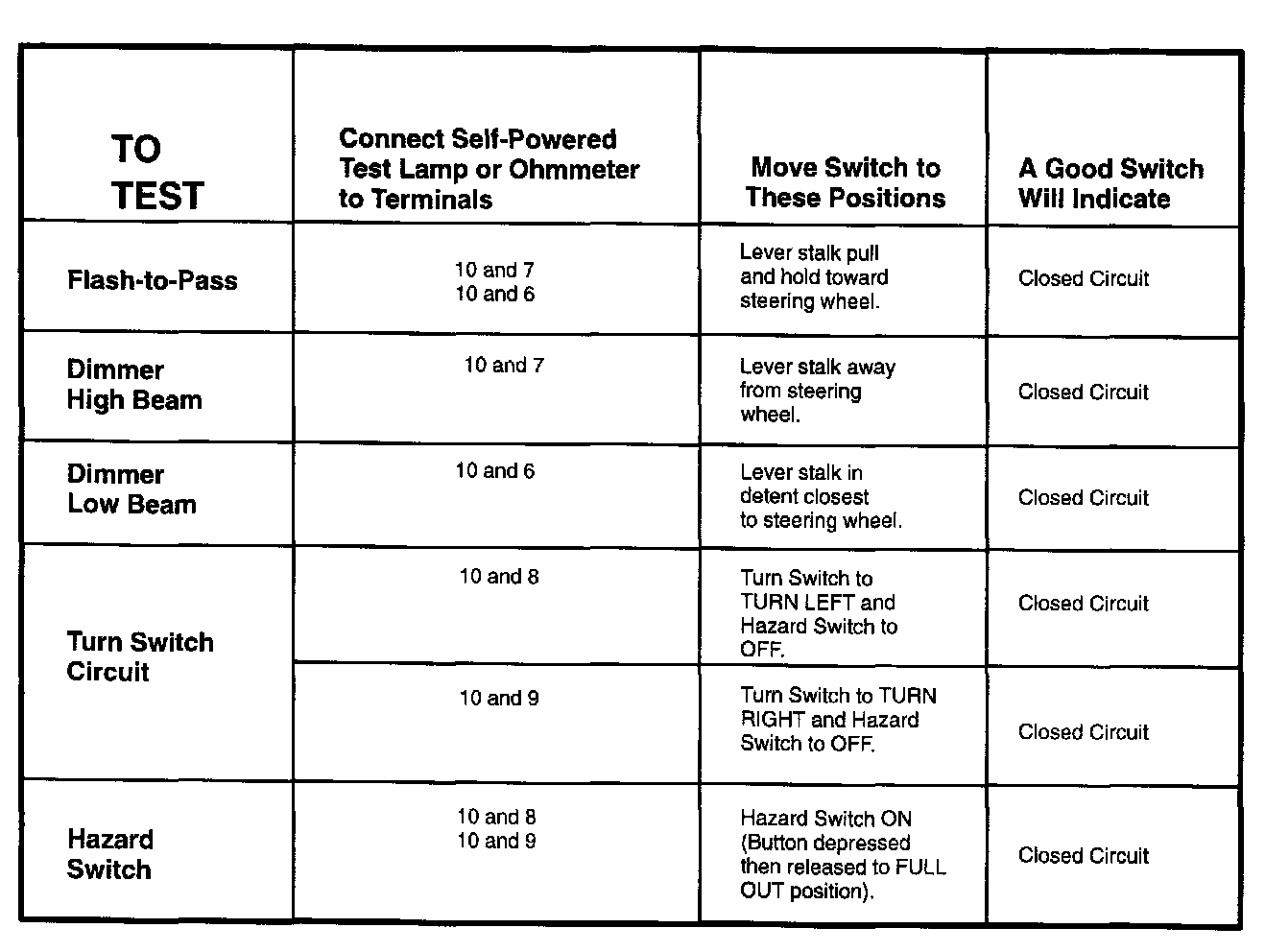

Component Testing Procedure:

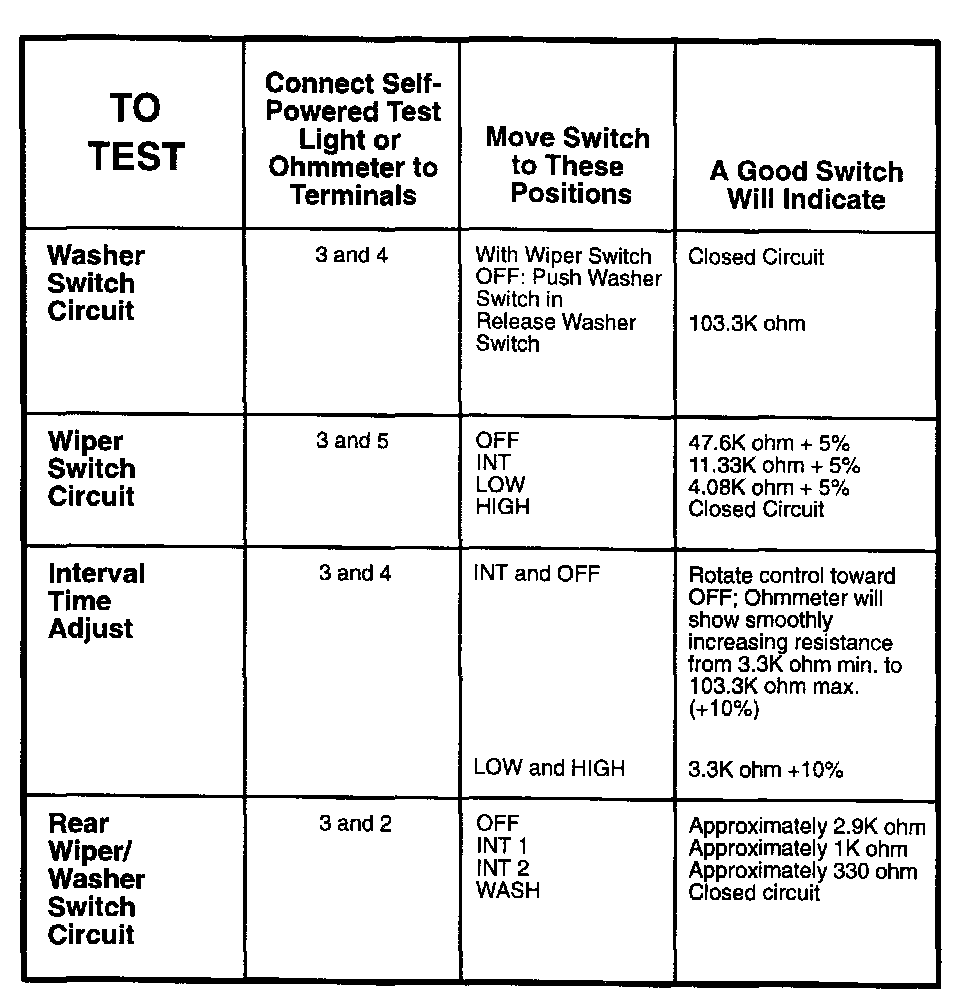

Component Testing Procedure:

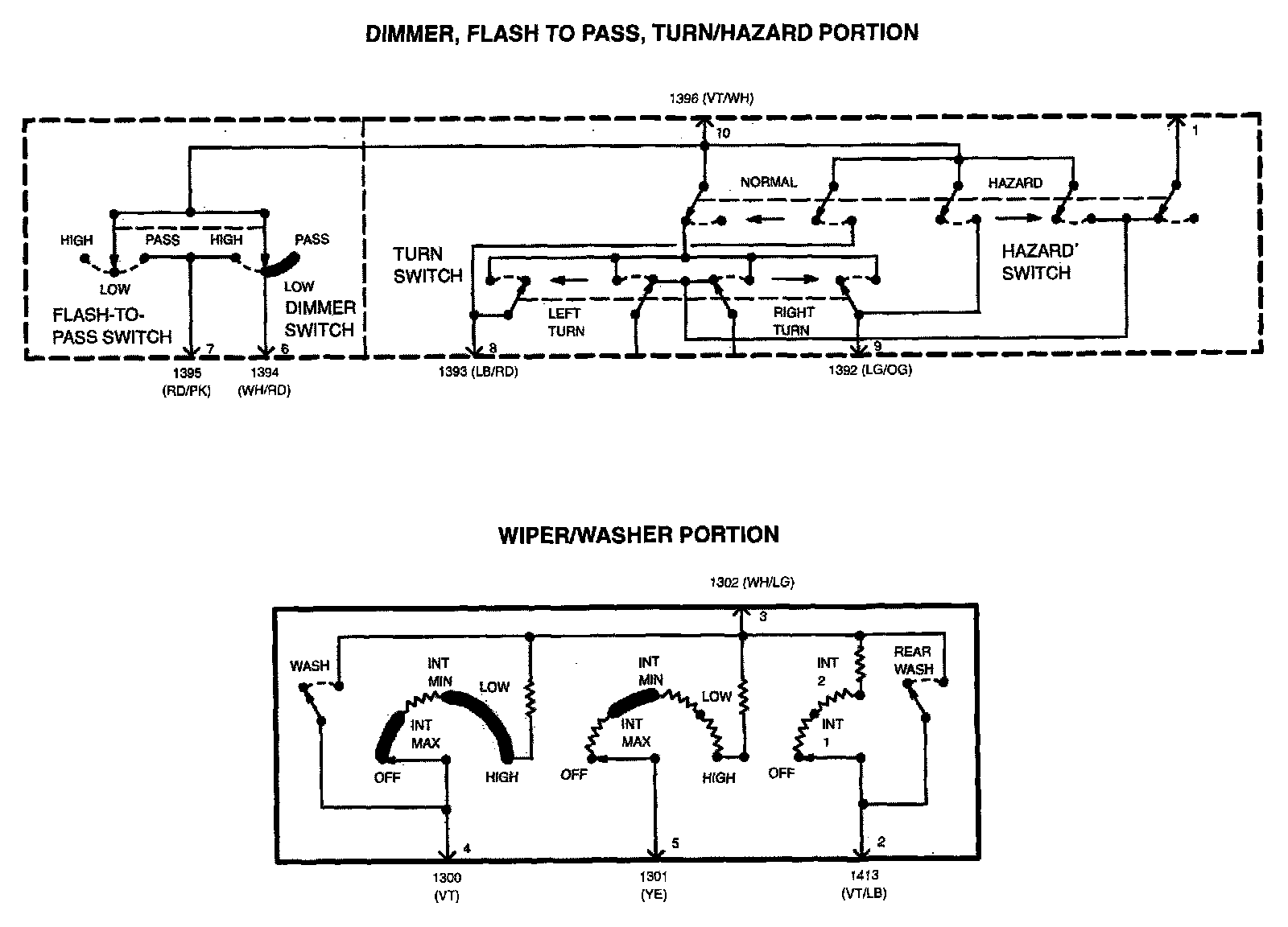

Schematic:
