Test E: PCM Does Not Respond to the Diagnostic Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test E: PCM Does Not Respond to the Diagnostic Tool

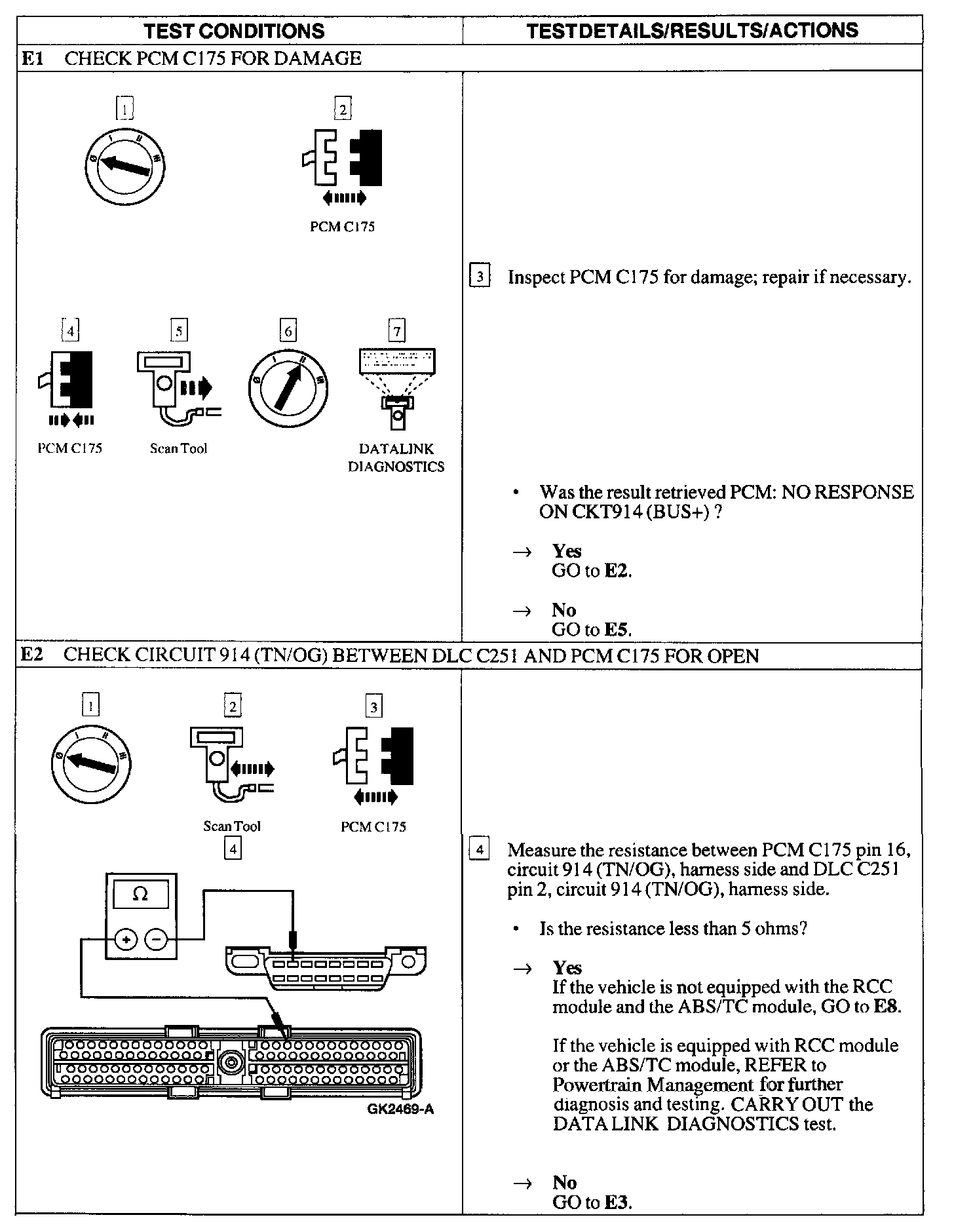

E1 - E2:

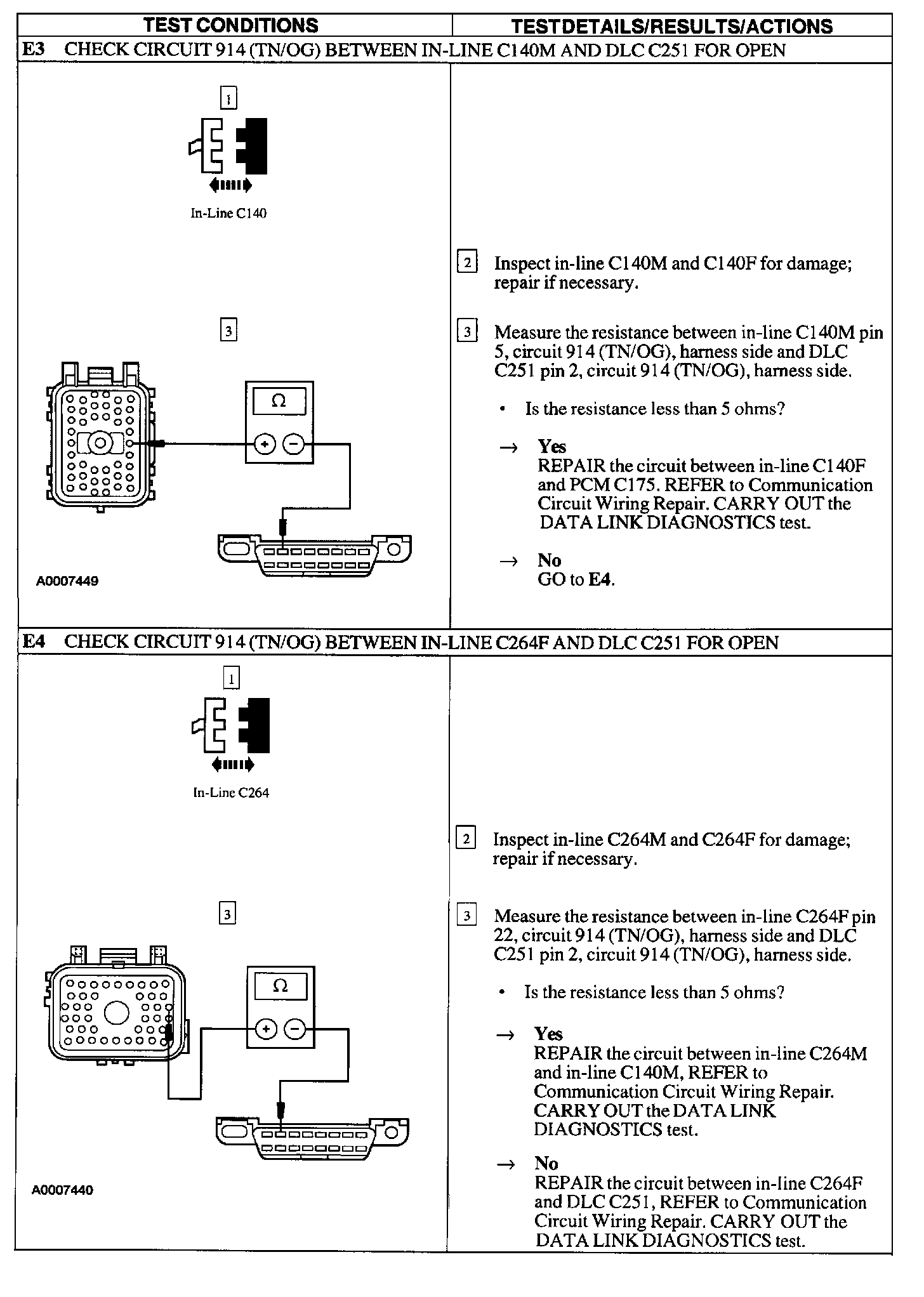

E3 - E4:

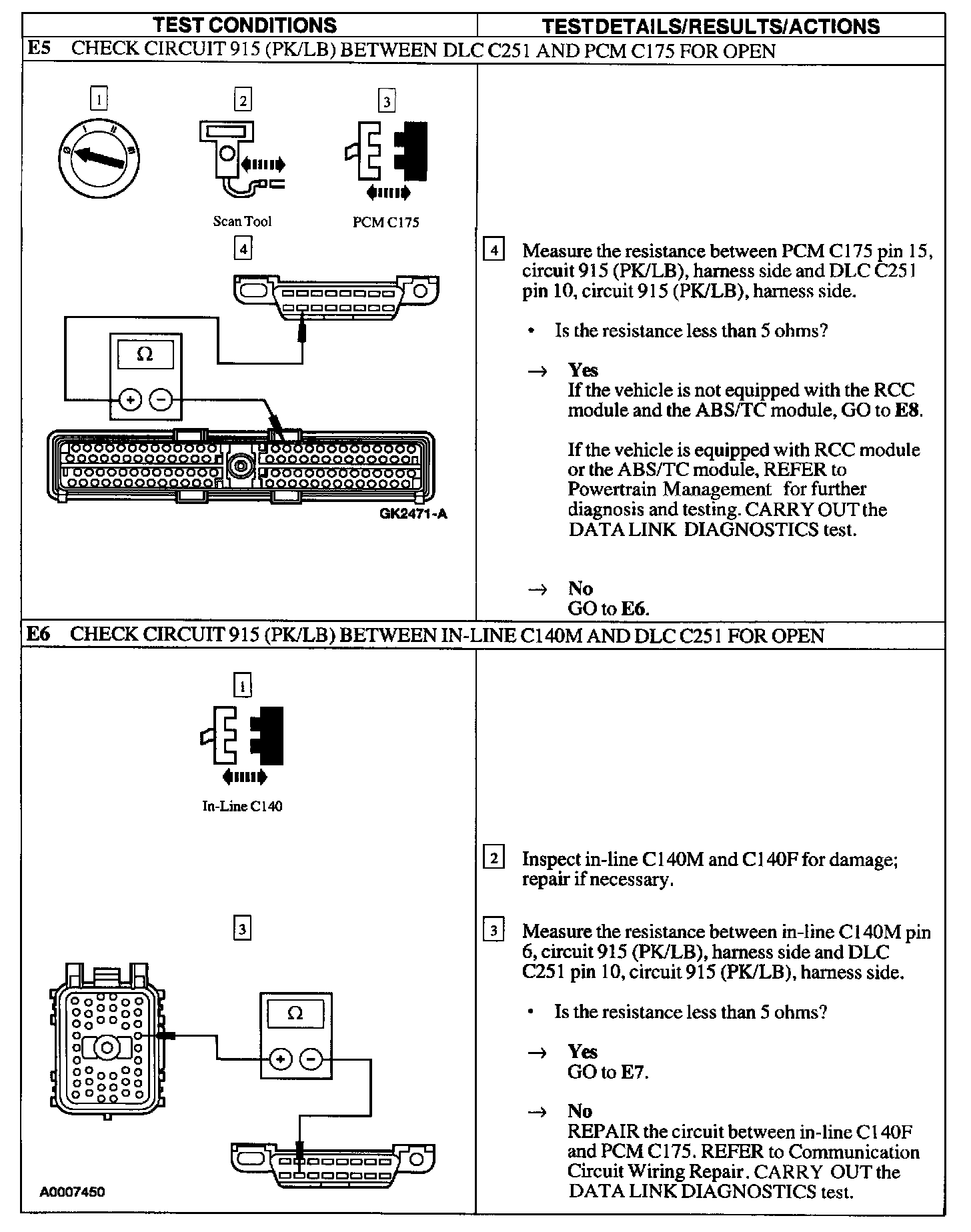

E5 - E6:

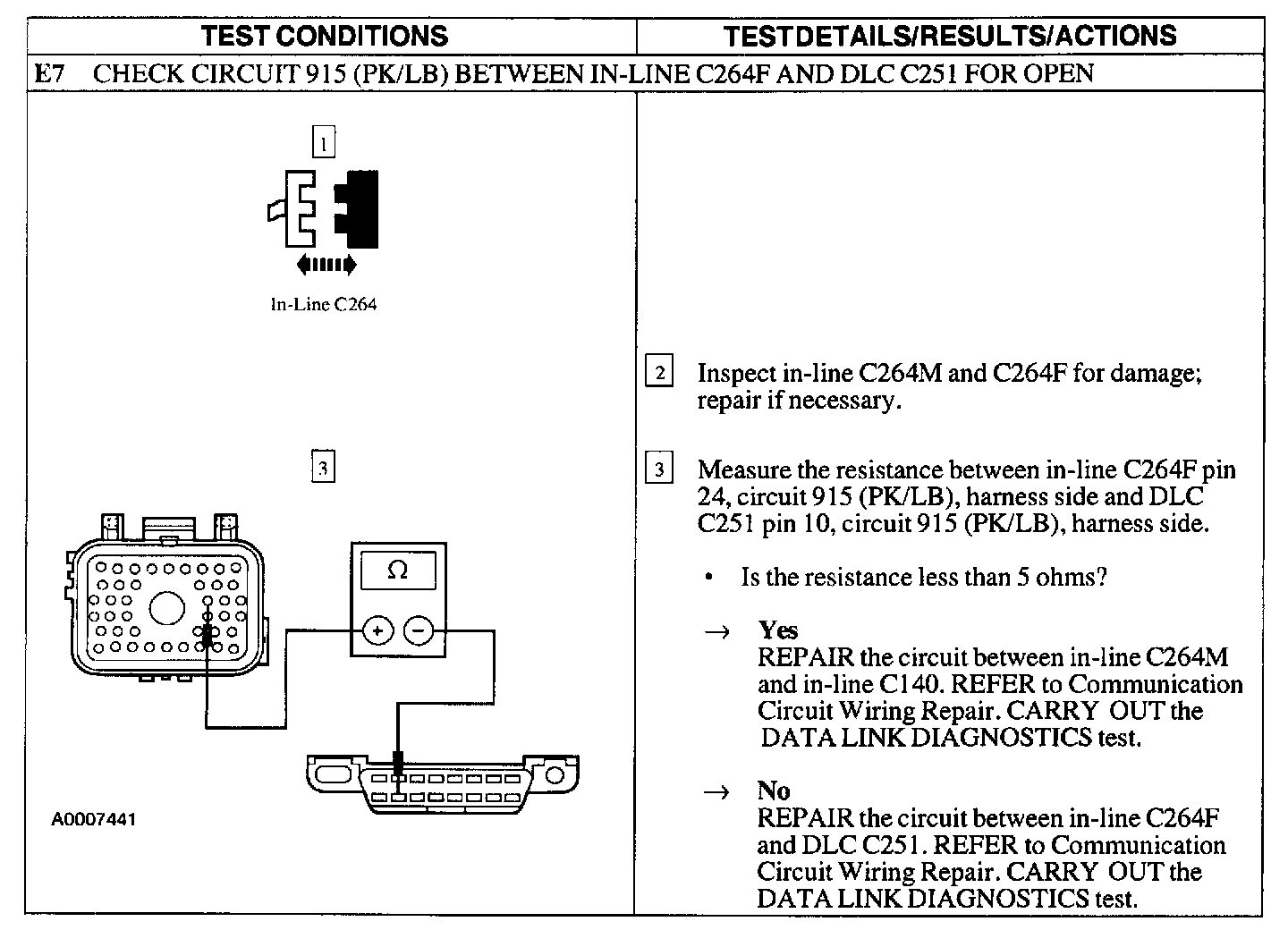

E7:

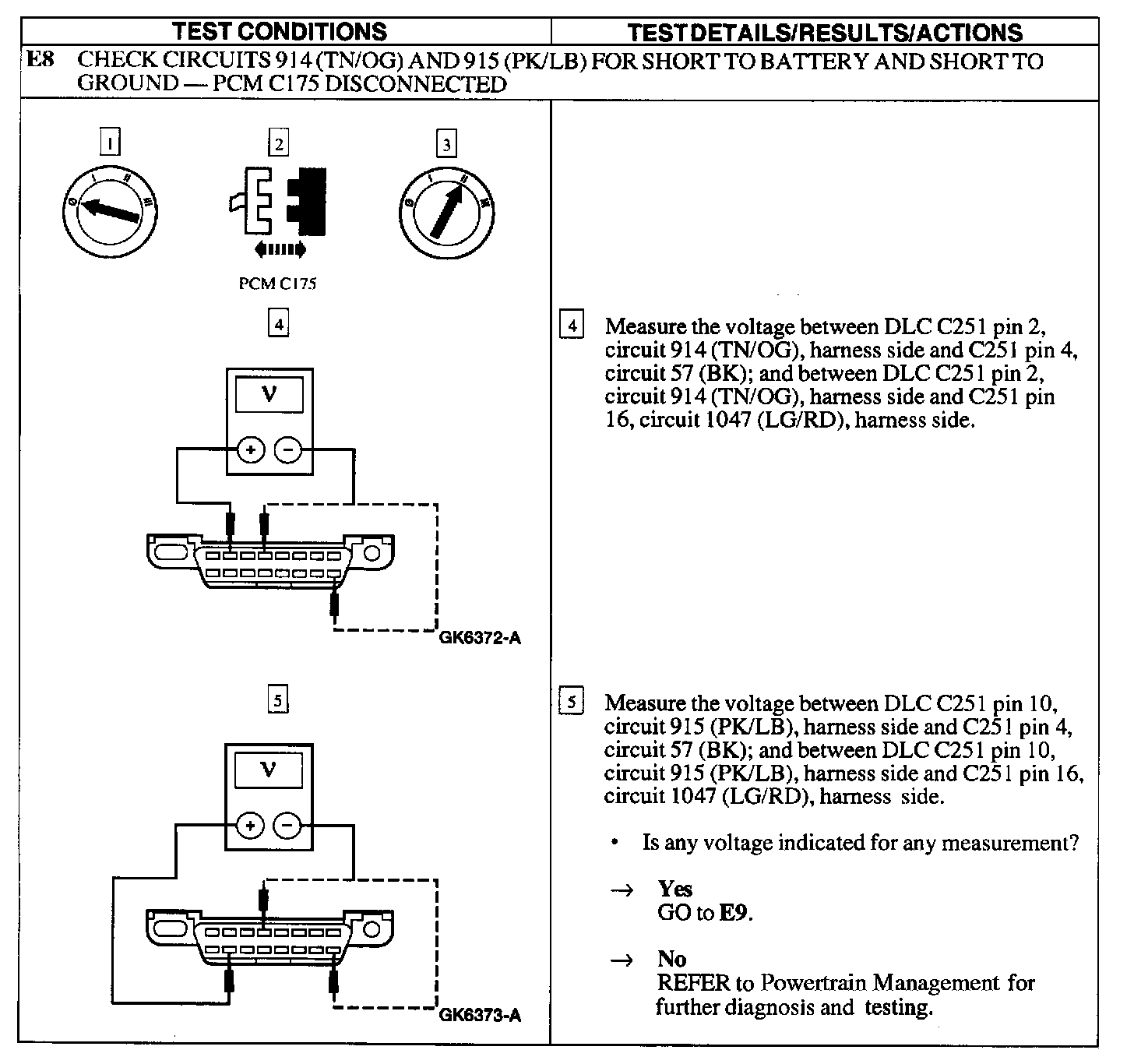

E8:

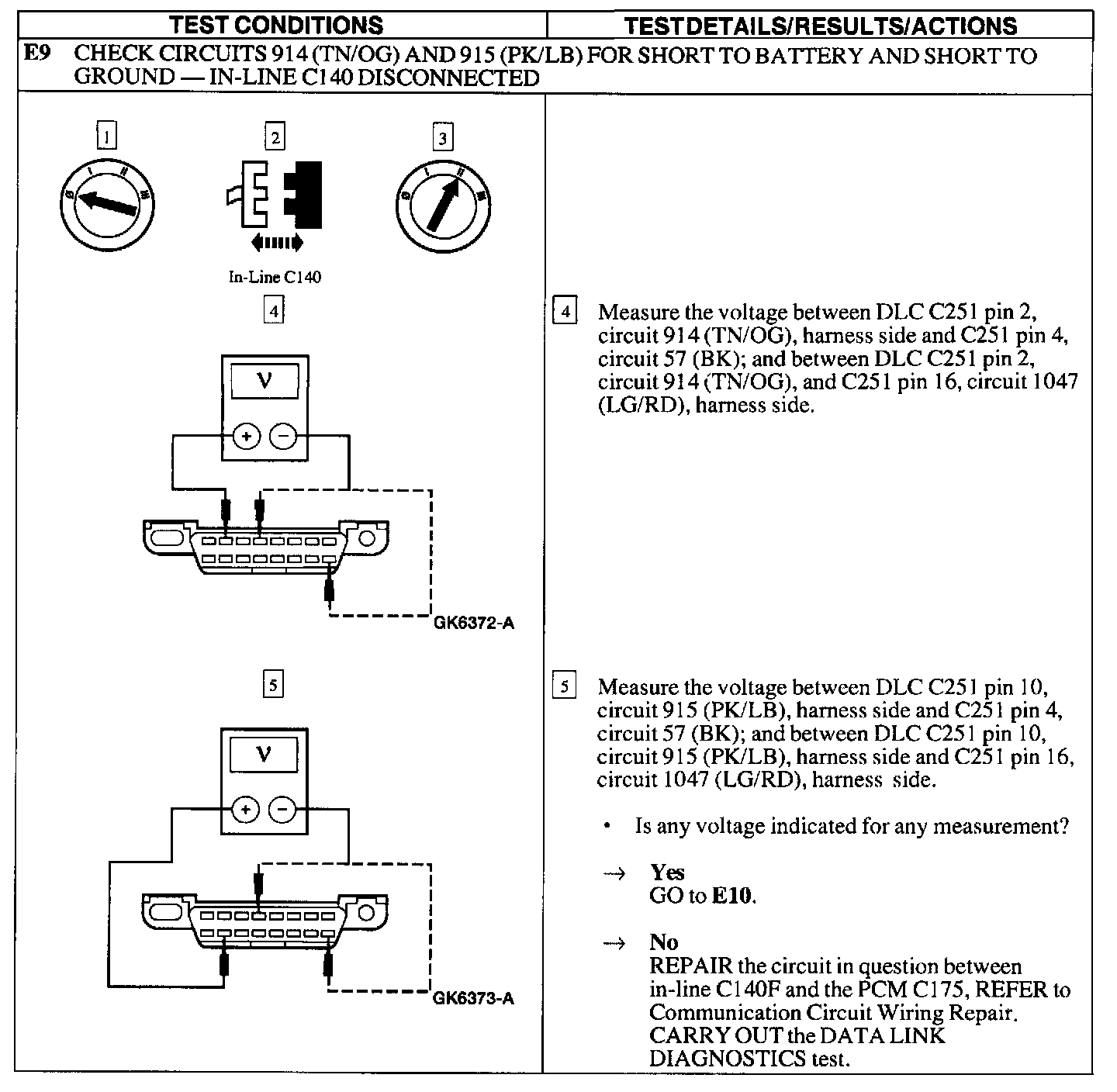

E9:

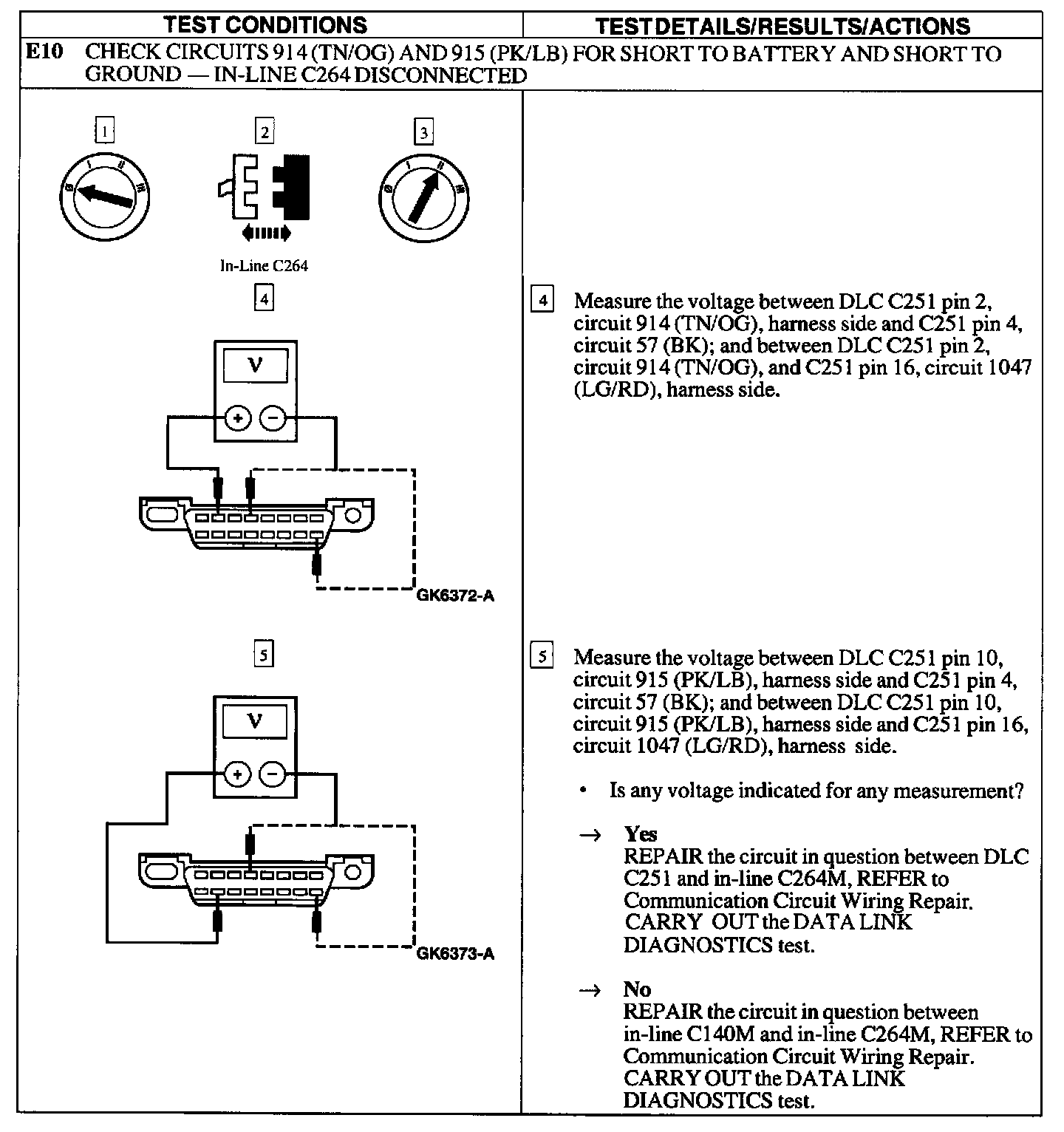

E10:
