AX4S Automatic Transaxle








Transaxle Vehicle Harness Connector








Transaxle Internal Harness Connector








Digital Transmission Range (TR) Sensor








Turbine Shaft Speed (TSS) Sensor Connector





Output Shaft Speed (OSS) Sensor Connector

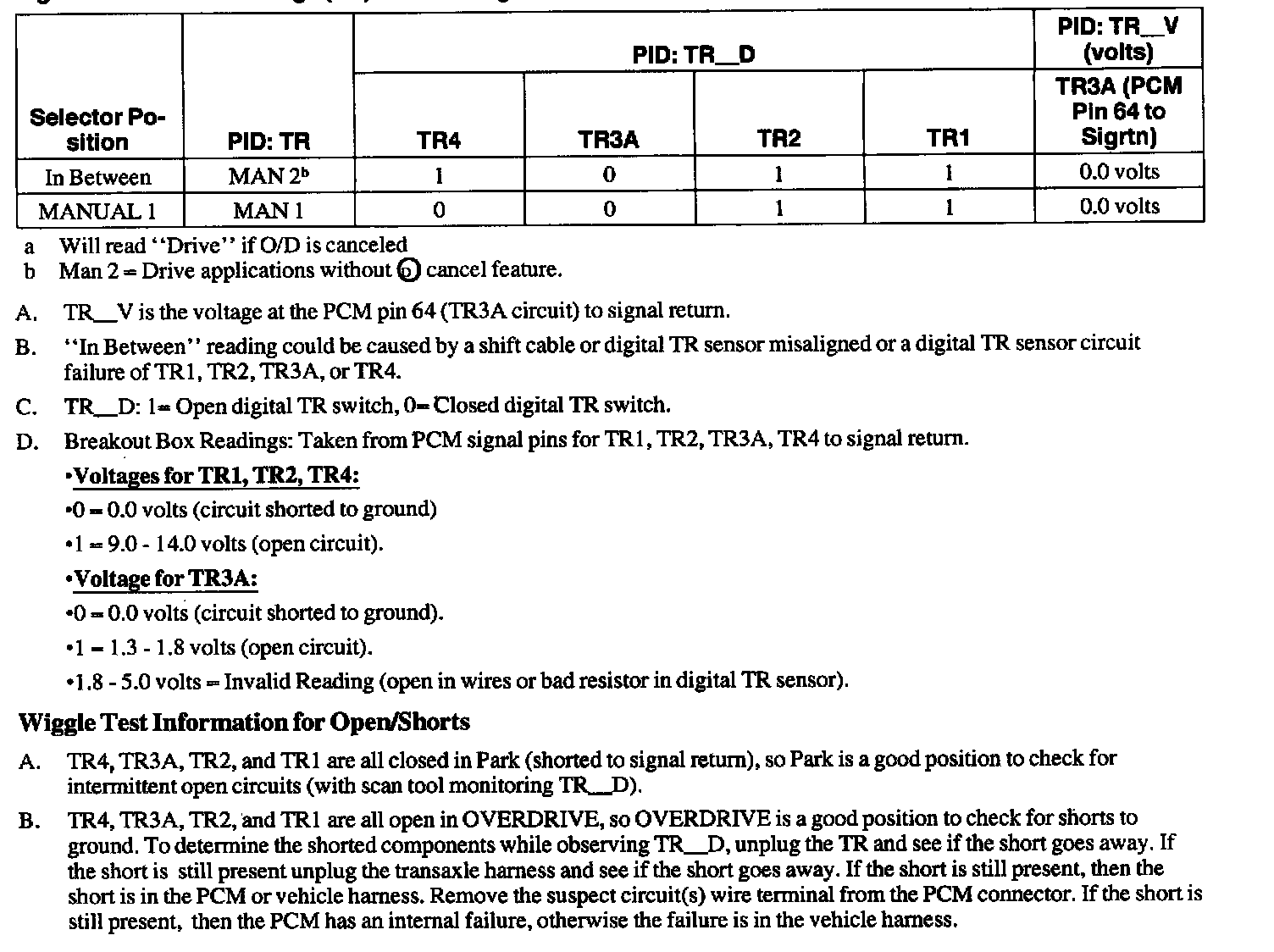

Digital Transmission Range (TR) Sensor Diagnosis Chart
