AX4N Transaxle

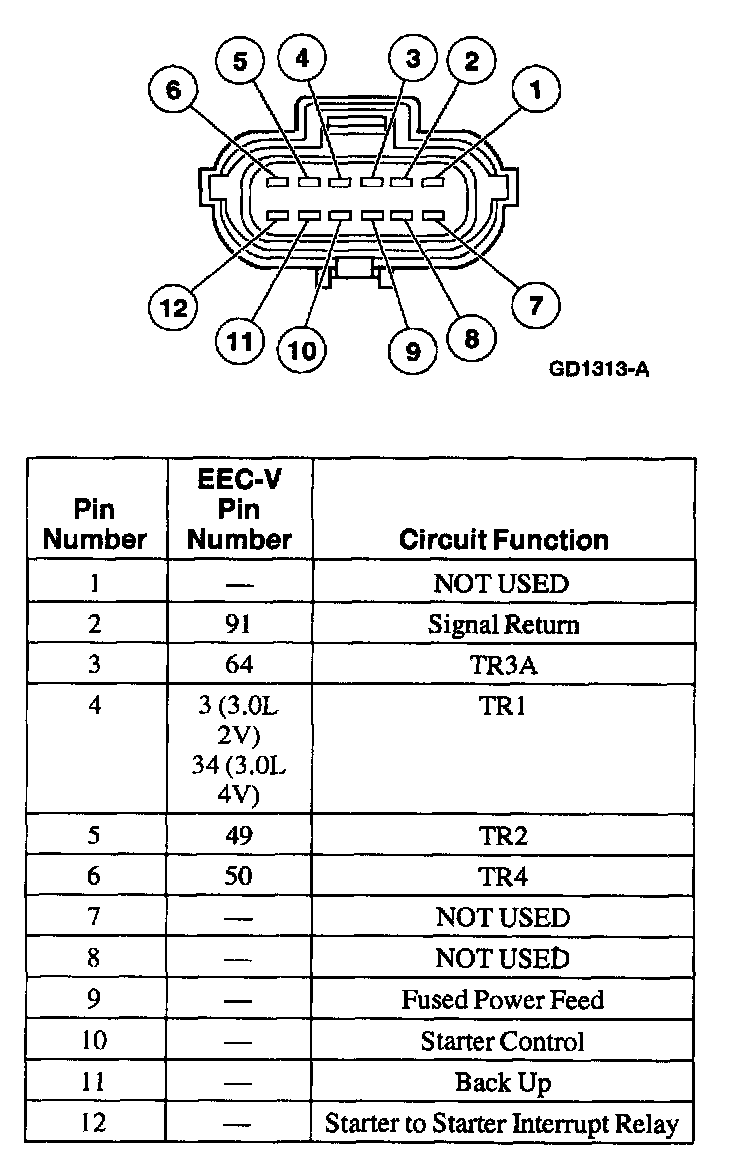

Transaxle Vehicle Harness Connector

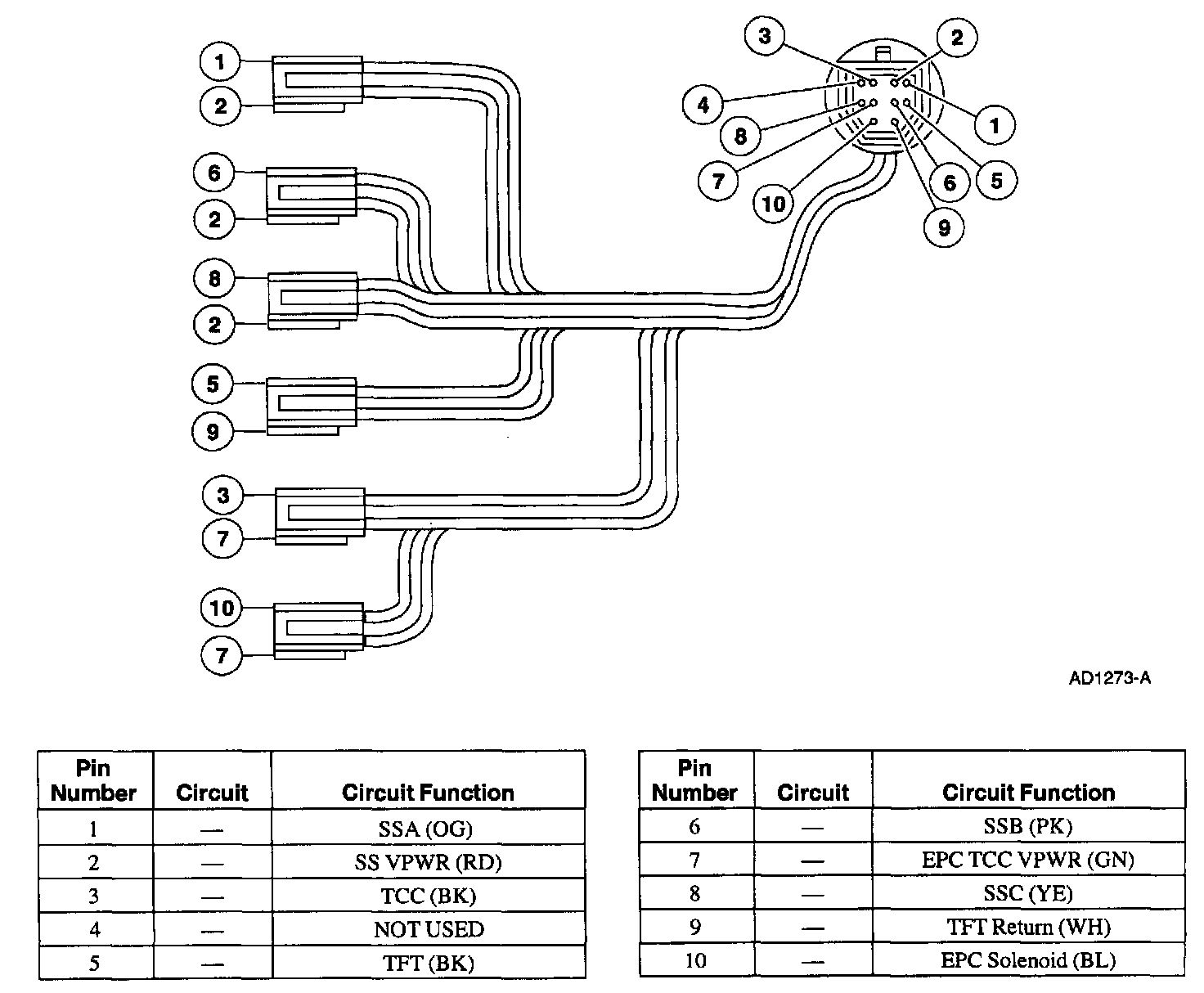

Transaxle Internal Harness Diagram





Digital Transmission Range (TR) Sensor Connector








Turbine Shaft Speed (TSS) Sensor





Output Shaft Speed (OSS) Sensor Connector
