Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster finish panel bezel. For additional information, see INSTRUMENT PANEL - CLUSTER FINISH PANEL .
  2. Remove the in-car air temperature sensor.
    1. Disconnect the connector.
    2. Disconnect the aspirator hose and remove the in-car air temperature sensor.

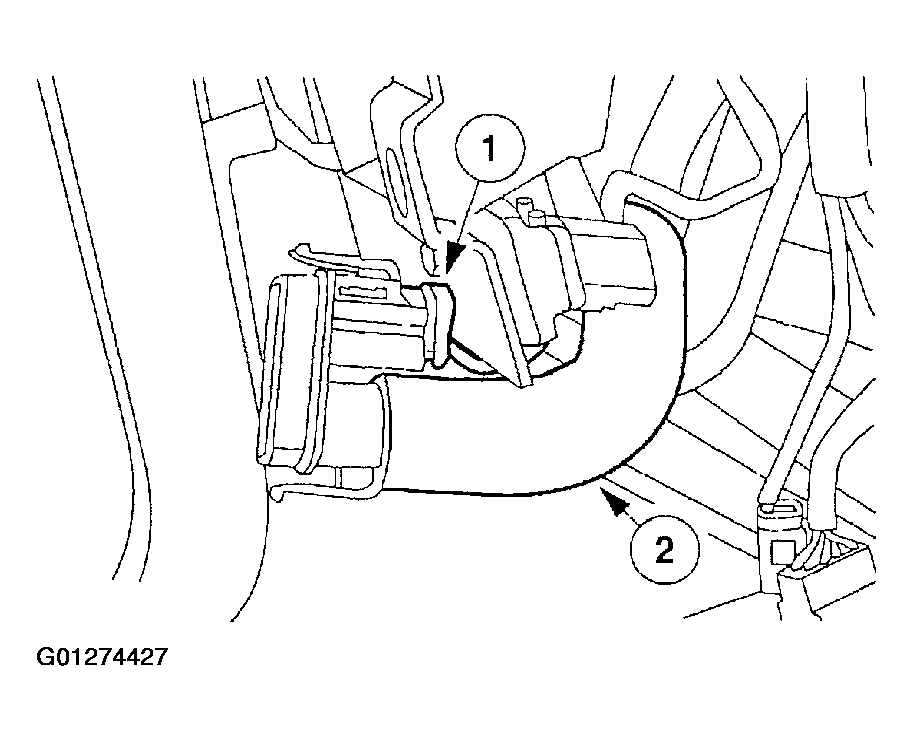

    Fig 1: Removing In-Car Temperature Sensor
    G01274427Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
