Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar

Disconnect the connector.

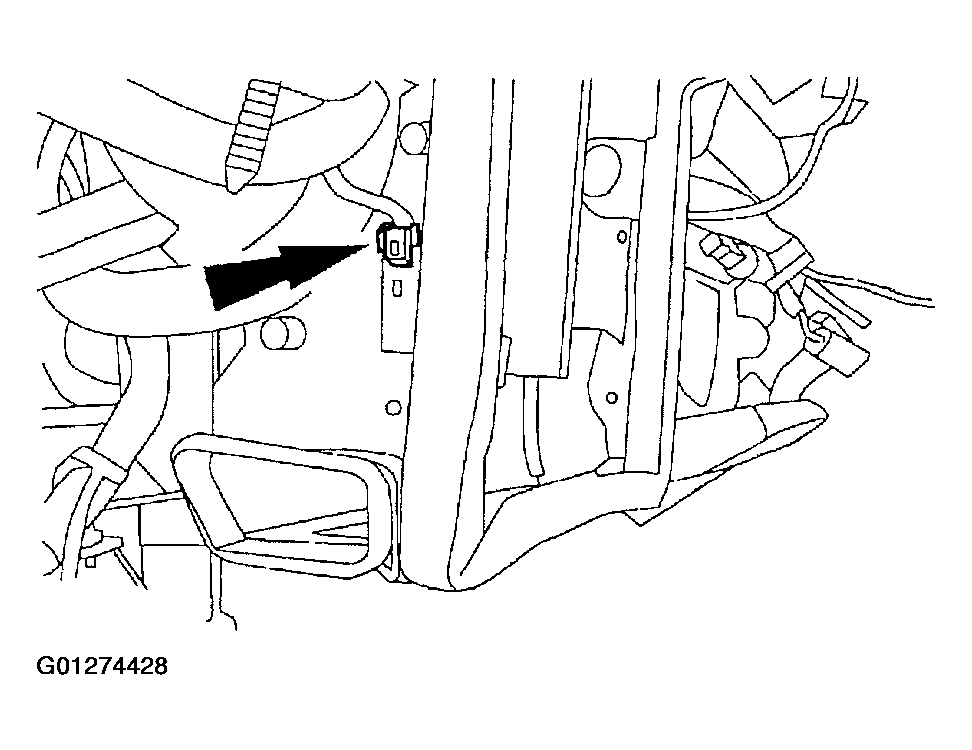

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Do not twist the sensor during the removal process. Twisting may damage the sensor or the housing.

Fig 2: Removing Sensor

Courtesy of FORD MOTOR CO.

Remove the sensor using a rocking motion.
To install, reverse the removal procedure.
