Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the evaporator core housing. For additional information, see EVAPORATOR CORE HOUSING .
Disconnect the connector.

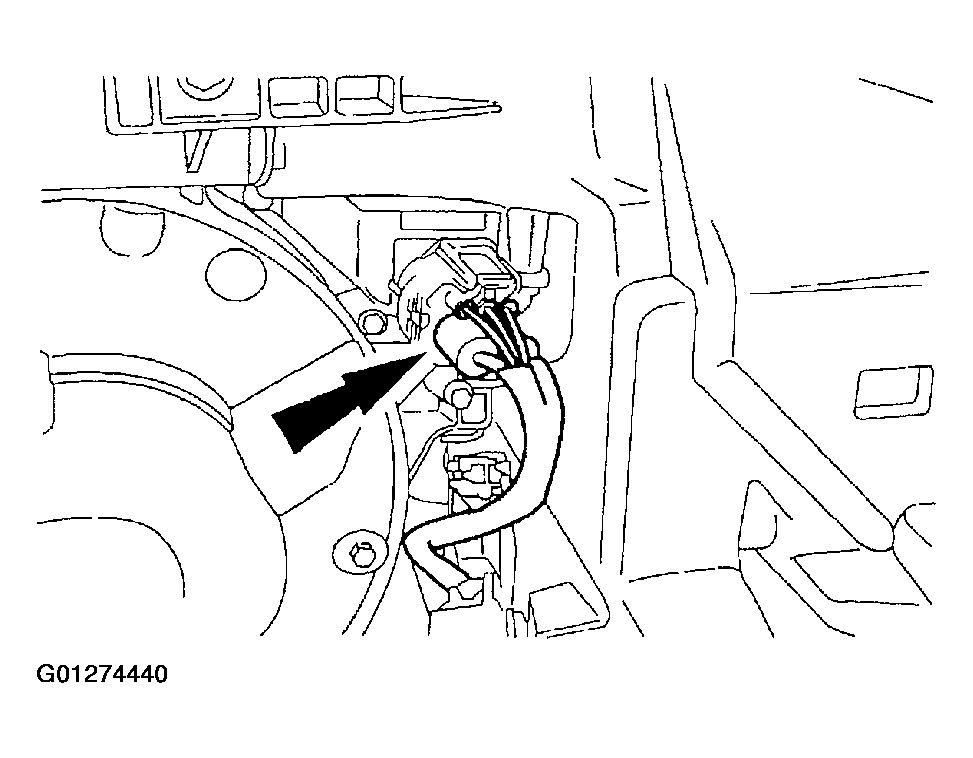

Fig 1: Disconnect Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws which attach the air inlet housing to the evaporator core housing.

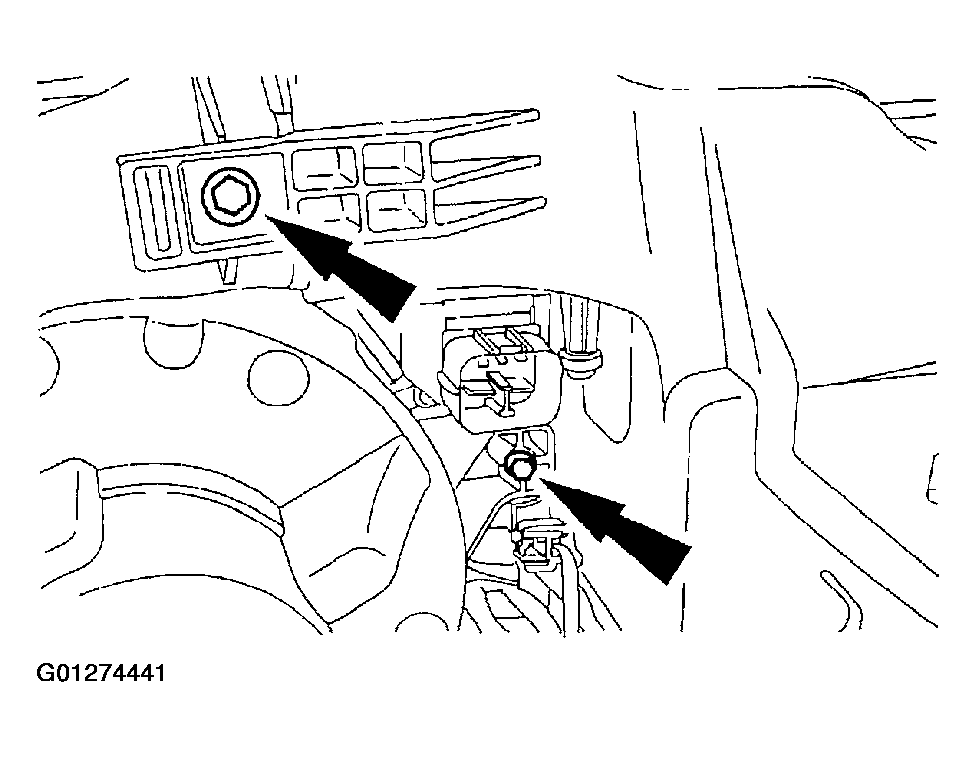

Fig 2: Remove Air Inlet Housing To Evaporator Core Housing Screws
Courtesy of FORD MOTOR CO.
Remove the blower motor speed control mounting screw.

Fig 3: Removing Blower Motor Speed Control Mounting Screws
Courtesy of FORD MOTOR CO.
Disengage the clip, separate the air inlet and evaporator housings and remove the blower motor speed control.

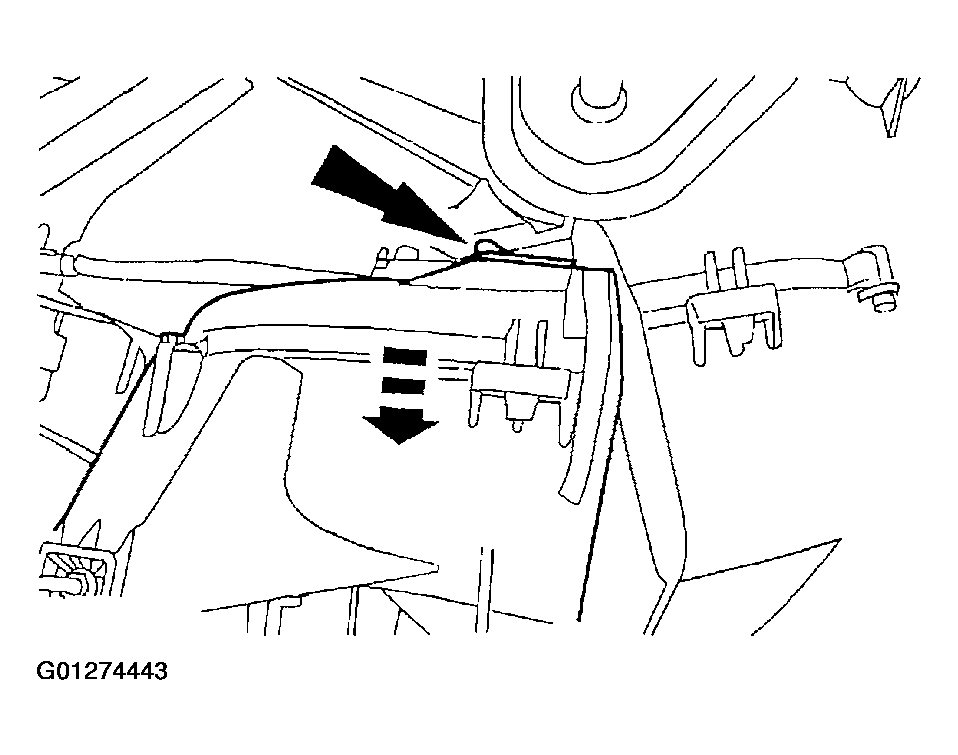

Fig 4: Separating Air Inlet & Evaporator Housings
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
