Test B: Doors Do Not Lock/Unlock Using the Remote Transmitter

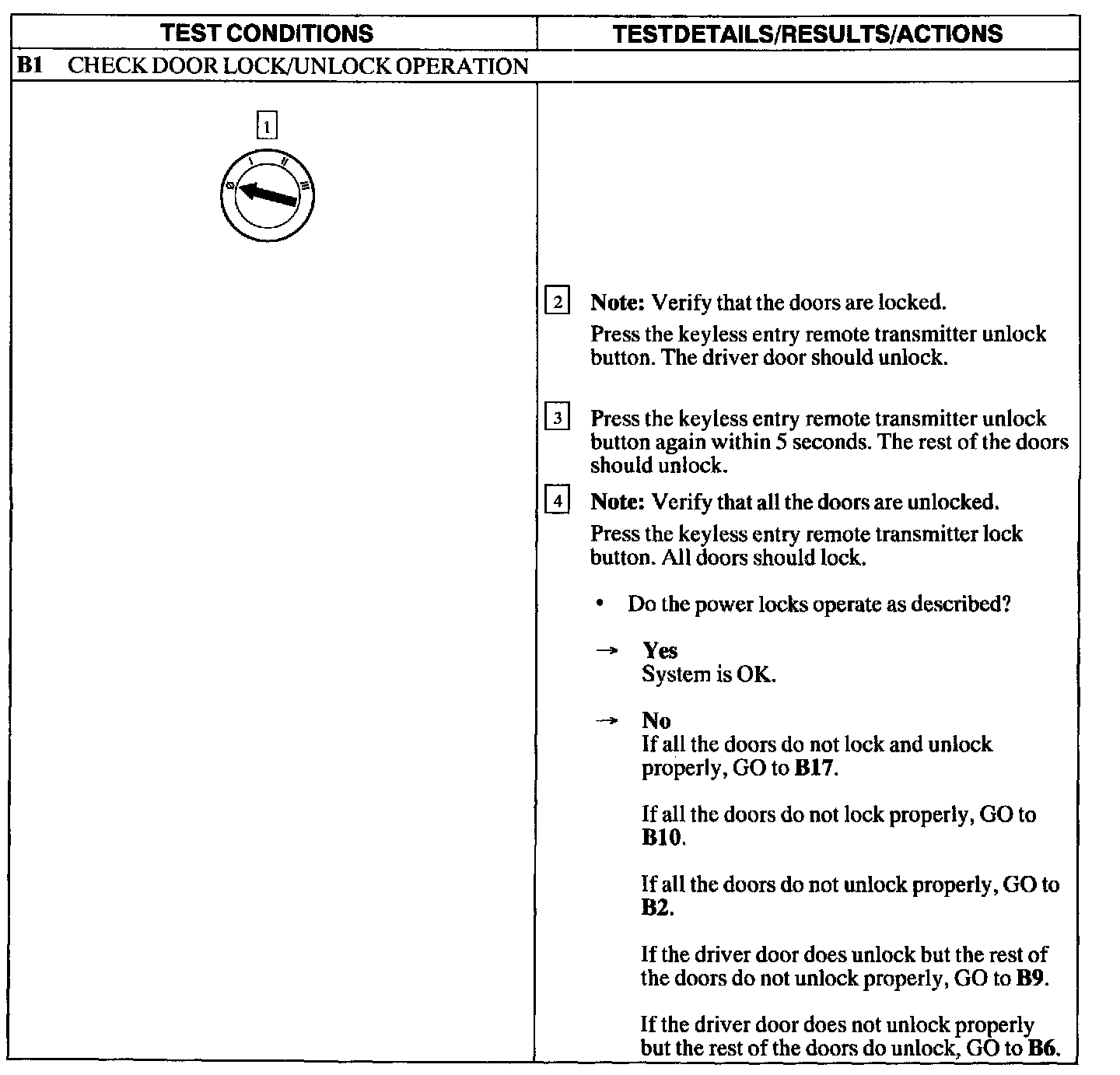

B1:






B2:

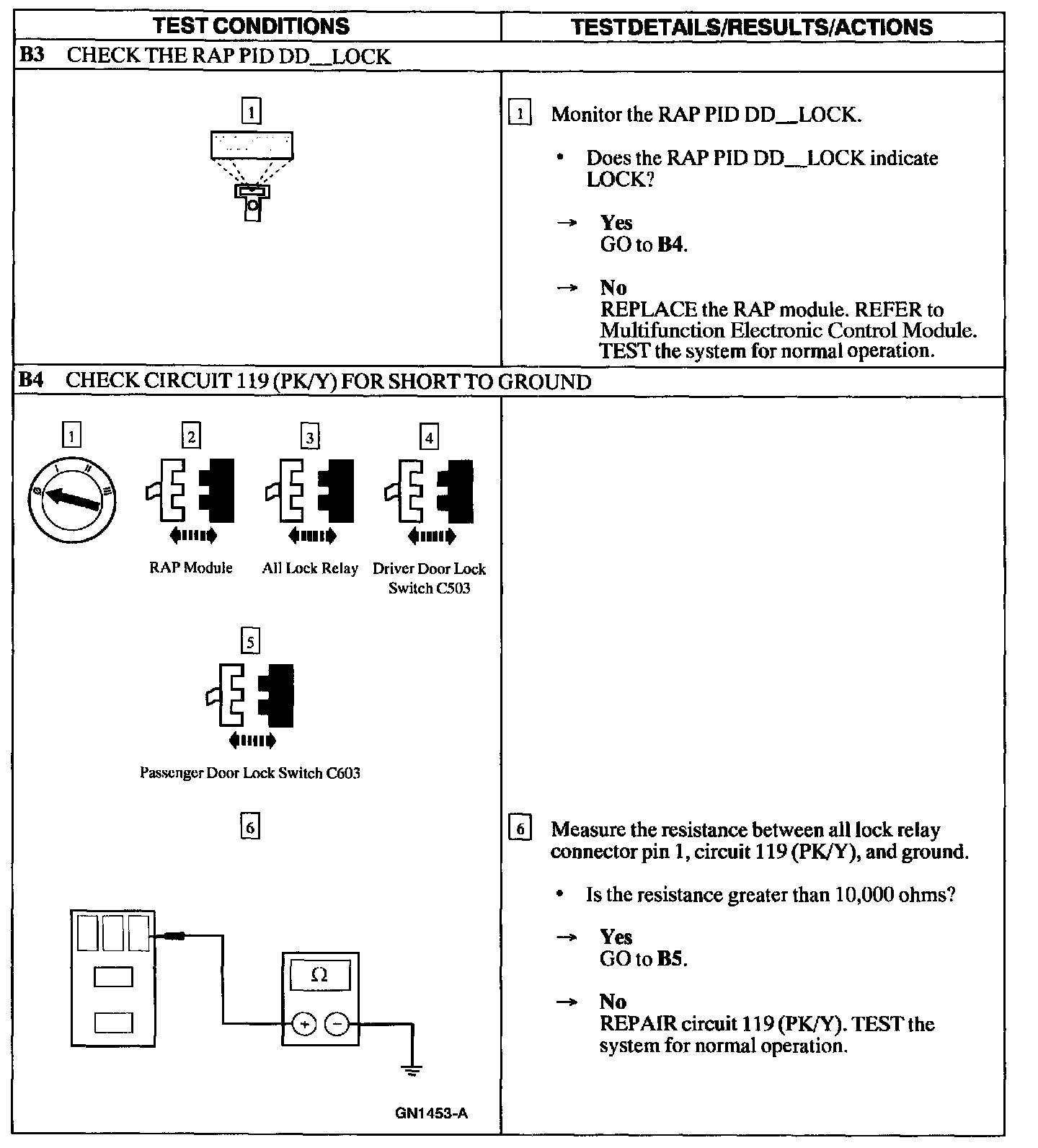

B3 - B4:

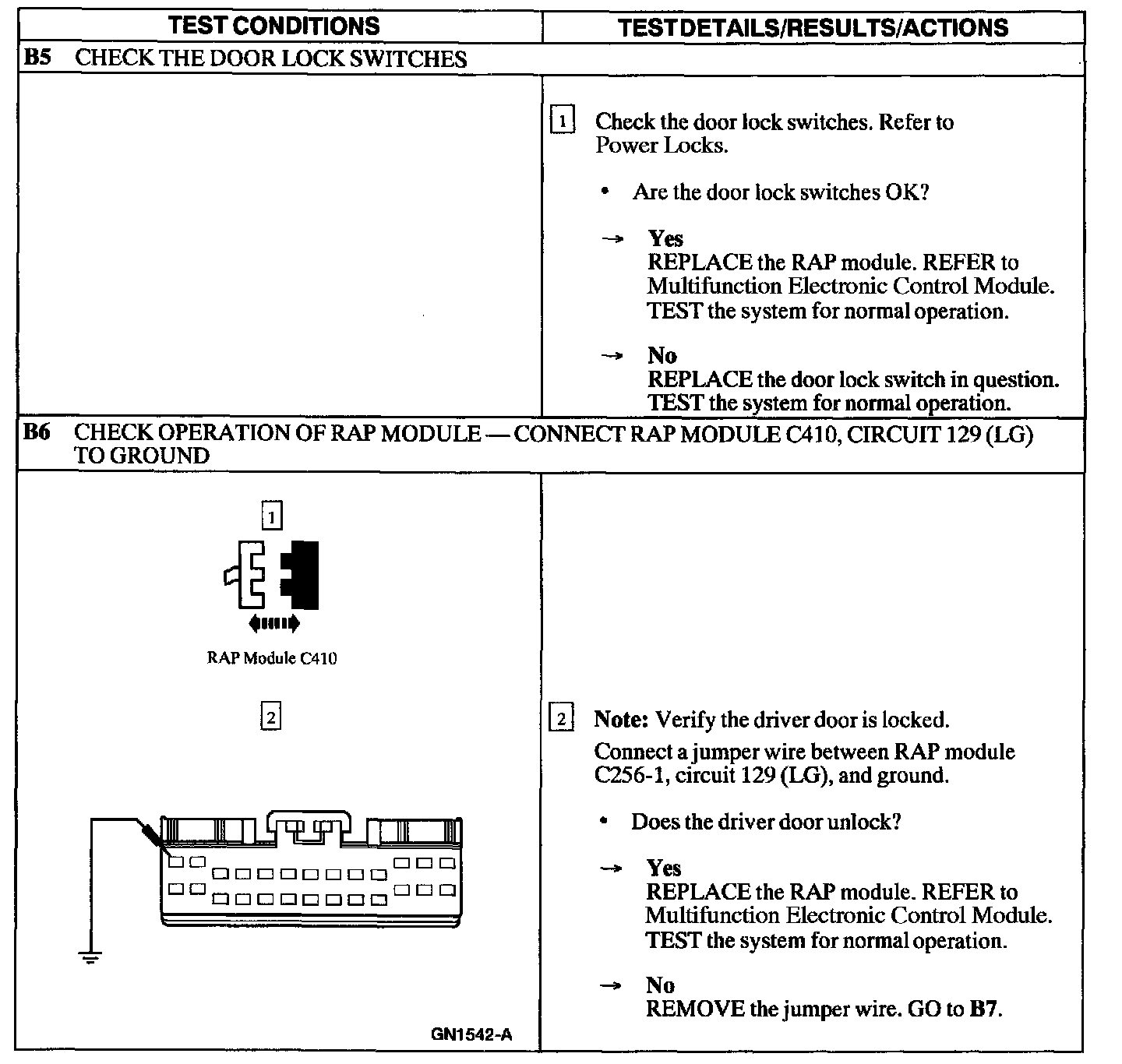

B5 - B6:

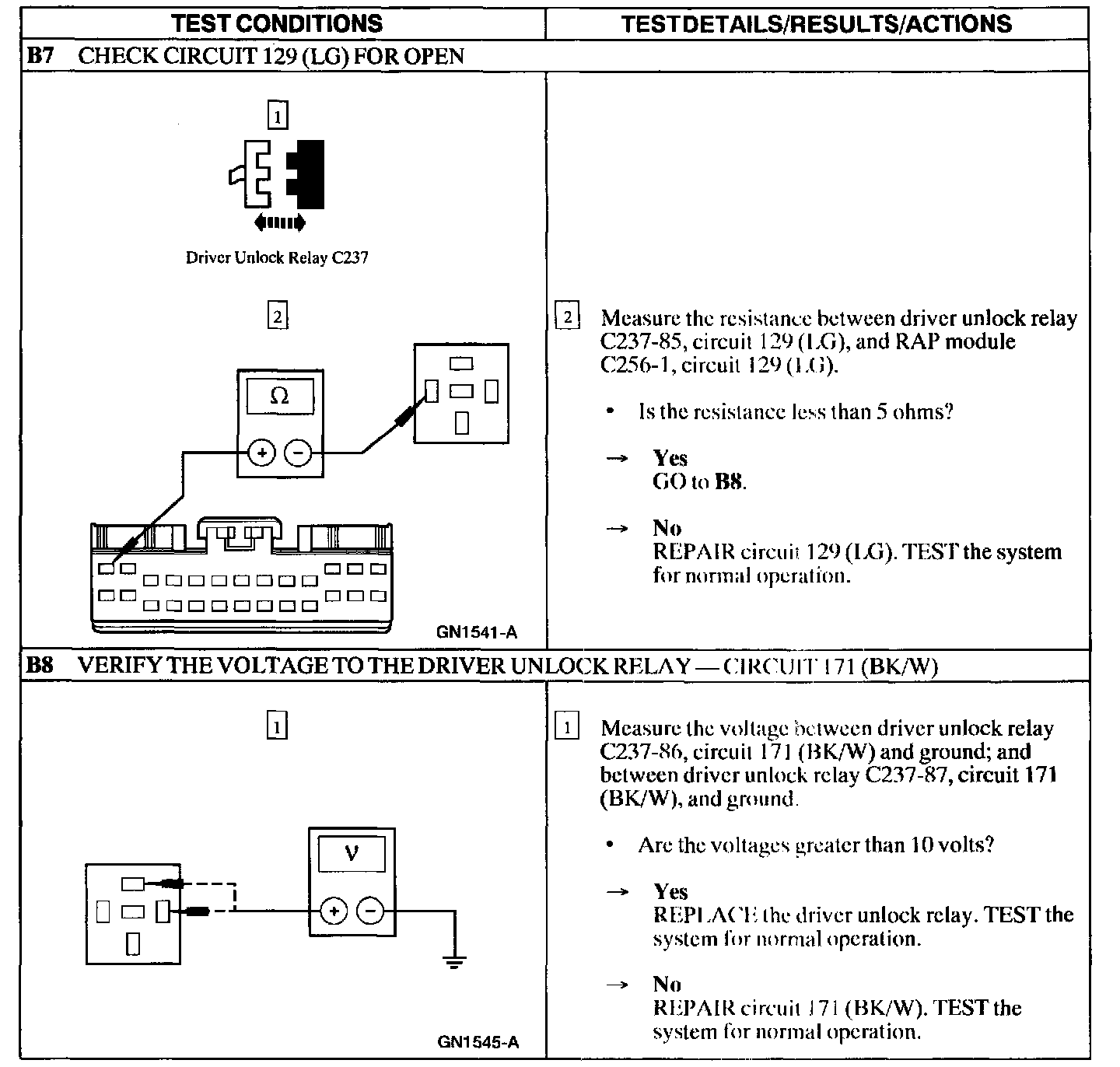

B7 - B8:

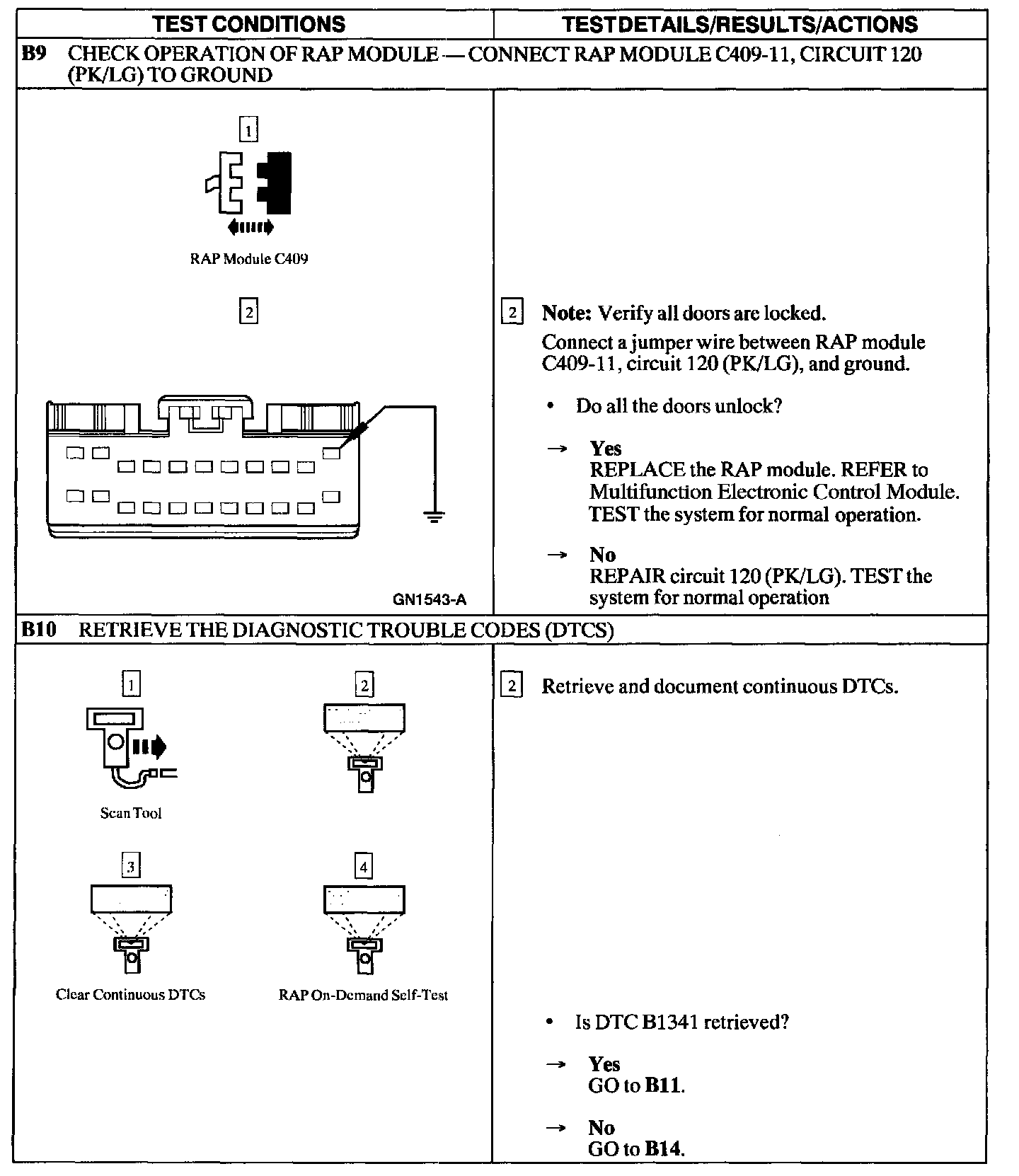

B9 - B10:

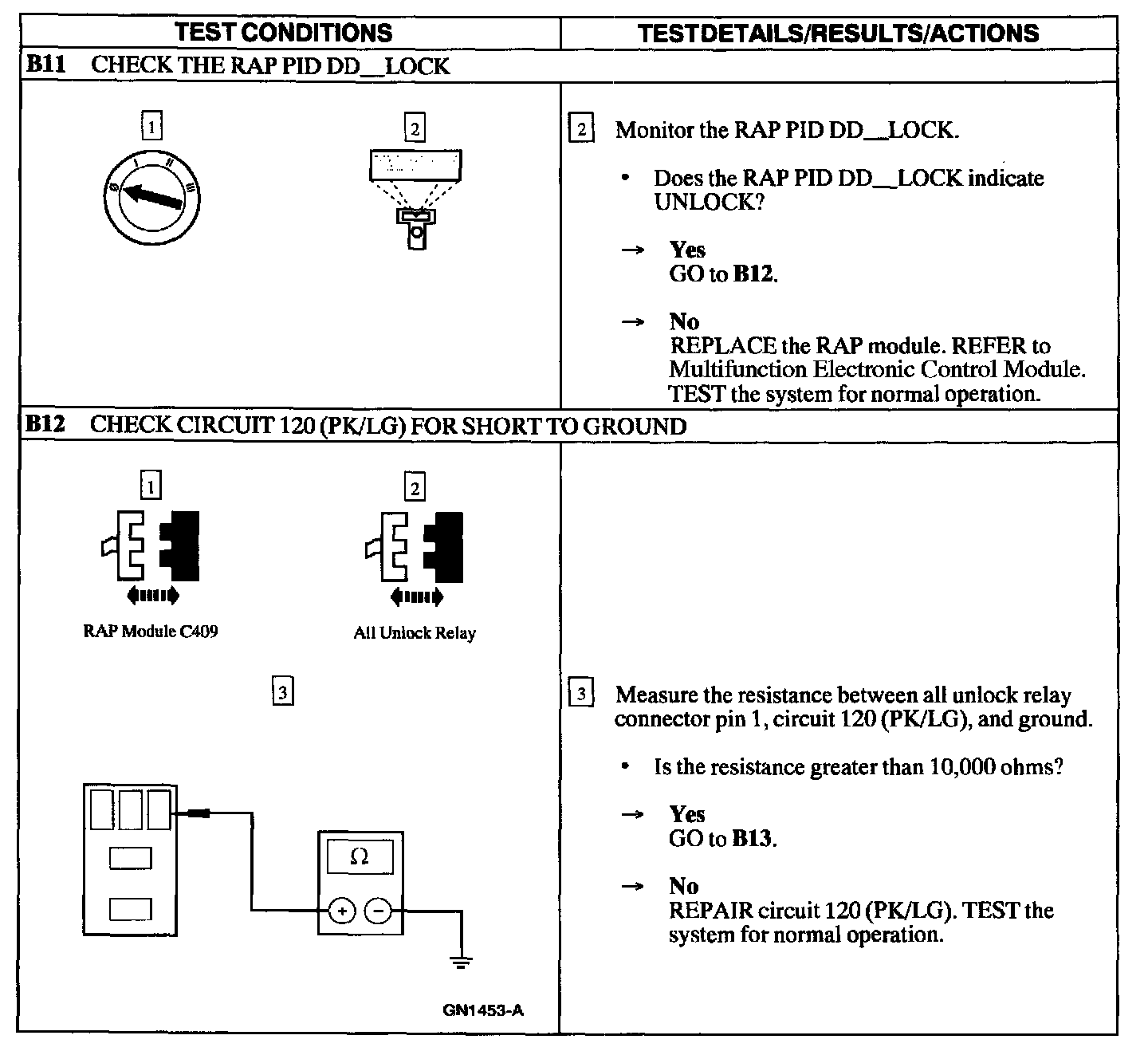

B11 - B12:

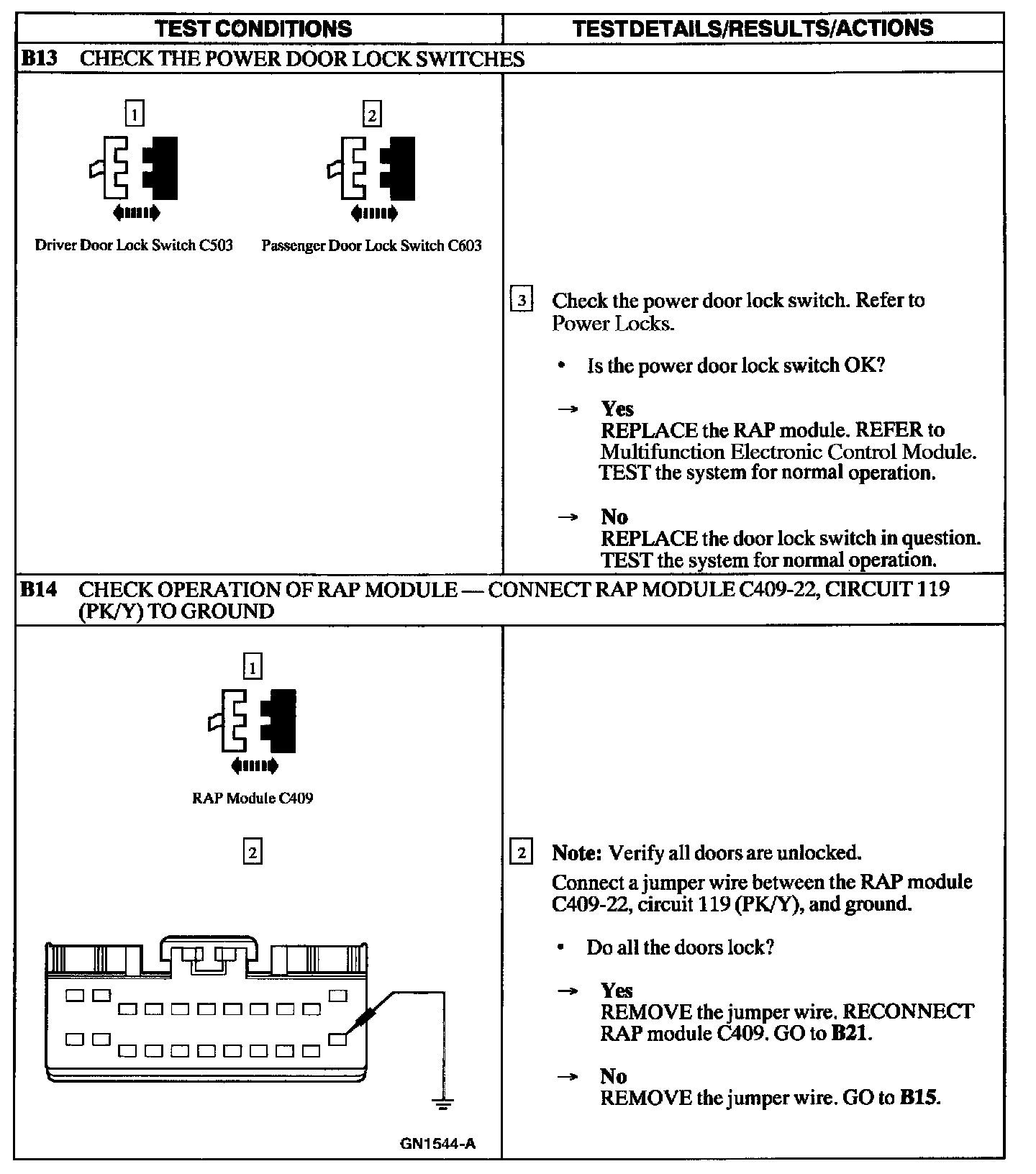

B13 - B14:

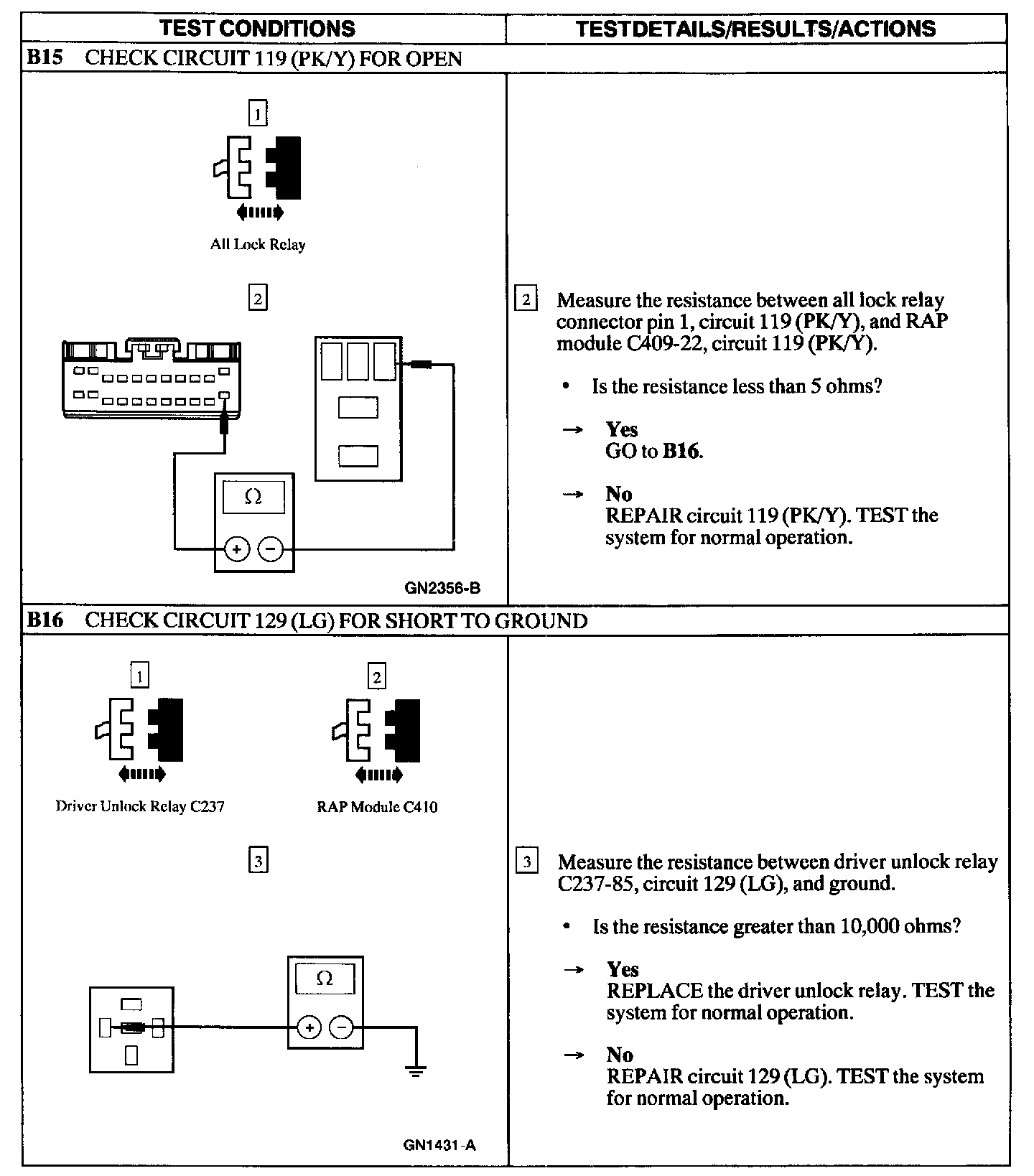

B15 - B16:

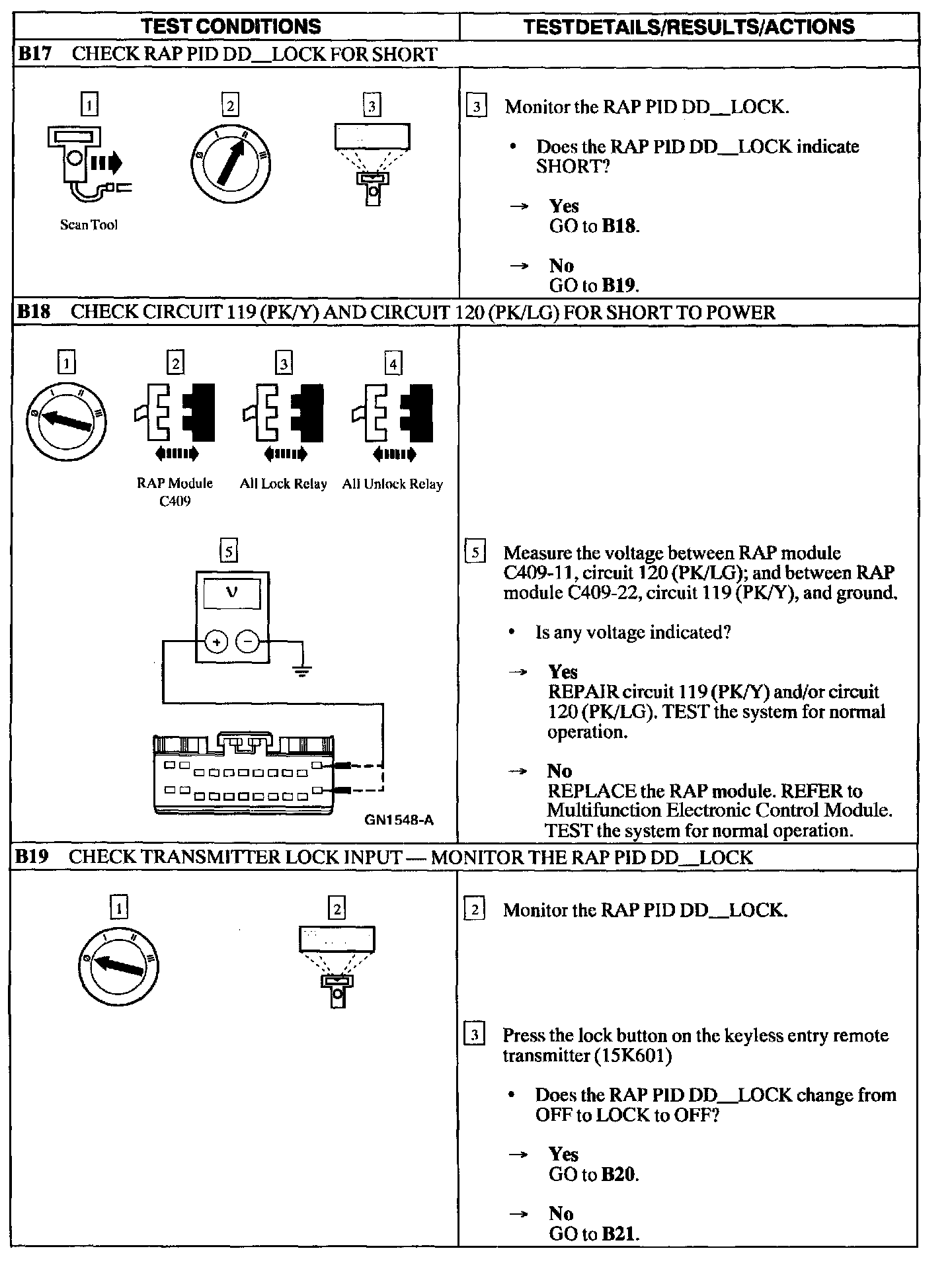

B17 - 19:

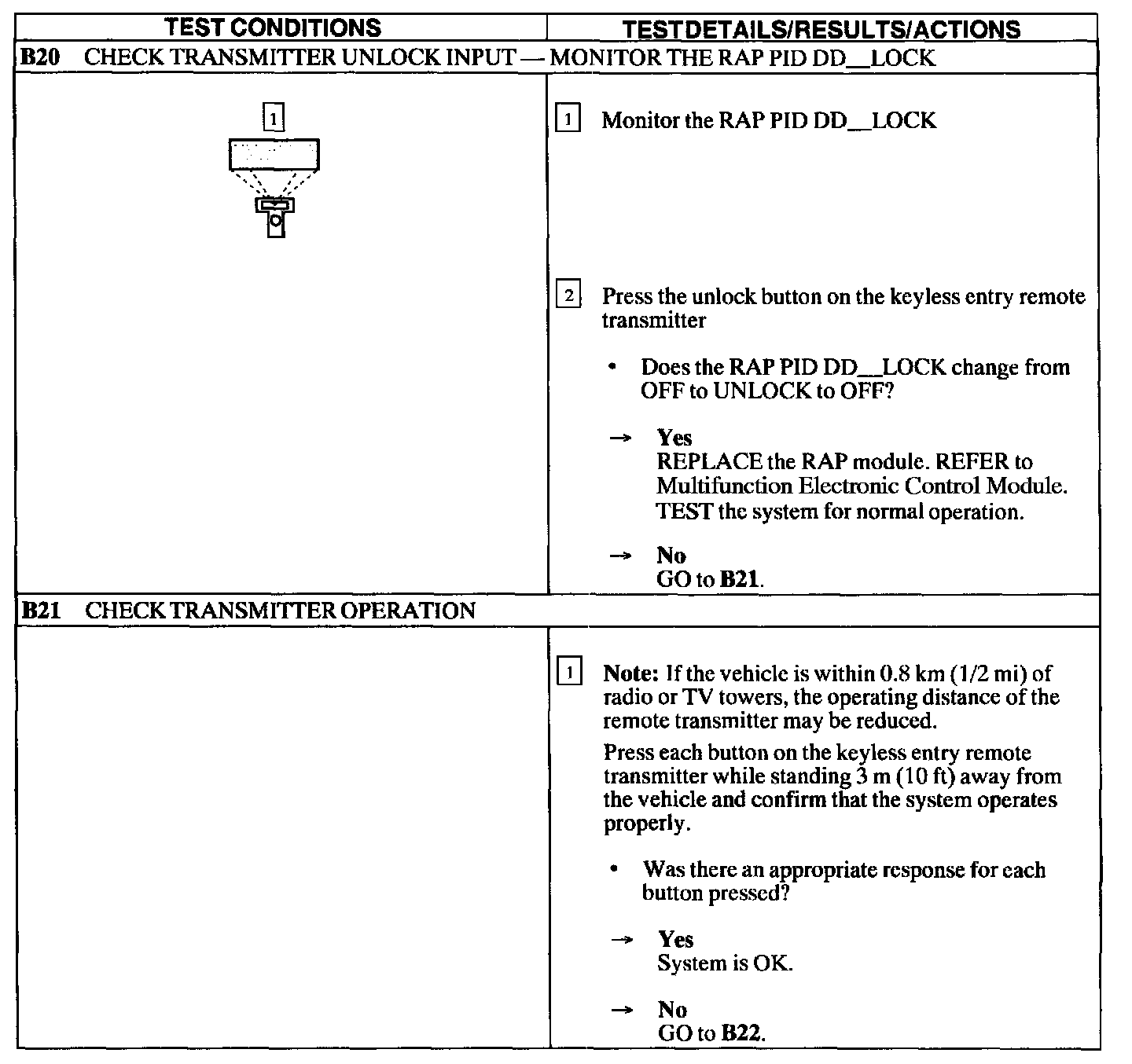

B20 - B21:

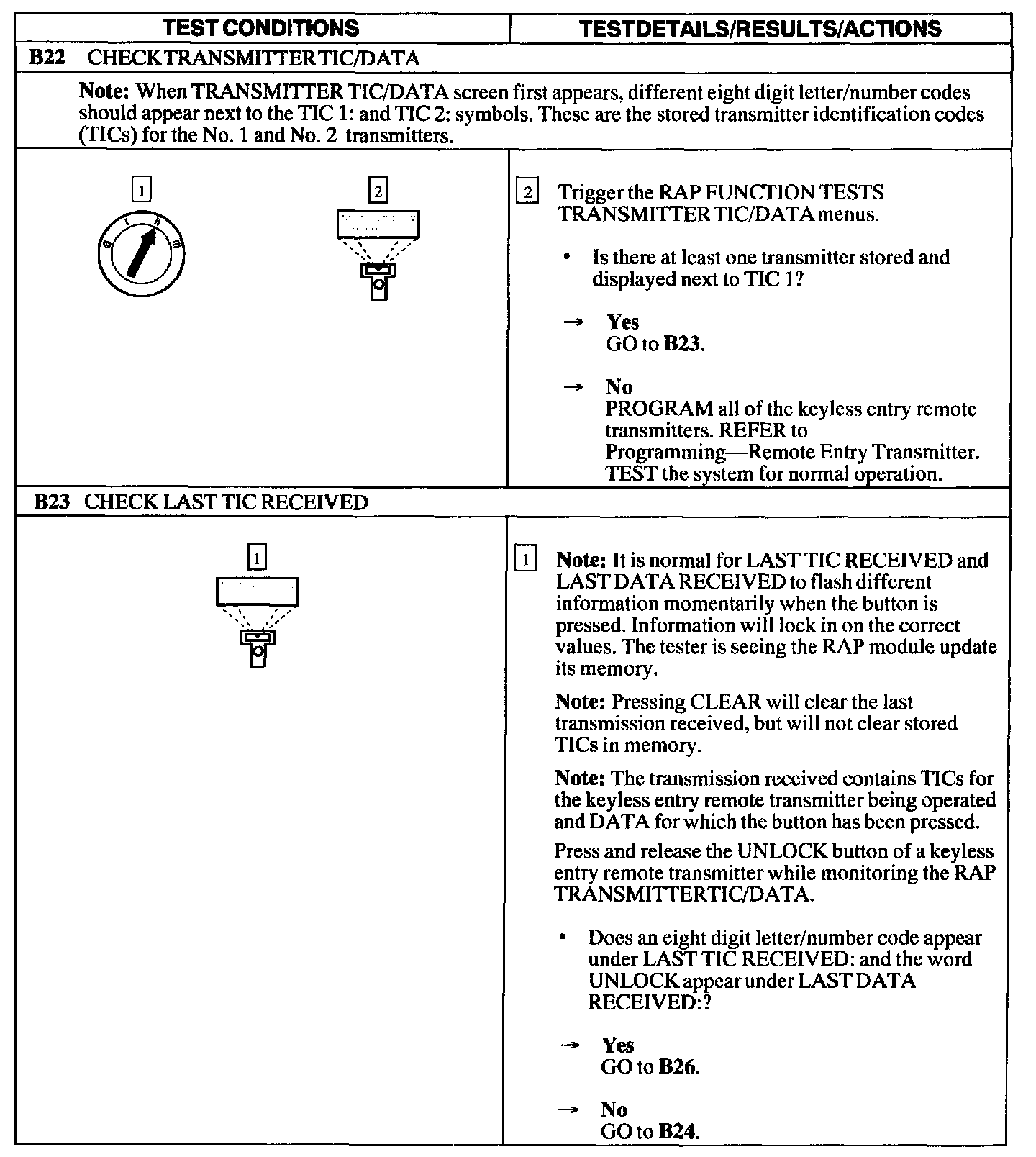

B22 - B23:

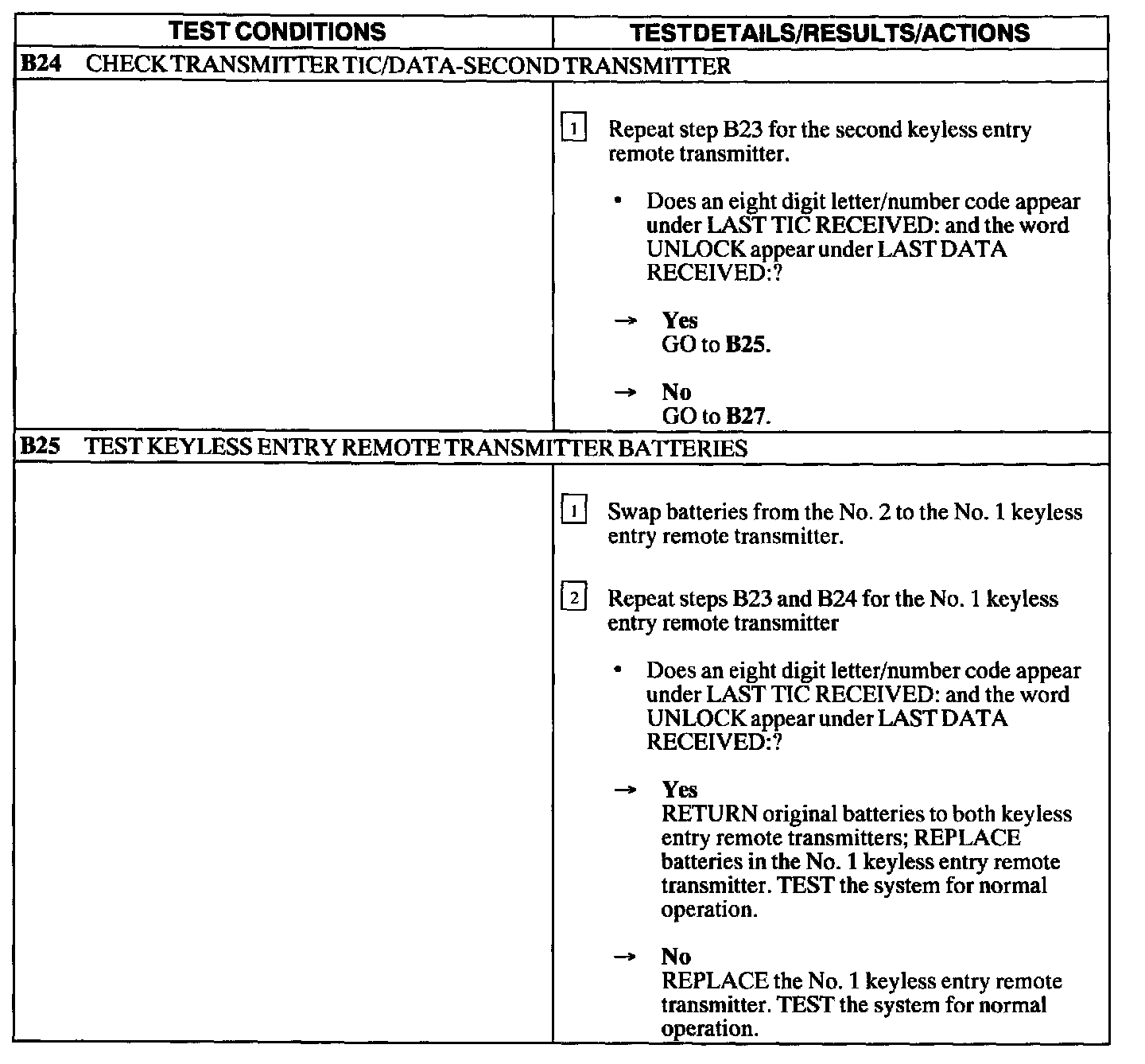

B24 - B25:

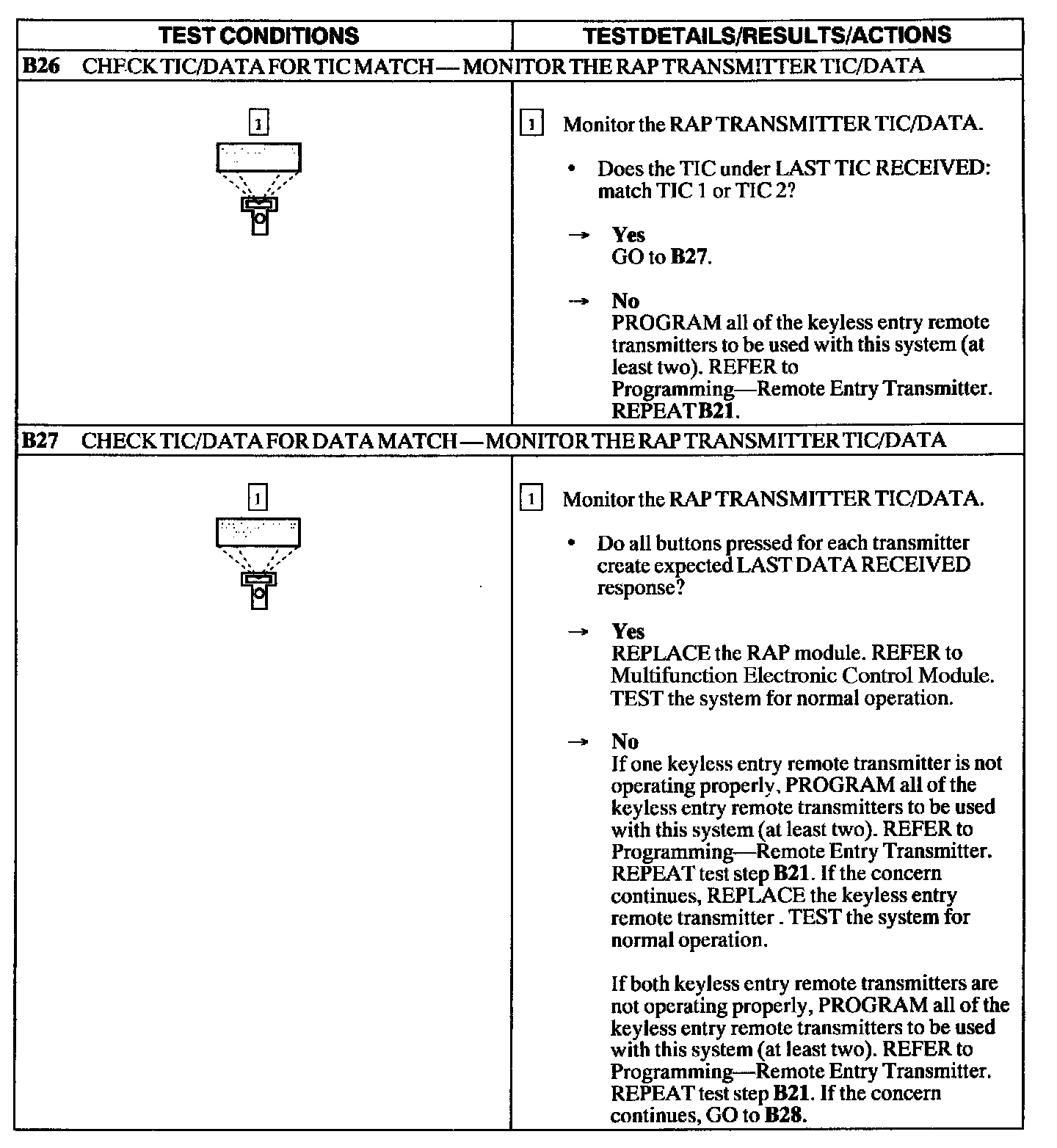

B26 - B27:

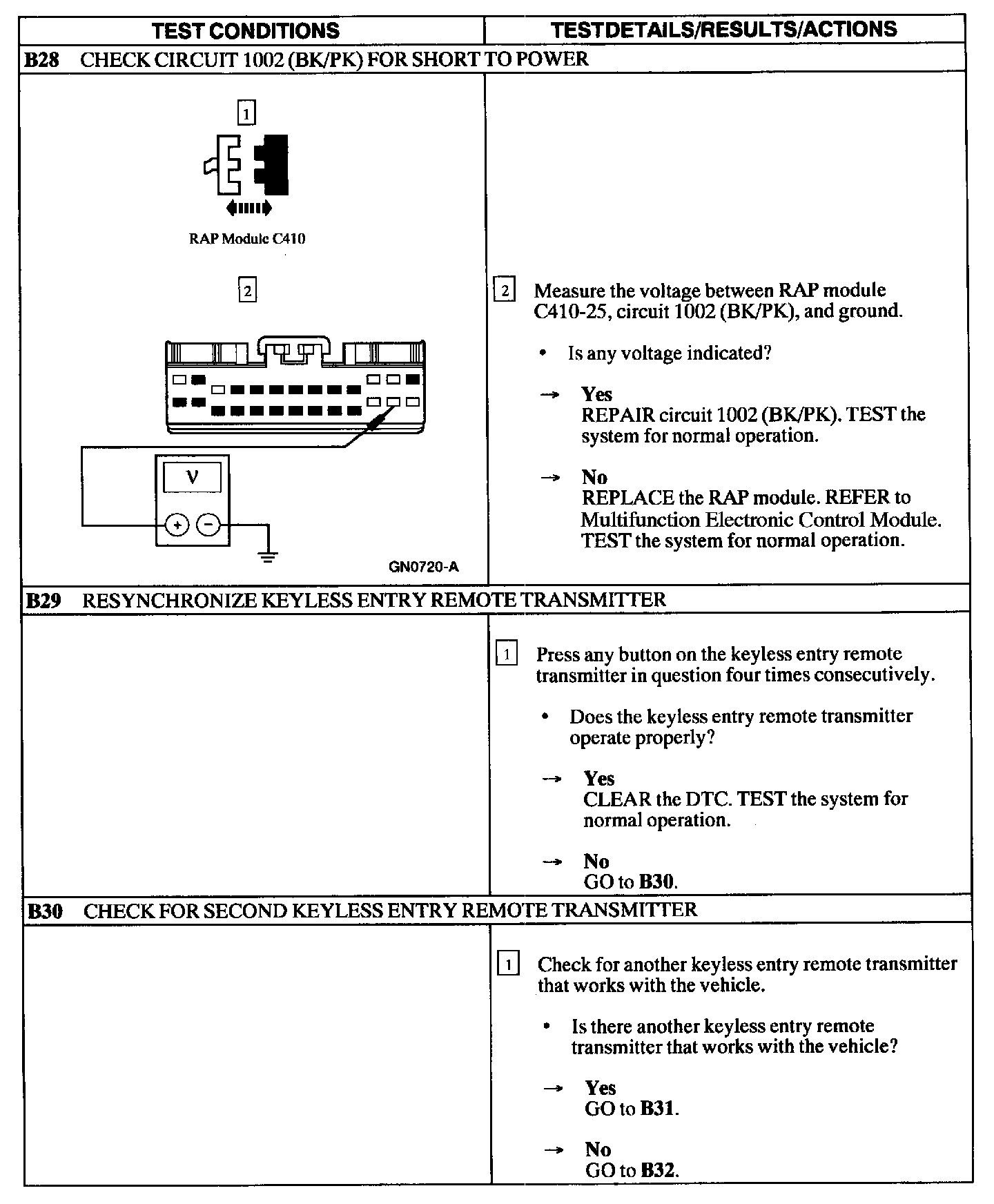

B28 - B30:

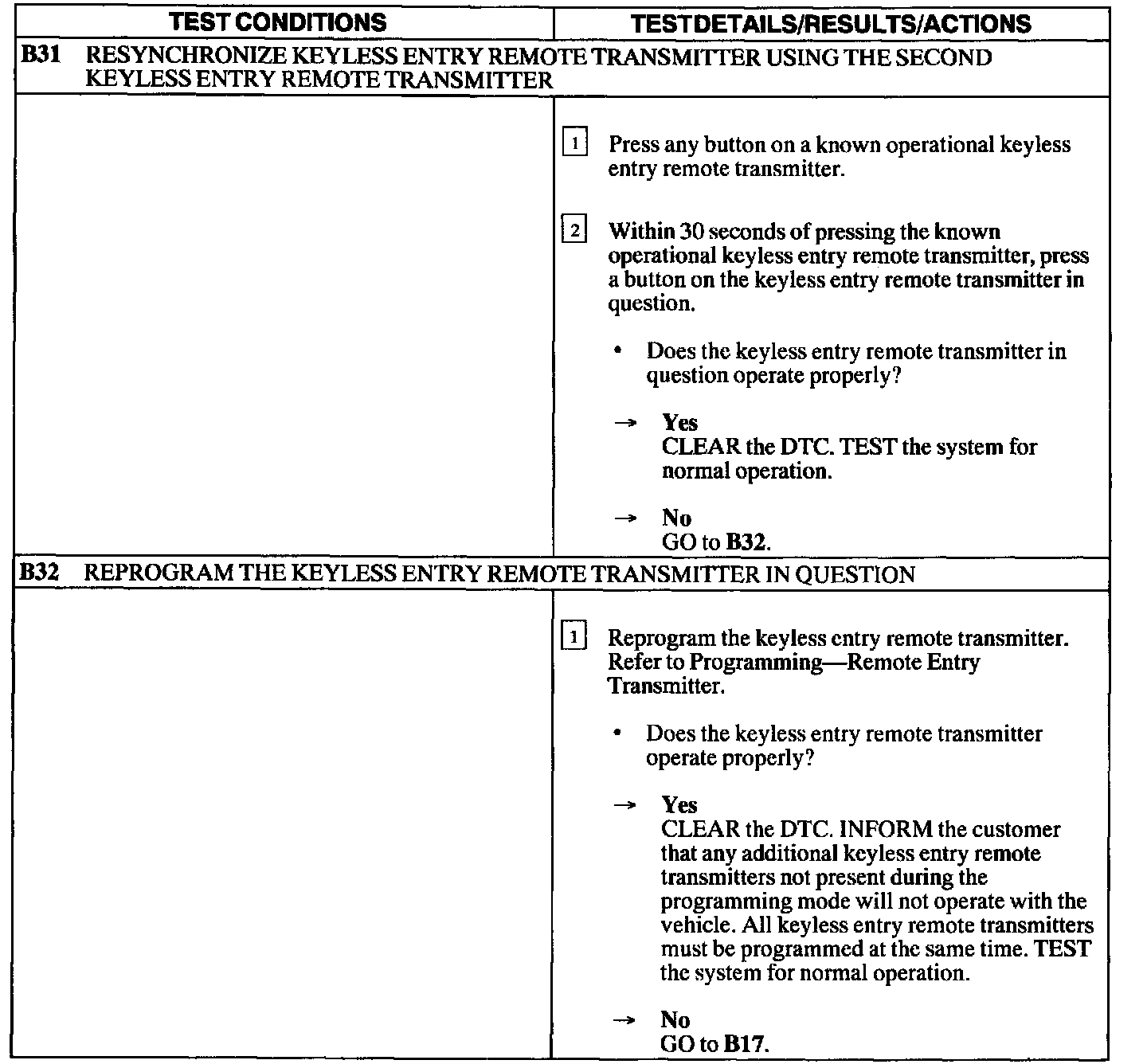

B31 - B32:
