Test A: Speed Control Is Inoperative

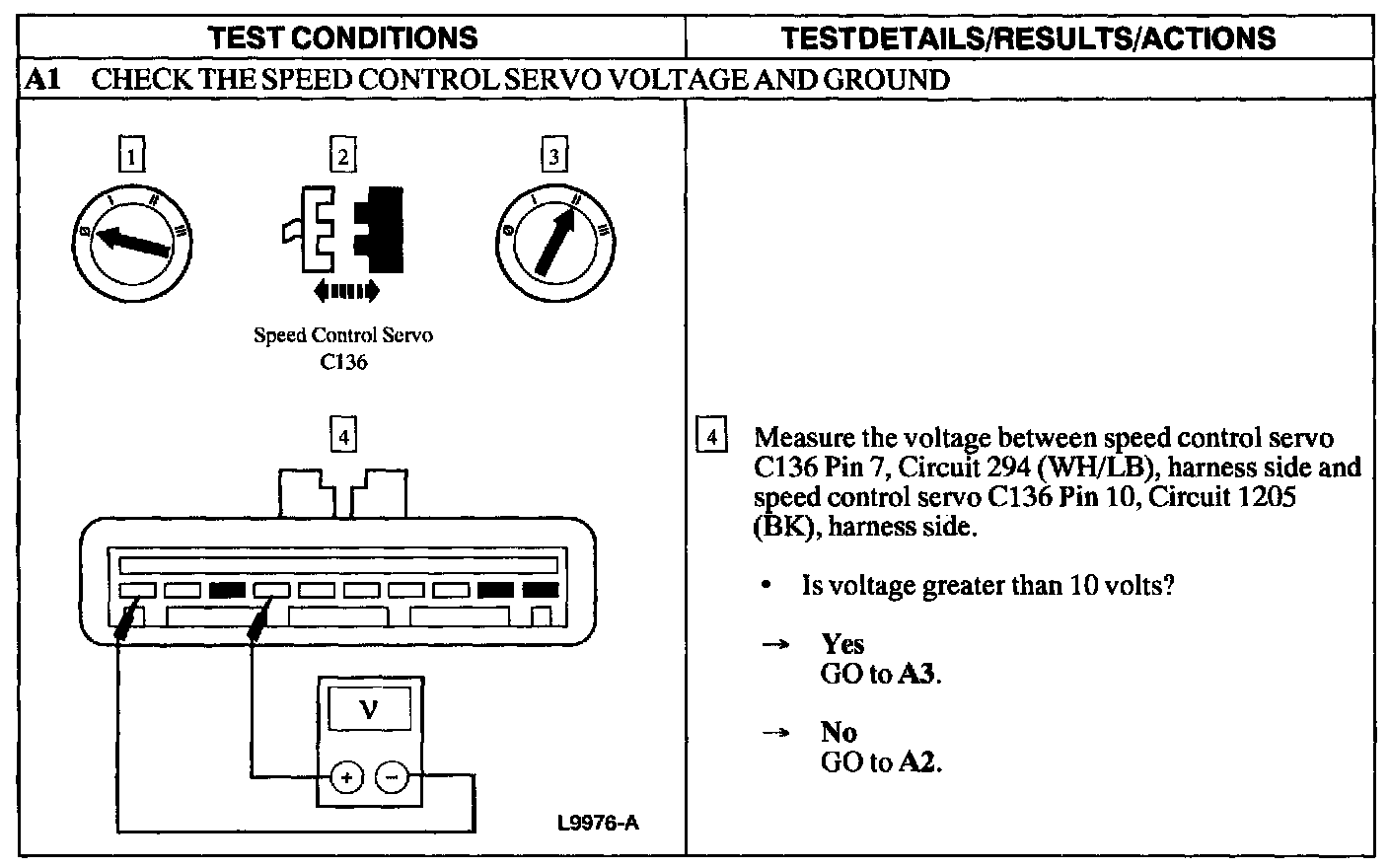

A1:

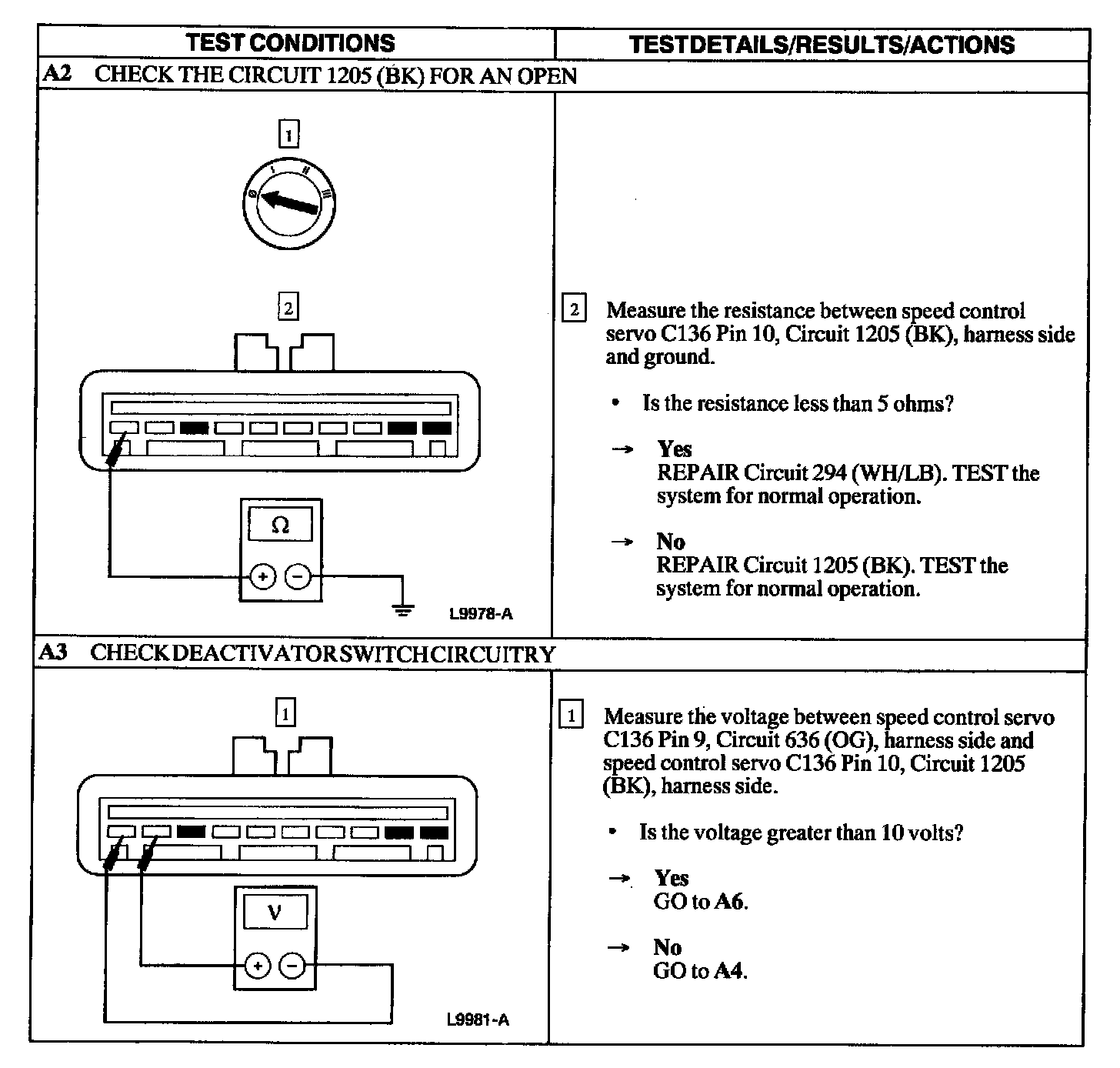

A2 - A3:

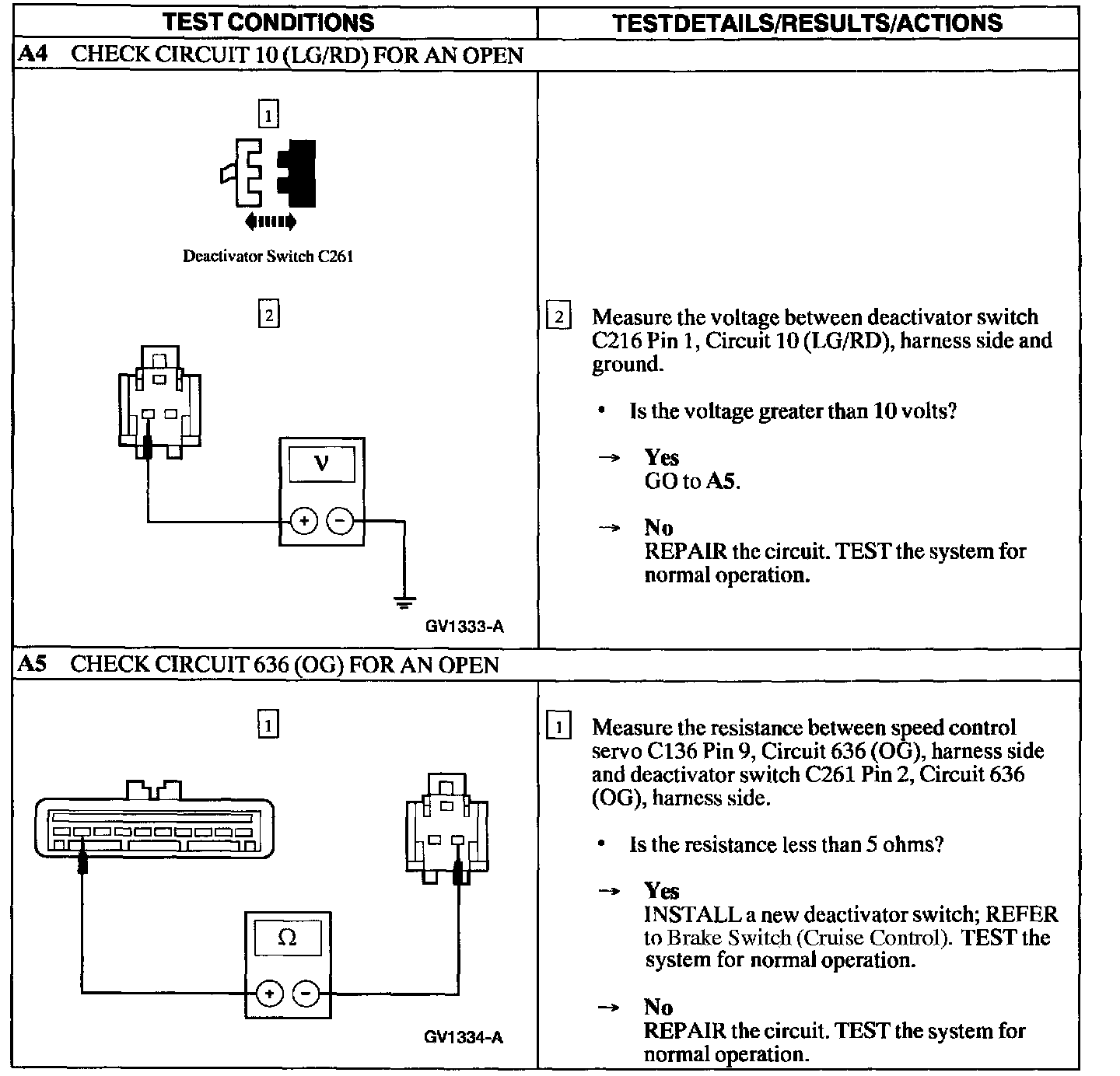

A4 - A5:

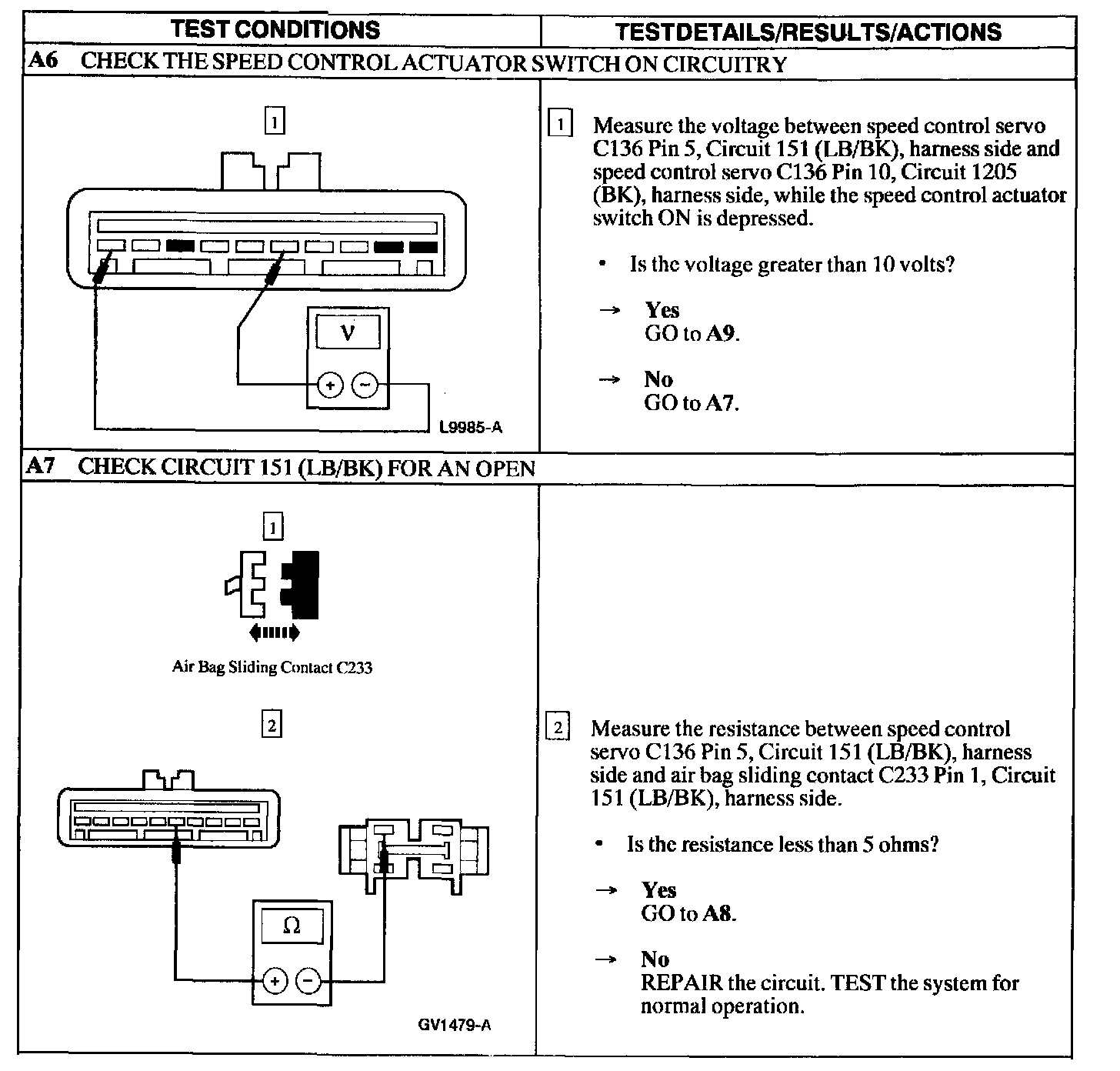

A6 - A7:

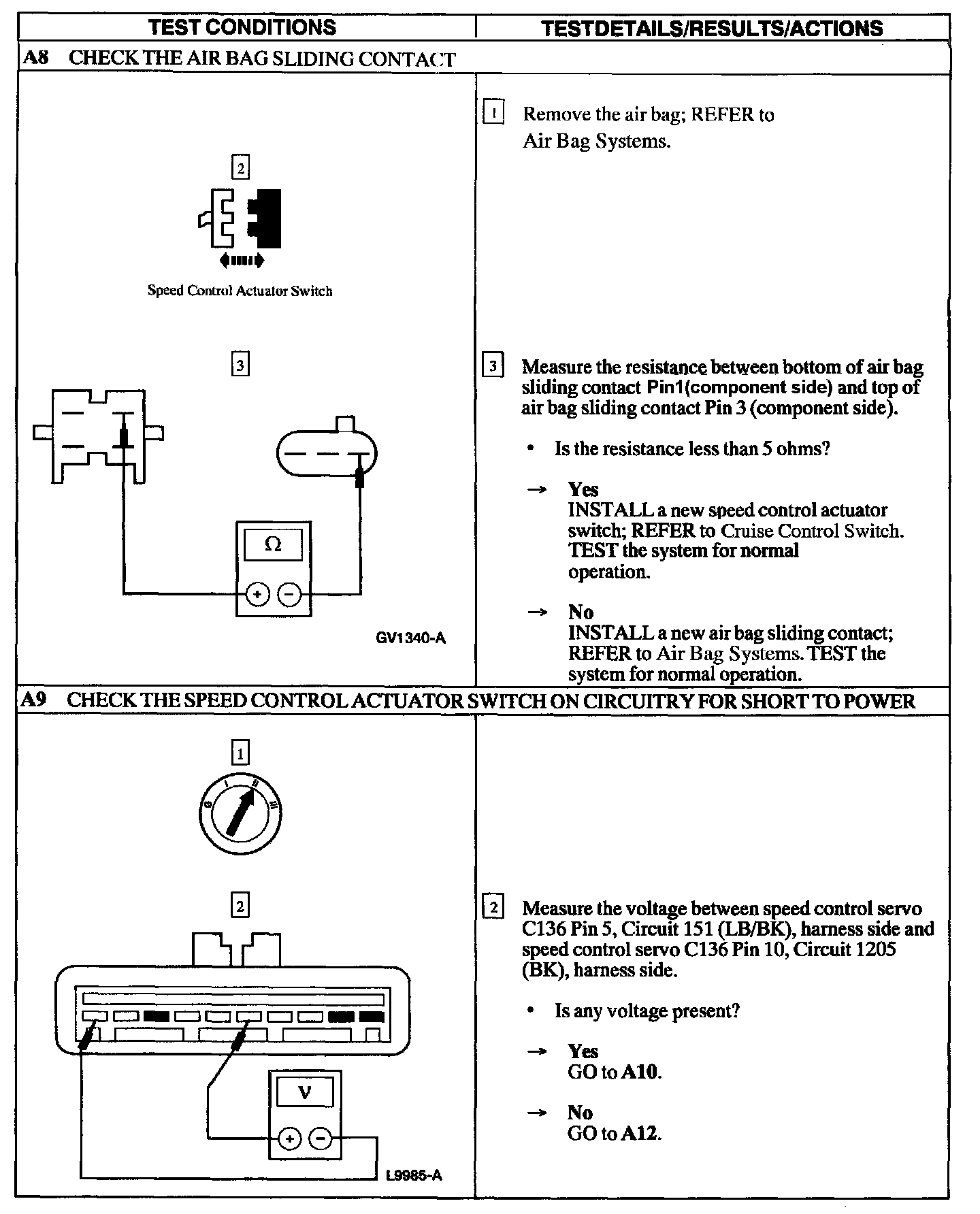

A8 - A9:

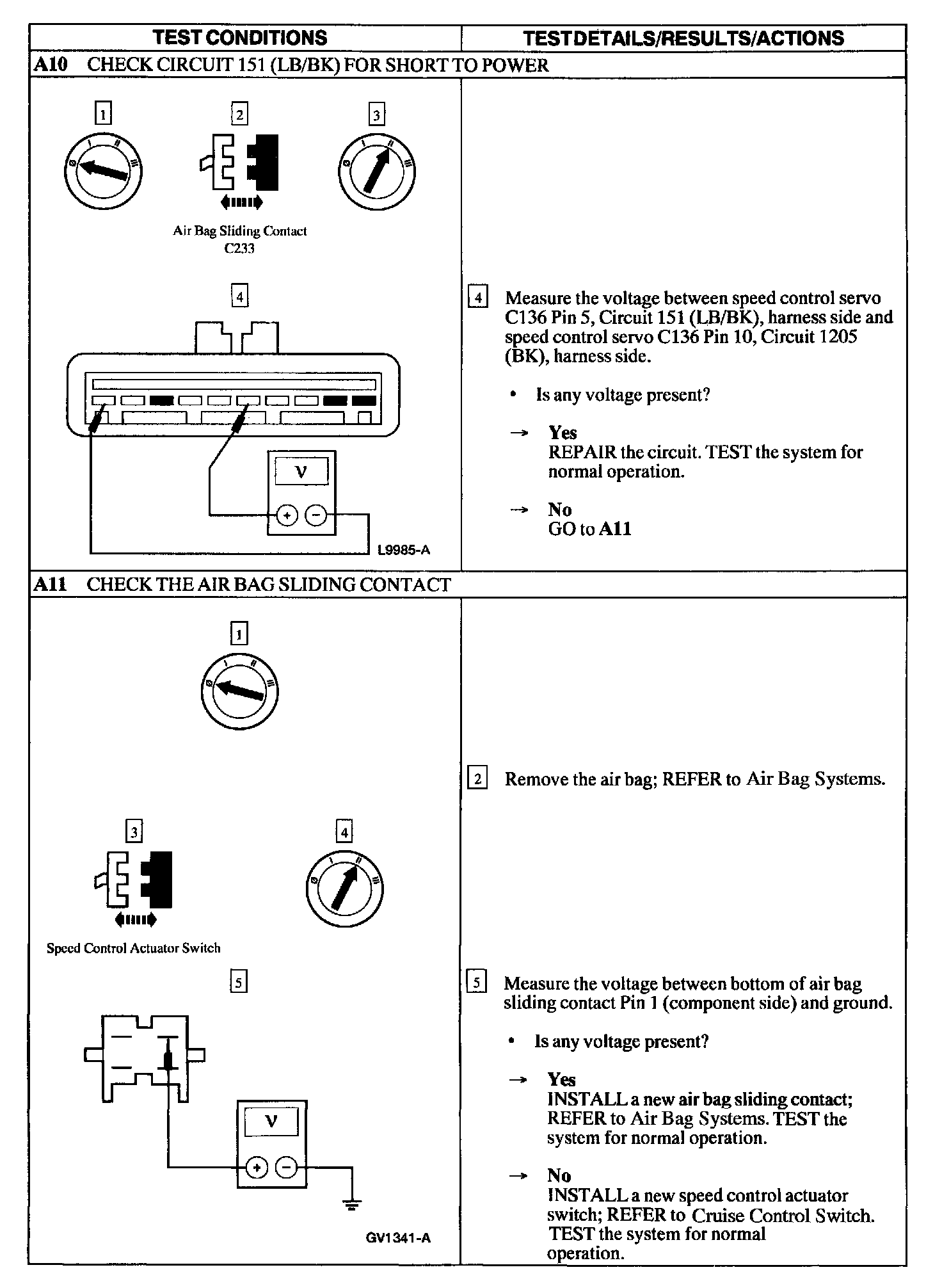

A10 - A11:

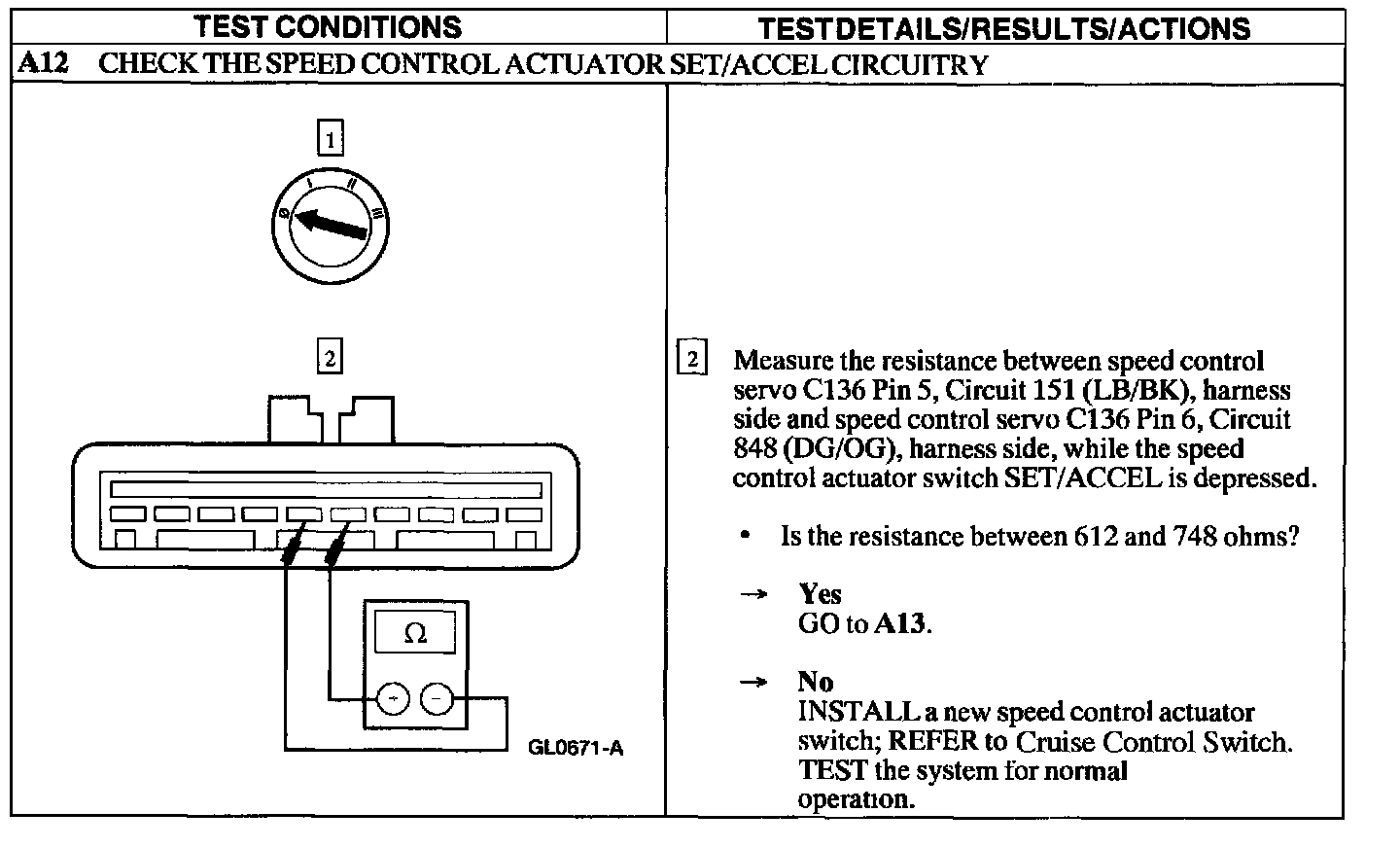

A12:

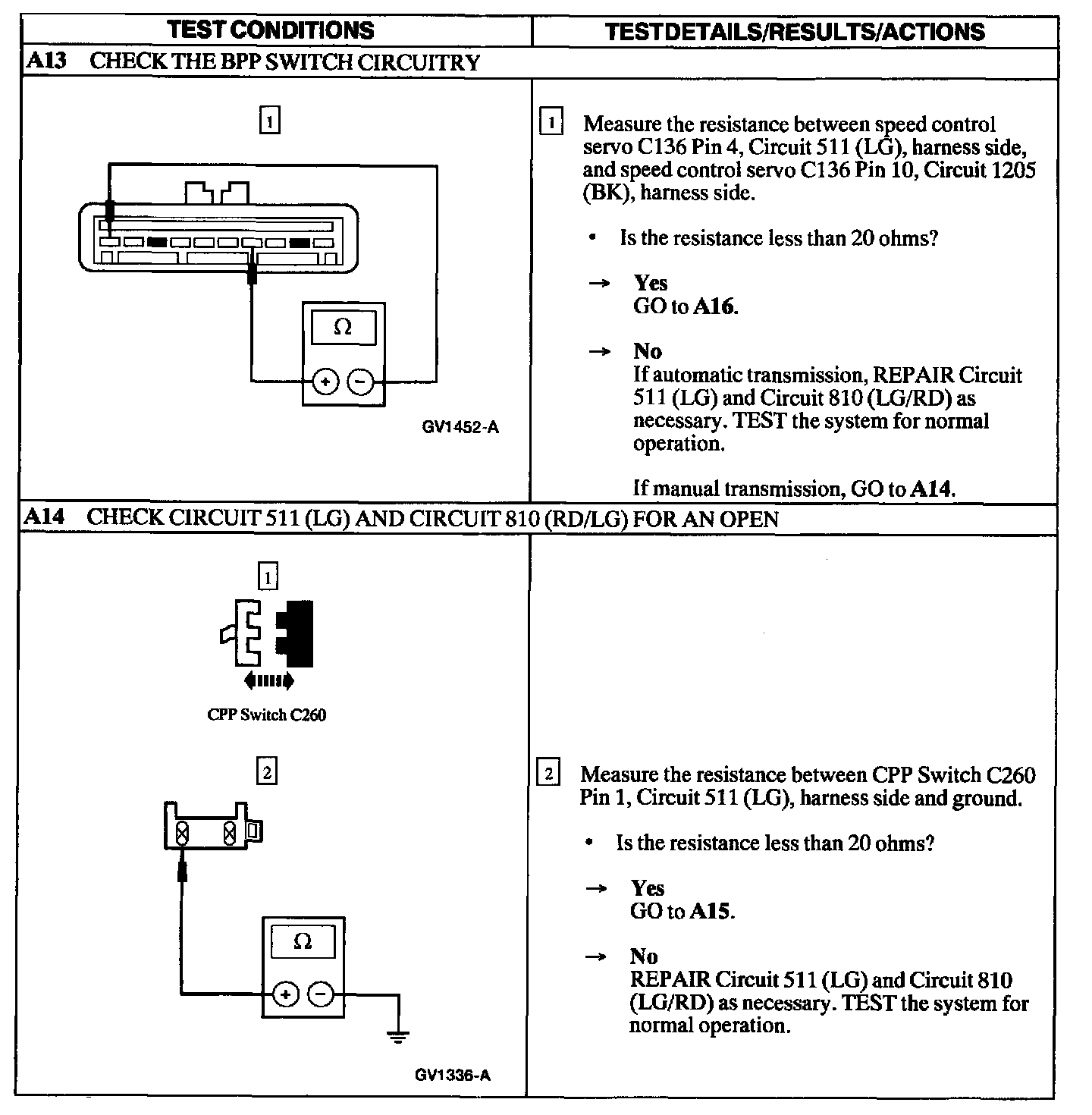

A13 - A14:

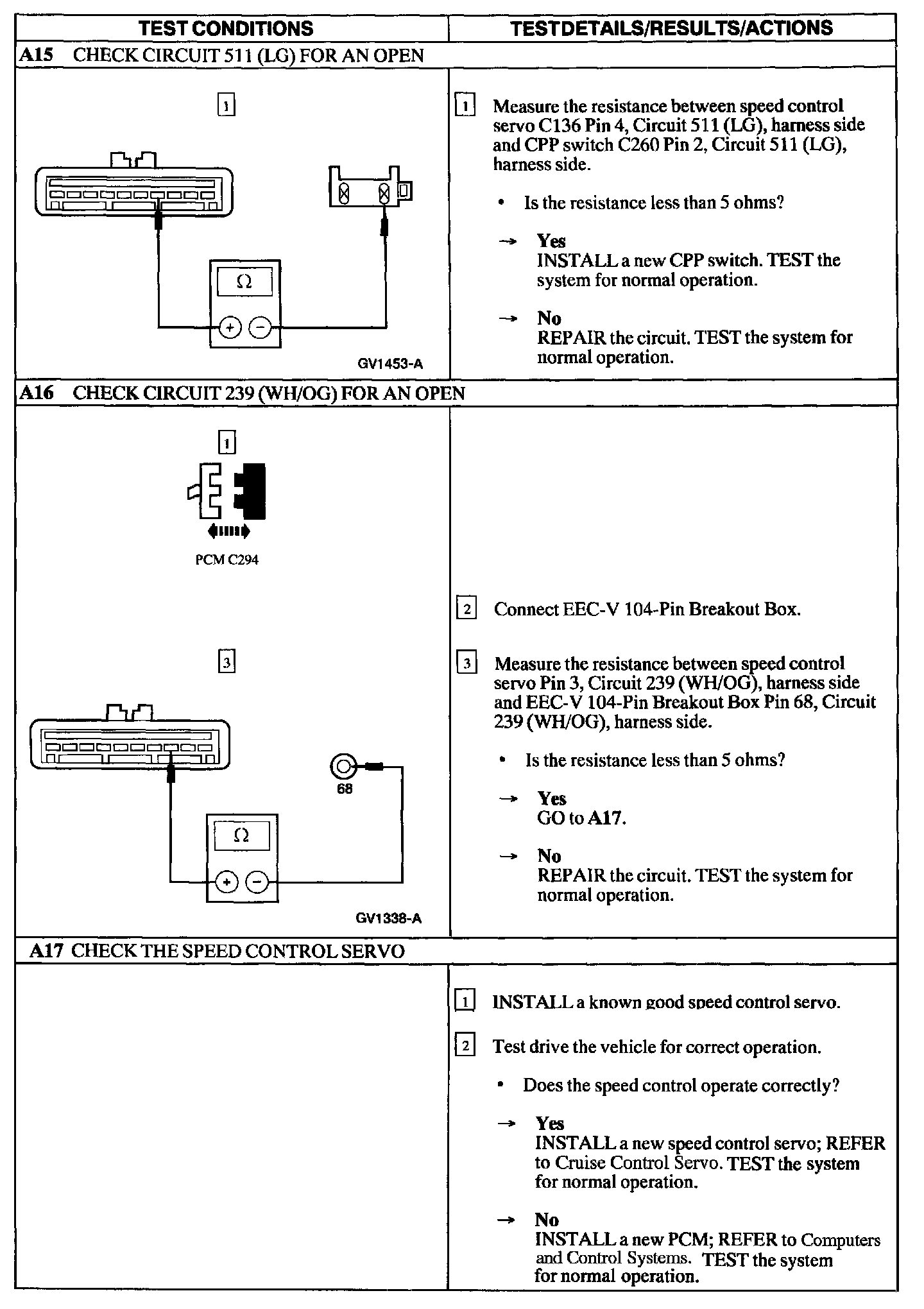

A15 - A17:
