Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the selector lever knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
  2. Remove the selector lever bezel (selector lever assembly removed shown).
    • Unclip the bezel.
    • Unclip the lamp.

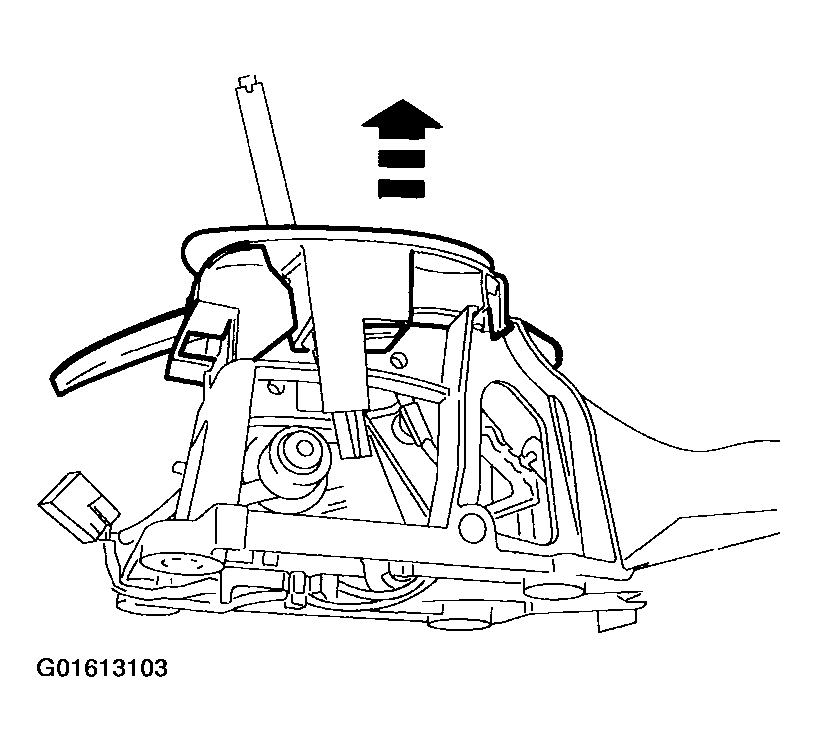

    Fig 1: Removing Selector Lever Bezel
    G01613103Courtesy of FORD MOTOR CO.
