Exploded Views

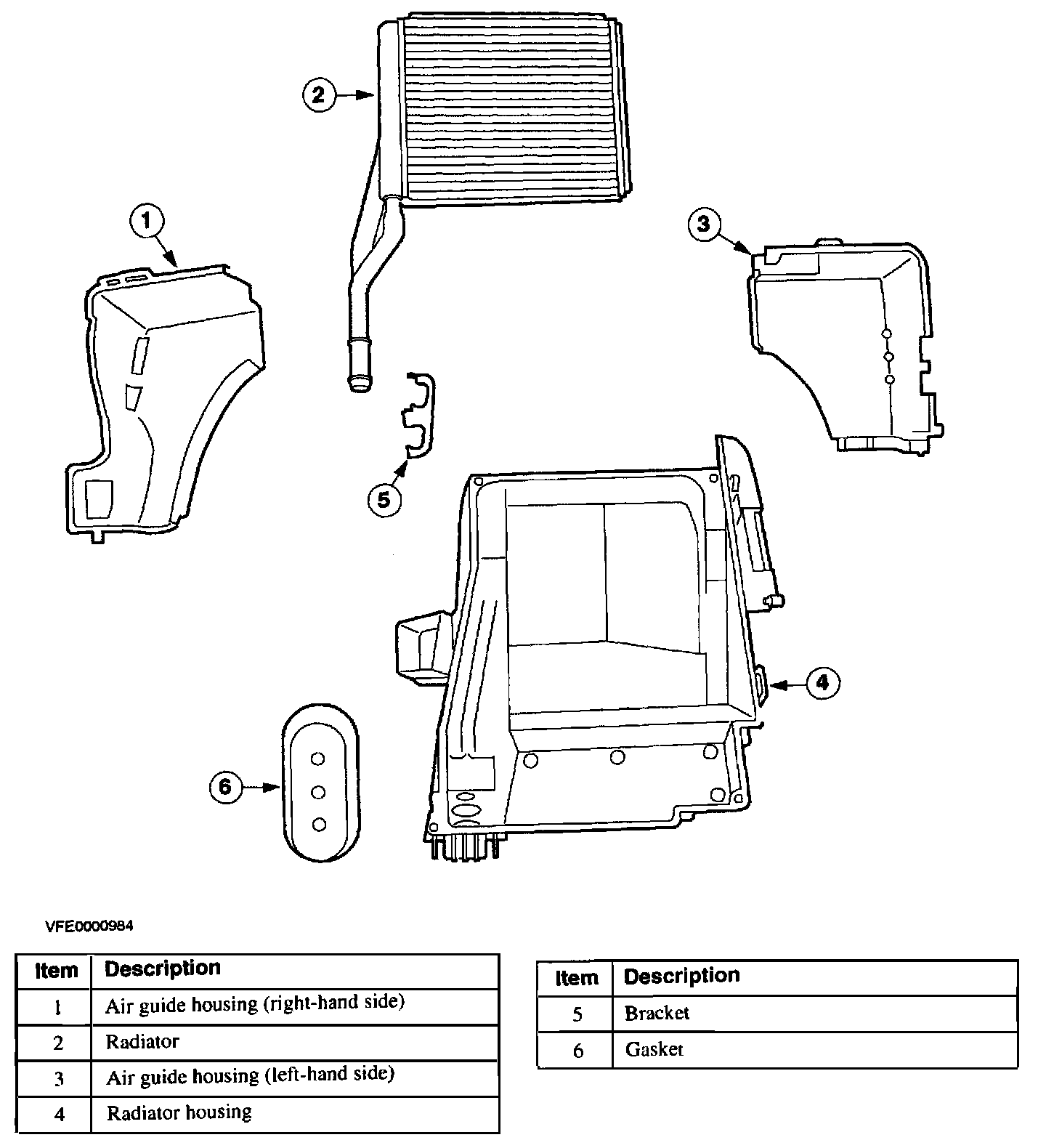

Radiator Components:

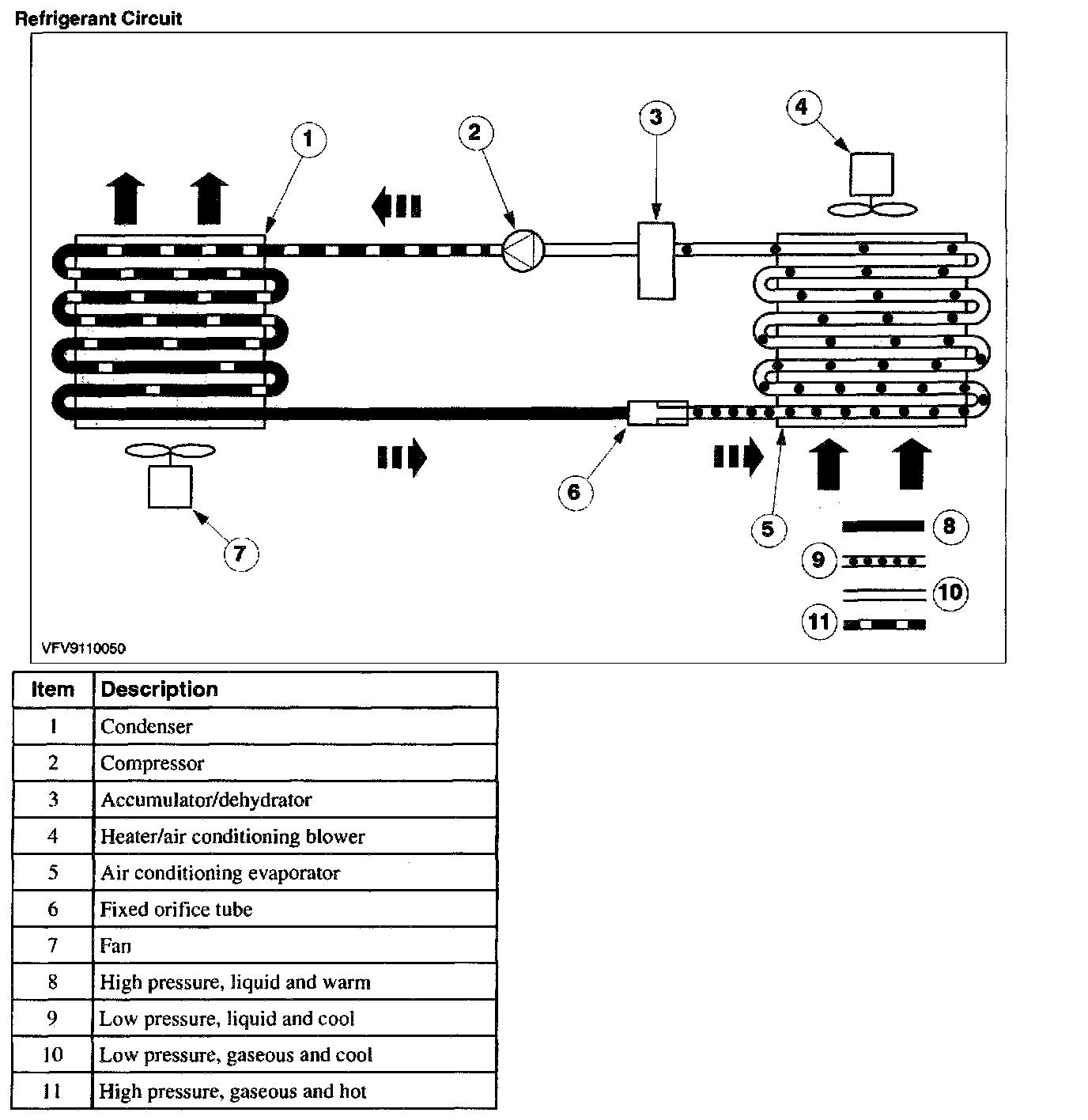

Refrigerant Circuit:

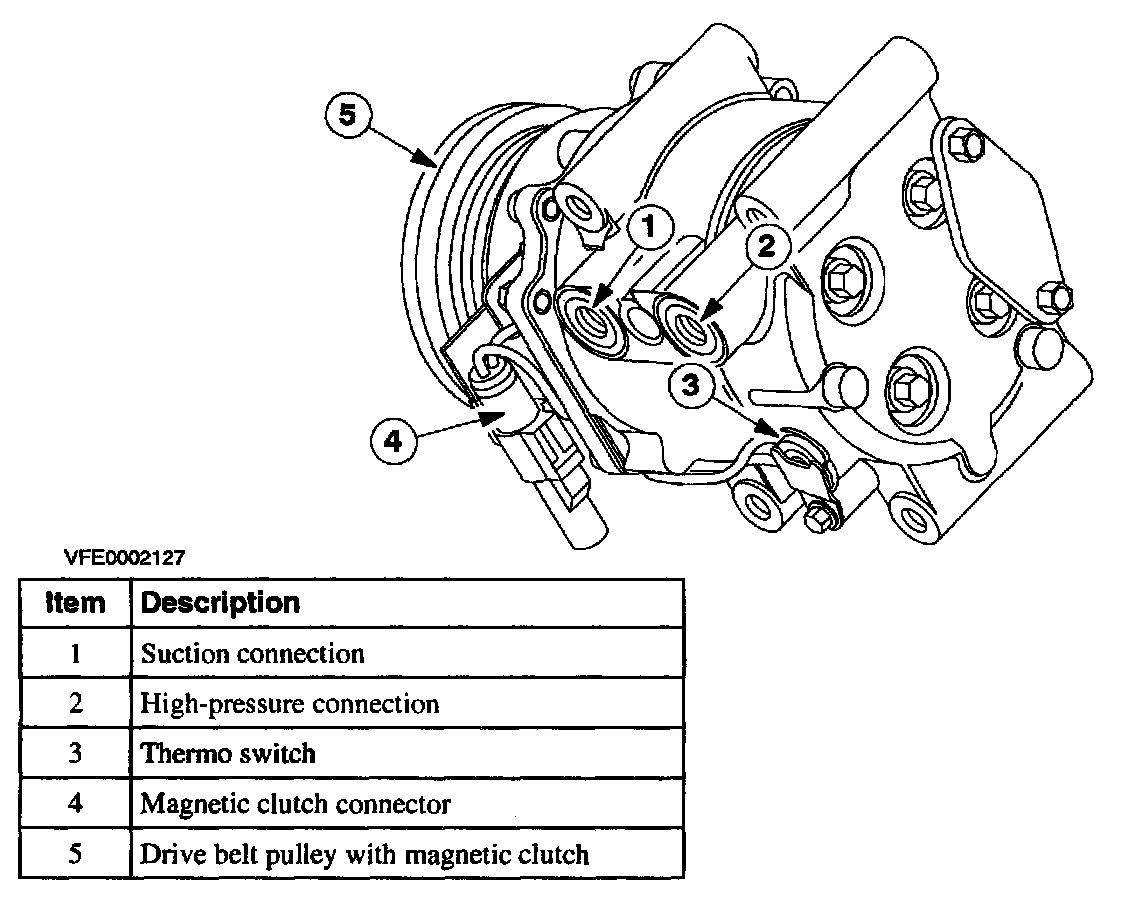

Air Compressor:

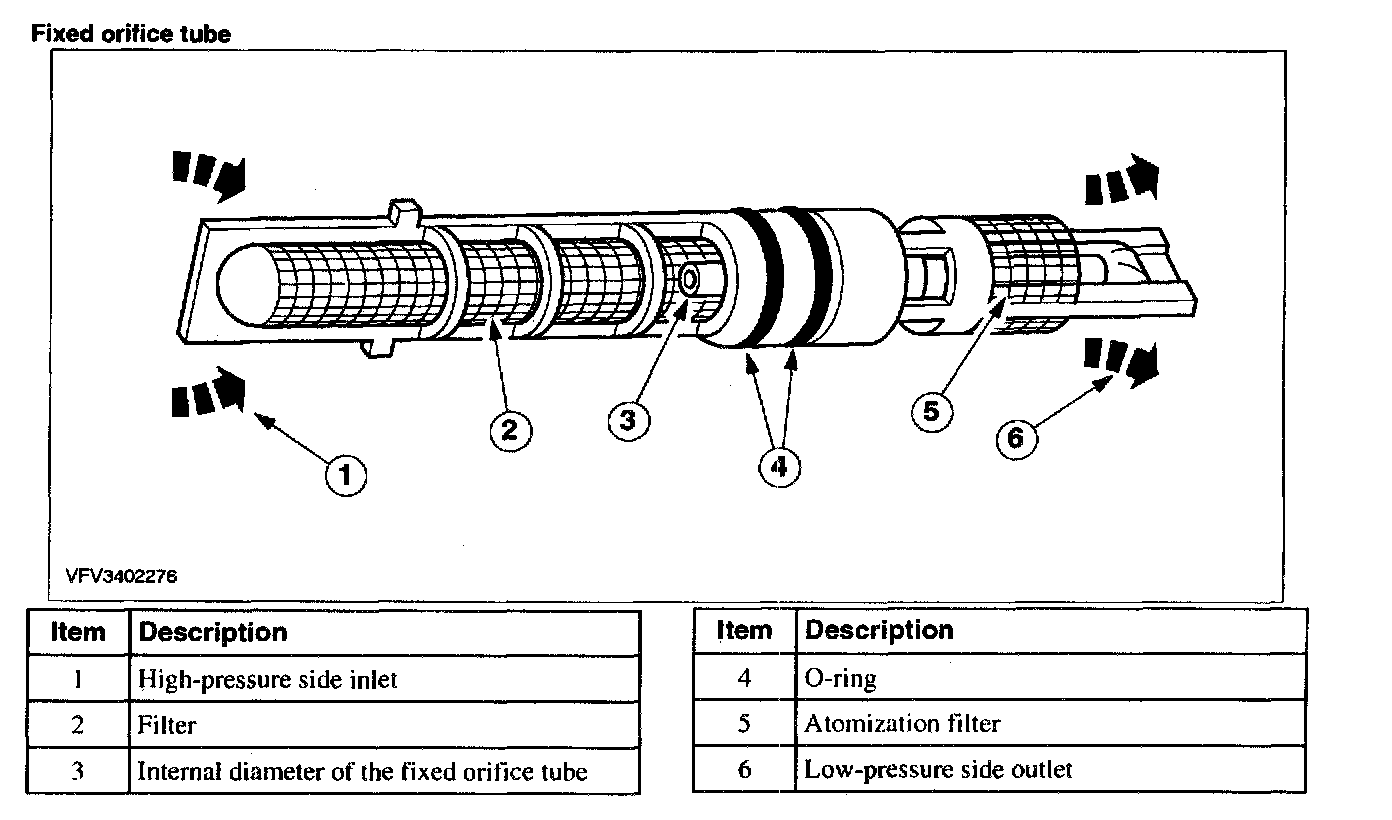

Fixed Orifice Tube:

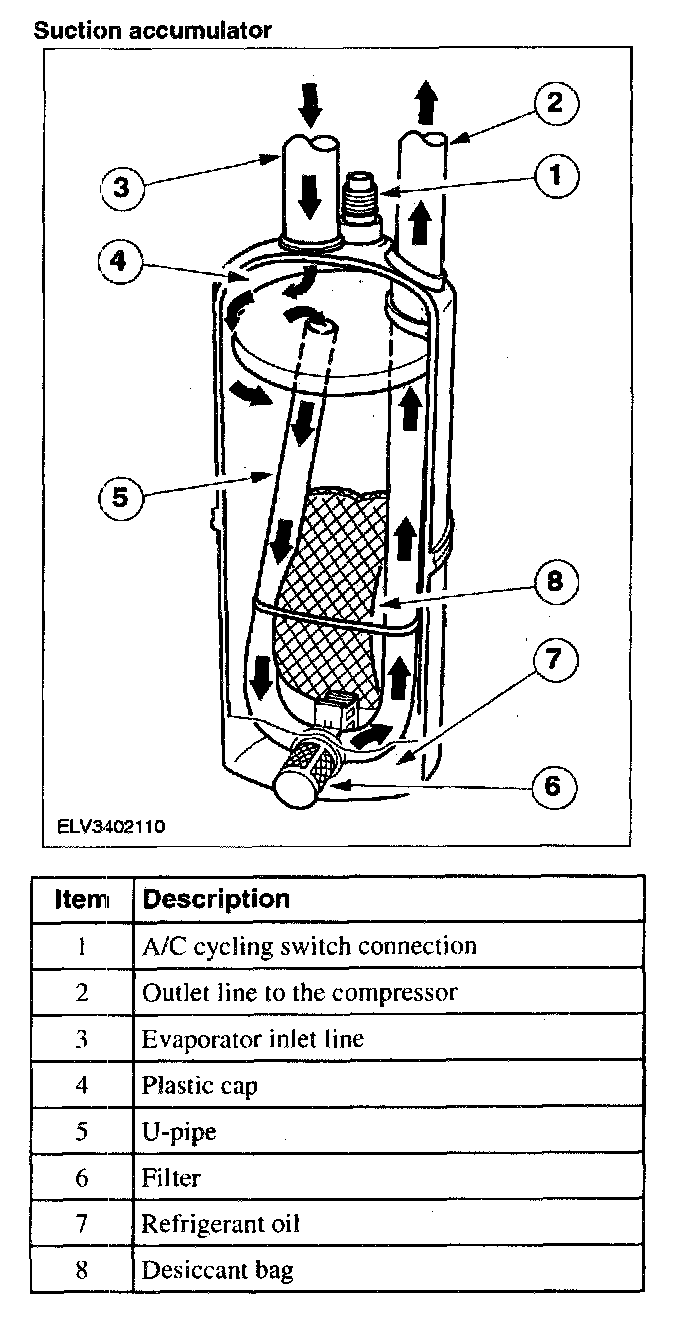

Suction Accumulator:
