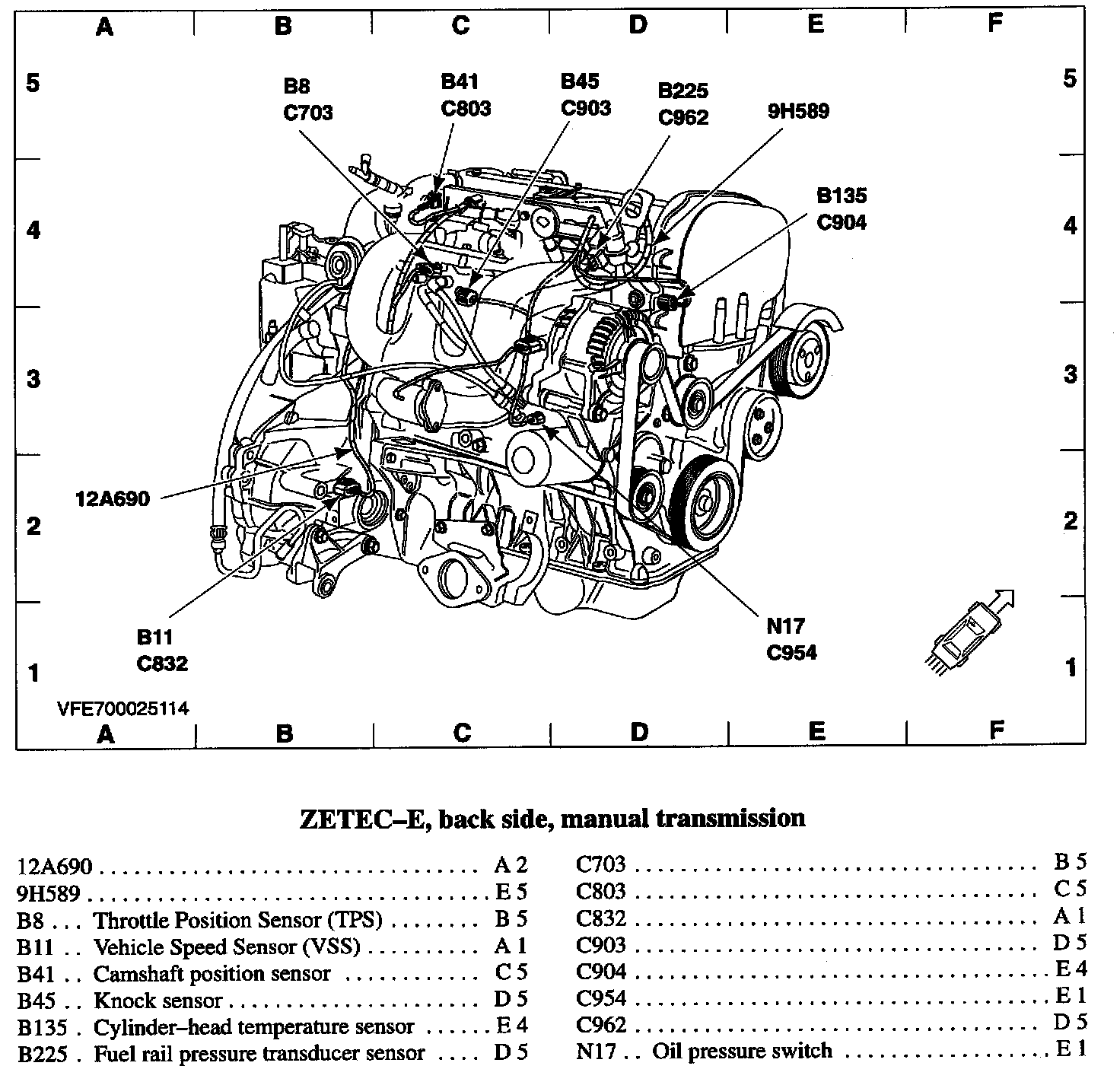

Engine Temperature Sensor: Locations












This model uses a Cylinder Head Temperature Sensor only. The PCM derives the engine temperature from this input enabling cooling fan operation. This information is also provided to the Instrument Cluster.
