Connector Locations

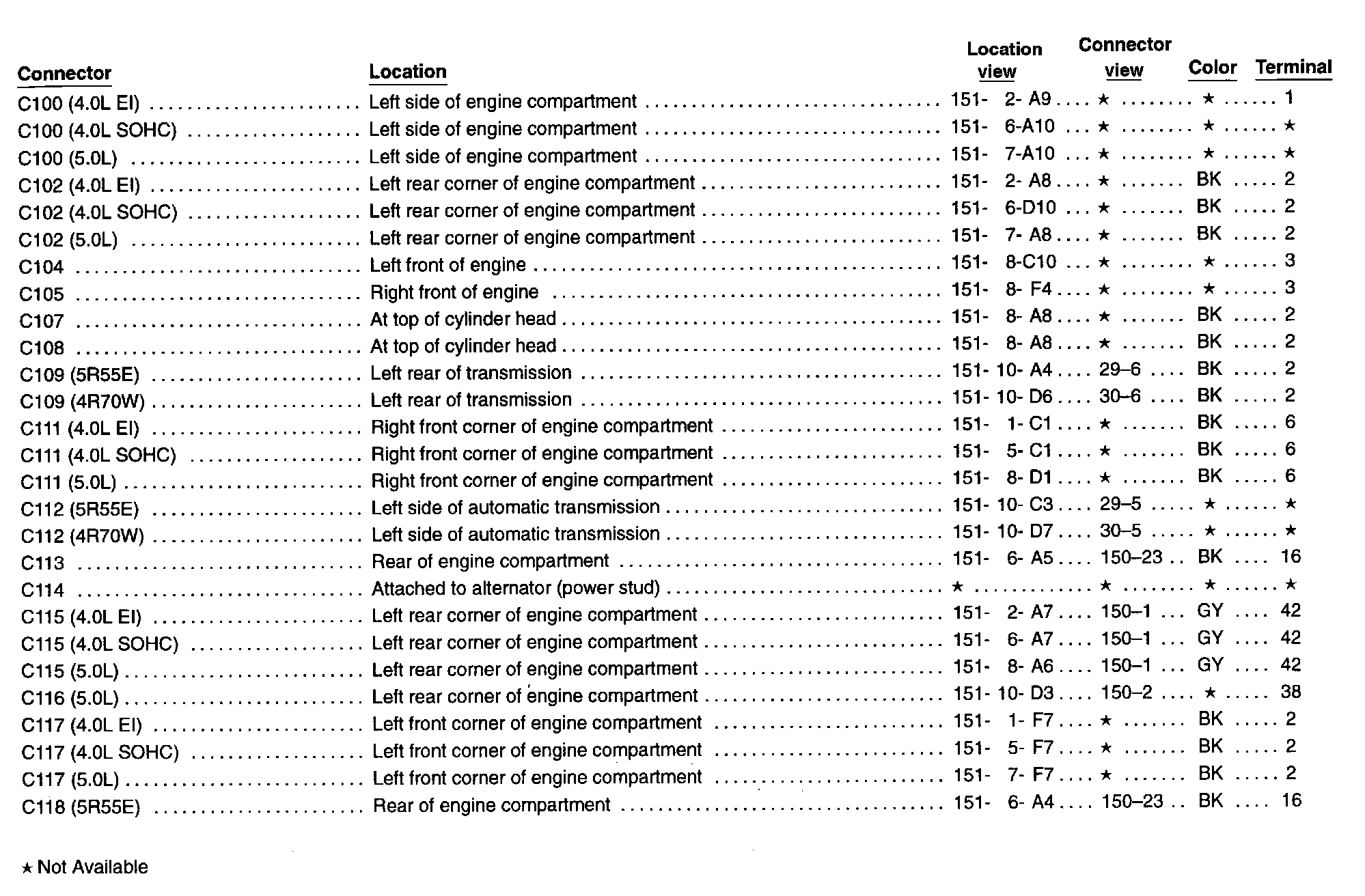

C100-C118:

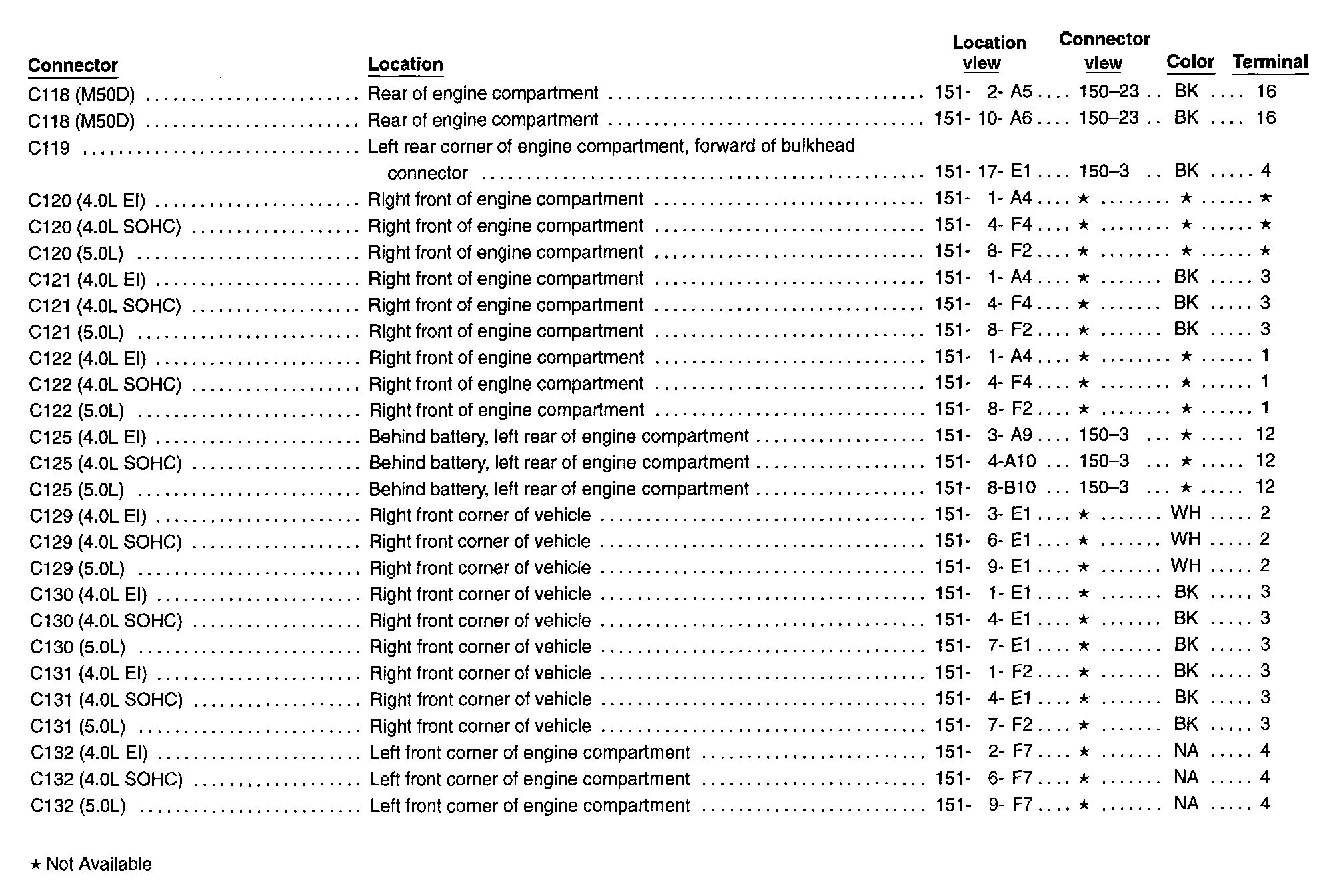

C118-C132:

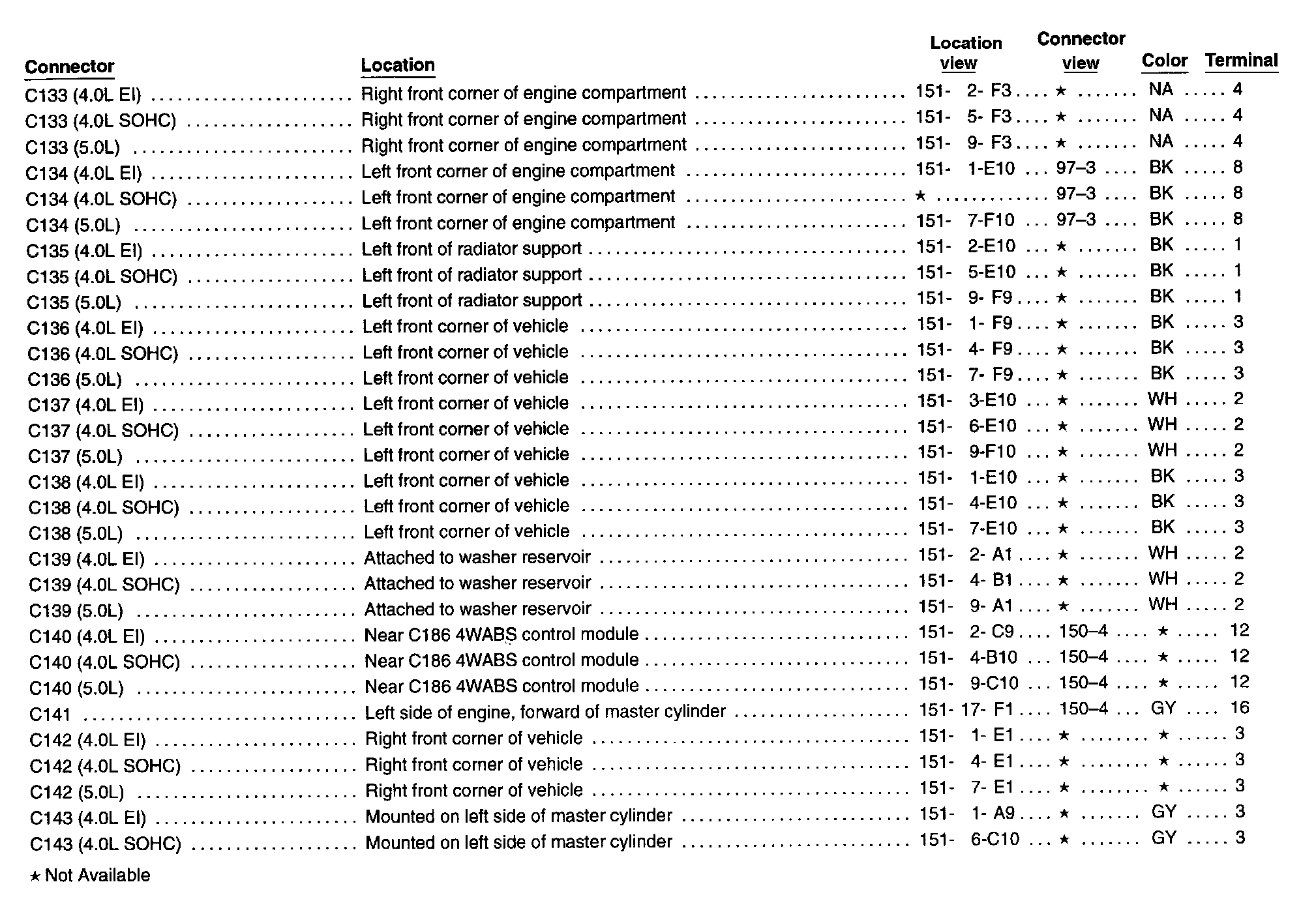

C133-C143:

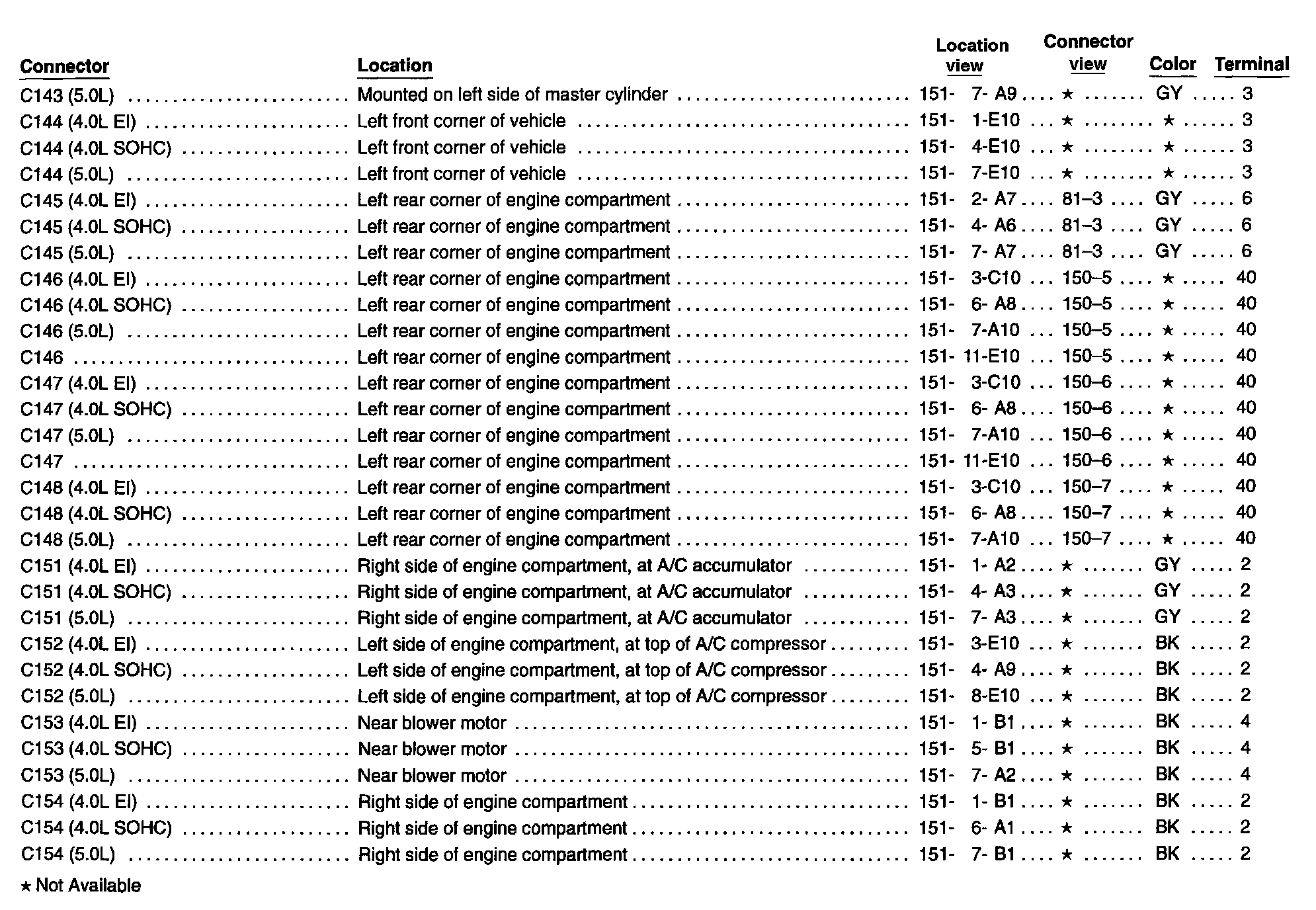

C143-C154:

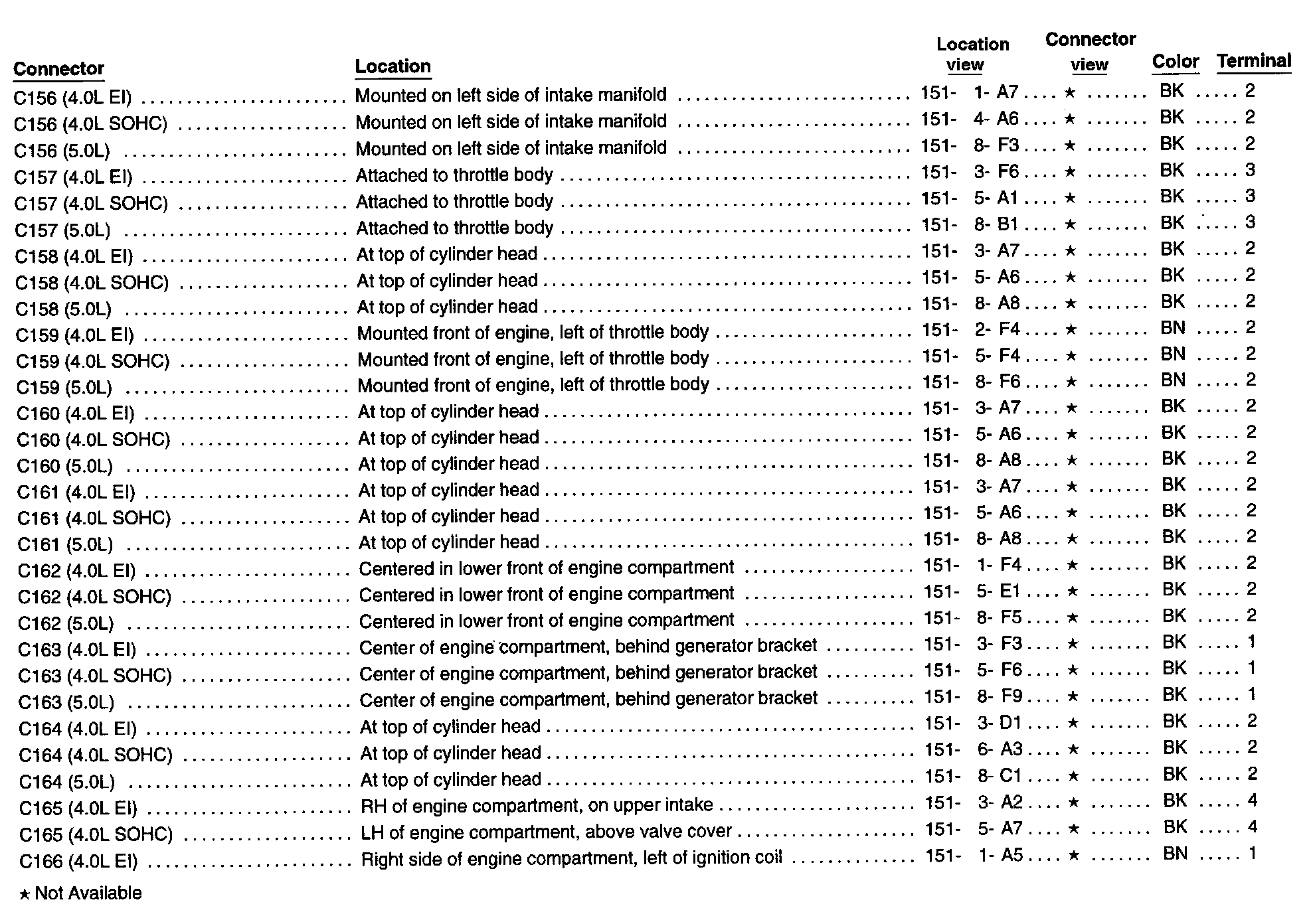

C156-C166:

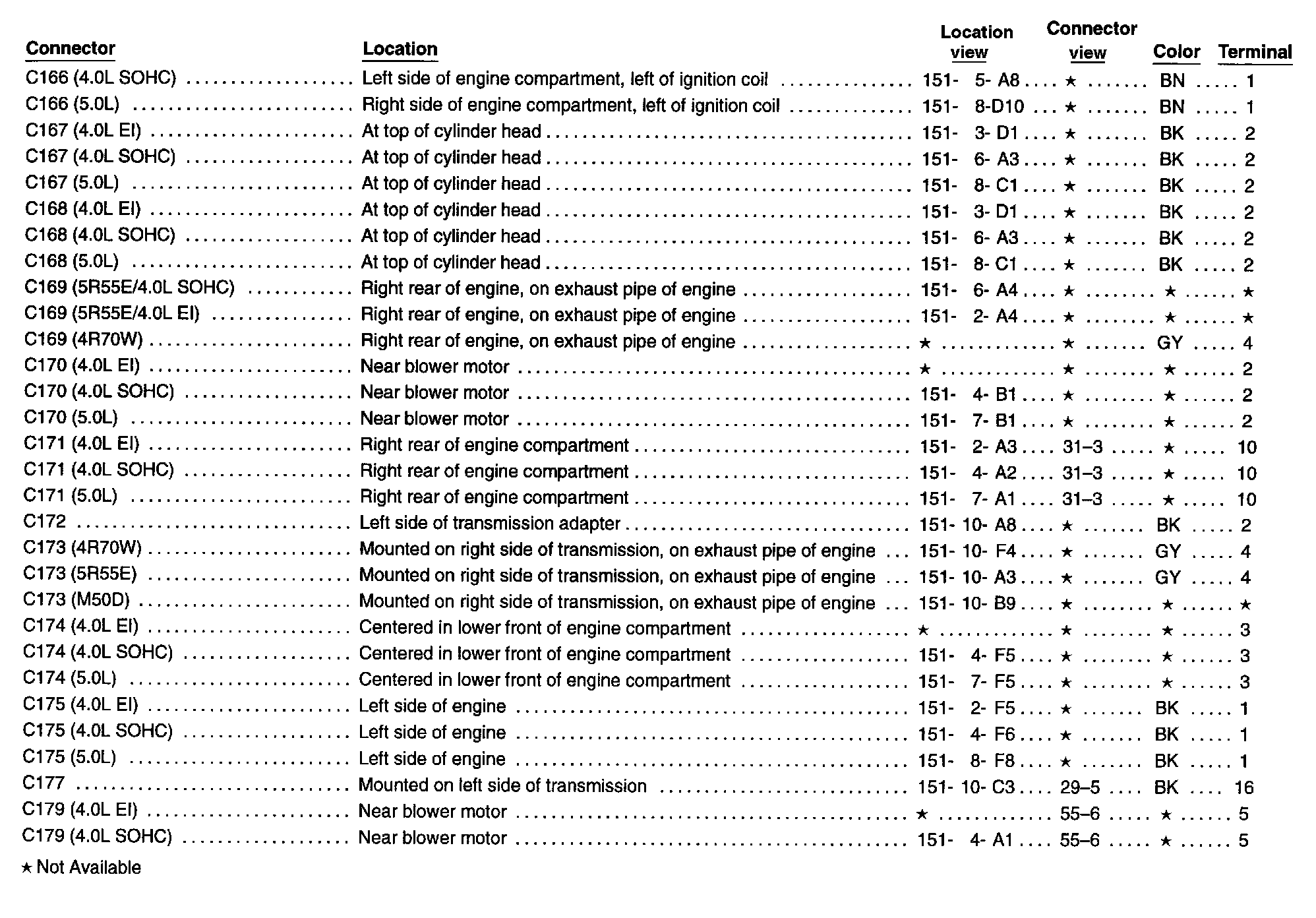

C166-C179:

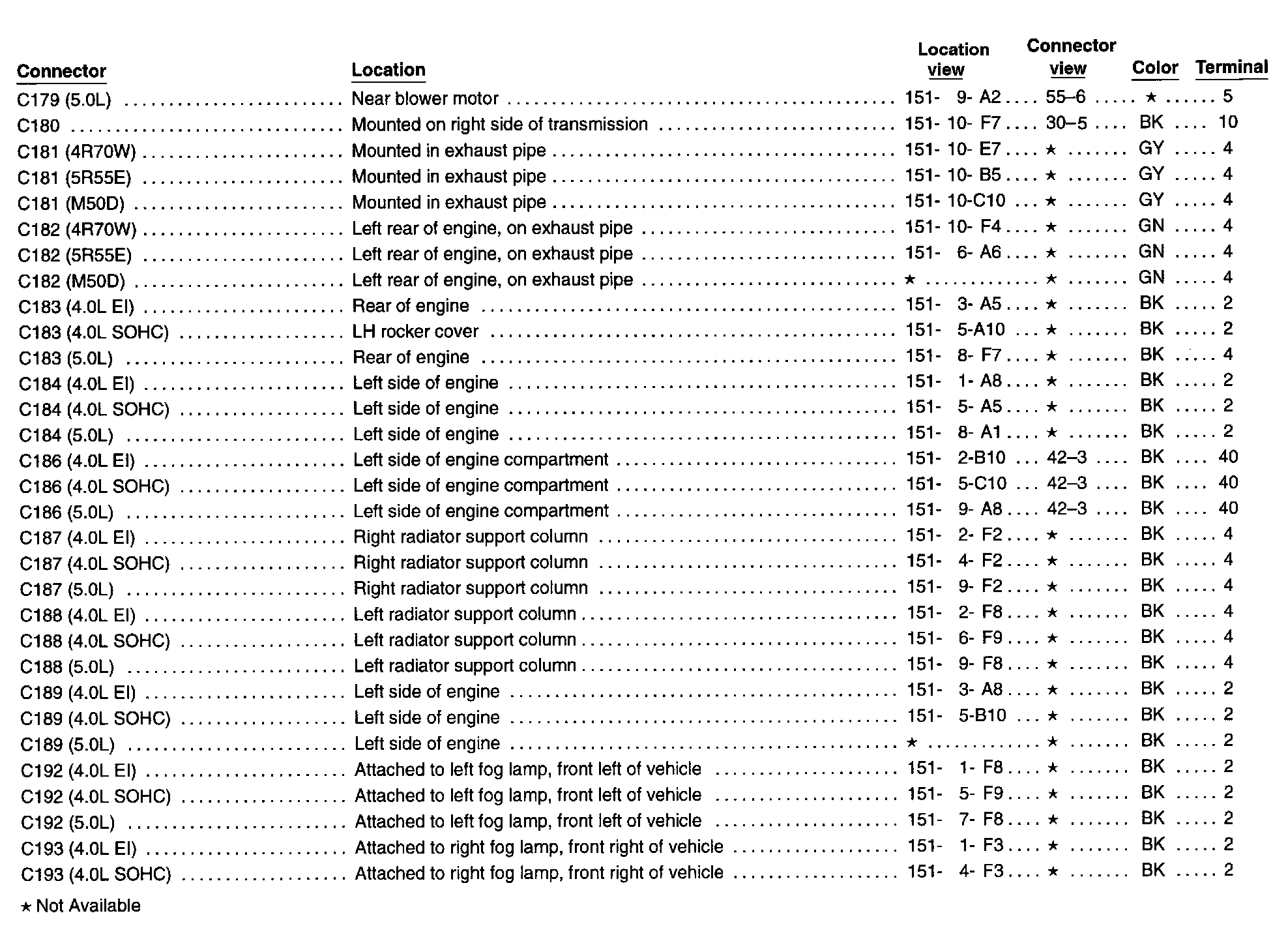

C179-C193:

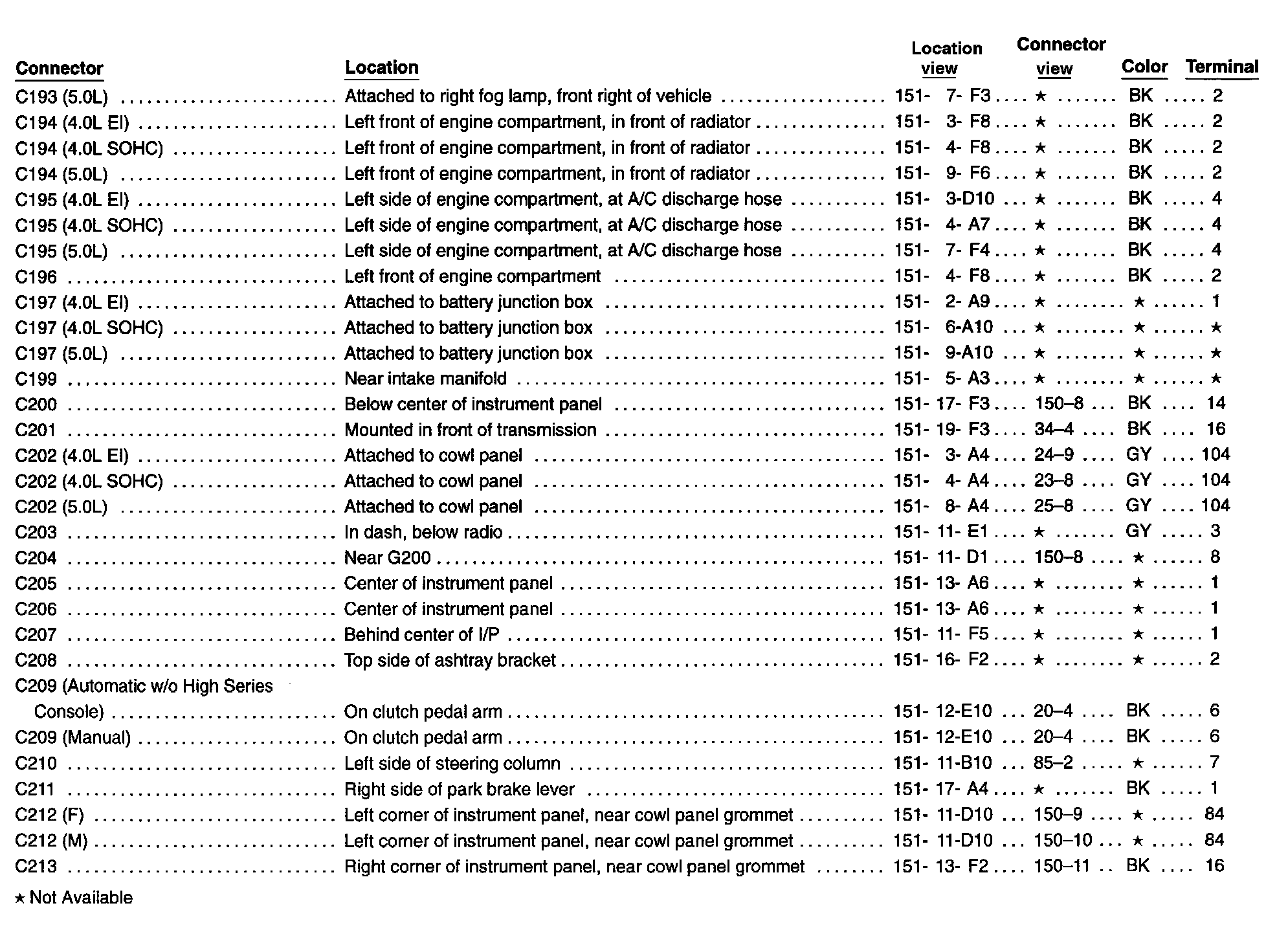

C193-C213:

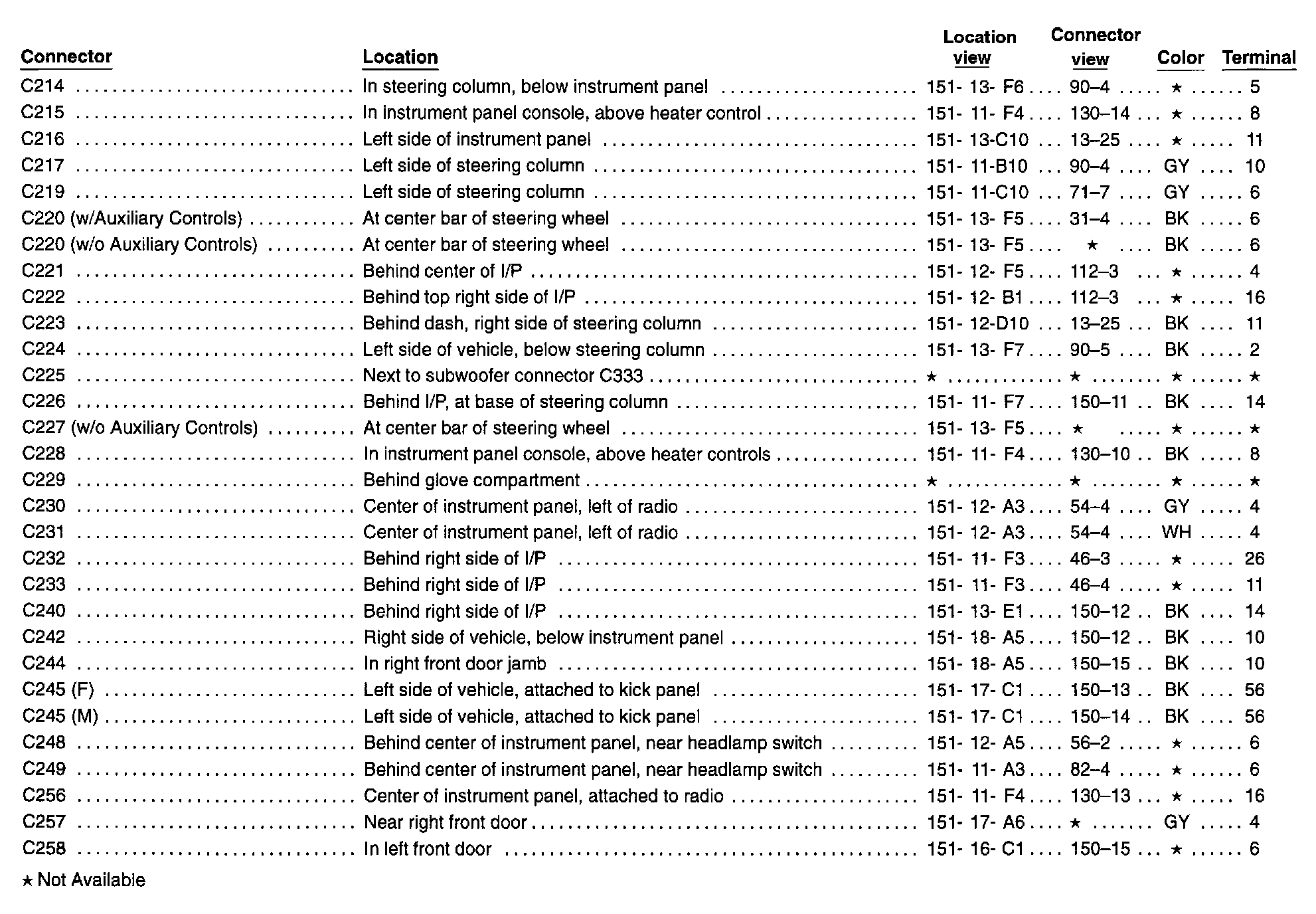

C214-C258:

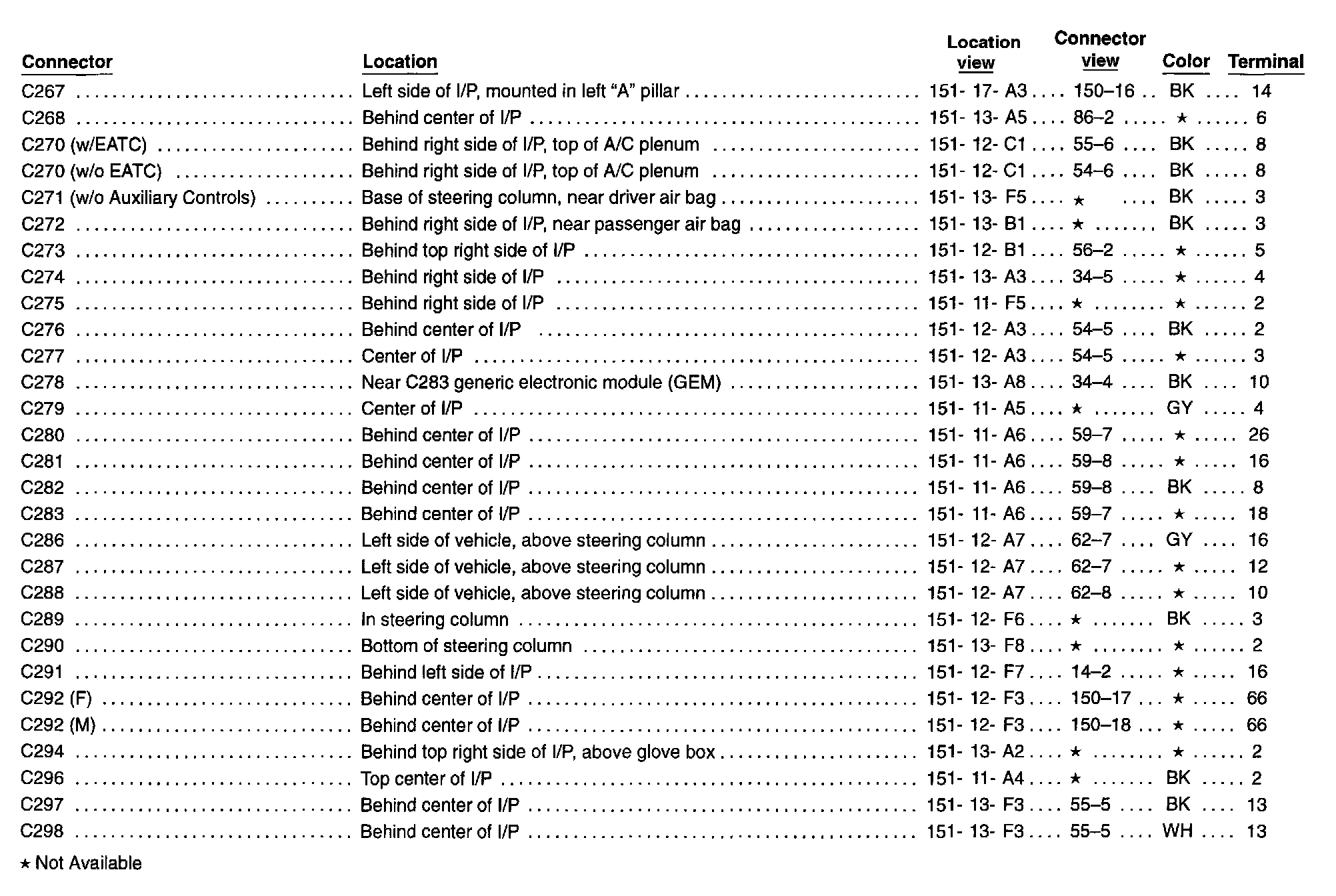

C267-C298:

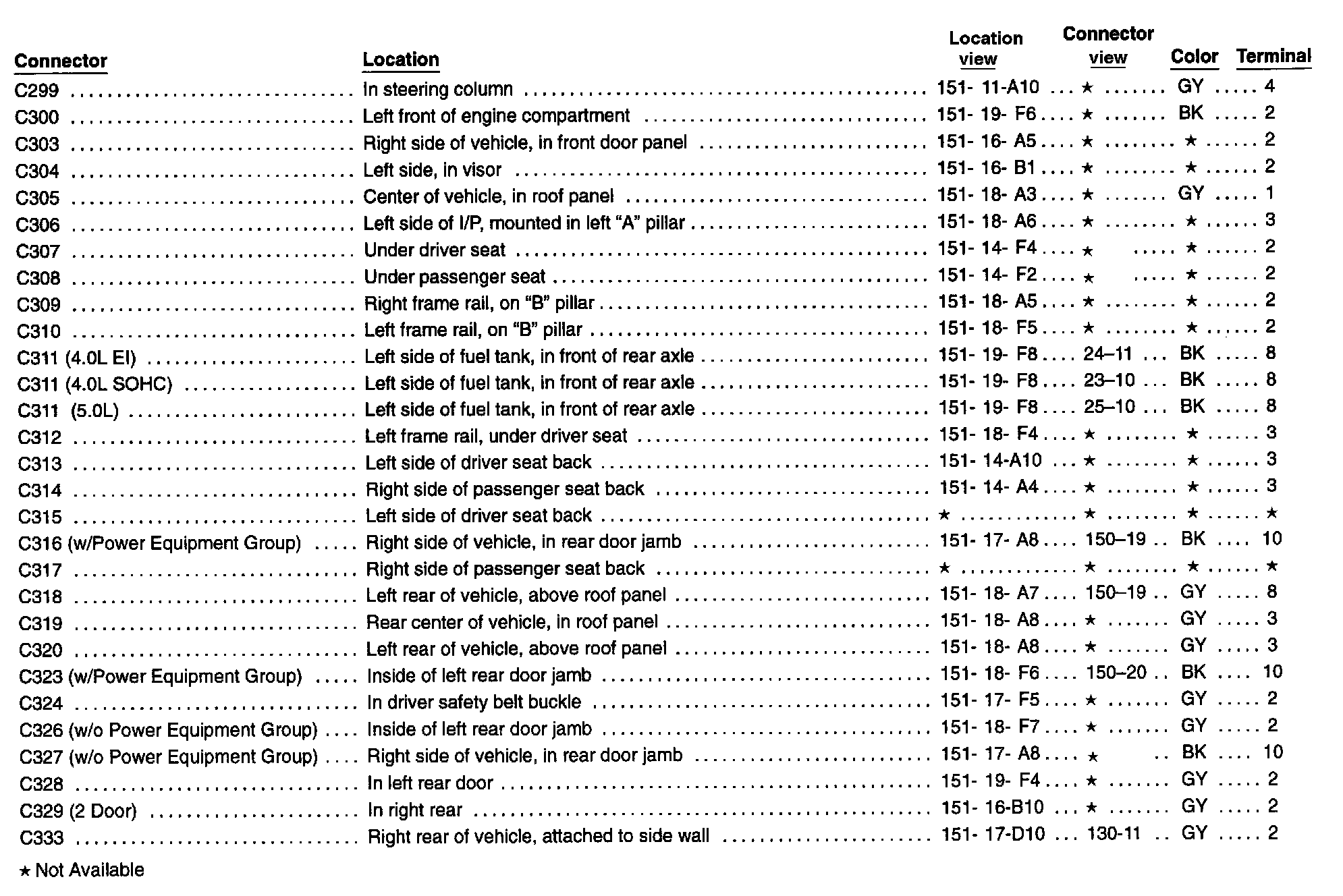

C299-C333:

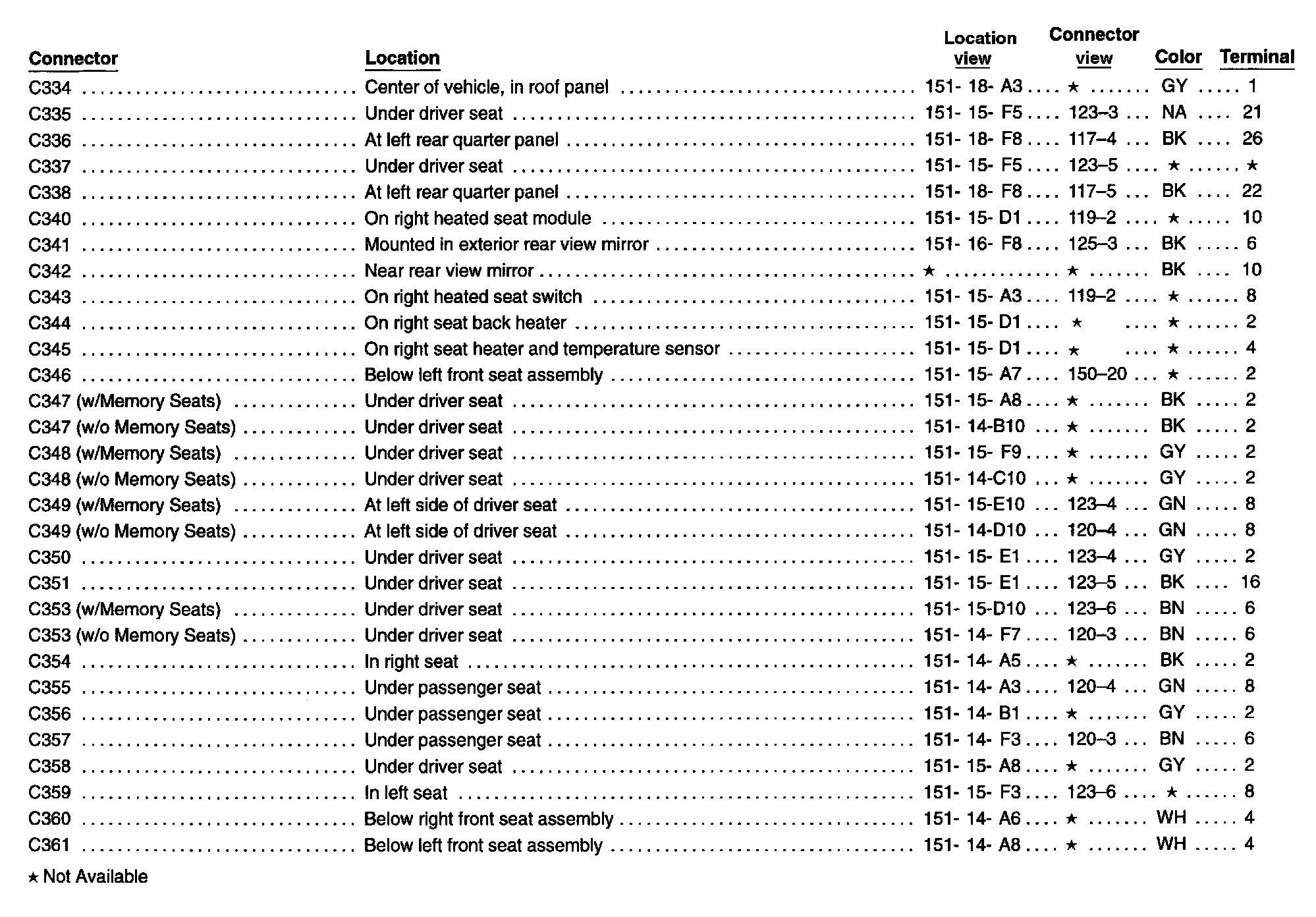

C334-C361:

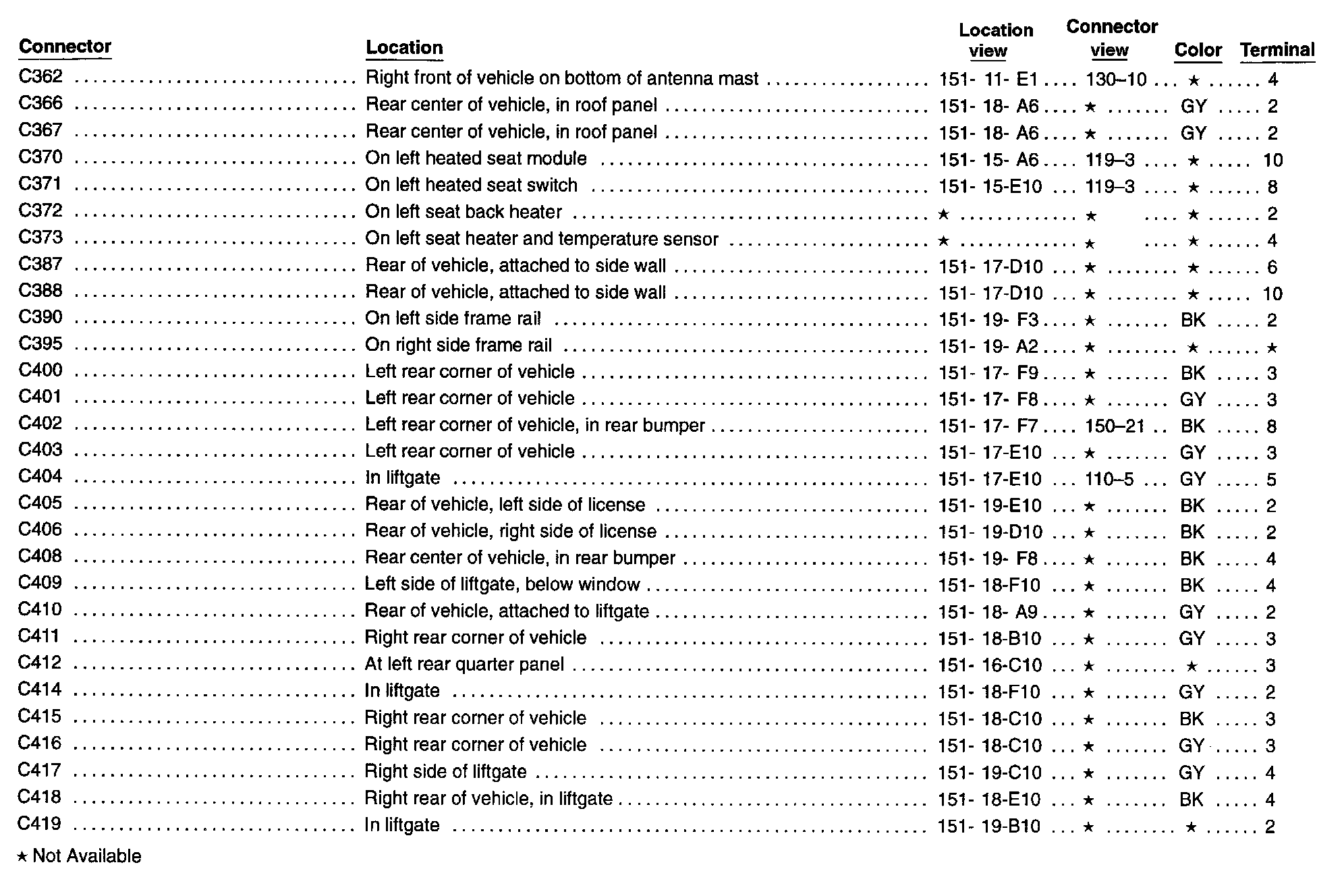

C362-C419:

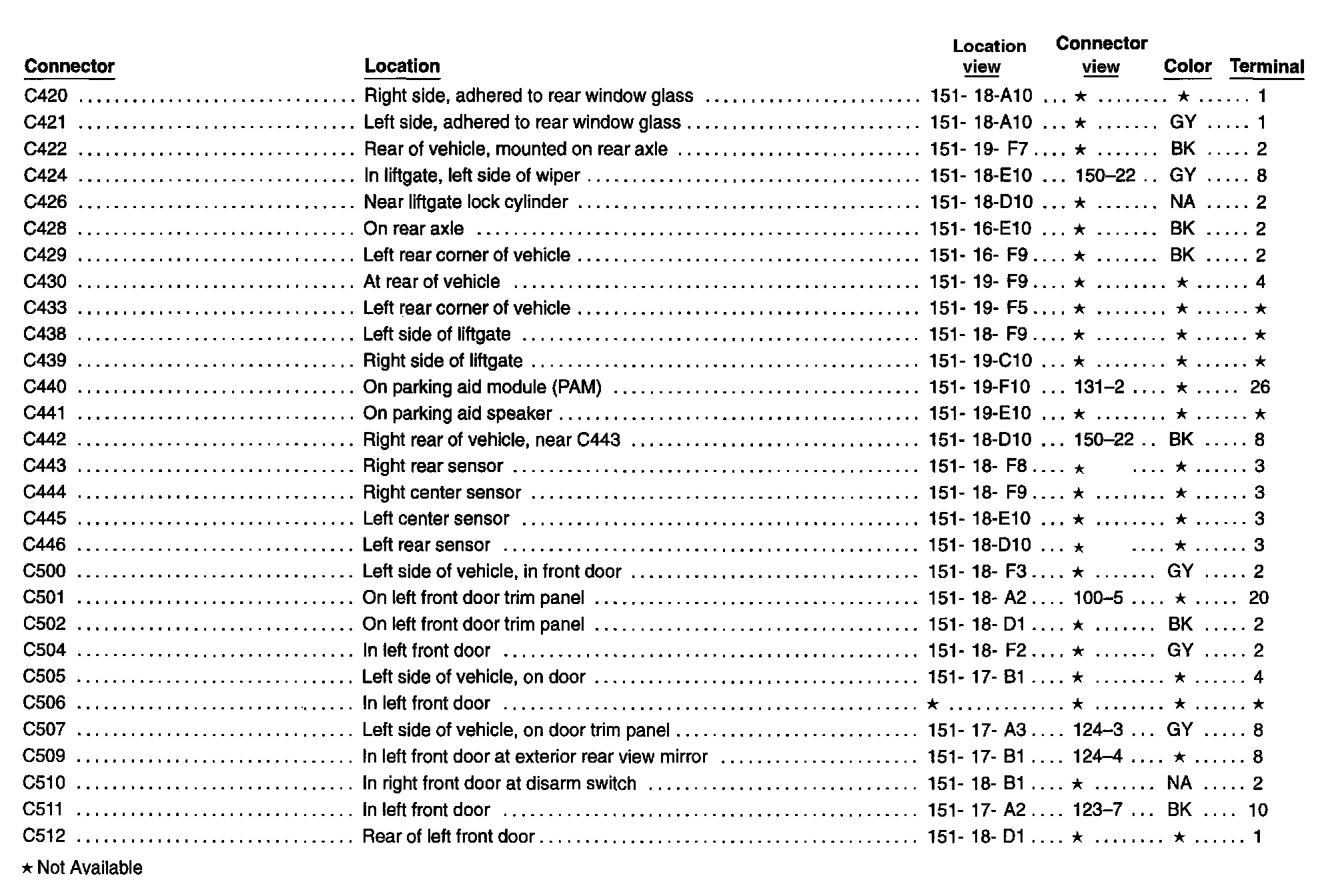

C420-C512:

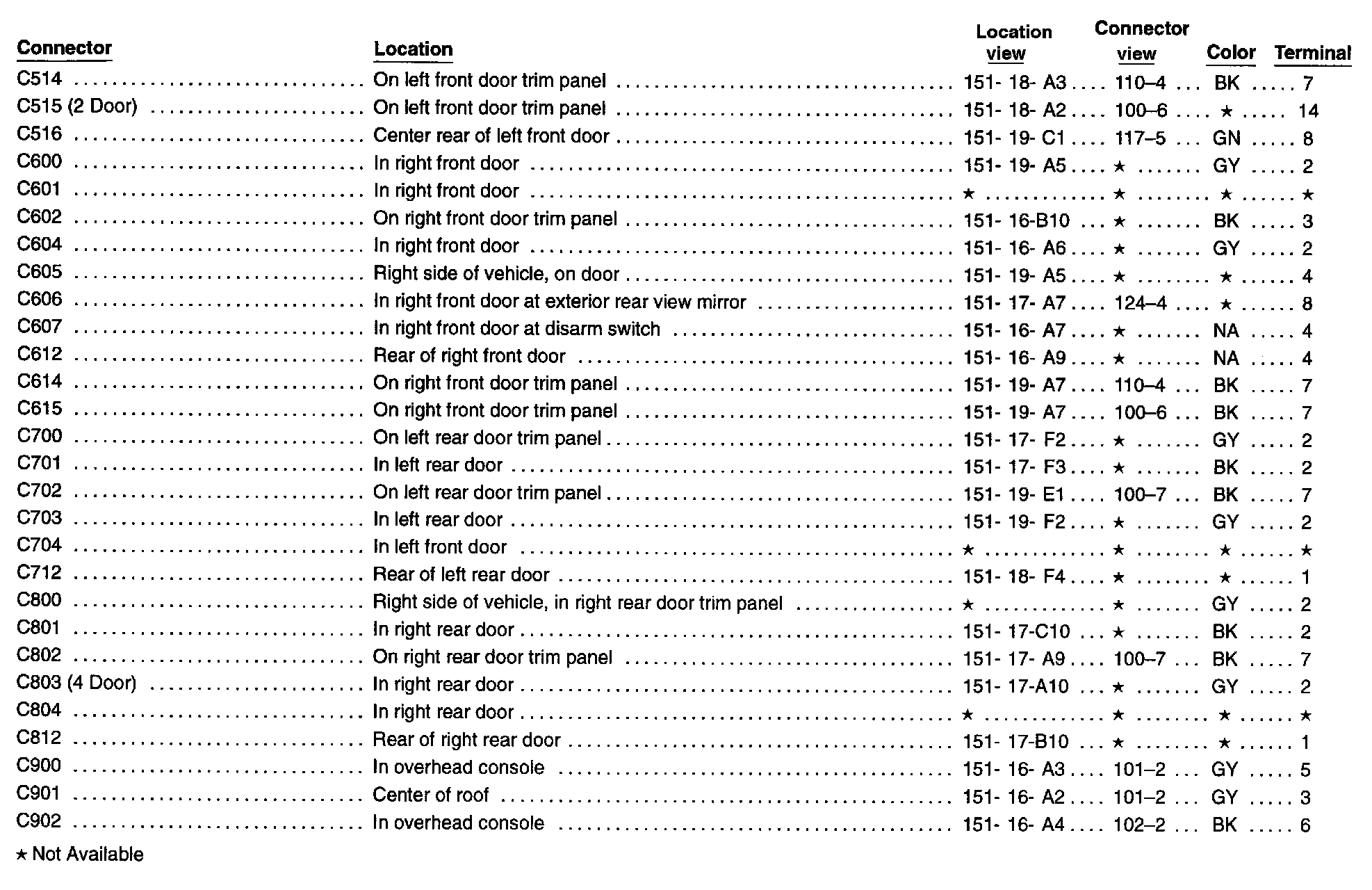

C514-C902:

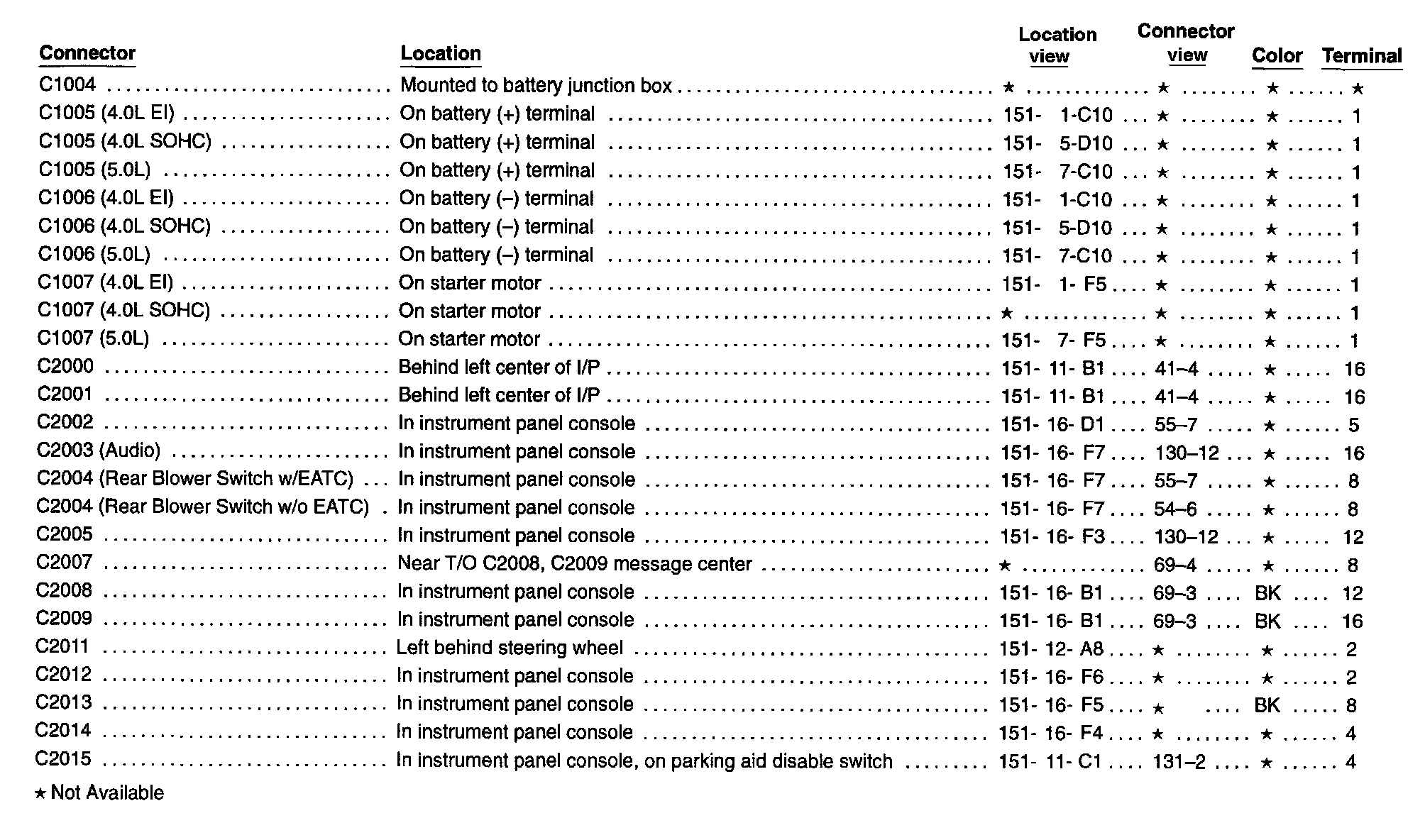

C1004-C2015:
