Tests DD: Accelerator Pedal (AP) Sensor



DD: Introduction:





DD: Introduction:





DD1 - DD2:

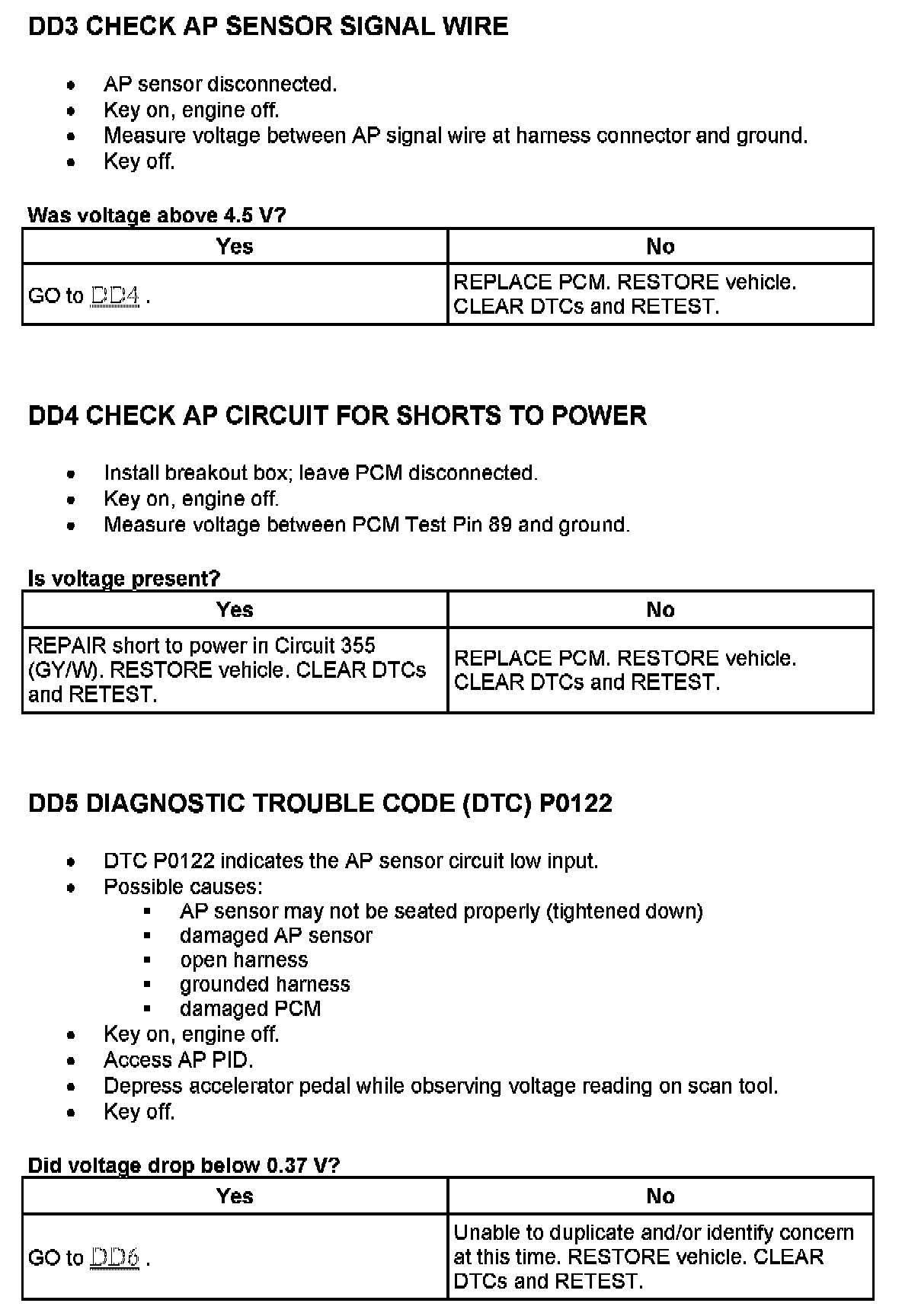

DD3 - DD5:





DD6 - DD8:

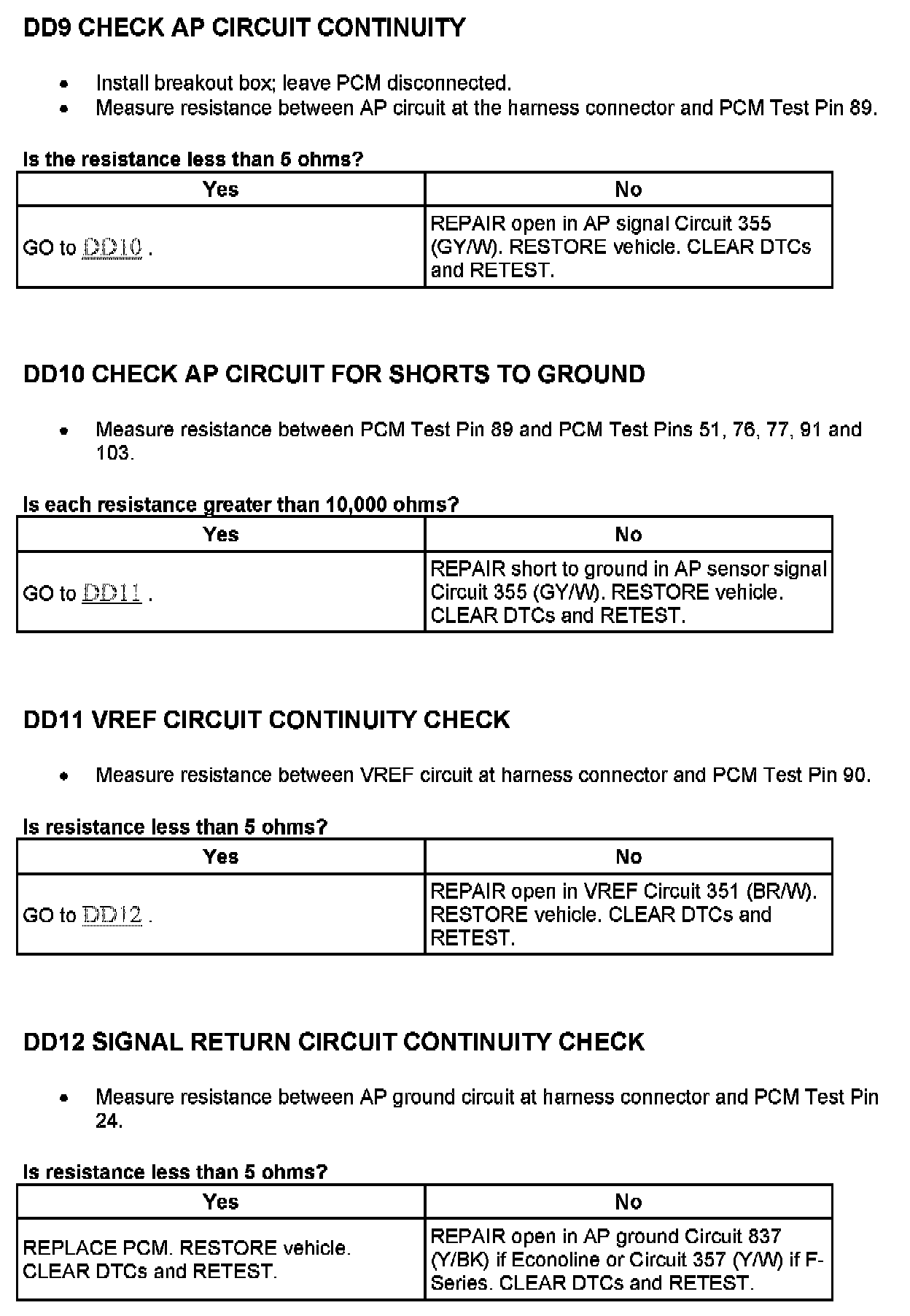

DD9 - DD12:
