Tests DA: Intake Air Temperature (IAT) Sensor

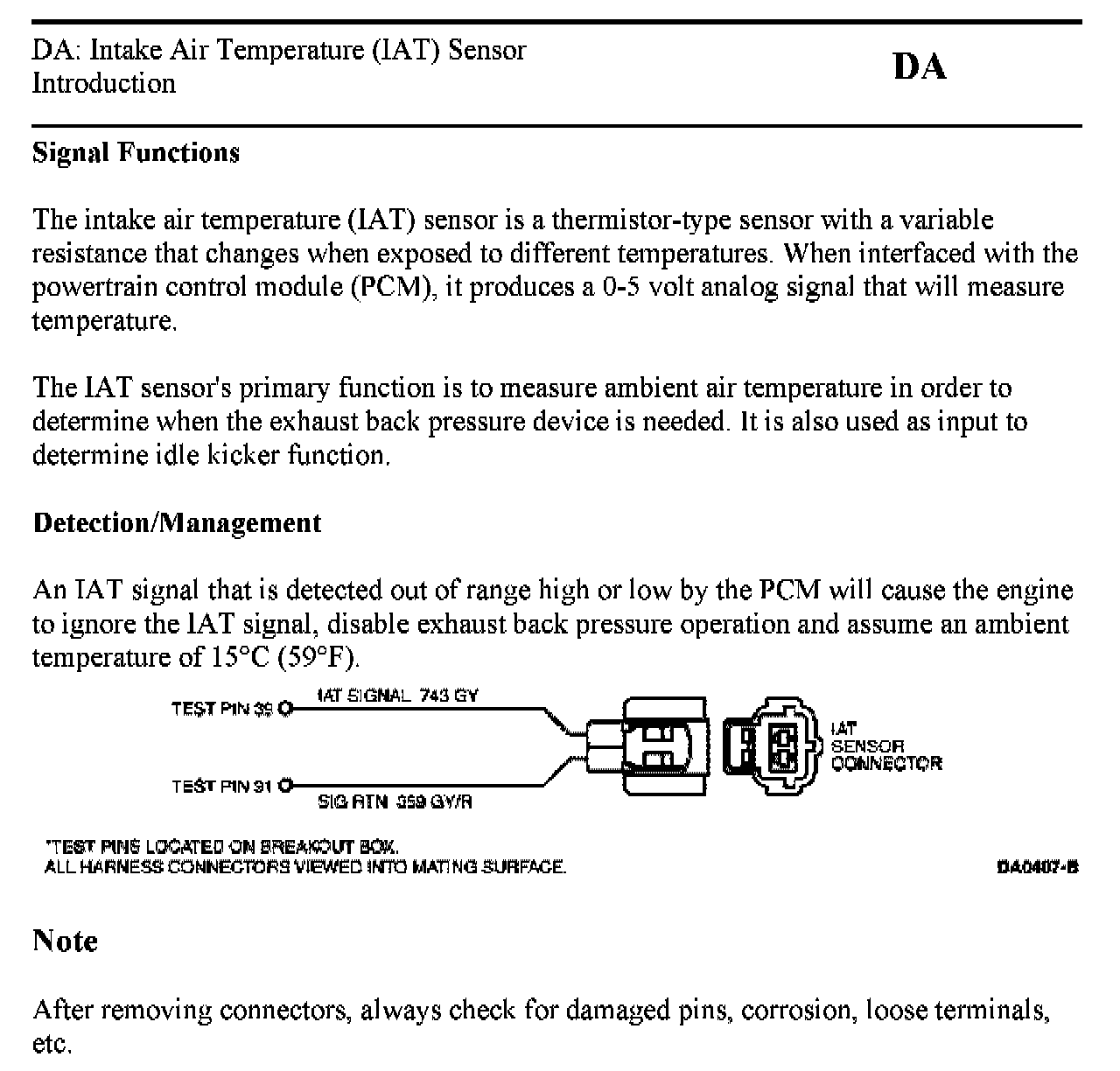

DA: Introduction:





DA: Introduction:

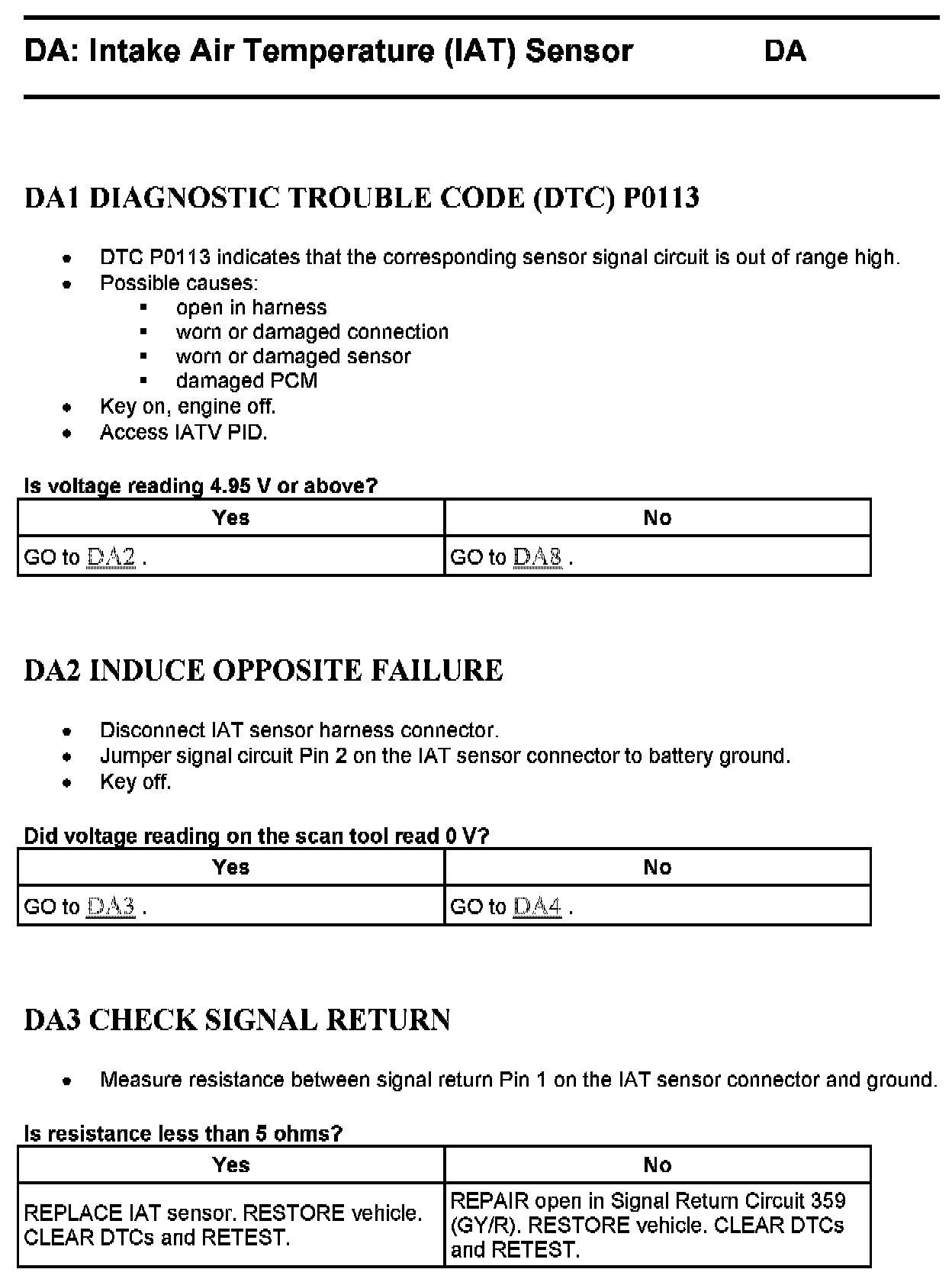

DA1 - DA3:

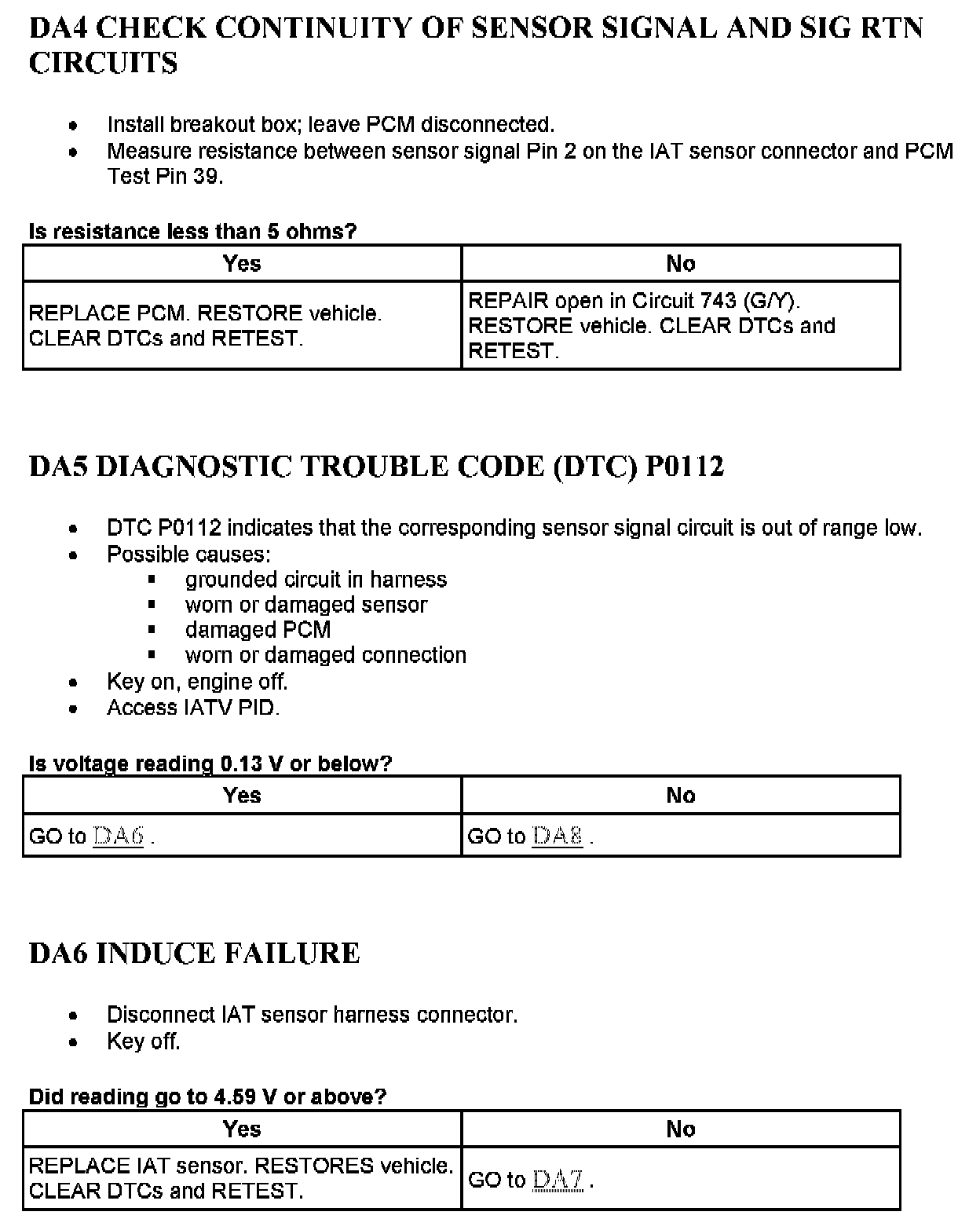

DA4 - DA6:

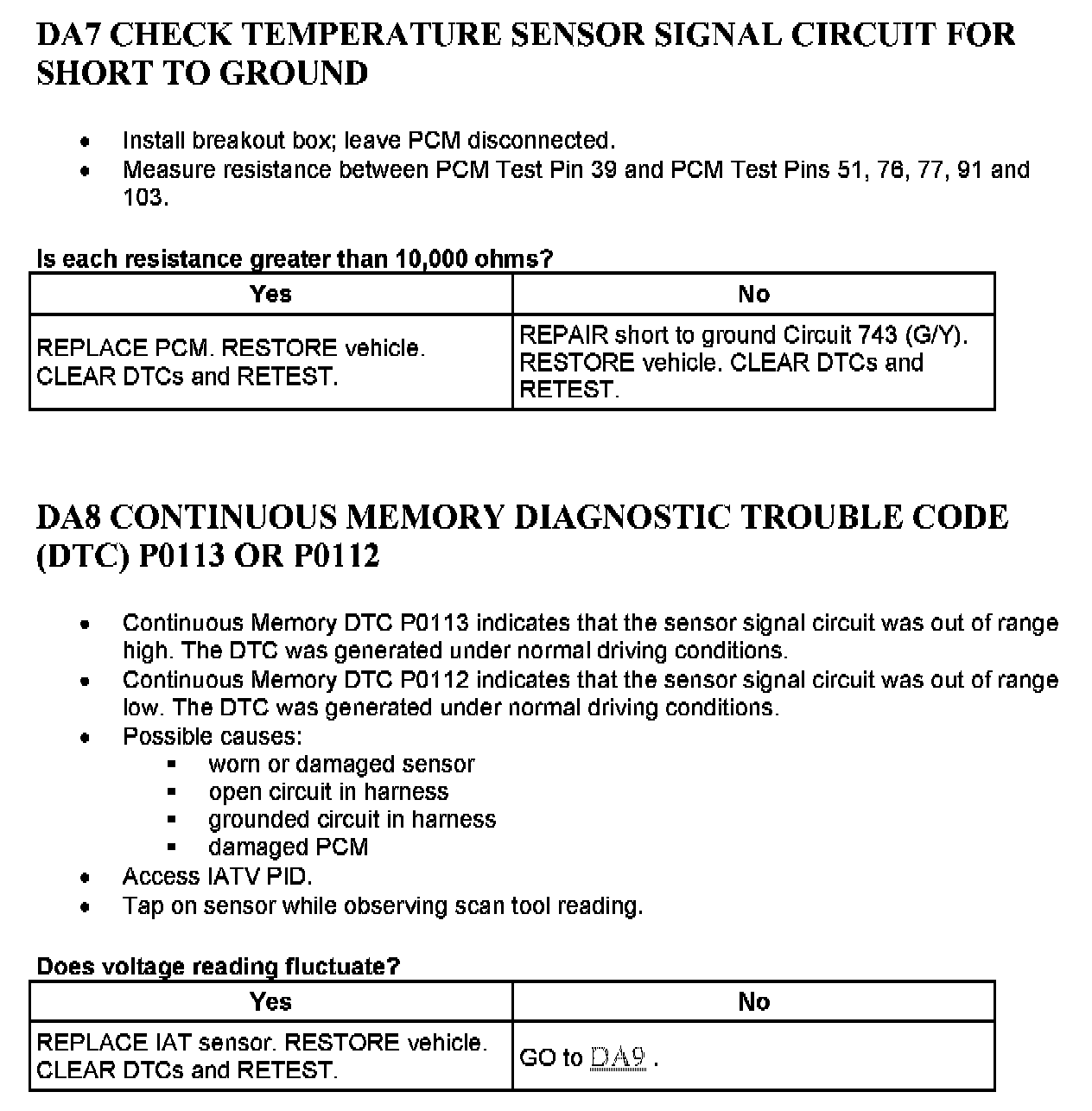

DA7 - DA8:





DA9 - DA10:
