Tests NA: Injector Driver Circuit Operation

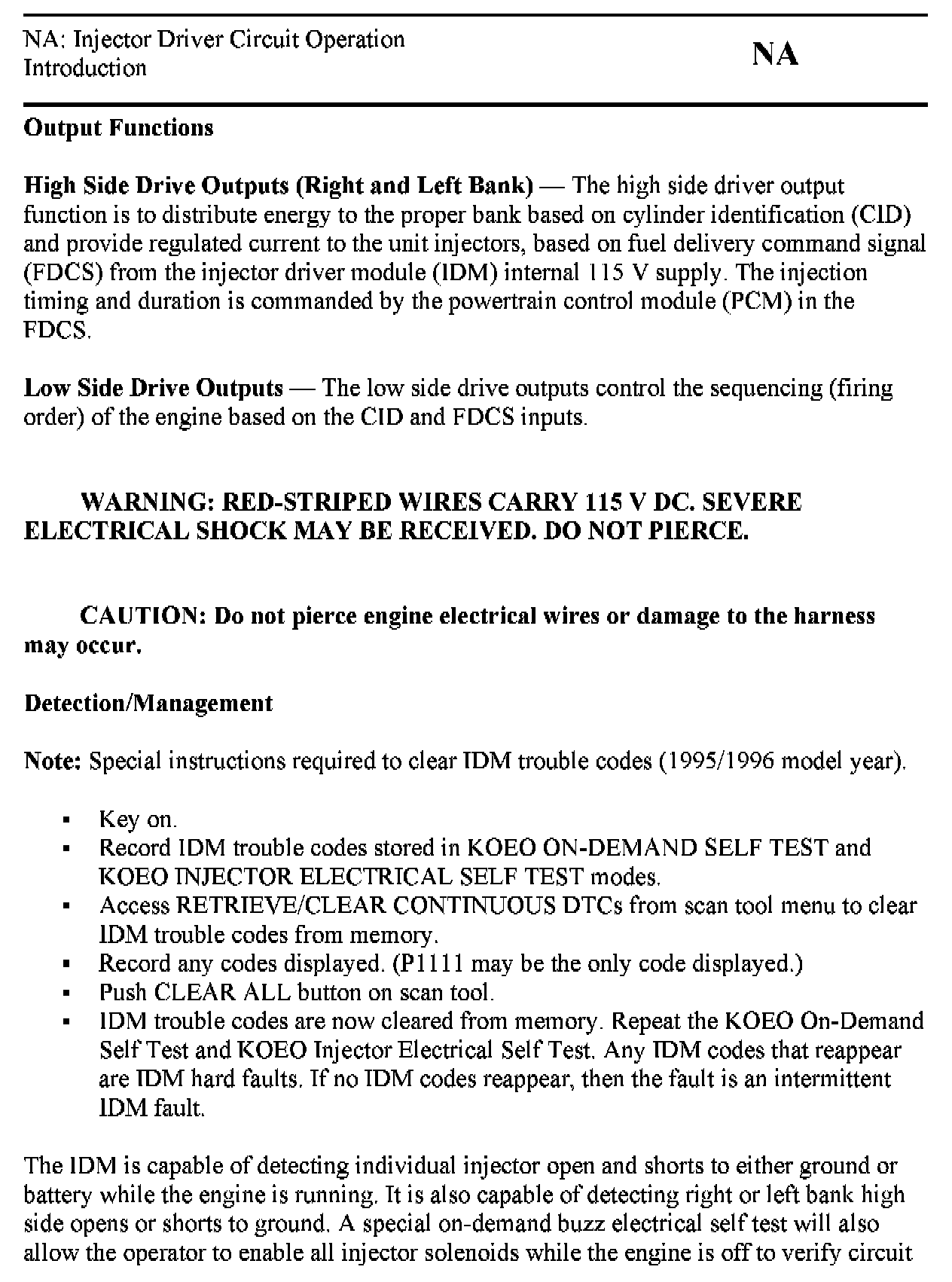

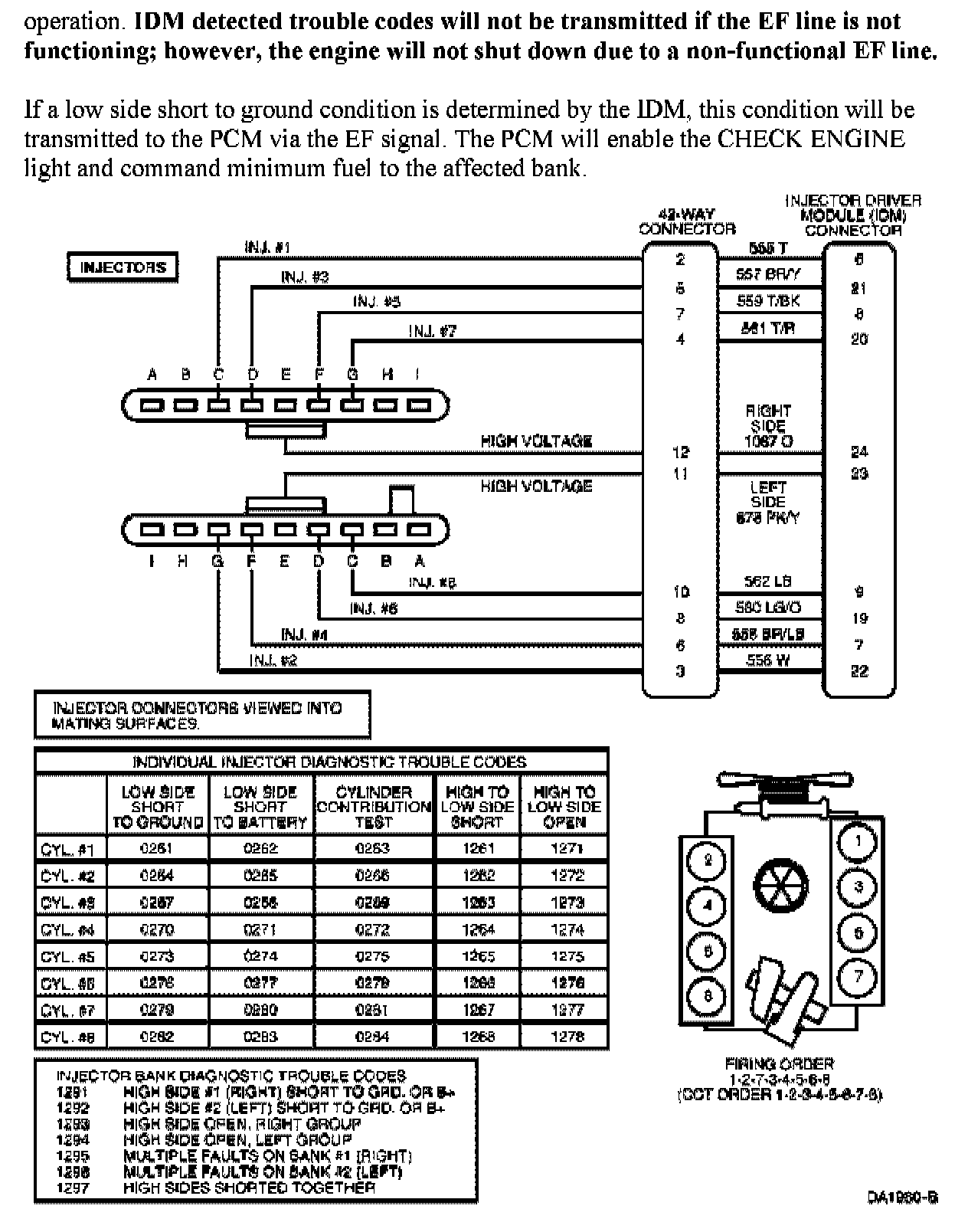

NA: Introduction:





NA: Introduction:





NA1:

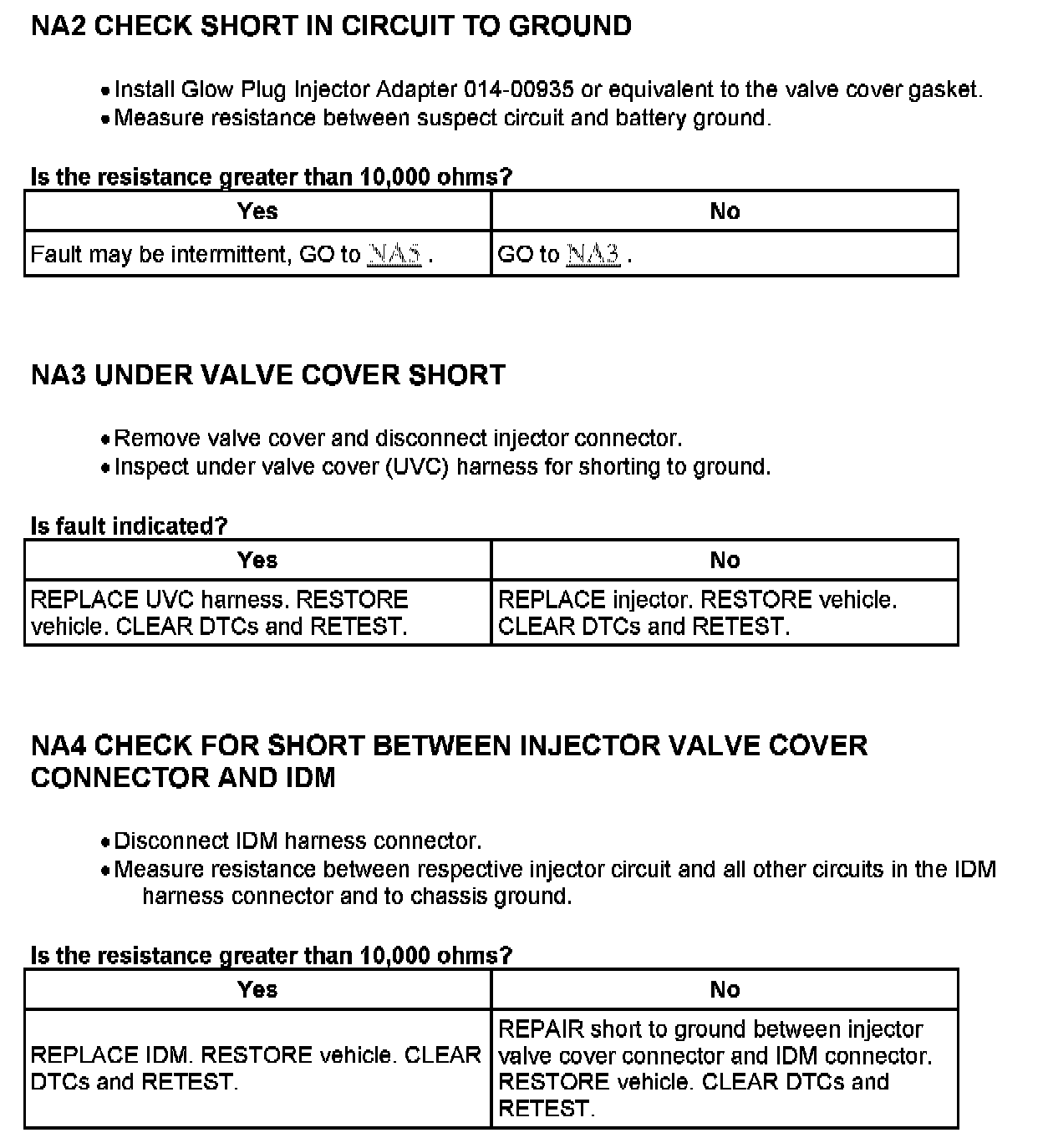

NA2 - NA4:





NA5:

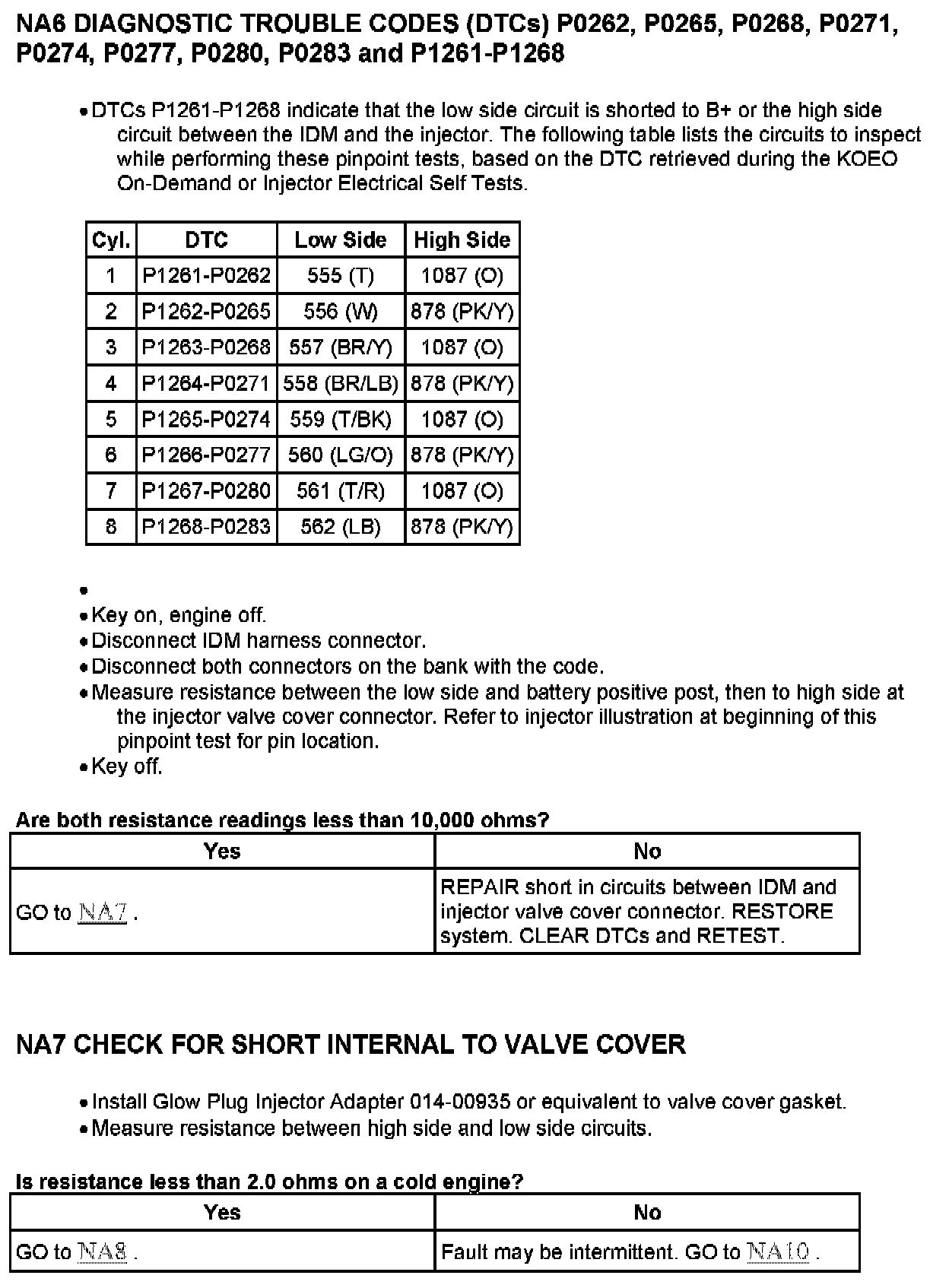

NA6 - NA7:

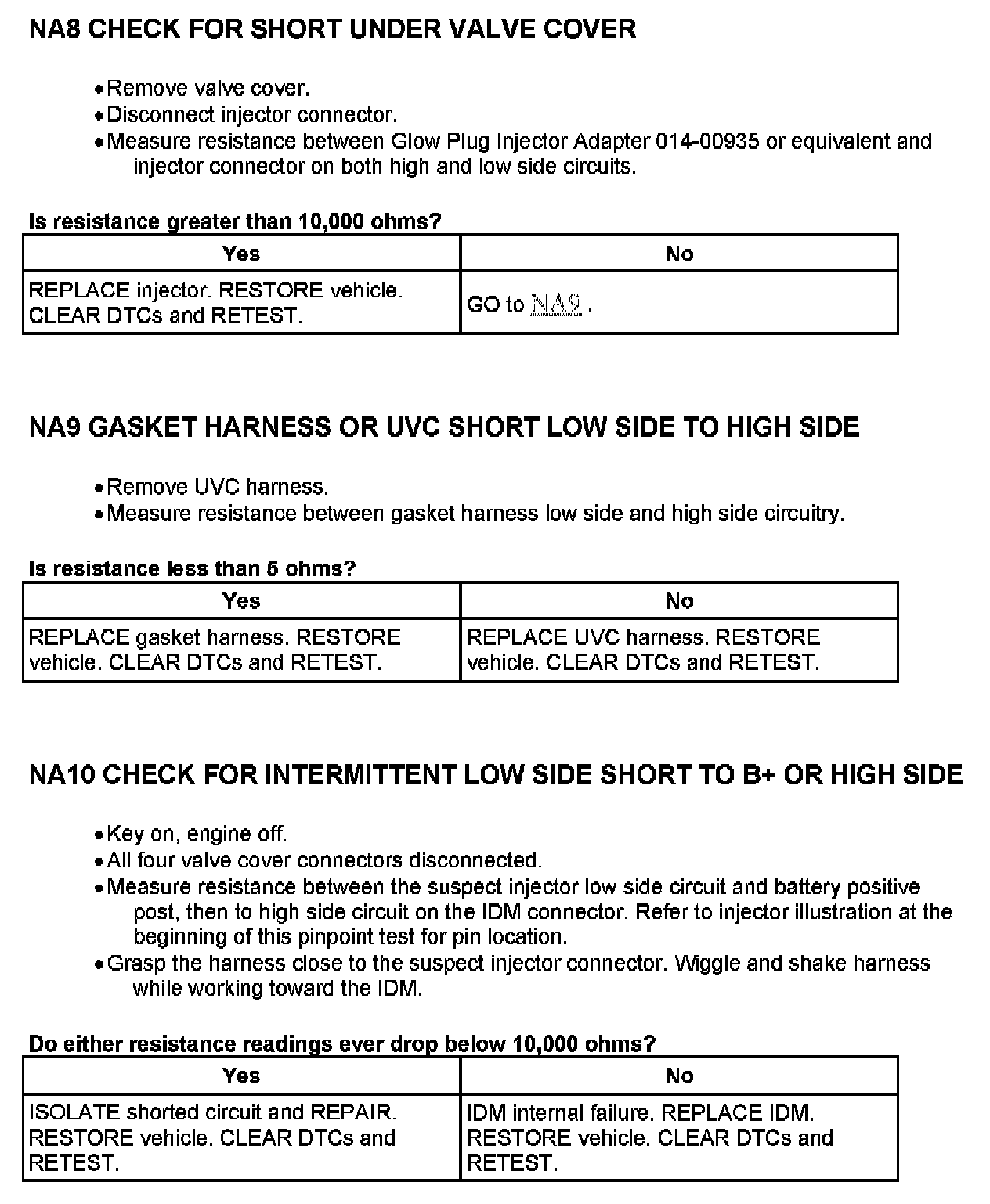

NA8 - NA10:

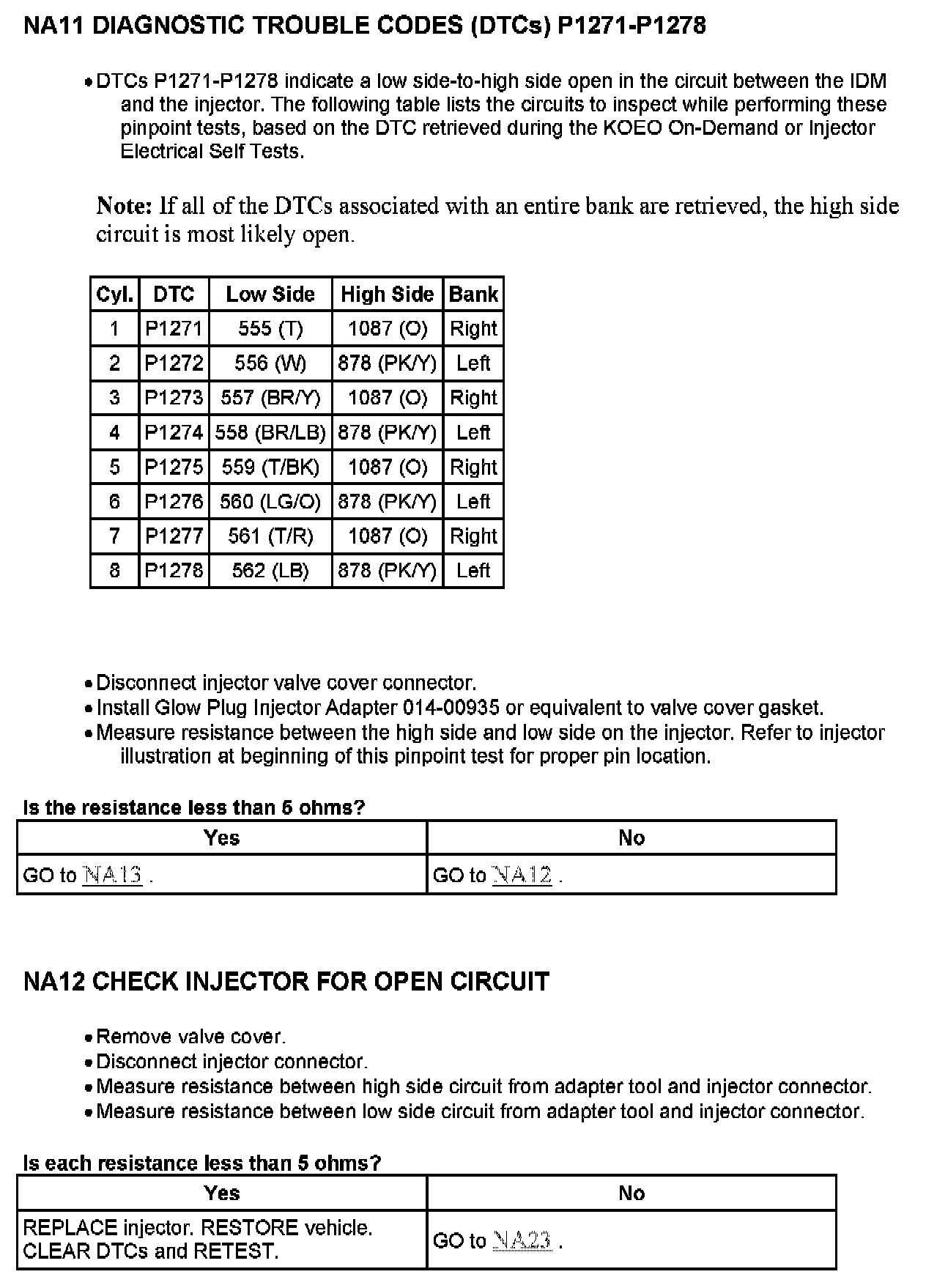

NA11 - NA12:

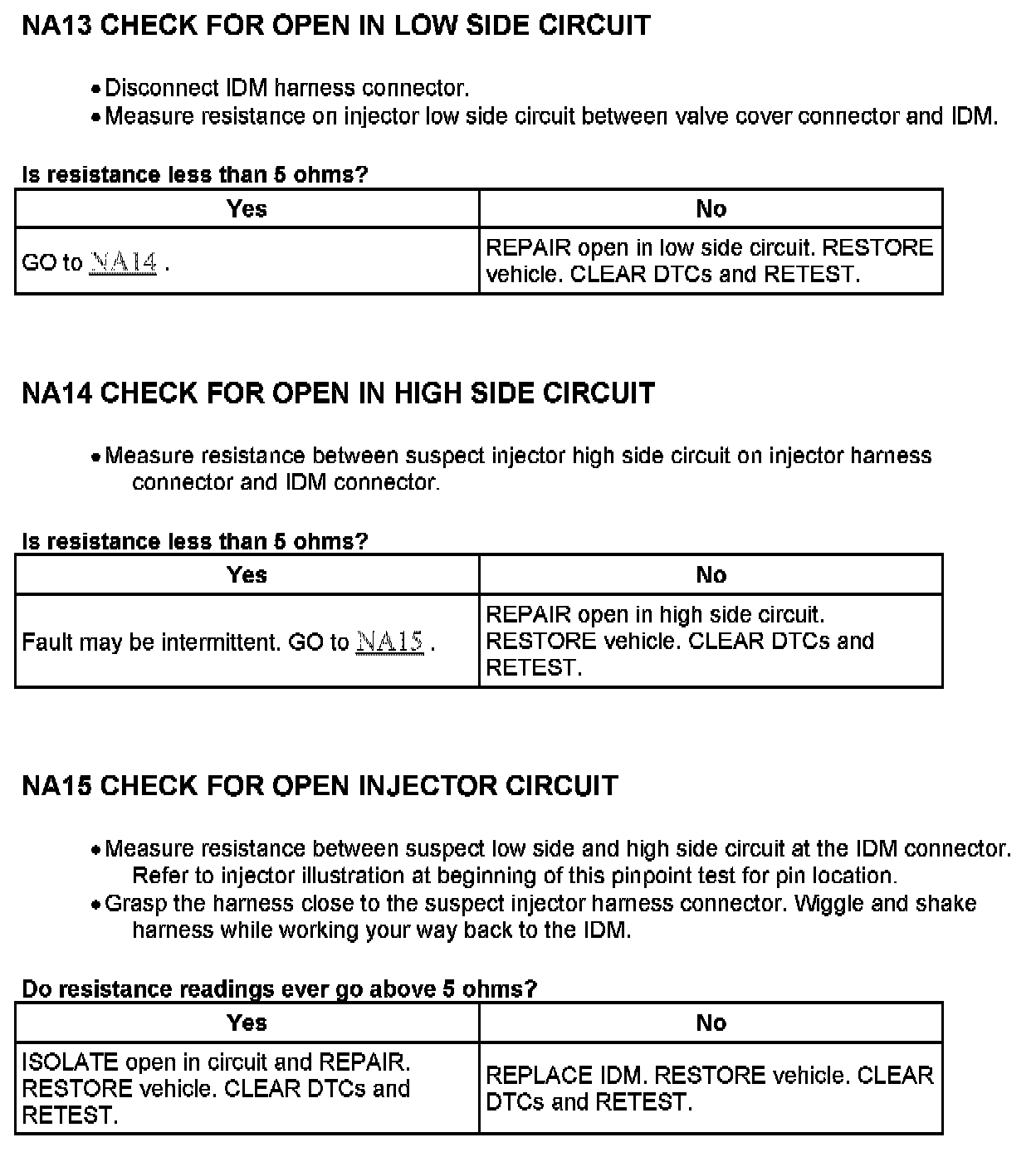

NA13 - NA15:

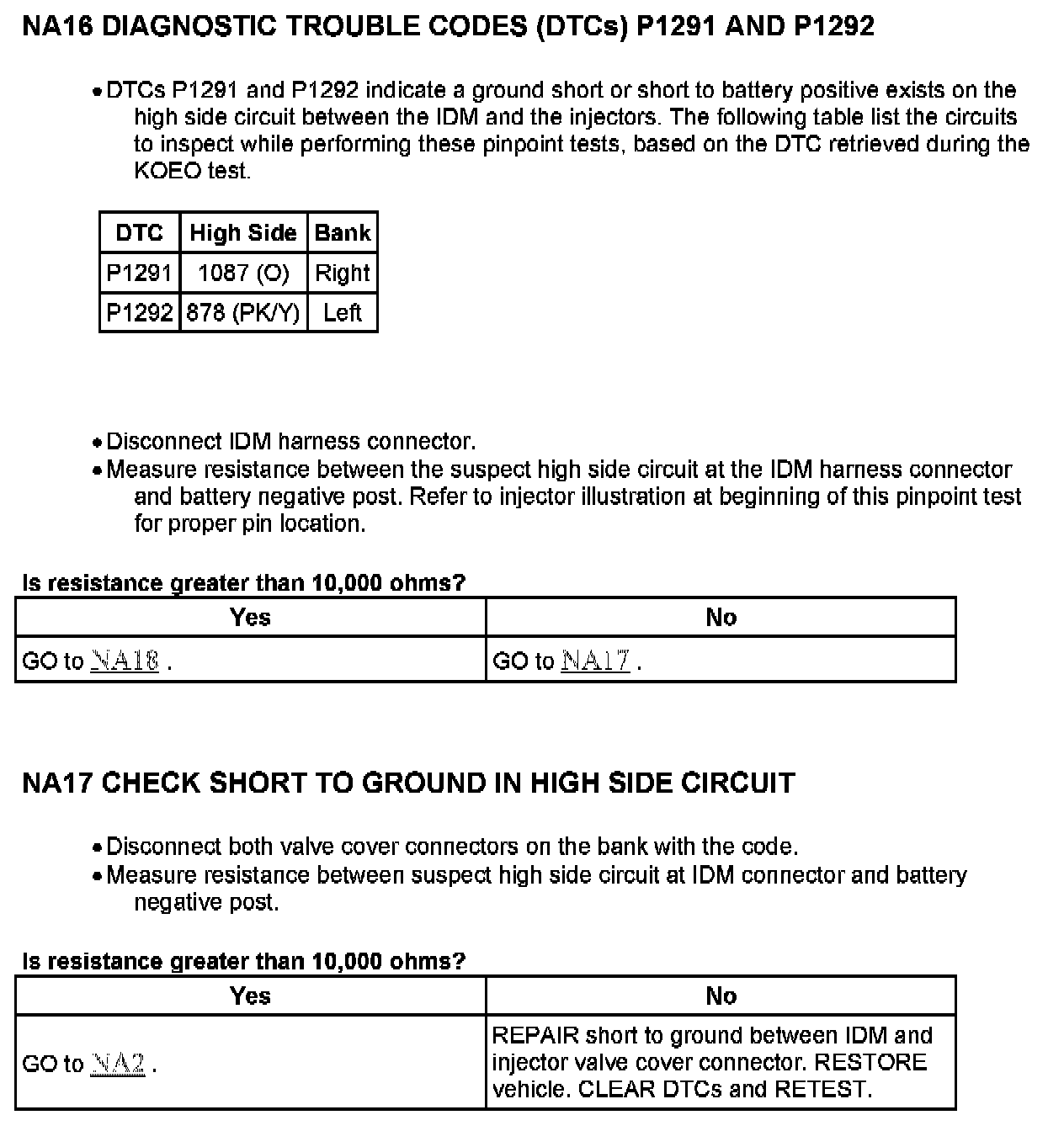

NA16 - NA17:





NA18 - NA19:

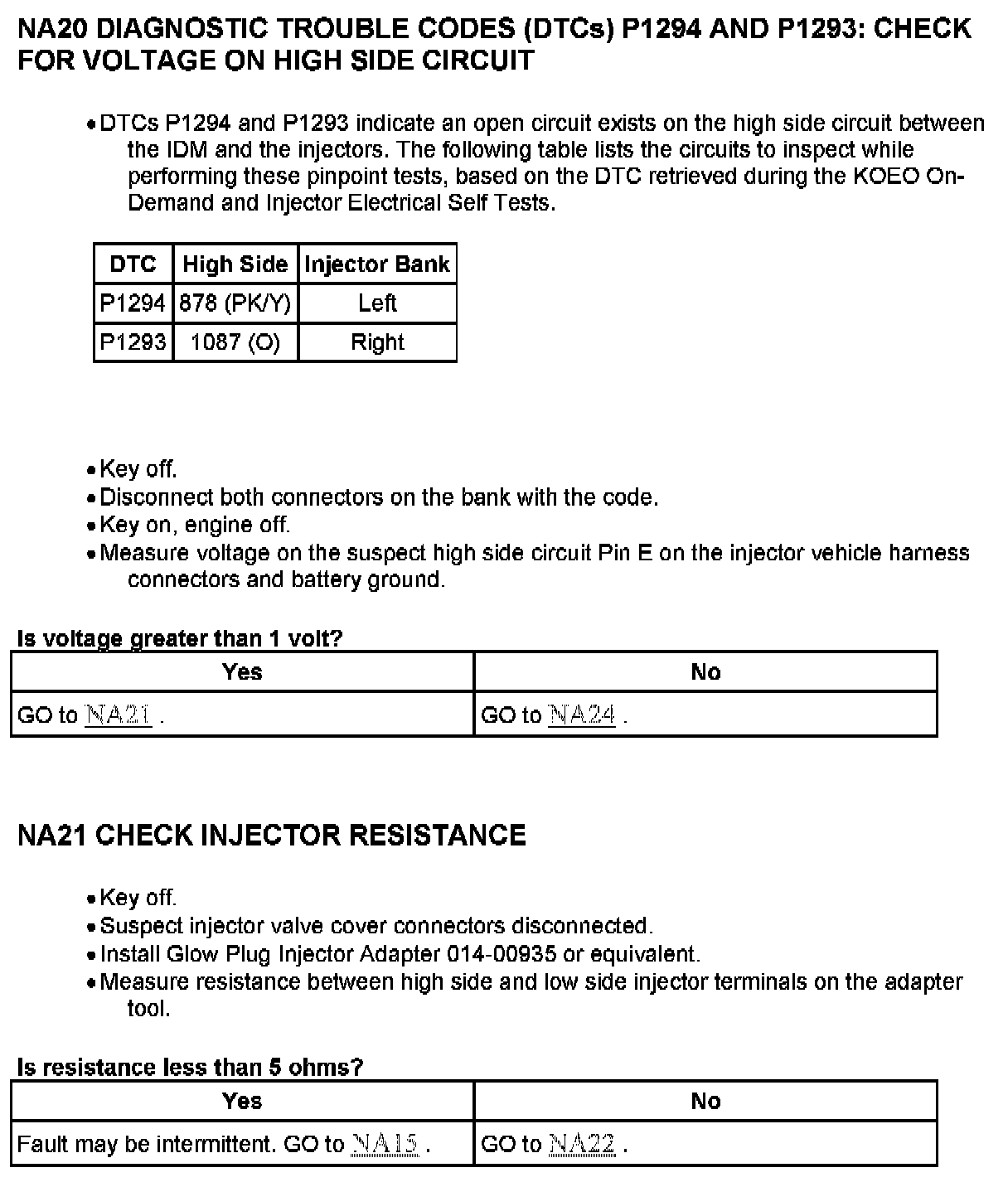

NA20 - NA21:

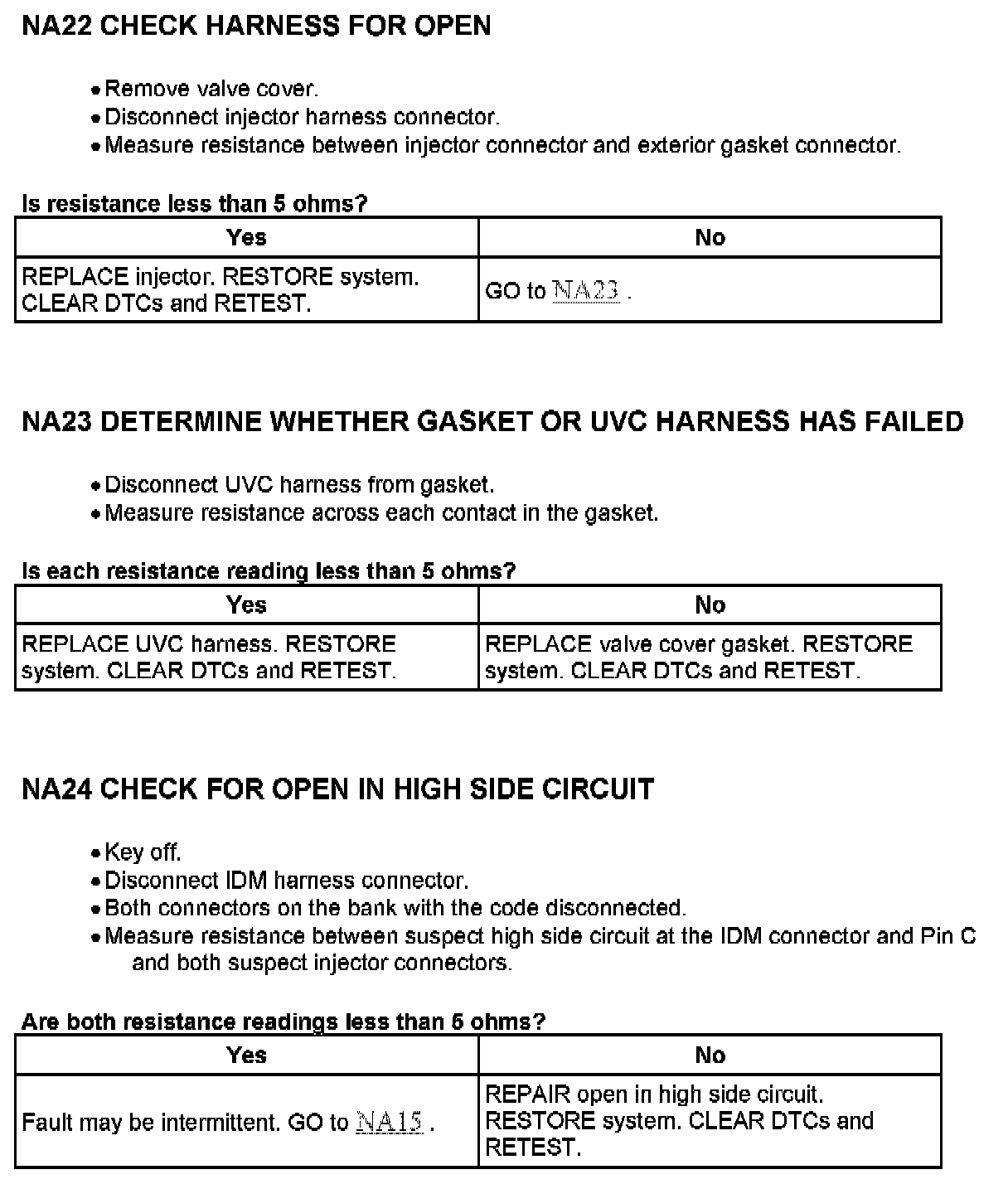

NA22 - NA24:

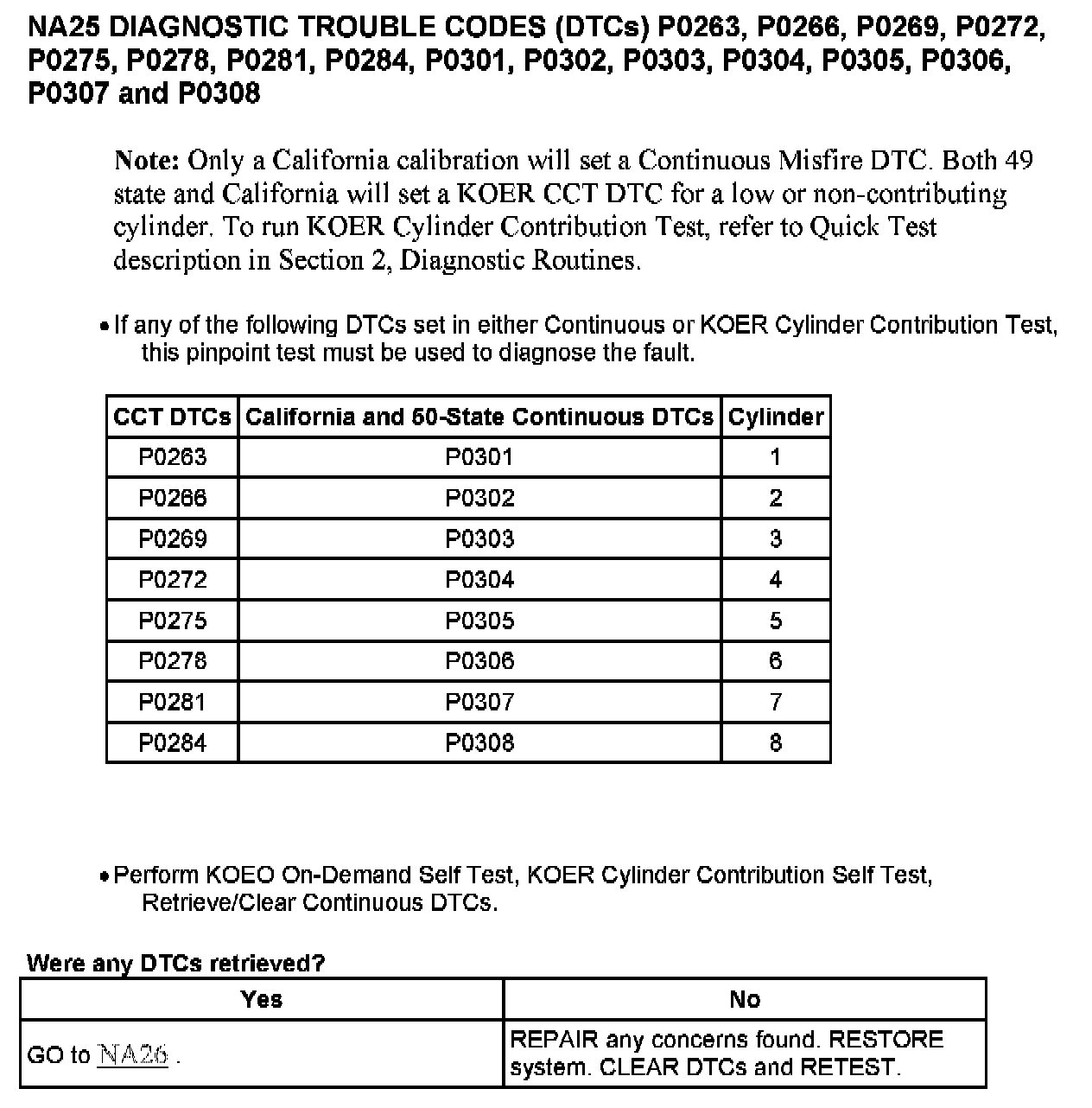

NA25:





NA26 - NA27:

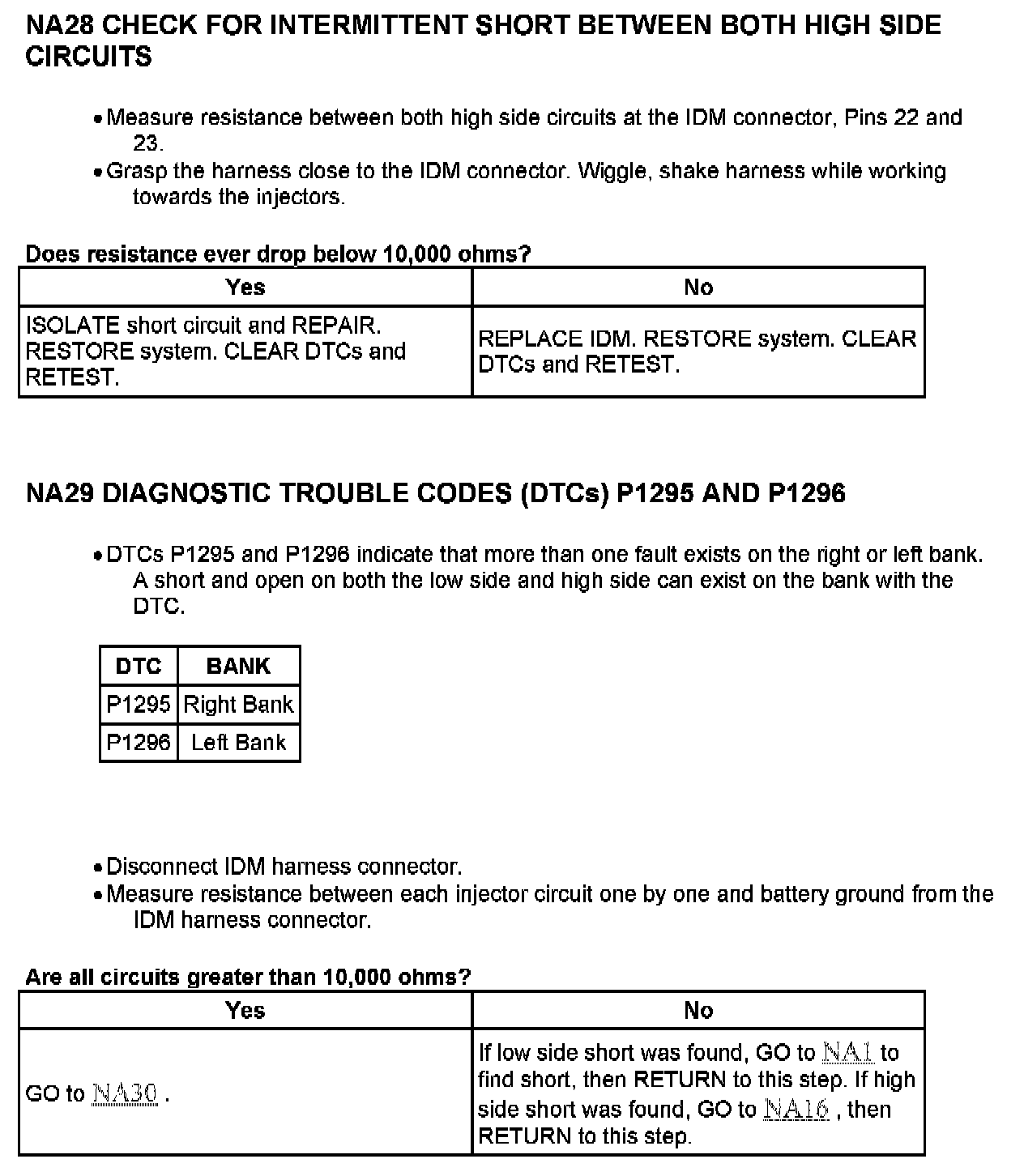

NA28 - NA29:

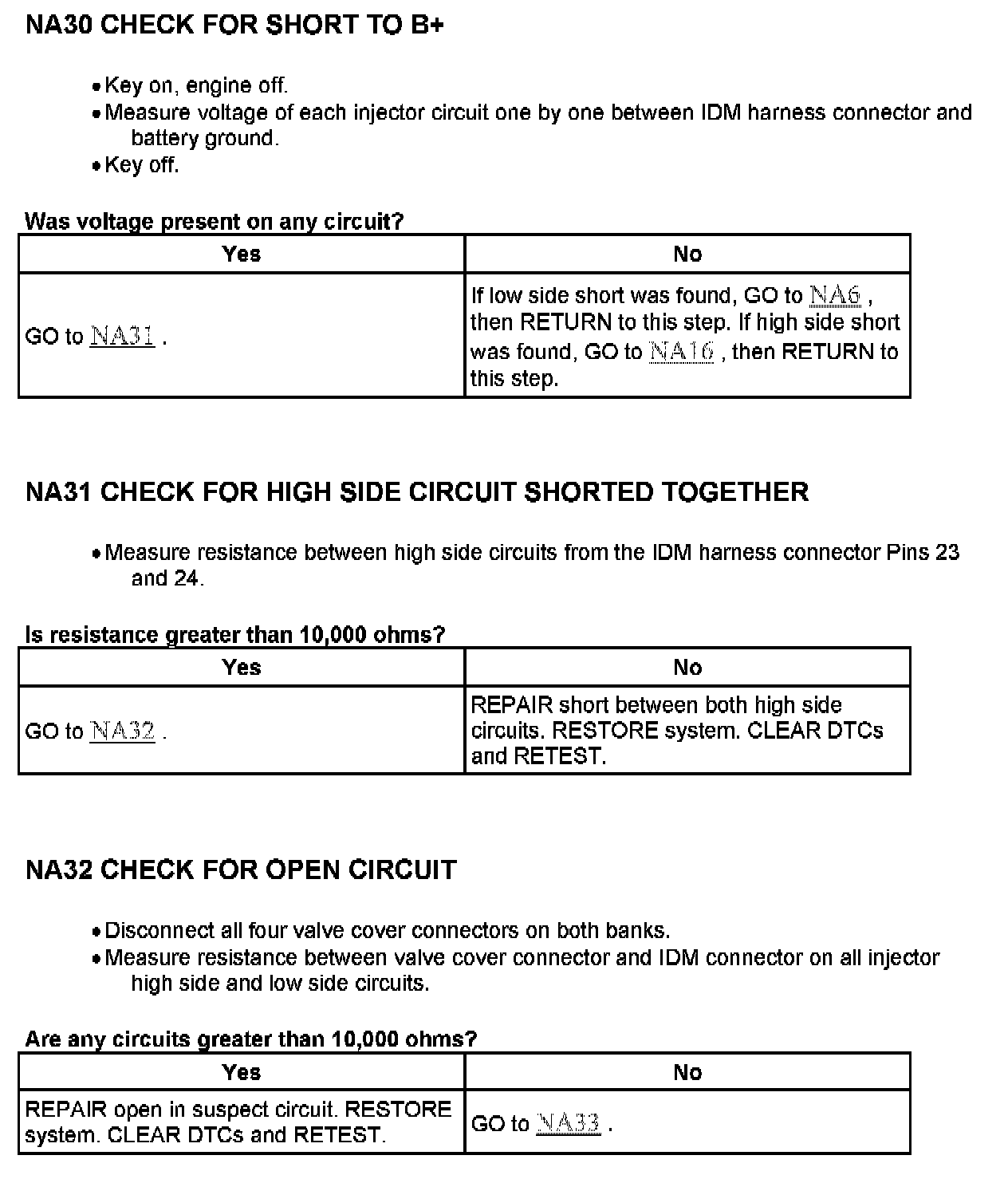

NA30 - NA32:





NA33:
