Tests DF: Camshaft Position (CMP) Sensor

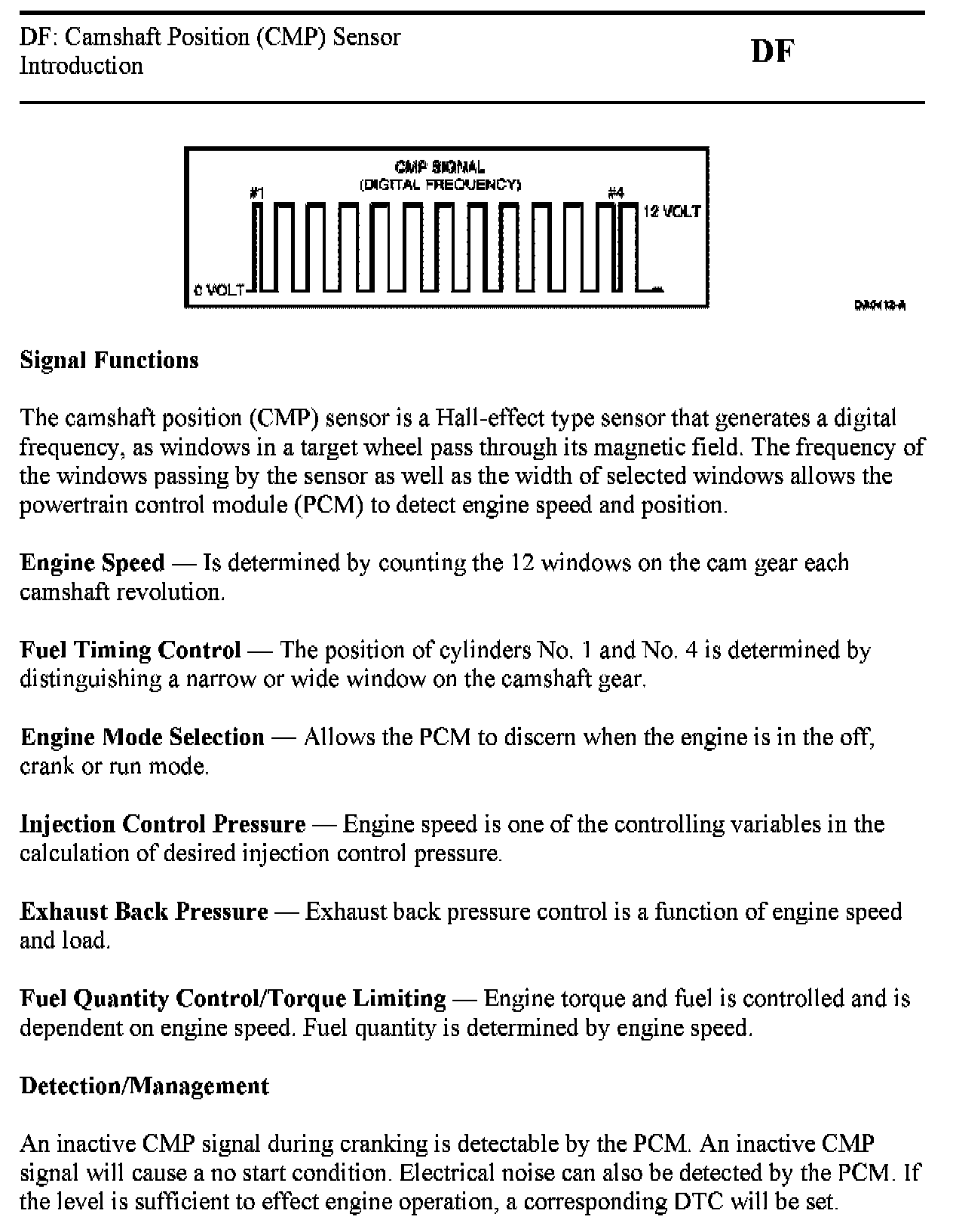

DF: Introduction:





DF: Introduction:





DF1 - DF3:

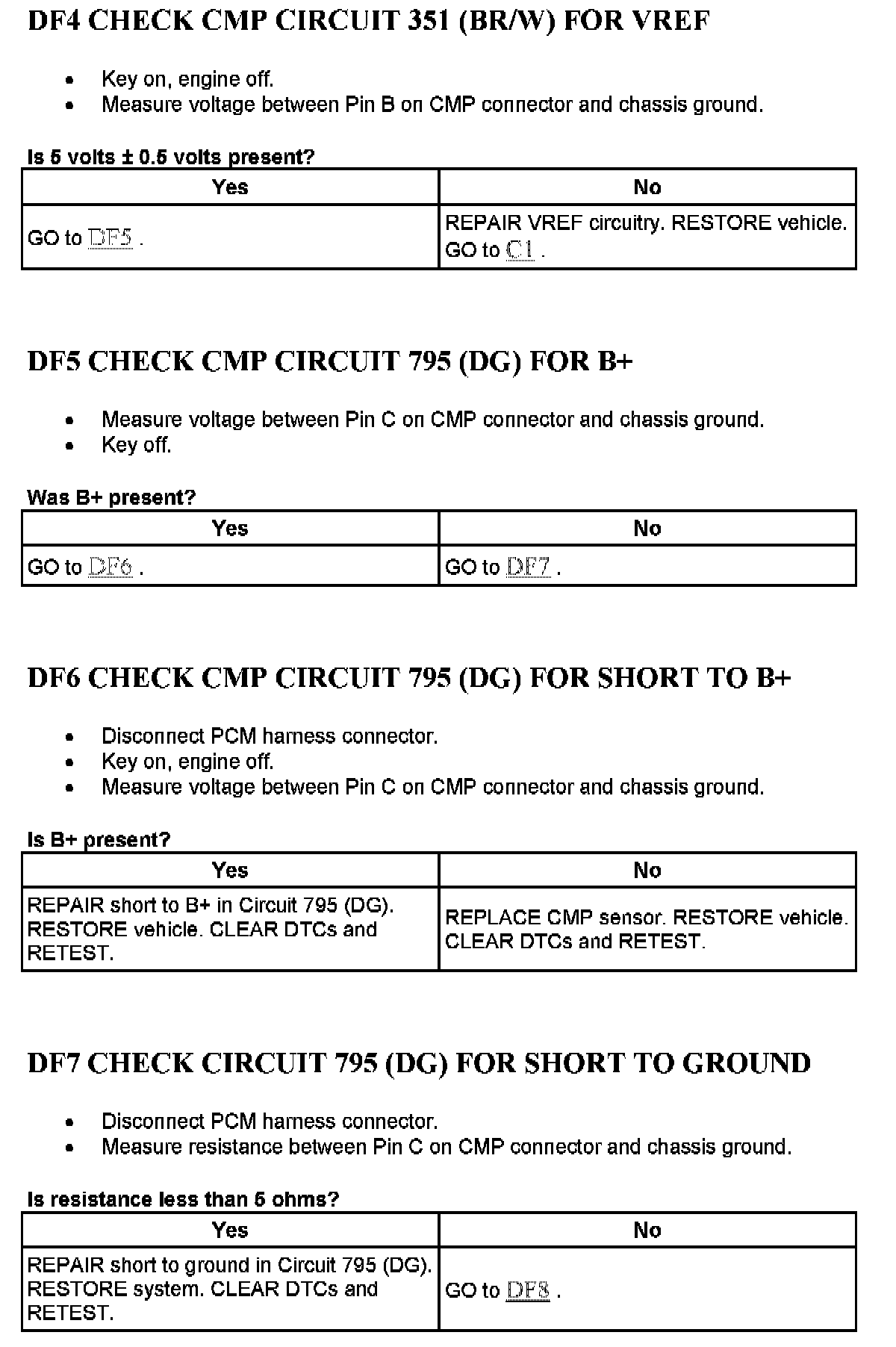

DF4 - DF7:

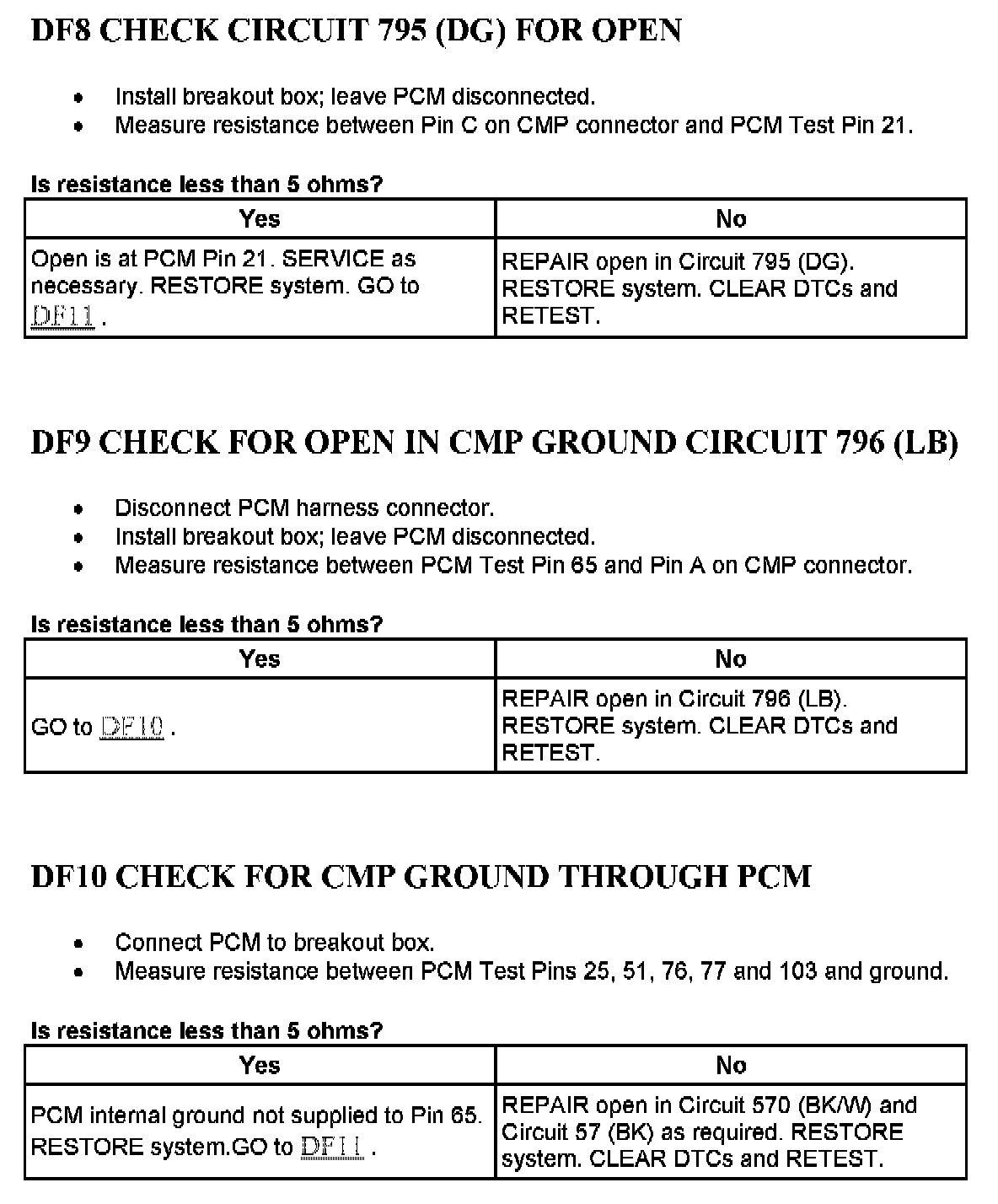

DF8 - DF10:

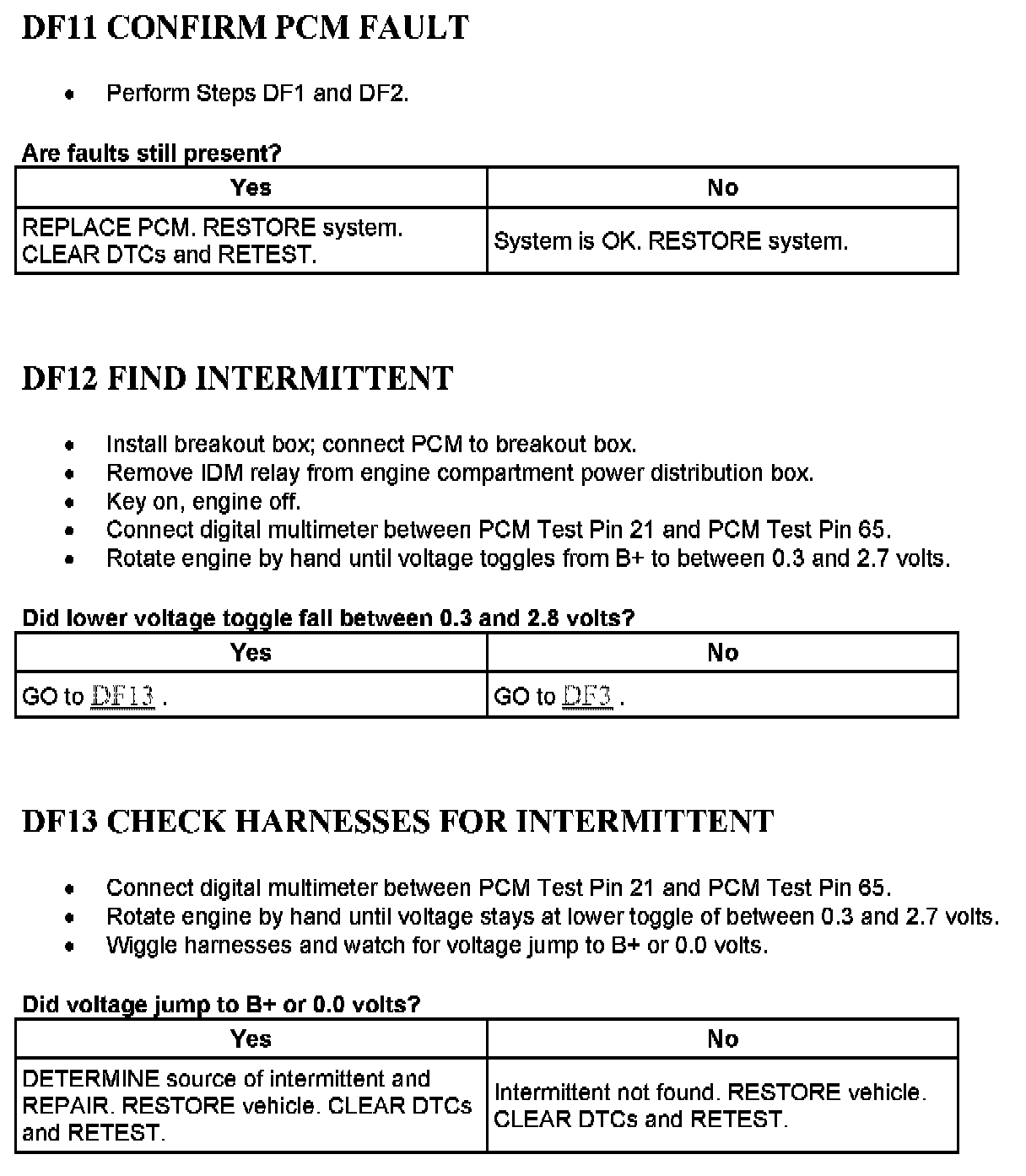

DF11 - DF13:
