Tests DB: Engine Oil Temperature (EOT) Sensor

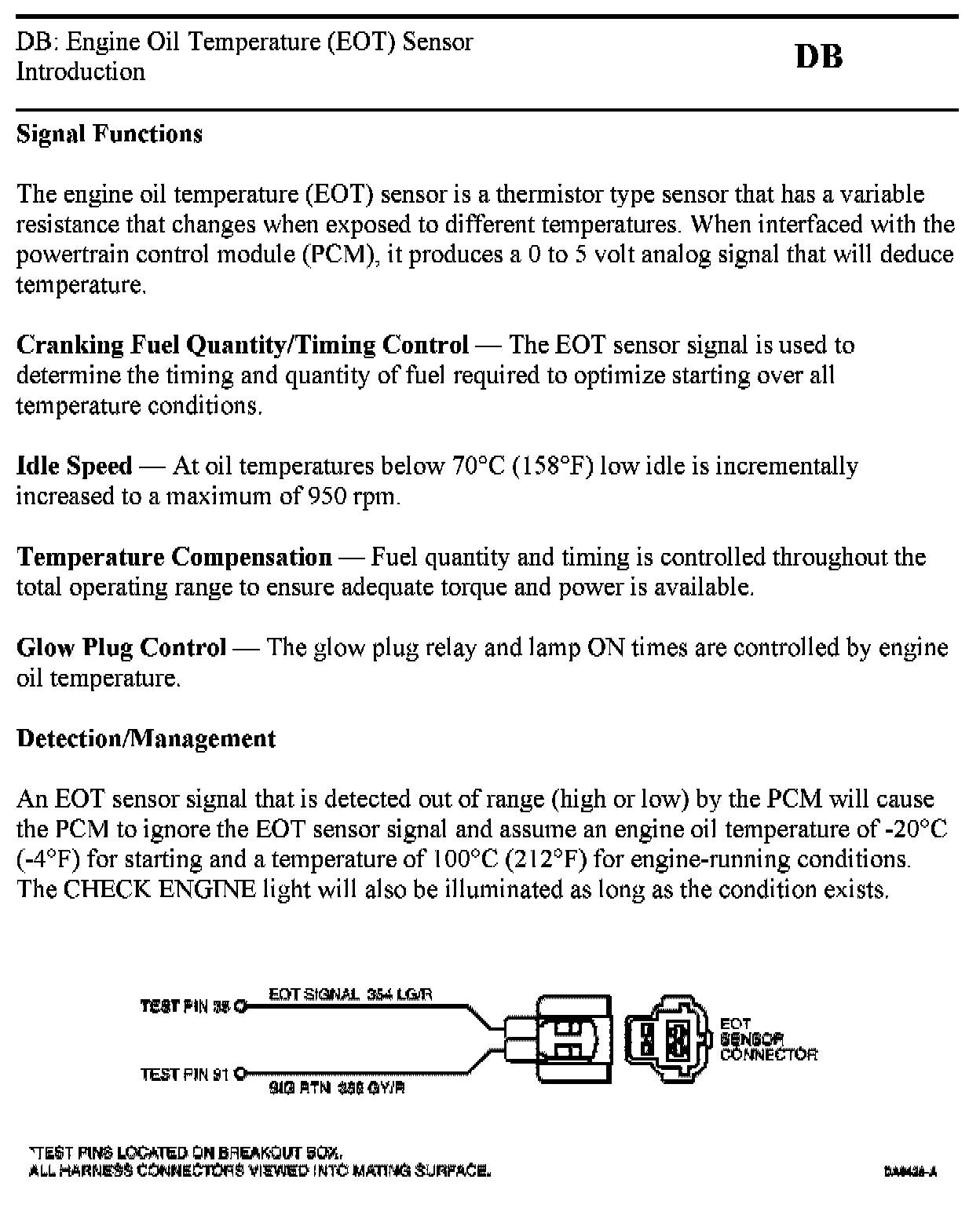

DB: Introduction:





DB: Introduction:





DB: Introduction:





DB1 - DB2:

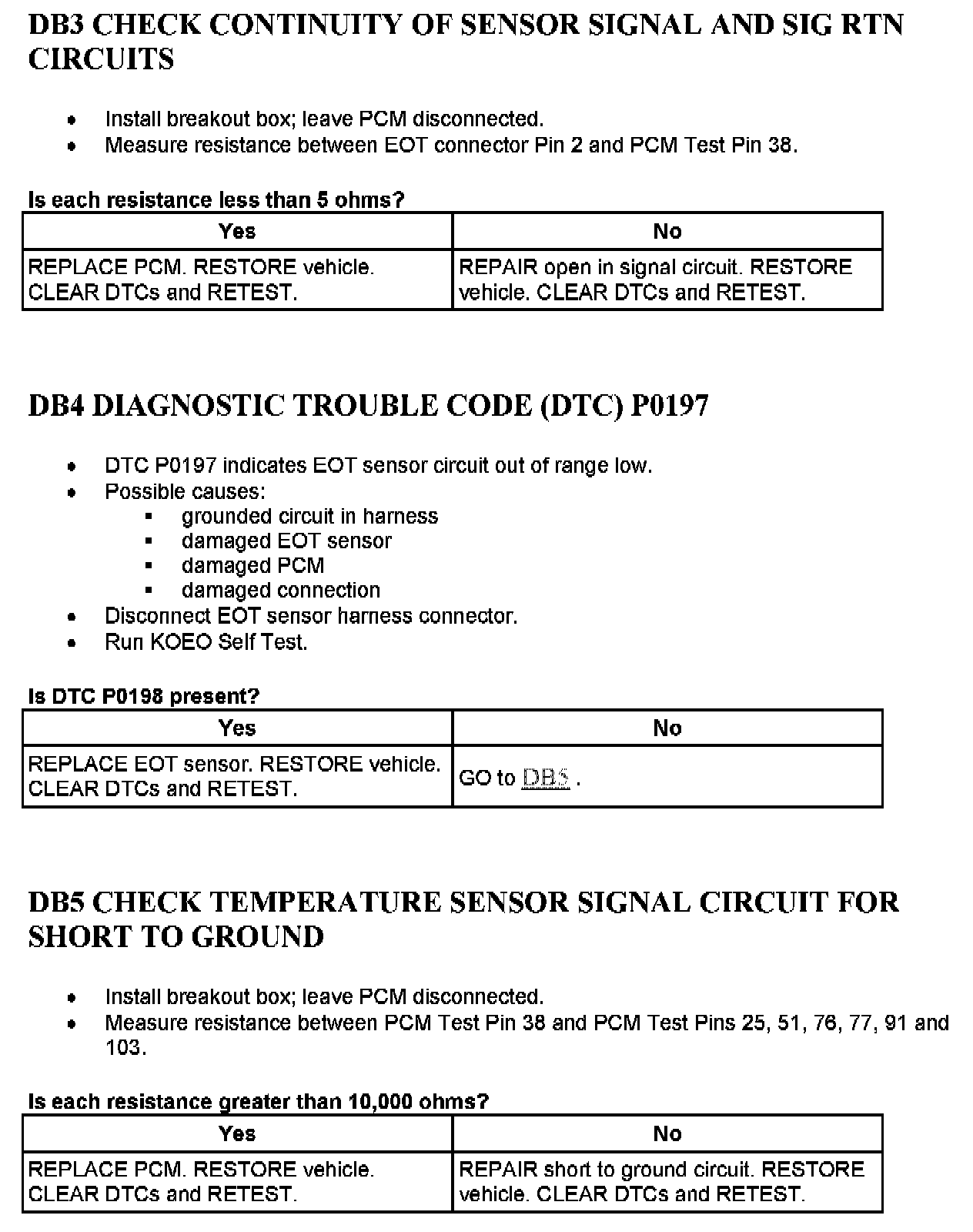

DB3 - DB5:

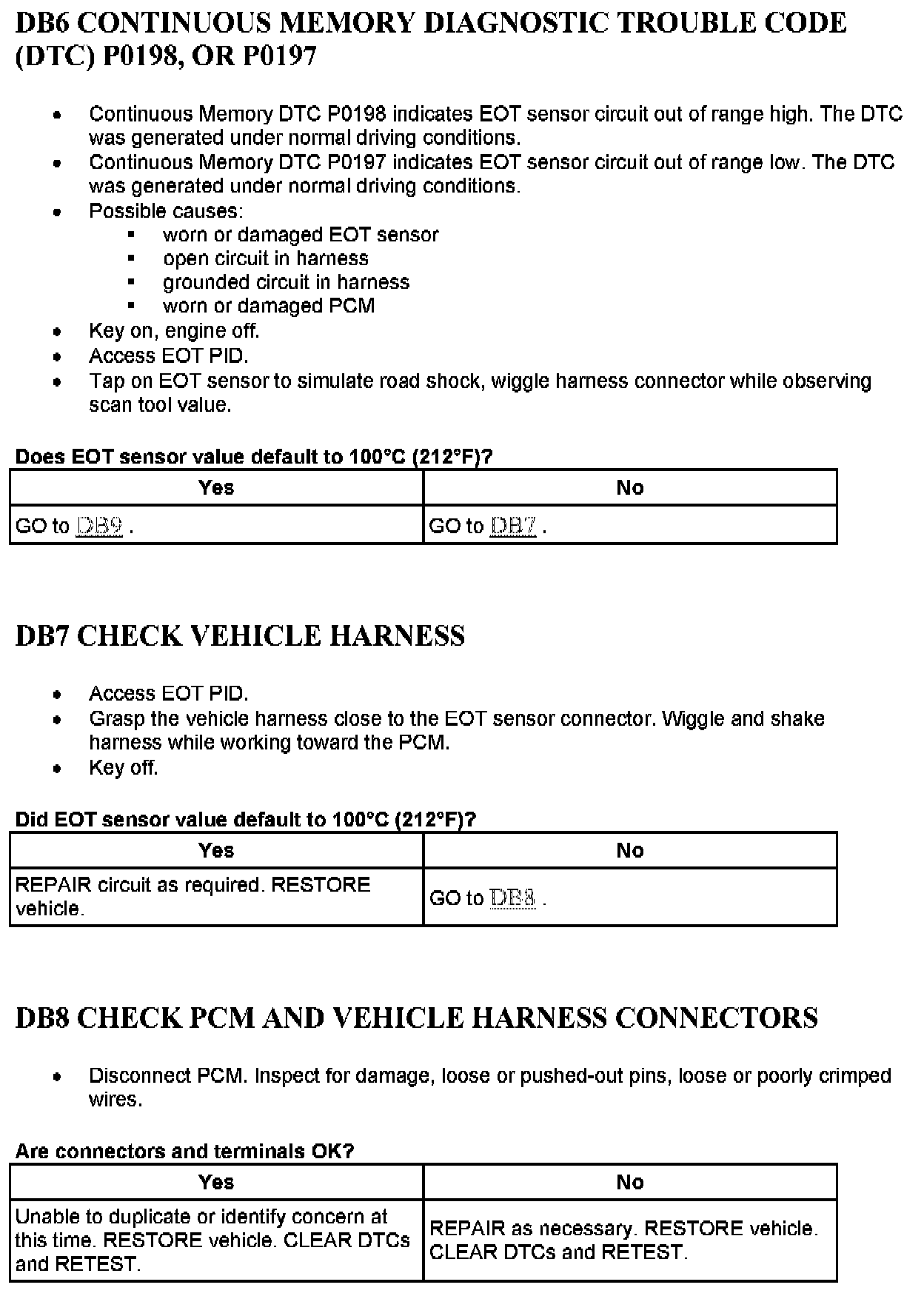

DB6 - DB8:

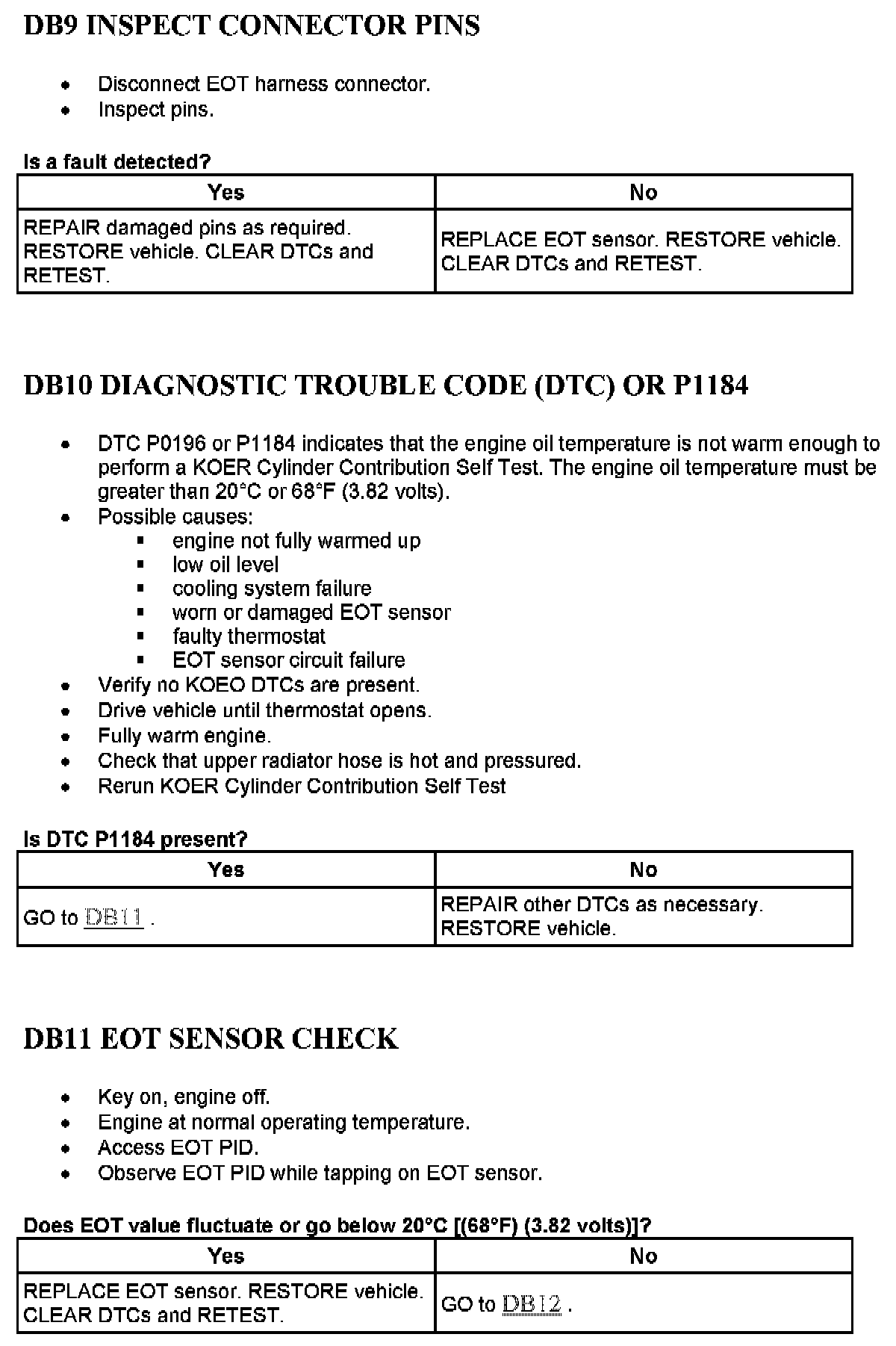

DB9 - DB11:





DB12 - DB13:
