System Diagram

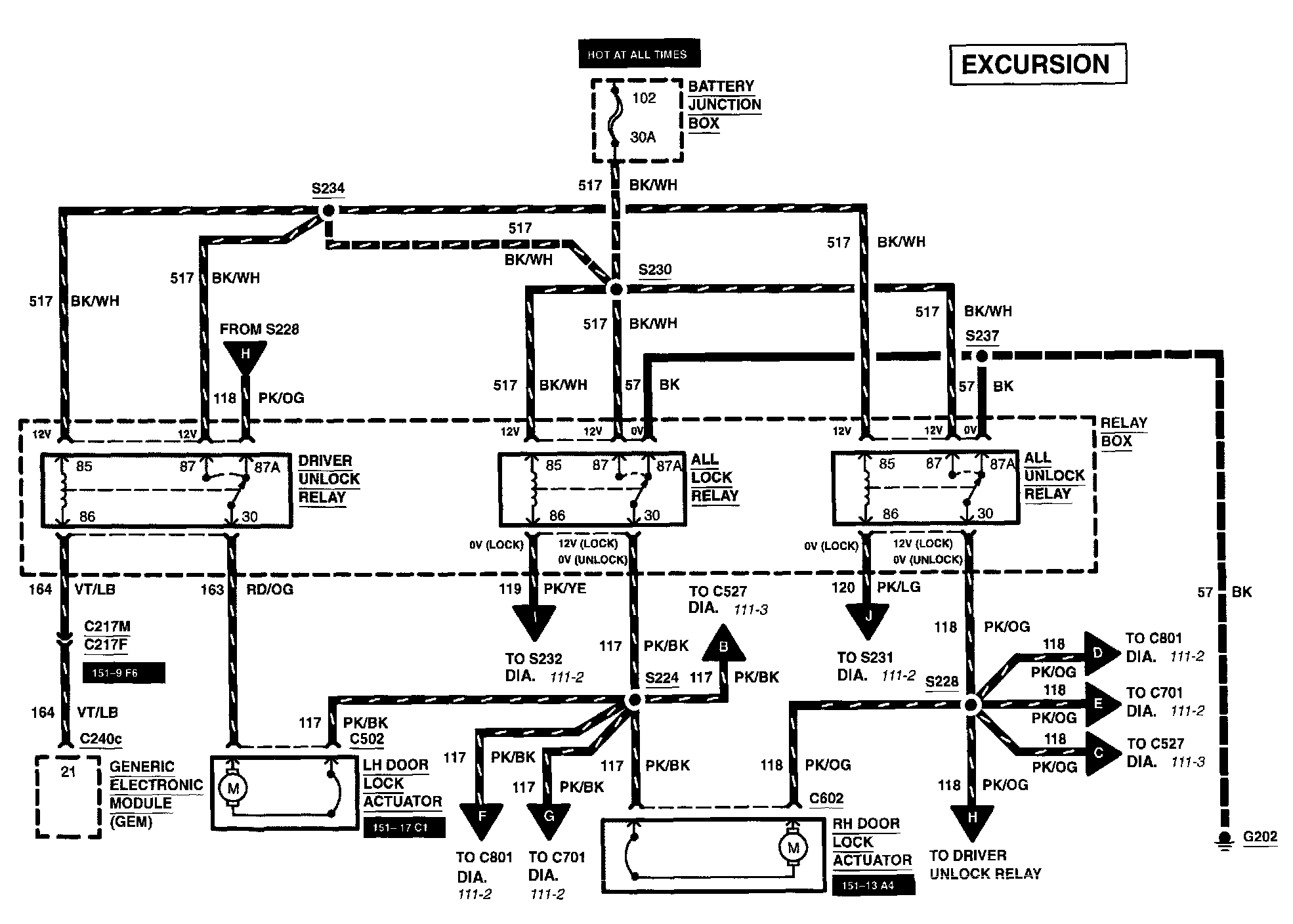

Diagram 111-1:







All Lock Relay
All Unlock Relay
Battery Junction Box
Driver Unlock Relay
Fuse 102

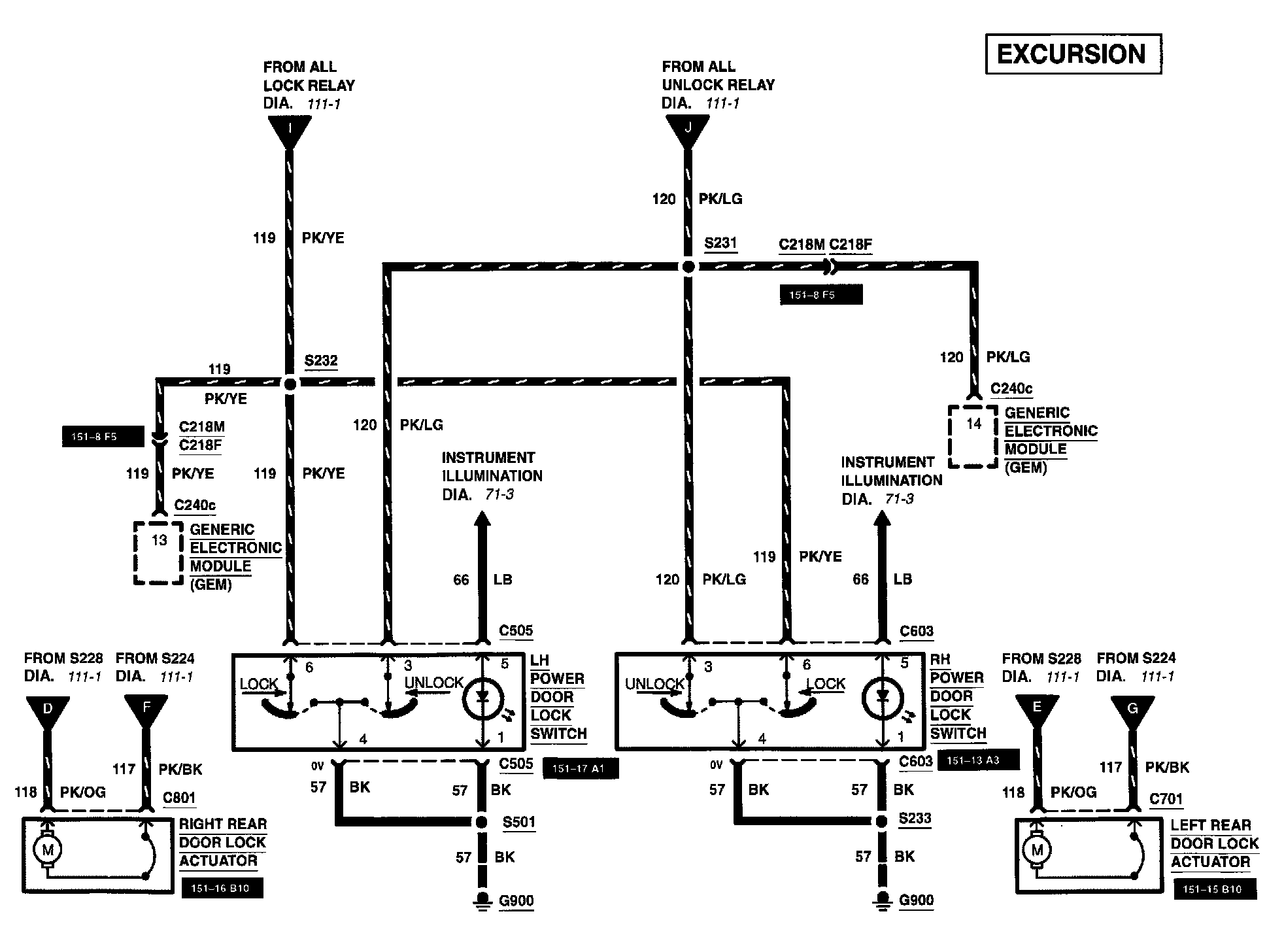

Diagram 111-2:







LH Power Door Lock Switch
RH Power Door Lock Switch

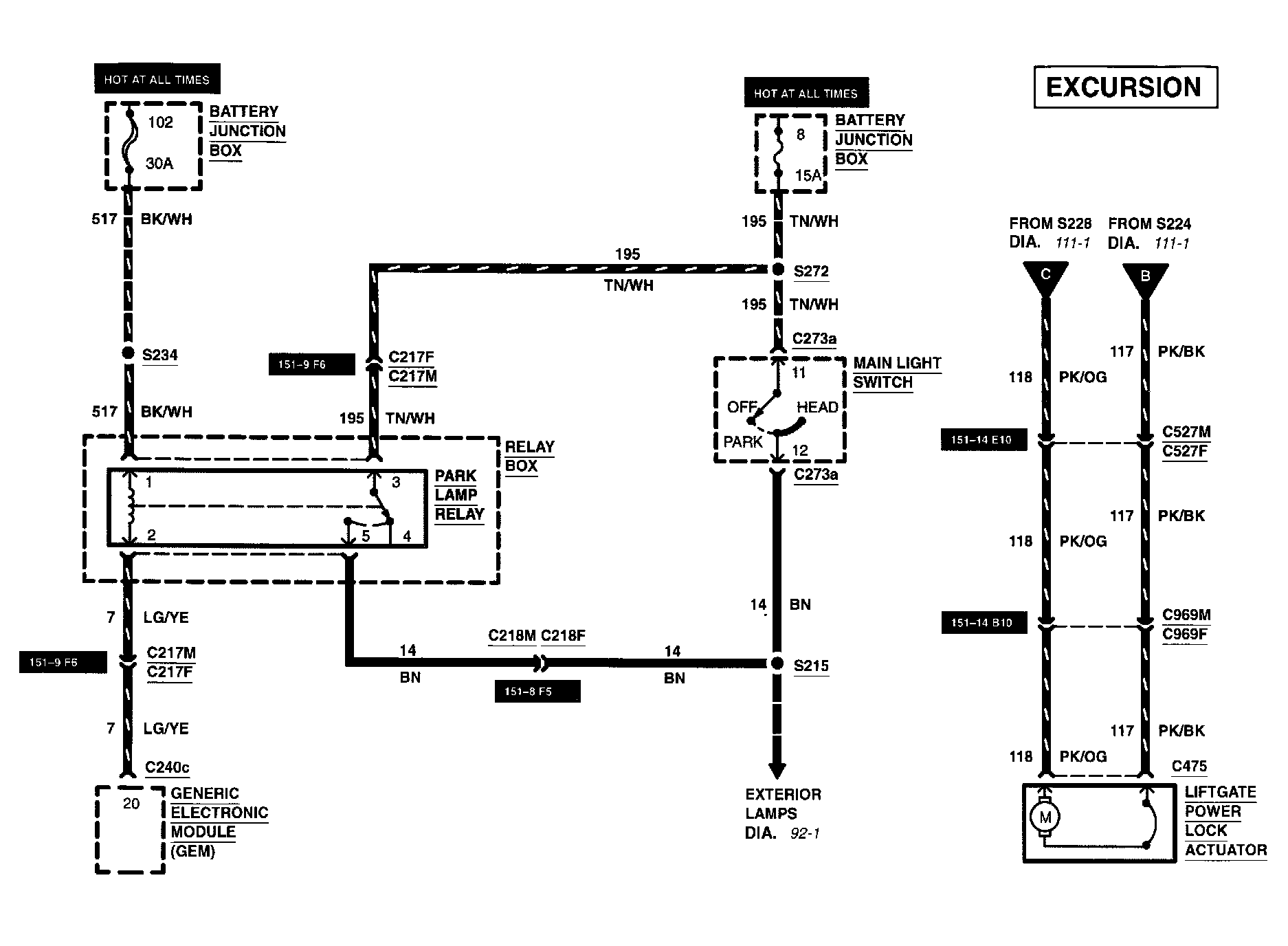

Diagram 111-3:







Battery Junction Box
Fuse 8
Fuse 102
Main Light Switch
Relay Box

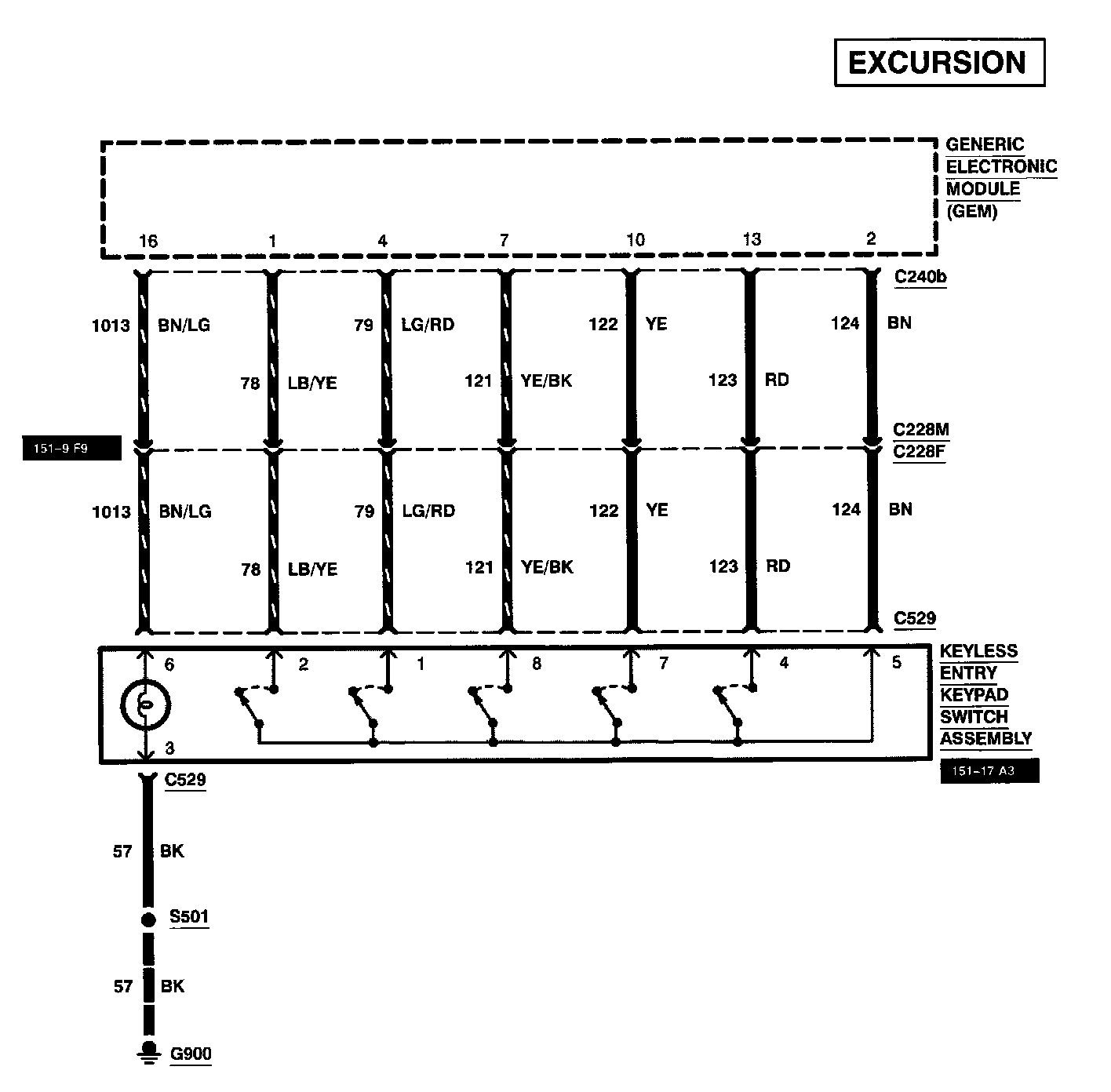

Diagram 111-4:







Generic Electronic Module (GEM)
Keyless Entry Keypad Switch Assembly
